Description

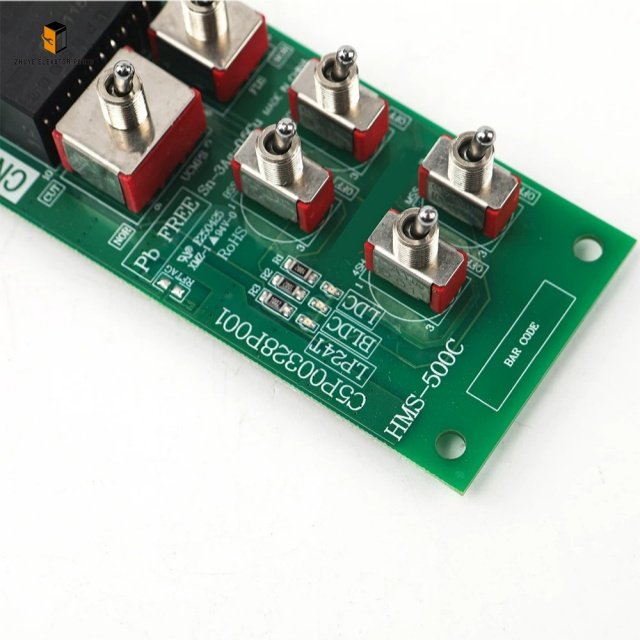

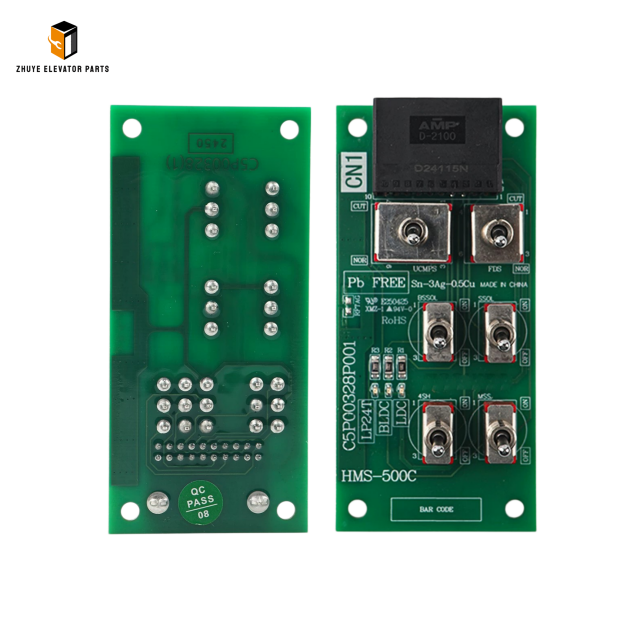

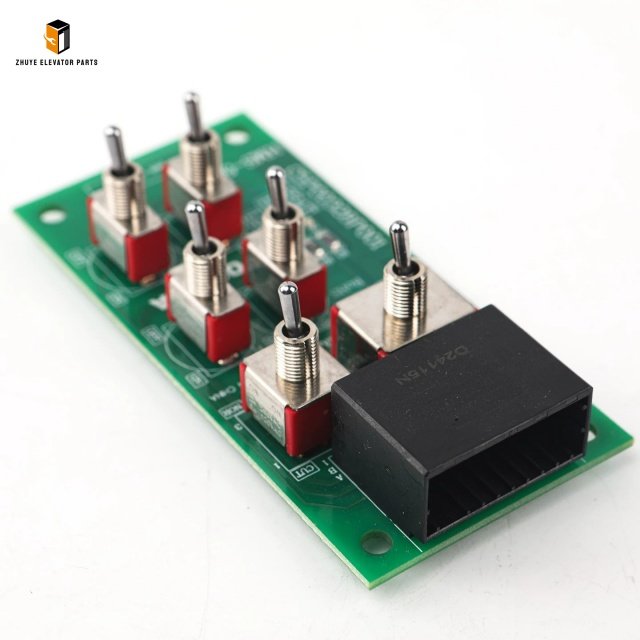

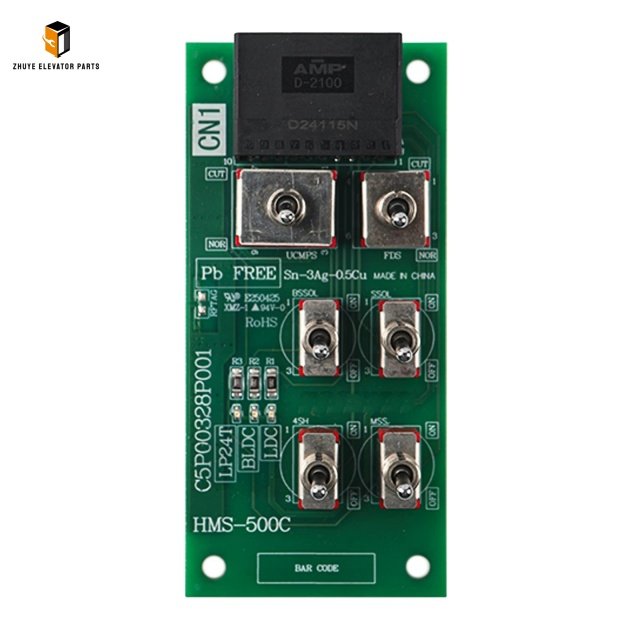

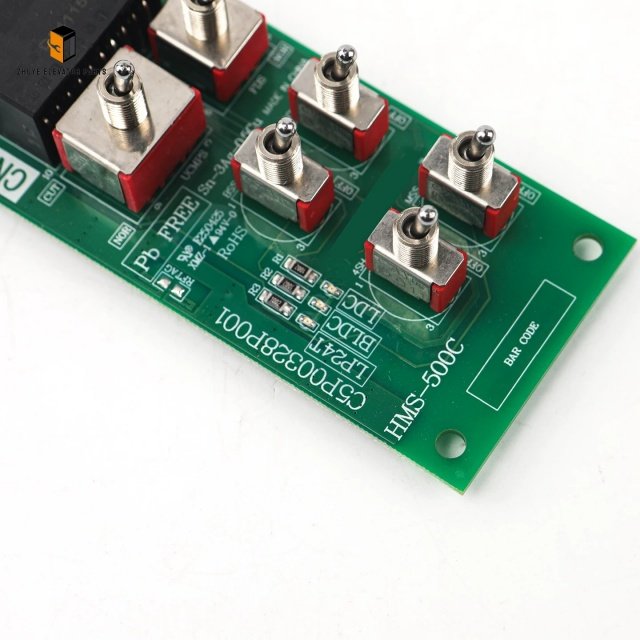

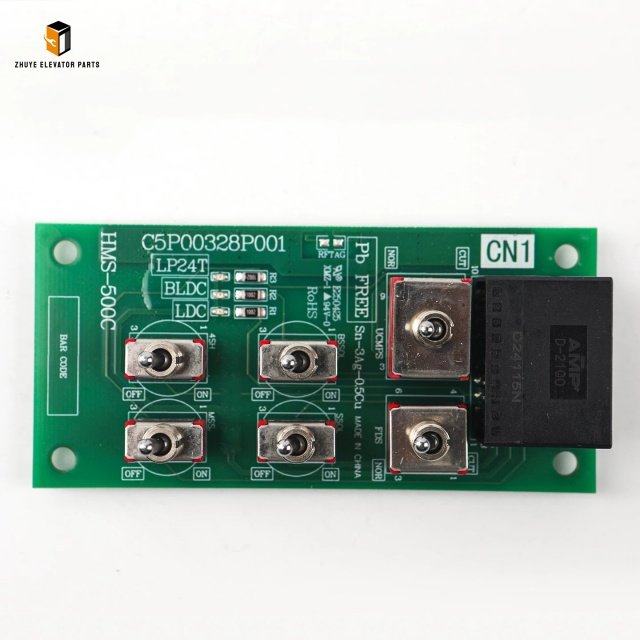

Elevator Machine Room-Less Control Board HMS-500C
|
Product Name |
Elevator Machine Room-Less Control Board |
| Model Number | HMS-500C
UCE19-72A1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Machine Room-Less Control Board HMS-500C | Compatible with Toshiba Elevators
The Elevator Machine Room-Less Control Board HMS-500C is a dedicated core control component professionally optimized and fully compatible with Toshiba machine room-less elevators. Designed for installation on elevator car tops and hoistway wall mounting positions without a traditional machine room, this compact industrial control board acts as the central operation controller for room-less elevator systems. It undertakes full-functional logic management including elevator running scheduling, precise floor leveling, door system linkage, safety loop monitoring and real-time fault diagnosis, ensuring stable, energy-saving and intelligent operation of Toshiba machine room-less elevator equipment. Common operational faults such as unstable running speed, inaccurate floor alignment, unresponsive door actions, intermittent system standby failures and frequent error codes are mainly caused by onboard component aging, circuit oxidation, long-term hoistway vibration and electromagnetic signal interference. Manufactured in strict accordance with Toshiba’s exclusive machine room-less elevator electrical standards and mounting specifications, the HMS-500C control board serves as a standard OEM replacement part for daily maintenance, system debugging, equipment renovation and bulk inventory preparation for global elevator service providers.
Featuring a compact high-integration circuit design and premium anti-aging electronic components, the Toshiba Elevator Machine Room-Less Control Board HMS-500C delivers outstanding operational stability and strong environmental adaptability. Tailored for the special working environment of machine room-less elevators, it resists long-term hoistway vibration, temperature and humidity changes, and dust accumulation, maintaining accurate signal transmission and stable system operation without logic deviation or operational stalling. All interface definitions, electrical parameters and mounting sizes fully match Toshiba factory standards, supporting direct plug-and-play replacement without program rewriting or complex parameter calibration. Built-in multi-dimensional overvoltage, overcurrent and short-circuit protection modules effectively prevent circuit burnout and system disorder, perfectly adapting to long-term continuous operation of all mainstream Toshiba residential and commercial machine room-less elevators.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the HMS-500C machine room-less control board must be performed by certified technicians specializing in Toshiba elevator systems. Before maintenance, completely cut off the elevator main power and control loop power supply, lock the safety isolation switch, and post a visible “Maintenance In Progress” warning sign on-site. Live-line operation and blind disassembly are strictly prohibited to avoid electric shock risks, short-circuit faults and irreversible damage to core control components.
Access the elevator car top or designated hoistway mounting position with professional insulated maintenance tools and locate the original machine room-less control board. Verify the model to confirm full compatibility with the HMS-500C specification for Toshiba elevators. Disconnect all power terminals, signal connectors and data wires one by one and mark each interface clearly to avoid misconnection during reinstallation. Remove fixing screws and gently detach the aging or faulty original board. Thoroughly clean the mounting base and contact points to eliminate dust and oxide layers that may cause poor contact and system instability.
Install the brand-new HMS-500C control board at the standard mounting position and fasten the fixing screws firmly to prevent displacement caused by long-term elevator vibration. Reconnect all wiring strictly according to the marked sequence and double-check all terminals for firm connection and correct circuit logic. After installation, restore the power supply and conduct comprehensive tests including power-on self-inspection, elevator running test, floor leveling calibration and door linkage test to ensure stable and fault-free operation of the entire machine room-less control system.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the HMS-500C machine room-less control board varies with elevator operating frequency and hoistway environmental conditions. For conventional residential and low-frequency office Toshiba machine room-less elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic venues such as shopping malls, hospitals and transit hubs, or humid, dusty hoistway environments, the control board endures frequent vibration and environmental erosion. It is advisable to shorten the replacement cycle to 4 to 5 years to prevent sudden system failure and unplanned elevator downtime.
Immediate replacement is required once abnormal symptoms occur, including frequent system fault codes, unstable elevator operation, intermittent signal interruption, board overheating and failed self-detection. Timely replacement of the HMS-500C control board eliminates hidden safety hazards and ensures reliable, efficient operation for all Toshiba machine room-less elevator systems.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator Machine Room-Less Control Board HMS-500C, 100% compatible with all mainstream Toshiba machine room-less elevator models. Every unit undergoes strict functional testing, system matching verification and 72-hour continuous aging tests before shipment. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and provide professional remote installation and debugging guidance. Our high-quality OEM spare parts reduce on-site maintenance difficulty, minimize elevator downtime, and help global elevator contractors improve operational safety and service efficiency.
