Description

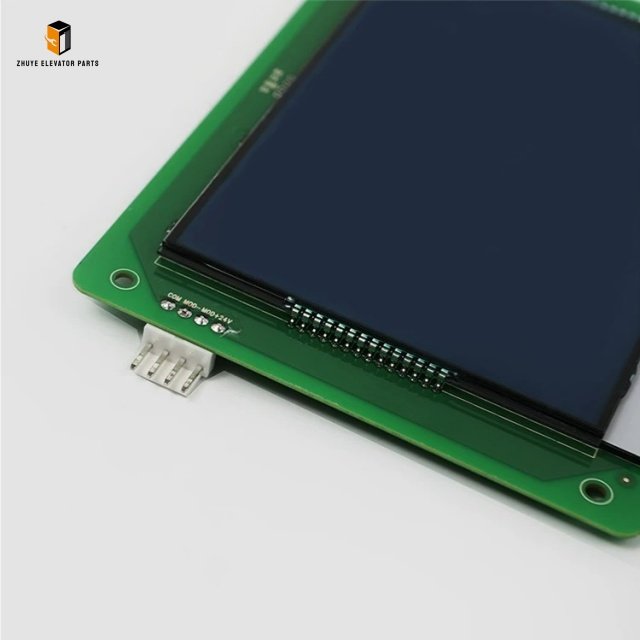

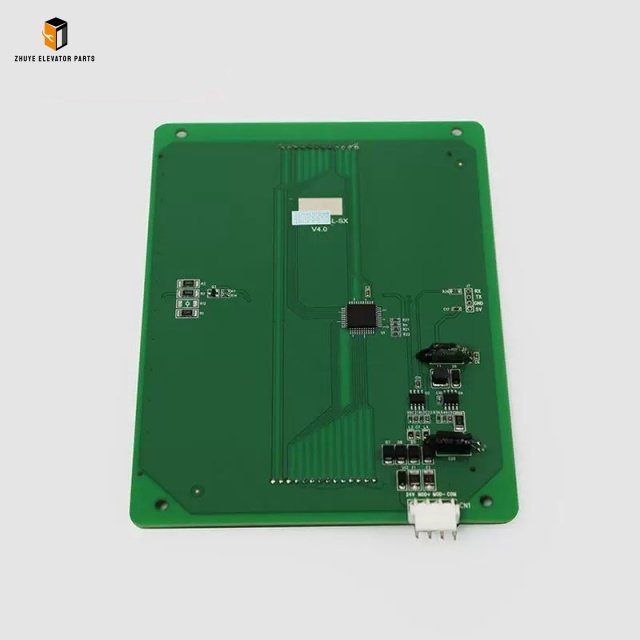

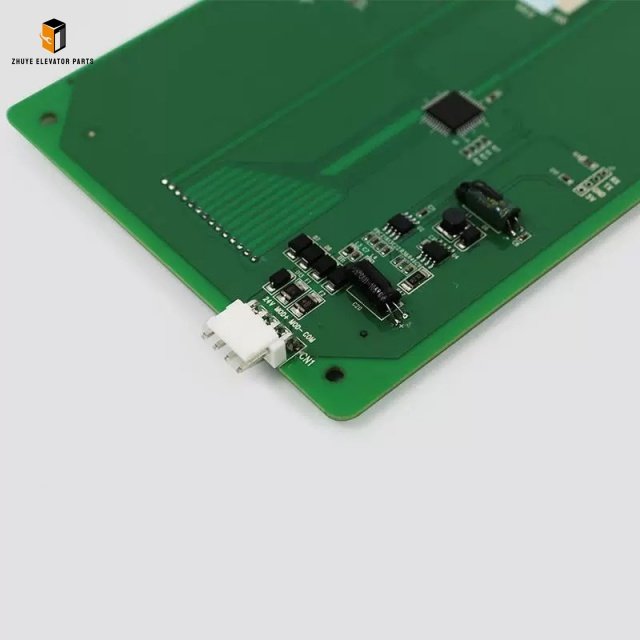

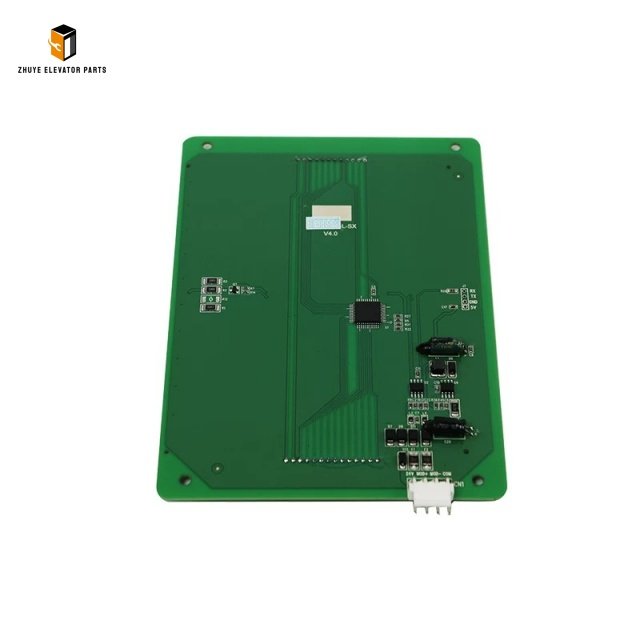

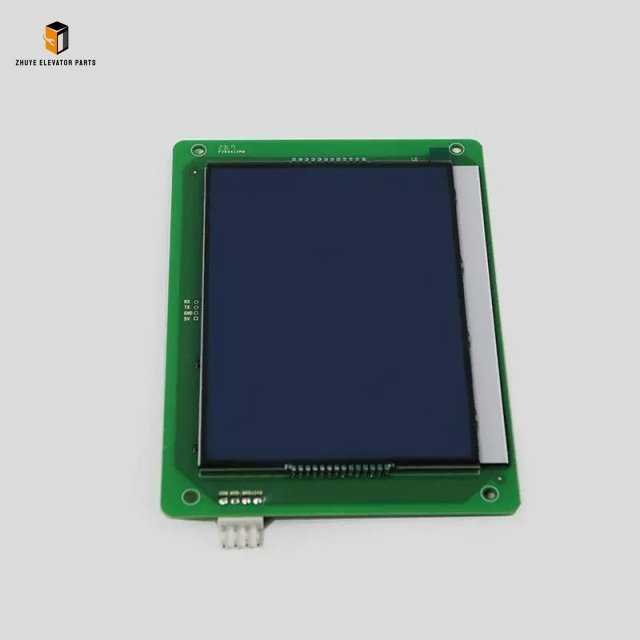

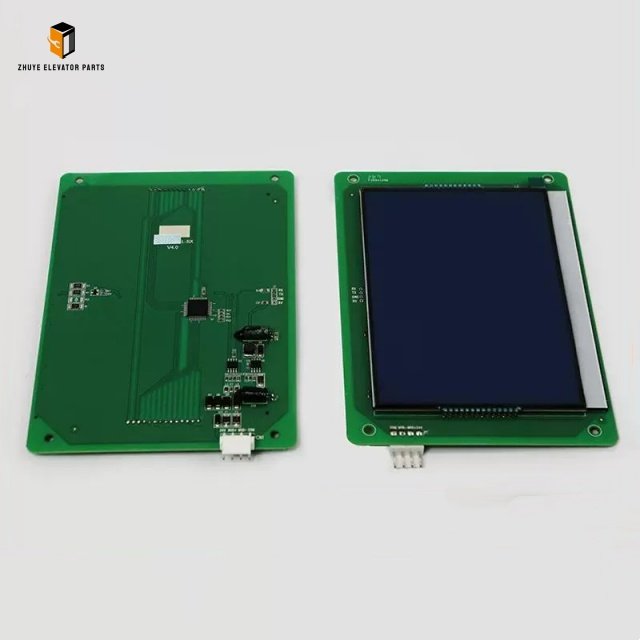

Elevator Lop Display Board SFTC-CCB-L-SX/HX
|
Product Name |
Elevator Cop Display Board |
| Model Number | SFTC-CCB-L-SX
SFTC-CCB-L-HX |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board SFTC-CCB-L-SX/HX | Compatible with Monarch Control System
Built with flame-retardant PCB and oxidation-resistant LED beads, the Elevator LOP Display Board SFTC-CCB-L-SX/HX features outstanding dustproof, moisture-proof and anti-interference capabilities. Optimized for public lobbies with heavy pedestrian flow and fluctuating ambient temperatures, it maintains consistent stability during long-duration continuous operation. All mounting holes, terminal definitions, rated voltage and communication interfaces fully conform to Monarch factory standards, enabling true plug-and-play installation without extra programming or parameter debugging. Built-in surge protection chips effectively resist current fluctuation and electromagnetic interference from peripheral electrical equipment. Ideal for all mainstream Monarch residential and commercial elevators, this display board ensures even brightness and prolonged service durability.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the SFTC-CCB-L-SX/HX LOP display board must be completed by technicians certified for Monarch elevator systems. Before maintenance, cut off the independent landing power supply, lock the isolation switch securely, and attach a visible “Maintenance In Progress” warning sign. Live-line operation and hot swapping are strictly prohibited to prevent terminal burnout and unexpected elevator malfunctions.
Gently pry open the landing decorative panel with insulated professional tools. Verify the old circuit board model to confirm full compatibility with SFTC-CCB-L-SX/HX. Slowly extract the display assembly, disconnect signal cables and power connectors sequentially, and clearly mark wiring positions to avoid misconnection. Remove fixing screws and safely detach the defective original board.
Clean the internal panel slot thoroughly to remove dust and conductive particles that may cause poor contact. Secure the brand-new SFTC-CCB-L-SX/HX display board with anti-loose screws to prevent vibration displacement. Reconnect all cables following marked positions and double-check terminal tightness. Restore the decorative panel, reactivate the power supply, and conduct repeated test runs to confirm clear digits, sensitive direction prompts and stable signal linkage.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of SFTC-CCB-L-SX/HX varies with lobby conditions and elevator usage frequency. For dry residential buildings and low-traffic office elevators, the recommended replacement cycle is 6 to 8 years.
For high-traffic venues including shopping malls and medical centers, or humid coastal buildings, the board endures continuous lighting load and moisture erosion. It is advised to shorten the replacement cycle to 4 to 5 years to prevent sudden display failure.
Immediate replacement is required for abnormal symptoms such as uneven brightness, flickering screens, incomplete digits, slow signal refresh, oxidized terminals and abnormal heating. Timely replacement eliminates hidden electrical risks and ensures reliable landing display performance for all Monarch-based elevators.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator LOP Display Board SFTC-CCB-L-SX/HX, 100% compatible with all Monarch control systems. Every unit passes 72-hour aging testing and signal compatibility inspection before shipment. We maintain sufficient in-stock inventory, support fast global logistics, and provide professional remote installation guidance. Our high-precision aftermarket parts reduce maintenance difficulty, minimize elevator downtime, and help global contractors optimize overall service efficiency.
