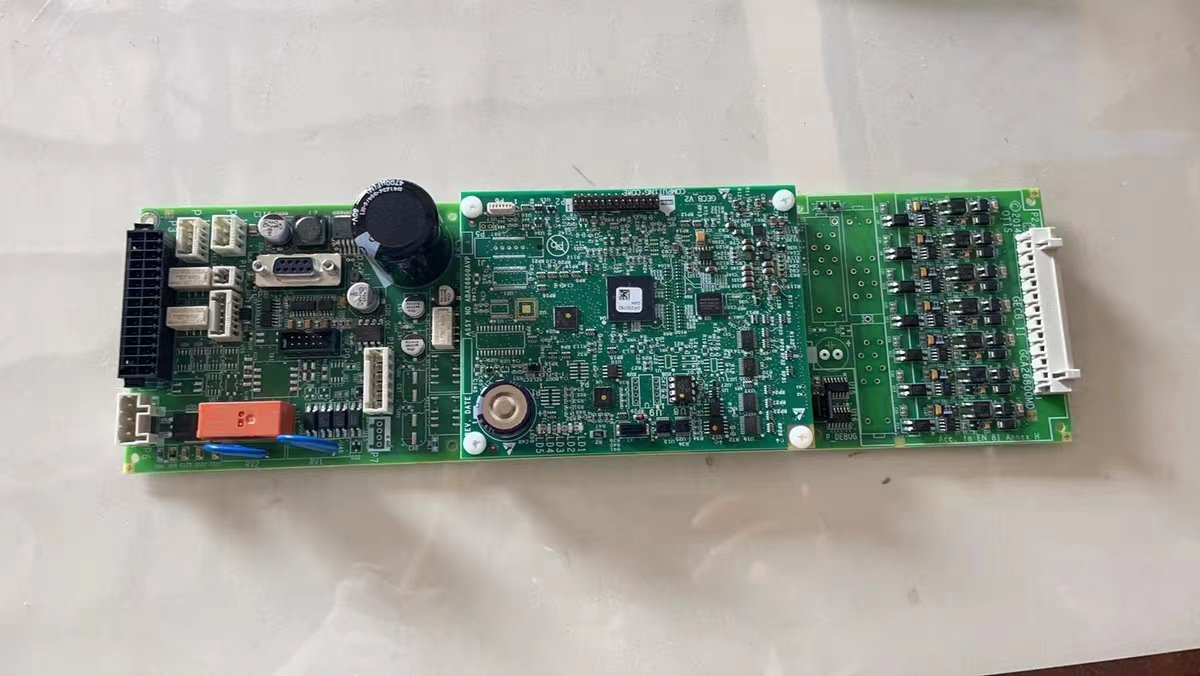

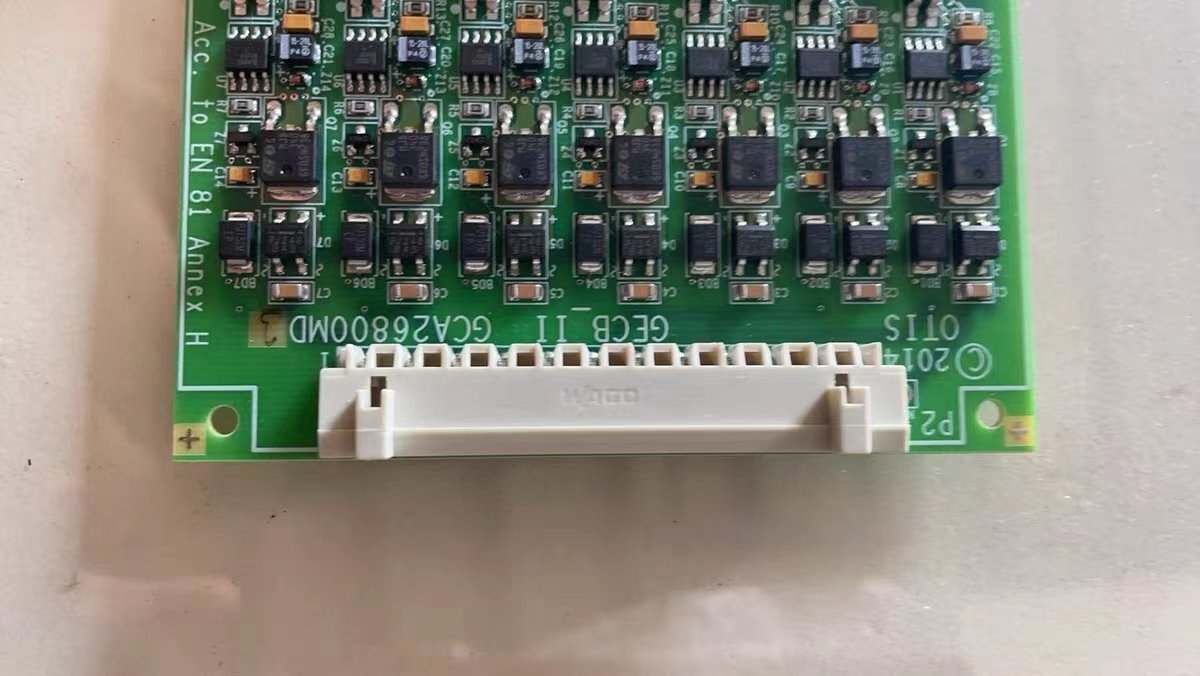

Elevator Electronic Board GCA26800MD3

Elevator Electronic Board supplier Zhuye-GCA26800MD3, The main elevator parts brands are OTIS, Schindler, KONE, SIGMA, Hyundai, Fermator and etc.

Categories: , Tags: , , , , , , , , ,

Description

Otis elevator electronic board GCA26800MD3 Brief Introduction

Product     Name

Otis elevator electronic board
Model
 GCA26800MD3
 Quality
Original.Brand New
Payment
T/T. Paypal. Western Union
Delivery
3-5 Working Days
Packaging
Packed by carton
Elevator Electronic Board GCA26800MD3 – The Brains Behind Every Silent Ride
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
When passengers press a button, watch the floor count change, or hear the doors announce “going up,” they are really talking to a green postcard-sized PCB hidden in the controller cabinet. The GCA26800MD3 is Otis’ latest-generation multi-function board, field-proven on Gen2® Life, Gen2® Premier and SkyRise® installations worldwide. Nanjing Zhuye Elevator Parts keeps factory-sealed MD3 units in anti-static stock for same-day despatch. Below we explain what the board does, how to install it in under ten minutes, and the replacement cycle that prevents expensive “control fault” call-backs.
  1. What GCA26800MD3 Really Does Mounted on DIN-rail inside the LMCB or GECB cabinet, the board:
  • Converts serial CAN-bus commands into 24 VDC relay outputs for contactors, brakes and door motor
  • Reads position pulses from incremental encoder (8192 ppr) and provides closed-loop speed profile
  • Supplies 5 VDC / 12 VDC rails for COP, LOP and safety chain
  • Monitors brake voltage, motor temperature and door lock feedback
  • Stores floor parameters, learn tables and fault log in 1 Mb EEPROM—so the car “remembers” after a power dip
If MD3 fails, the lift goes dead, the doors refuse to move, and the controller logs “EF6 Control Timeout”.
  1. Compatible Systems
  • Otis Gen2® Life, Gen2® Premier, SkyRise®
  • Thyssen MC2 → MC3 retrofit kits
  • Chinese OEM controllers using CAN-open at 125 kbit s⁻¹
  • Simplex or group (≤8 cars)
  1. Installation – 10-Minute Hot Swap Safety: place controller on INSTALL, lock breaker, wait 60 s for DC bus to discharge.
Step 1 – Photograph existing wiring. Step 2 – Undo four M3 screws; slide board out of DIN rail. Step 3 – Disconnect (in order) 64-way ribbon, 6-way CAN, 4-way 24 VDC supply, 2-way encoder. Step 4 – Inspect ribbon for bent pins; if any conductor shows copper, replace cable (Nanjing Zhuye part CB-64-300). Step 5 – Insert new MD3 until latches click; reconnect all keyed plugs. Step 6 – Power up; green D1 LED blinks 2 Hz for 5 s, then steady—board has joined CAN network. Step 7 – Run one full learn trip from top to bottom; verify encoder counts every floor. No laptop or download is required; firmware is pre-flashed to match Otis checksum 0x7A3C.
  1. Daily Operation – What the Board Actually Does
  • Updates speed curve every 2 ms; jitter <0.1 % rated speed
  • Auto-detects if encoder channel is reversed; sends “Enc-Fault” but keeps running
  • Temperature sensor on PCB derates output current above 70 °C—no summer nuisance faults
  • Brake pick & hold voltages adjustable via jumper J6—one board fits 110 VDC or 220 VDC coils
  1. Replacement Cycle & Preventive Maintenance
  • High-traffic office (>1,000 starts day⁻¹) – vacuum dust every 6 months, replace board every 6 years
  • Residential tower (300–600 starts day⁻¹) – inspect annually, replace every 10 years
  • Low-rise freight (≤200 starts day⁻¹) – inspect every 18 months, replace every 12 years
Replace immediately if:
  • D1 LED stays red (internal 3.3 V rail fault)
  • CAN “EF6” logged ≥3 times in 30 days
  • Encoder count skips >4 pulses per revolution
  • EEPROM error 0xE2 after power dip (checksum corrupt)
  • Brake voltage drops below 85 % of rated
  1. Extending Life – 3 Pro Tips
  2. Keep 24 VDC supply ±3 %; spikes above 30 V destroy the on-board buck converter
  3. Close controller door properly; dust on edge connectors is the #1 killer
  4. Route encoder cable away from brake resistor; radiated heat above 70 °C halves IC life
  5. Why Buy GCA26800MD3 from Nanjing Zhuye Elevator Parts?
  • Factory-new, not refurbished; board passes ICT, 4-hour burn-in at 60 °C, and final functional test
  • Firmware pre-flashed; matches Otis original checksum, no teach-in required
  • Anti-static aluminum bag + foam box—safe for air freight
  • Dual stock: 380 pcs Nanjing, 120 pcs Dubai—next-day delivery to 65 countries
  • Warranty: 24 months replacement, no factory RMA wait
  • Tech support: 7×24 WhatsApp/WeChat video call if fault codes persist
We reply within 12 h with price, lead time and a free Excel template that reminds you when the next board replacement is due.
Conclusion The GCA26800MD3 electronic board is the invisible brain that turns button presses into smooth rides. A single communication fault can park a car for hours. Keep a spare MD3 from Nanjing Zhuye on every service truck, swap it on schedule, and replace “control fault” panic with a five-minute planned fix—one silent, reliable ride at a time.
