Description

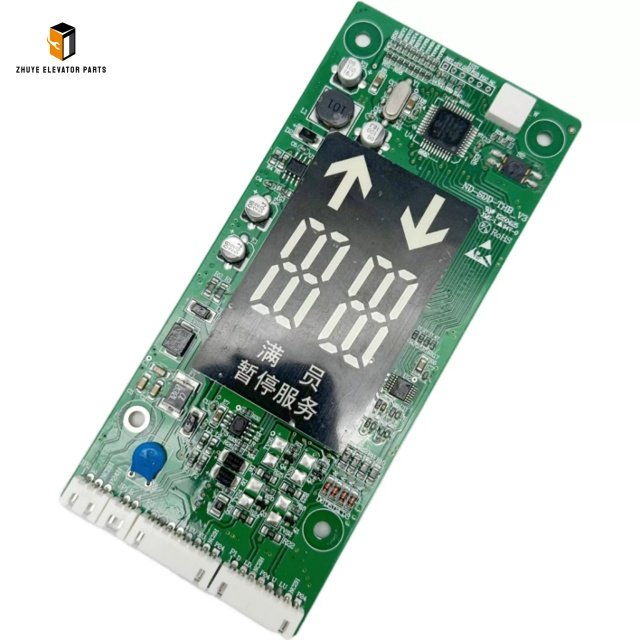

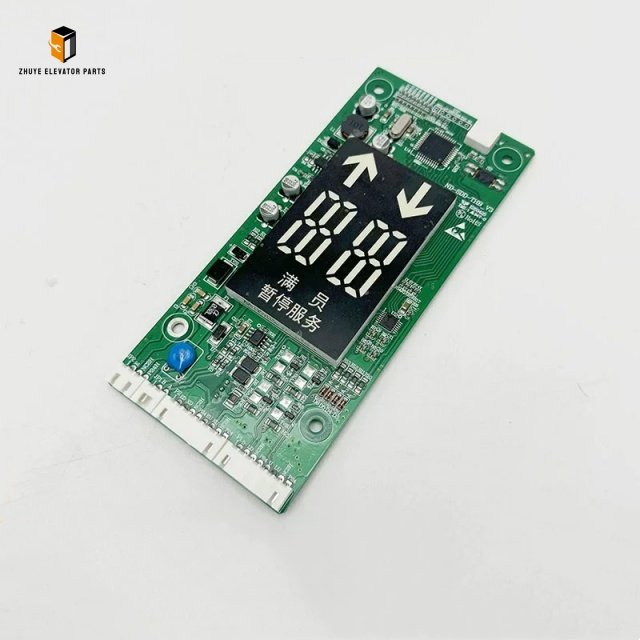

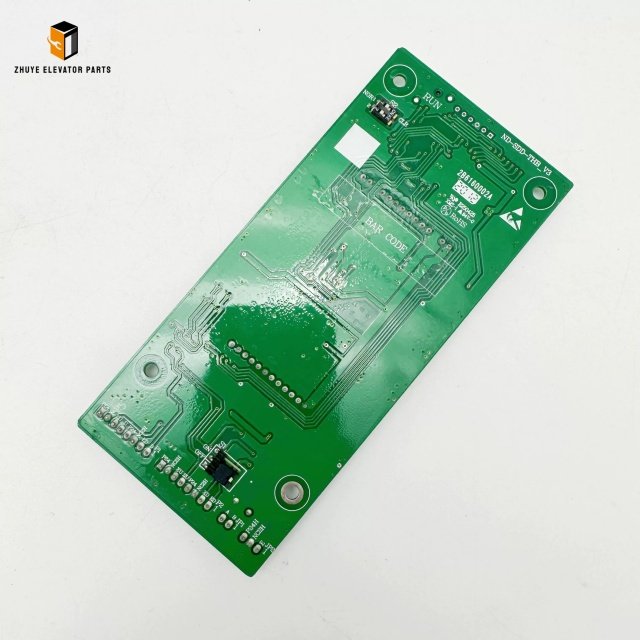

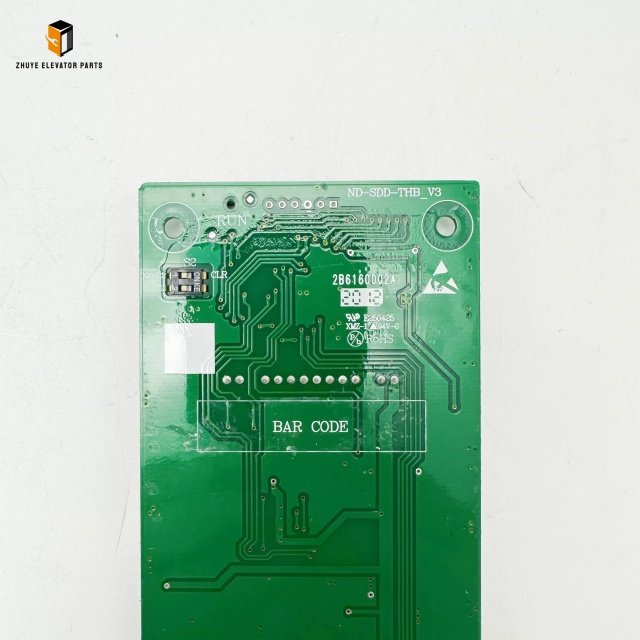

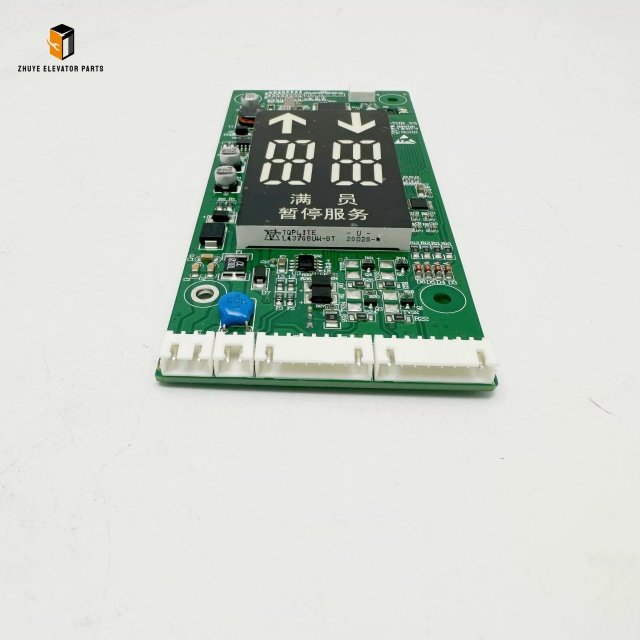

Elevator Lop Display Board ND-SDD-THB_V3
|
Product Name |
Elevator Lop Display Board |
| Model Number | ND-SDD-THB_V3 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board ND-SDD-THB_V3 | Compatible with Toshiba Elevators
The Elevator LOP Display Board ND-SDD-THB_V3 is a dedicated landing display circuit board precisely manufactured for universal compatibility with Toshiba elevators. Installed inside each floor landing operating panel, this industrial LED display module acts as an external human-machine interaction terminal, synchronizing real-time elevator floor position, traveling direction arrows, and operational status for waiting passengers. As a core signal receiving component for Toshiba hall call systems, the ND-SDD-THB_V3 steadily captures low-voltage communication signals from the main controller to deliver continuous and clear visual feedback. Common defects including flickering digits, dim lighting, blank screens, and delayed signal synchronization frequently occur when the original display board ages. Manufactured following Toshiba original circuit layout and mounting specifications, this LOP board serves as a standard replacement part for routine maintenance, building elevator renovation, and spare part stocking for global elevator service companies.
Adopting high-grade flame-retardant PCB and shock-resistant LED lamp beads, the Elevator LOP Display Board ND-SDD-THB_V3 features excellent dustproof, anti-humidity and anti-interference performance, perfectly adapting to complex lobby environments with frequent pedestrian flow and unstable temperature changes. All mounting hole positions, terminal definitions, signal voltage parameters and plug interfaces fully conform to Toshiba factory standards, enabling direct plug-and-play installation without program coding, wiring modification or parameter calibration. Equipped with built-in surge protection resistors and electromagnetic shielding structures, this board effectively resists external signal interference to avoid display lag and screen jitter. It fits all mainstream Toshiba residential and commercial elevators, maintaining consistent high-brightness display performance under long-term continuous operation.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the ND-SDD-THB_V3 LOP display board must be completed by certified Toshiba elevator technicians. Before any operation, cut off the independent landing power supply, lock the isolation switch, and attach an obvious “Maintenance In Progress” warning sign on the landing door. Live-line disassembly and hot plugging are strictly prohibited to prevent interface burnout and accidental elevator emergency stops.
Gently pry open the landing panel decorative cover with insulated tools, verify the model information of the old display board to confirm full matching with ND-SDD-THB_V3. Slowly extract the display assembly, disconnect signal cables and power connectors one by one, and mark each wire position to avoid misconnection. After recording the wiring sequence, remove the fixing screws and safely take out the defective original display board.
Thoroughly clean the internal panel slot to remove dust and conductive impurities that may cause poor contact. Place the brand-new ND-SDD-THB_V3 display board in the fixed installation position and fasten anti-loose screws to prevent vibration displacement. Reconnect all cables strictly according to the marked sequence and double-check terminal tightness. Restore the decorative panel, re-energize the landing power, and conduct repeated elevator running tests to confirm clear digits, smooth direction switching and stable signal linkage without faults.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of ND-SDD-THB_V3 varies depending on ambient humidity and elevator usage frequency. For dry residential communities and quiet office buildings with moderate traffic, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic public venues such as shopping malls and hospitals, or humid coastal buildings with severe air corrosion, the display board endures long-term lighting load and environmental erosion. It is recommended to shorten the replacement cycle to 4 to 5 years to prevent sudden display failure.
Immediate replacement is required once abnormal symptoms appear, including uneven brightness, flickering screens, incomplete digit segments, delayed signal refresh, oxidized connectors and abnormal board heating. Timely replacement of ND-SDD-THB_V3 eliminates potential hidden dangers and guarantees stable external display performance for all Toshiba elevators.
Reliable Supply Advantages from Our Factory
We provide brand-new factory-tested Elevator LOP Display Board ND-SDD-THB_V3, 100% compatible with all Toshiba elevator models. Every finished product passes 72-hour continuous aging testing and signal compatibility inspection before delivery. We maintain sufficient spot inventory, support fast global cross-border logistics, and provide professional remote installation guidance. Our high-matching elevator parts effectively reduce maintenance difficulty, shorten elevator downtime, and help global elevator contractors optimize service efficiency.
