Description

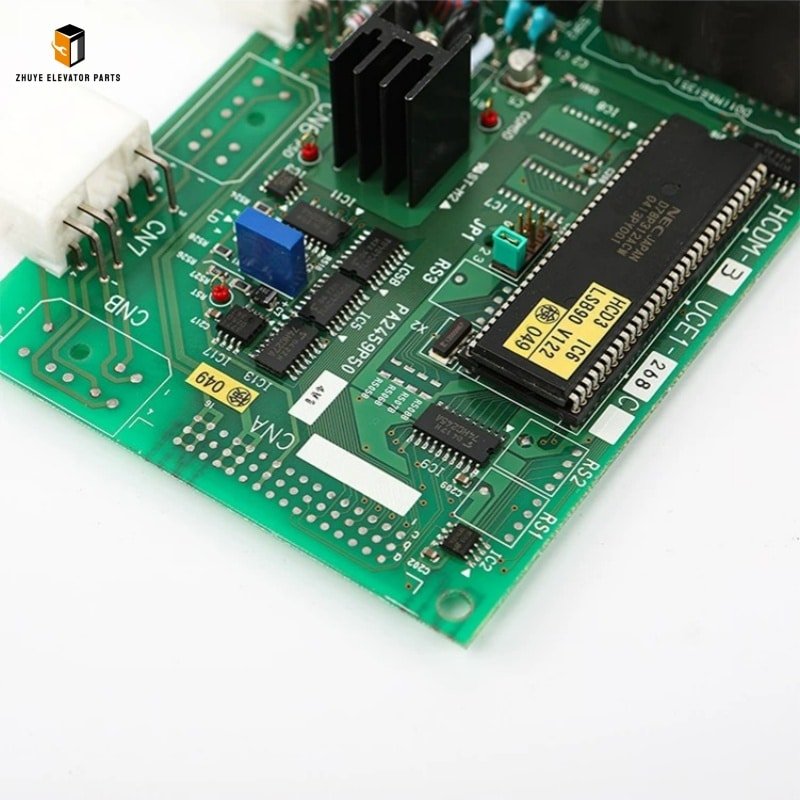

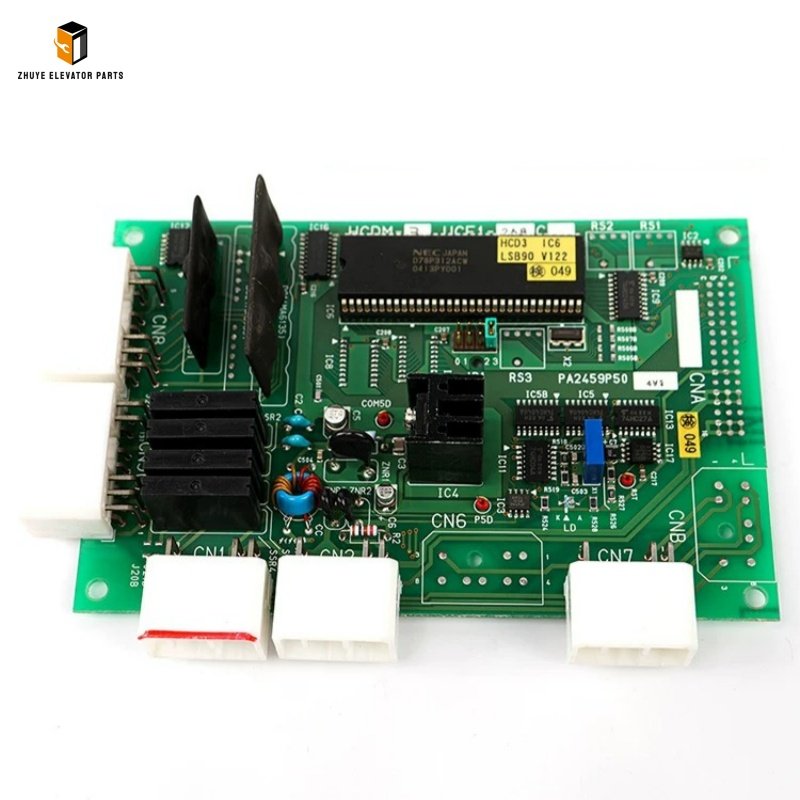

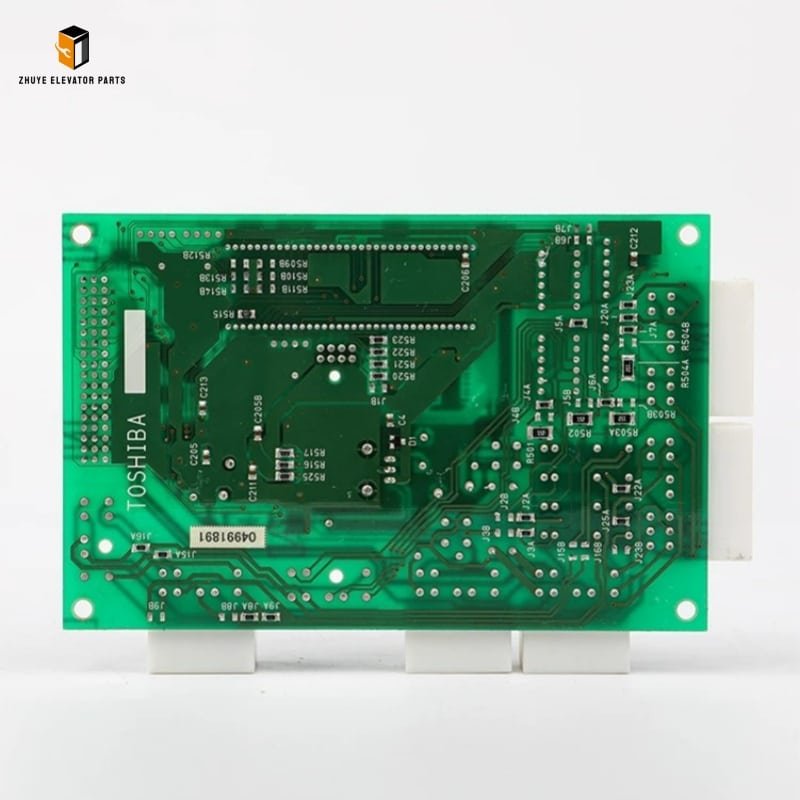

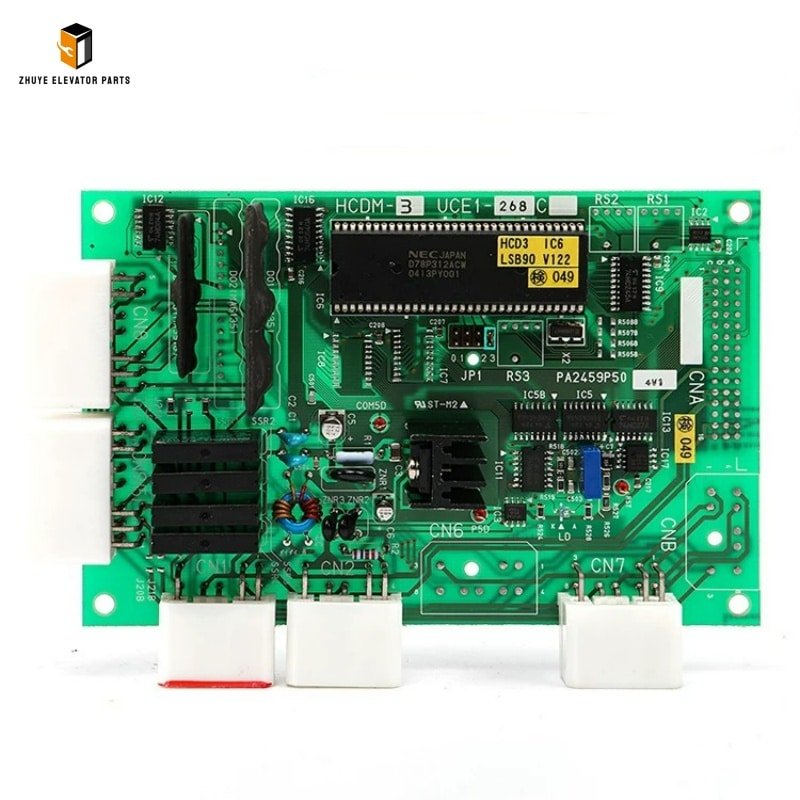

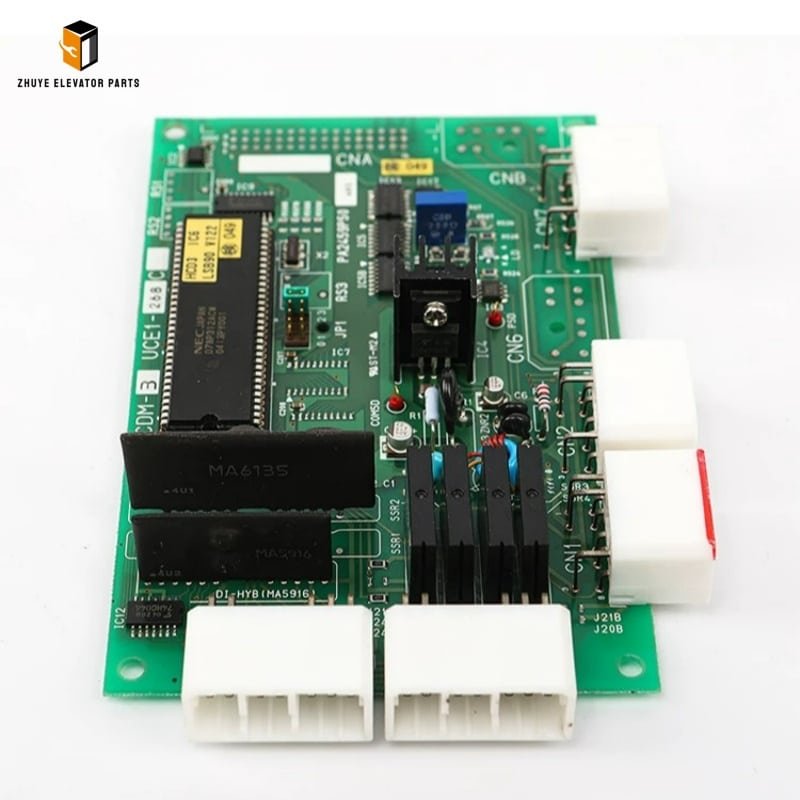

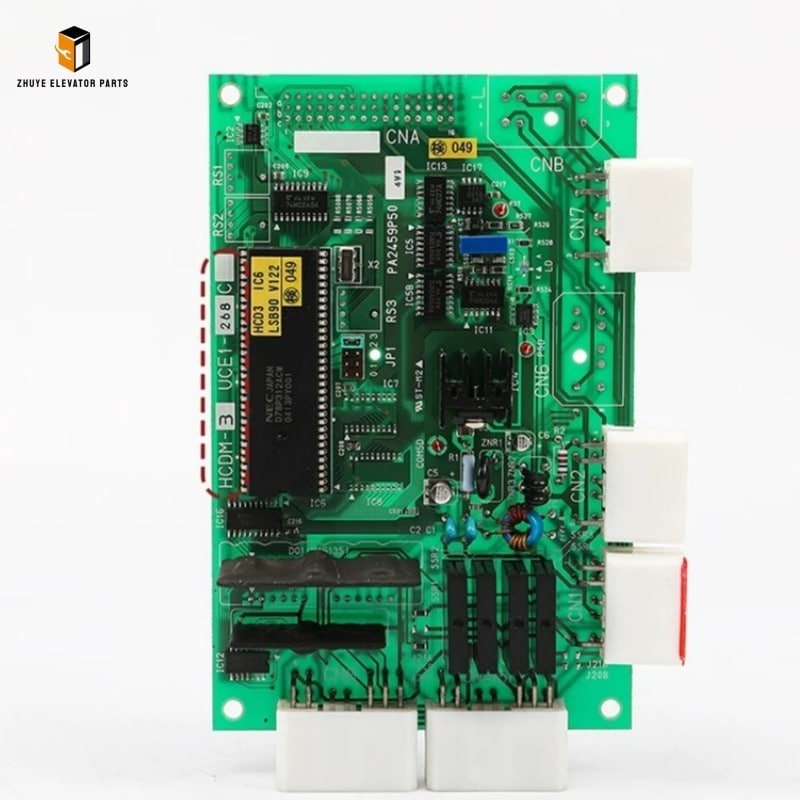

Elevator Lop Display Board HCDM-3 UCE1-268C
|
Product Name |
Elevator Lop Display Board |
| Model Number | HCDM-3 UCE1-268C
HCDM-3 UCE1-267C |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board HCDM-3 UCE1-268C | Compatible with Toshiba Elevators
The Elevator LOP Display Board HCDM-3 UCE1-268C is a dedicated landing operation panel circuit board professionally engineered and fully compatible with Toshiba elevators. Installed on each floor’s elevator landing door panel, this functional core component serves as the key interactive unit for external passenger operation and floor signal feedback. It undertakes core functions including external call signal reception, real-time floor number display, running direction indication and fault prompt display, realizing accurate signal interaction between landing call buttons and the elevator main control system. Common elevator external operation faults such as unresponsive floor call buttons, blurred or missing floor display, wrong direction indication and intermittent landing signal failure are mainly caused by board component aging, circuit oxidation, solder joint loosening and long-term environmental dust interference. Manufactured in strict accordance with Toshiba’s original signal protocols and mounting specifications, the HCDM-3 UCE1-268C LOP display board acts as a standard OEM replacement part for daily maintenance, signal system troubleshooting and bulk inventory stocking for global elevator service providers.
Adopting high-stability industrial circuit substrates and anti-aging electronic components, the Toshiba Elevator LOP Display Board HCDM-3 UCE1-268C delivers outstanding signal transmission stability and strong environmental adaptability. Optimized for long-term uninterrupted operation of Toshiba elevator landing signal systems, it effectively resists lobby temperature changes, dust accumulation and weak electromagnetic interference, maintaining clear display output and sensitive signal response without signal delay or display failure. All circuit interfaces, signal parameters and mounting dimensions fully comply with Toshiba factory standards, enabling direct plug-and-play replacement without program modification or complex parameter debugging. Equipped with built-in surge and short-circuit protection modules, this LOP board prevents circuit burnout and signal disorder, perfectly adapting to long-duration continuous operation of all mainstream Toshiba residential and commercial elevators.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the HCDM-3 UCE1-268C LOP display board must be performed by certified technicians specializing in Toshiba elevator systems. Before maintenance work, completely cut off the elevator landing signal power supply and main control power loop, lock the safety isolation switch, and post a prominent “Maintenance In Progress” warning sign on-site. Live-line operation and blind disassembly are strictly prohibited to prevent short-circuit faults, signal system damage and abnormal elevator operation.
Access each elevator floor landing station with standard insulated maintenance tools and locate the original LOP display board inside the landing panel. Verify the equipment model to confirm full compatibility with the HCDM-3 UCE1-268C specification for Toshiba elevators. Disconnect all signal terminals, power connectors and button wiring sequentially, marking each interface clearly to avoid misconnection during reinstallation. Remove the fixing screws and gently detach the aging or faulty original display board. Thoroughly clean the panel mounting base and contact points to remove dust and oxide layers that may cause poor contact and abnormal signal display.
Install the brand-new HCDM-3 UCE1-268C LOP display board at the standard mounting position and fasten the fixing screws firmly to prevent displacement caused by long-term building vibration and passenger touching. Reconnect all wiring strictly following the marked sequence and double-check all terminals for firm connection and correct circuit logic. After installation, restore the signal power supply and conduct comprehensive tests, including call signal response verification, floor display calibration and running direction indication detection, to ensure sensitive, accurate and fault-free operation of the Toshiba elevator landing operation system.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the HCDM-3 UCE1-268C LOP display board depends on elevator operating frequency and lobby environmental conditions. For conventional residential and low-frequency office Toshiba elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic venues such as shopping malls, hospitals and transit hubs, or dusty and humid public lobby environments, the LOP display board endures frequent signal switching and environmental erosion. It is recommended to shorten the replacement cycle to 4 to 5 years to avoid sudden display failure and poor passenger operation experience.
Immediate replacement of the HCDM-3 UCE1-268C LOP display board is required once abnormal symptoms appear, including dark or flickering floor display, unresponsive external call buttons, frequent signal loss and local board overheating. Timely replacement eliminates landing signal faults and ensures stable, user-friendly operation for all Toshiba elevator systems.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator LOP Display Board HCDM-3 UCE1-268C, 100% compatible with all mainstream Toshiba elevator models. Every unit undergoes strict signal testing, display matching verification and 72-hour continuous aging tests before shipment. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and provide professional remote installation and debugging guidance. Our high-quality OEM spare parts reduce on-site maintenance difficulty, minimize elevator operational faults, and help global elevator contractors improve service quality and operational efficiency.
