Description

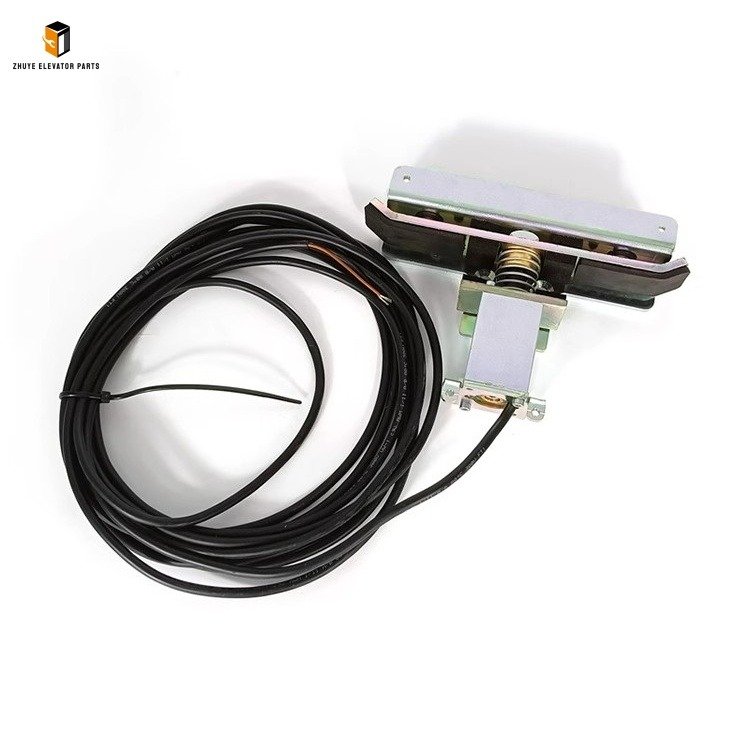

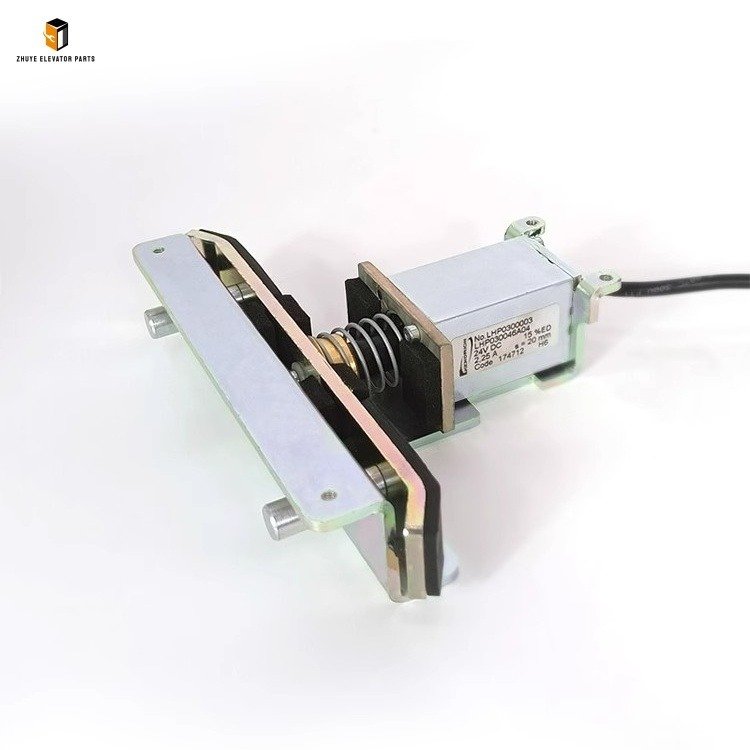

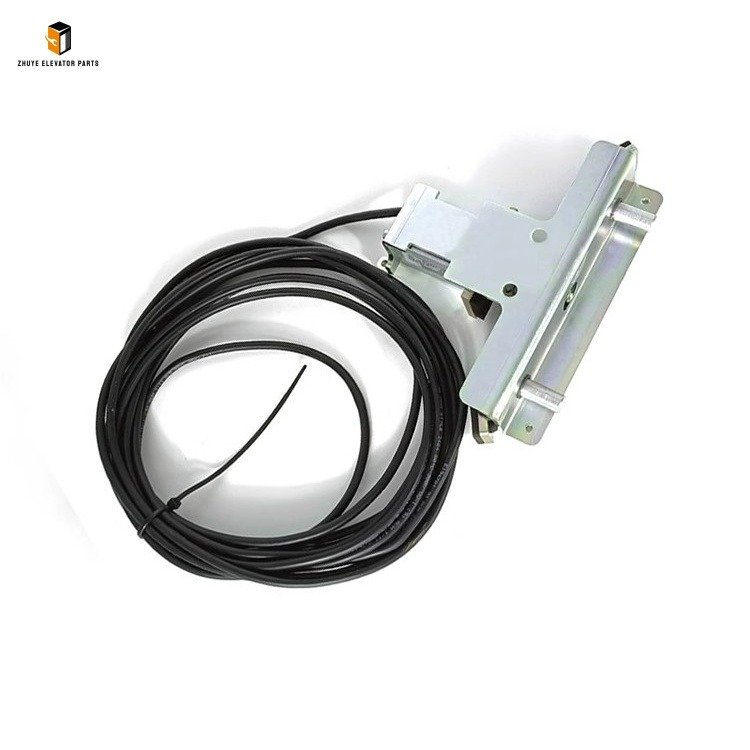

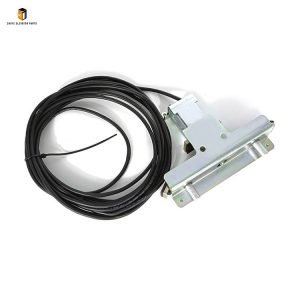

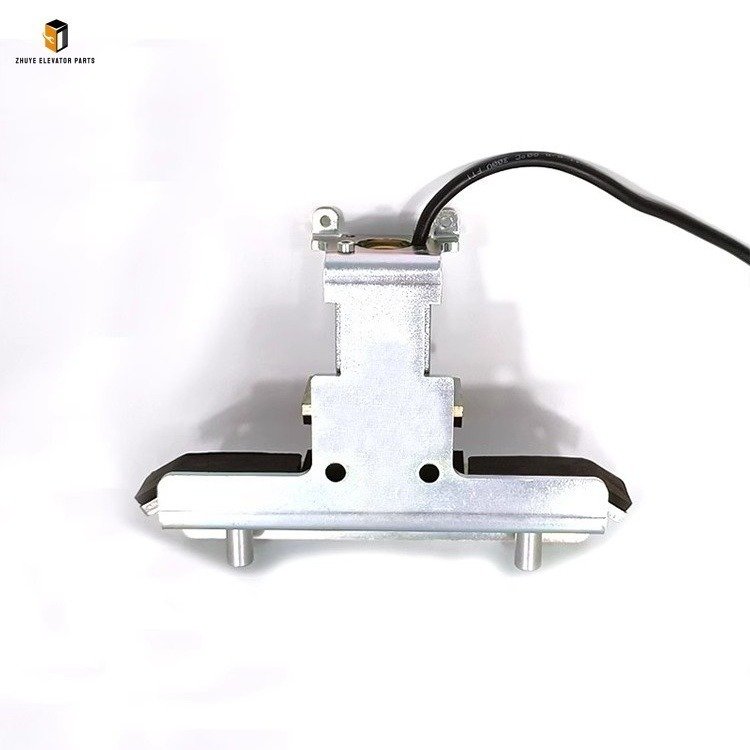

Elevator door electrical lock LHP030046A04 Brief Introduction
|
Product Name |
Elevator door electrical lock |
| Model Number | LHP030046A04 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Electrical Lock LHP030046A04: Safety-Critical Component from Nanjing Zhuye Elevatorparts
The elevator door electrical lock is the core safety barrier of the elevator system, responsible for securing the door during operation and preventing accidental opening that could lead to falls or entrapment. As a safety-critical component, it must meet the highest reliability and durability standards. The Elevator Door Electrical Lock LHP030046A04, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered for modern passenger and freight elevators. Compliant with international safety standards such as EN 81-20 and GB 7588, this electrical lock integrates mechanical locking and electrical interlocking functions, ensuring the elevator can only operate when the door is fully closed and locked. It is compatible with mainstream elevator brands including Schindler, OTIS, and KONE, making it an ideal choice for both new installations and maintenance replacements.
Nanjing Zhuye Elevatorparts adheres to a stringent quality control system, and the LHP030046A04 elevator door electrical lock is a testament to this commitment. Each unit undergoes rigorous testing, including locking force verification, electrical contact durability trials, high-temperature resistance tests, and corrosion resistance assessments. The lock features a robust mechanical structure with a precision-engineered locking tongue that ensures secure engagement with the door frame, while its silver-alloy electrical contacts minimize ablation and ensure stable signal transmission. Designed as a fail-safe device, it defaults to the locked state when power is cut off, complying with fire safety requirements by preventing door opening during power outages. Its fully enclosed shell provides IP54 protection against dust and water splashes, enabling reliable performance in harsh elevator shaft environments. The lock also integrates a door position detection sensor, feeding real-time door status data to the elevator control system for enhanced safety monitoring.
Usage Guide for Elevator Door Electrical Lock LHP030046A04
Proper installation, adjustment, and maintenance are crucial to ensuring the safety performance of the LHP030046A04 elevator door electrical lock. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures, as incorrect operation may compromise elevator safety. Before installation, verify that the lock’s dimensions, mounting holes, and electrical parameters match the elevator door system’s specifications. Refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for model-specific compatibility guidance and wiring diagrams.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and the door system’s dedicated power supply, then lock the power switch and place a “Maintenance in Progress” warning sign at the elevator entrances and machine room to prevent accidental activation. Prepare essential tools: a screwdriver, torque wrench, multimeter, wire stripper, anti-static gloves, and a wire brush. Clean the installation area (on the elevator door frame or door panel) to remove dust, debris, and rust—contaminants can affect the locking mechanism’s smooth operation. Inspect the LHP030046A04 electrical lock for any external damage, deformed locking tongue, loose terminals, or damaged sensors; do not use defective products. Additionally, check the door frame and contact surface for wear or deformation to ensure proper engagement with the lock.
2. Installation & Wiring
Mount the LHP030046A04 electrical lock on the dedicated position of the elevator door frame using the provided bolts, ensuring secure fixation with no looseness. Adjust the lock’s position to ensure the locking tongue aligns perfectly with the striker plate on the door panel—misalignment will cause locking failure or abnormal noise. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the power wires (typically DC 24V) to the positive and negative terminals, and the signal wires to the elevator control system’s interlock interface. The recommended tightening torque for terminal screws is 1.0-1.5 Nm, and the wire stripping length should be 6-8mm to avoid short circuits. Distinguish between normally open (NO) and normally closed (NC) contacts correctly to ensure the control system receives accurate door status signals. After wiring, use a multimeter to check circuit continuity and insulation resistance, confirming no wiring errors exist.
3. Debugging & Daily Operation
After completing installation and wiring, conduct a comprehensive debugging test to ensure the lock functions correctly. Restore power and test the locking/unlocking process: verify that the locking tongue extends and retracts smoothly when the door opens and closes, and that the electrical interlock signal is transmitted to the control system in real time. Confirm the elevator cannot start when the door is not fully locked, and that the lock releases immediately in case of emergency stop. During daily operation, incorporate the LHP030046A04 electrical lock into the elevator’s regular maintenance plan (recommended monthly inspection per TSG T5002-2017). Clean the lock body and locking tongue regularly with a dry cloth to remove dust and debris; apply a small amount of special lubricant (provided by Nanjing Zhuye Elevatorparts) to the mechanical components every 6 months to ensure smooth operation. Regularly check the electrical contacts for ablation and the wiring for looseness—any abnormalities must be addressed promptly to avoid safety risks.
Replacement Cycle of Elevator Door Electrical Lock LHP030046A04
The replacement cycle of the LHP030046A04 elevator door electrical lock depends on operating frequency, working environment, and maintenance conditions. Under normal parameters—elevator runs 12-24 hours daily, door opening/closing times ≤2000 times/day, and the elevator shaft is dry and well-ventilated—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 4-6 years. This timeline is based on long-term field data, accounting for wear of mechanical components, aging of electrical contacts, and degradation of sensor performance, which are the main factors affecting the lock’s safety and reliability.
For elevators in high-traffic areas (e.g., shopping malls, airports) where door opening/closing times ≥3000 times/day, or in harsh environments (high humidity, heavy dust, frequent temperature fluctuations, or corrosive substances), the replacement cycle should be shortened to 2-4 years. High-frequency operation accelerates mechanical wear, while harsh conditions increase the risk of corrosion and electrical failure. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable environments, the cycle can be extended to 6-8 years. However, annual professional inspections by Nanjing Zhuye’s technicians are mandatory to confirm locking force, contact resistance, and sensor accuracy meet safety standards, especially for elevators in service for more than 15 years.
Immediately replace the LHP030046A04 elevator door electrical lock if any of the following issues occur, regardless of service life: failure to lock securely or frequent accidental unlocking; unresponsive electrical interlock leading to elevator operation with the door not fully closed; severe wear or deformation of the locking tongue affecting engagement; electrical contact ablation causing signal interruption; sensor failure leading to incorrect door status feedback; or the lock fails annual safety testing. Timely replacement is critical to ensuring passenger safety and compliance with elevator safety regulations, as a faulty door electrical lock is a major cause of elevator accidents.
The Elevator Door Electrical Lock LHP030046A04 from Nanjing Zhuye Elevatorparts integrates advanced safety design, reliable performance, and wide compatibility, serving as a critical safety guarantee for elevator systems. Its strict quality control and compliance with international standards make it a trusted choice for elevator maintenance professionals worldwide. By following the recommended usage guidelines and replacement cycles, you can effectively prevent safety hazards caused by door lock failures and ensure the elevator operates in compliance with safety regulations. Nanjing Zhuye Elevatorparts provides 100% authentic LHP030046A04 door electrical locks, along with professional support including model matching, on-site installation guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for safe and reliable elevator component solutions.
