Description

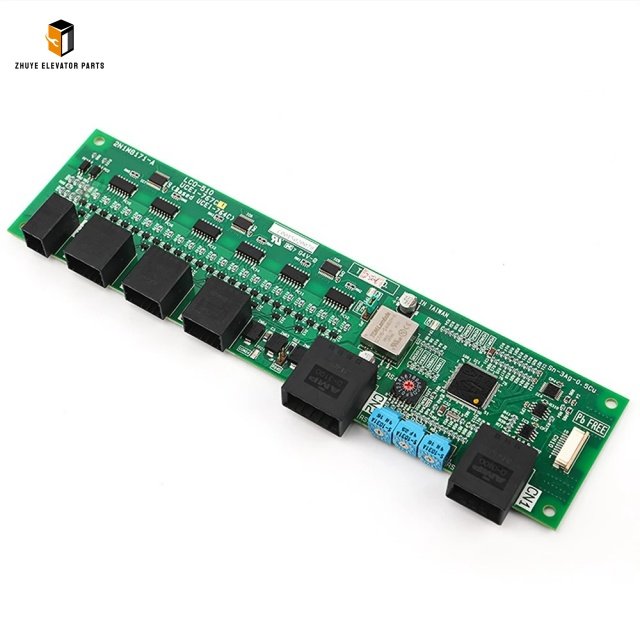

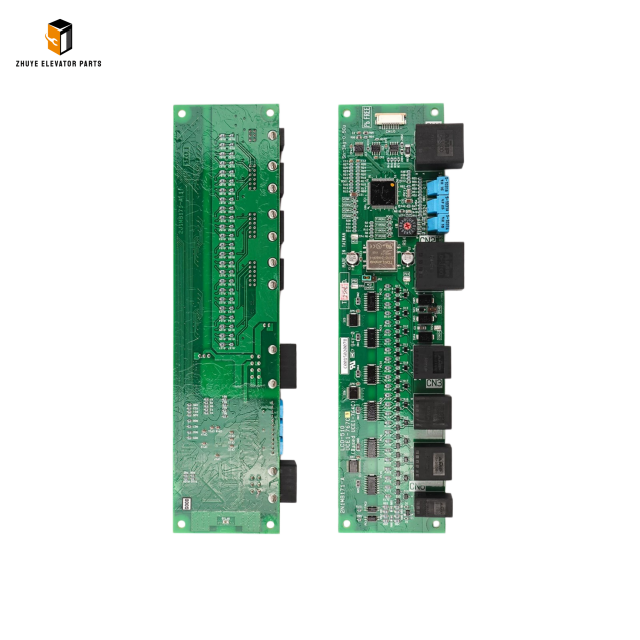

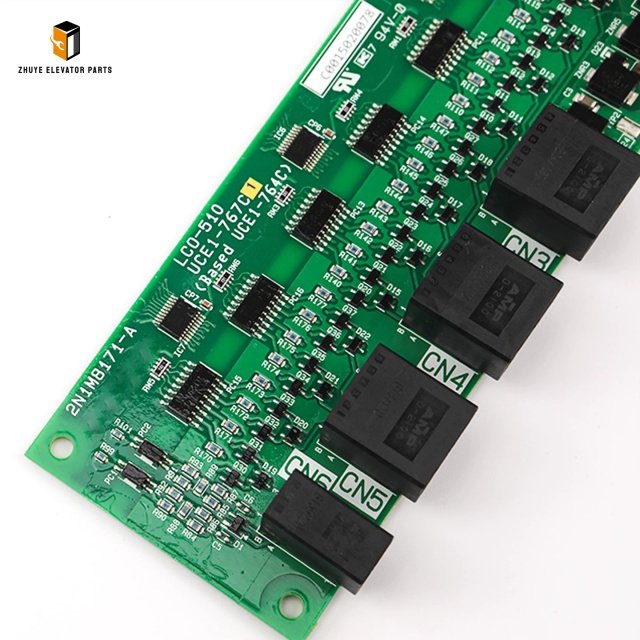

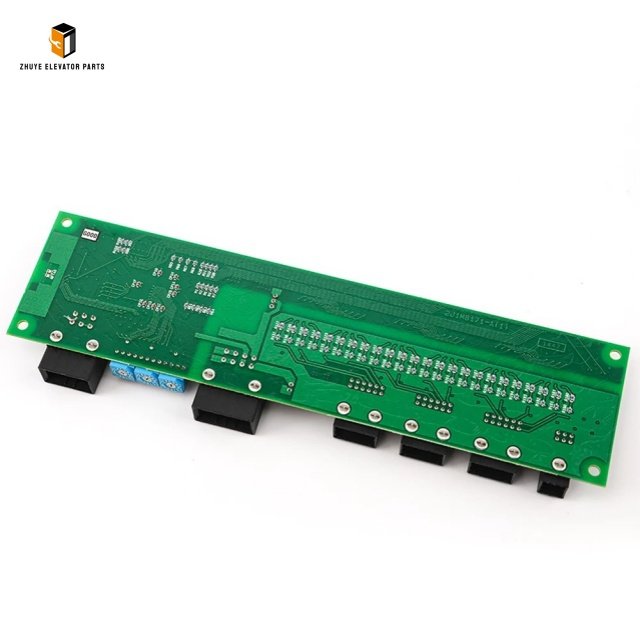

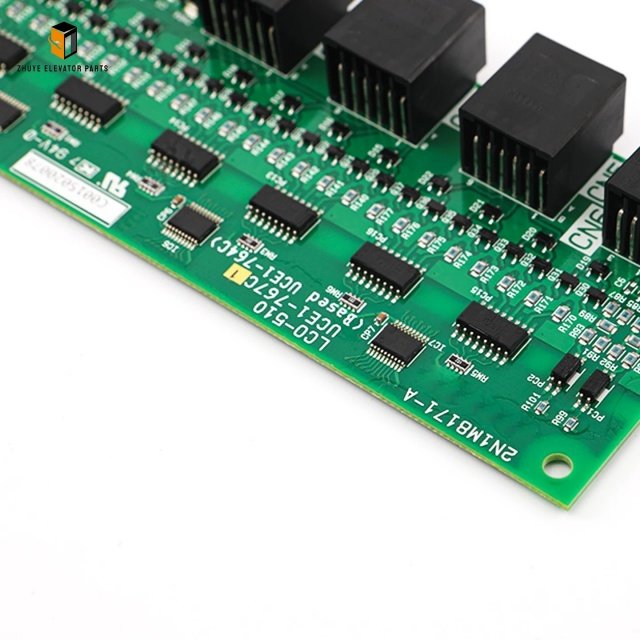

Elevator Communication Board LCO-510
|
Product Name |
Elevator Communication Board |
| Model Number | LCO-510
UCE1-767C 2N1M8171-A |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Communication Board LCO-510 | Compatible with Toshiba Elevators
The Elevator Communication Board LCO-510 is a core signal interaction component professionally developed for full matching and plug-and-play use on Toshiba elevators. Installed inside the main control cabinet, this industrial-grade communication board undertakes full-duplex data transmission between the main controller, car operating panel, landing call system and peripheral safety modules. It stably transmits real-time running data, floor call signals and fault feedback instructions, acting as the information hub for the entire Toshiba elevator control system. When the original communication board ages or fails, elevators will suffer from unresponsive hall calls, abnormal car display, intermittent communication offline errors and unexpected standby shutdowns. Manufactured in strict accordance with Toshiba original electrical parameters and communication protocol standards, the LCO-510 is a high-priority replacement part for professional elevator maintenance teams, property engineering departments and global elevator spare part suppliers.
The Elevator Communication Board LCO-510 adopts high thermal conductivity flame-retardant PCB and industrial anti-interference communication chips, effectively resisting high temperature, cabinet vibration, dust accumulation and strong electromagnetic interference in machine room environments. All signal interfaces, wiring definitions and data transmission protocols fully comply with Toshiba original factory specifications, requiring no secondary programming, parameter debugging or circuit modification during on-site replacement. Built with multi-level surge protection and signal isolation circuits, the board avoids instantaneous voltage impact and signal crosstalk damage. It is widely compatible with all mainstream Toshiba passenger elevators and commercial traction elevators, maintaining continuous, low-latency and lossless signal transmission during long-term high-frequency operation.
Standard Installation and Professional Operation Steps
All disassembly, installation and wiring work of the LCO-510 communication board must be completed by certified elevator professional technicians. Before construction, completely cut off the elevator main power supply, lock the power isolation switch, and hang a standardized maintenance warning sign. Live working is strictly prohibited to prevent electric shock, signal misalignment and accidental elevator sliding safety accidents.
Open the Toshiba elevator main control cabinet, check the model label and interface definition of the old communication board, and confirm that it is completely consistent with the LCO-510 in terms of communication protocol and installation size. Use insulated special tools to disconnect signal lines and power lines one by one, mark the wiring sequence and terminal numbers in detail, then remove the fixing bolts and take out the faulty old communication board safely.
Clean the mounting base and surrounding area inside the cabinet to remove conductive dust and metal debris, preventing hidden dangers such as short circuits and signal interference. Fix the new LCO-510 Elevator Communication Board firmly in place to avoid signal instability caused by vibration loosening. Reconnect all wiring strictly according to the original marks, and repeatedly check whether the terminals are fastened and whether the signal lines are in the correct positions. After confirming no errors, restore the main power supply, perform communication self-test, whole-loop signal linkage test and full-process elevator running test to ensure smooth signal interaction and no fault alarms.
Scientific Replacement Cycle and Timely Replacement Judgment Standards
The service life of the LCO-510 communication board is affected by the cleanliness of the machine room and the daily operating frequency of the elevator. In conventional residential communities and office buildings with dry environment, good ventilation and stable load, the standard recommended replacement cycle is 6 to 8 years.
For high-density traffic scenarios such as shopping malls, hospitals and subway stations, as well as humid, dusty and high-temperature machine rooms, the communication board keeps running under high signal load. It is recommended to advance the maintenance plan and shorten the replacement cycle to4 to 5 years to prevent sudden communication system paralysis.
Once typical failures are found in daily inspections, including delayed call response, frequent communication fault codes, local signal interruption, abnormal heating of the board surface, rusted terminals and aging solder joints, the LCO-510 communication board must be replaced immediately. Scientific and timely replacement ensures real-time synchronization of Toshiba elevator data, stable system operation and safe passenger transportation.
Advantages of Purchasing LCO-510 from Our Factory
We specialize in supplying original standard Elevator Communication Board LCO-510, fully compatible with all series of Toshiba elevators. Each piece has passed professional signal compatibility testing, high and low temperature aging testing and full machine linkage simulation testing before delivery. We have sufficient spot inventory, support fast cross-border logistics and global door-to-door delivery, and provide one-stop remote installation and debugging technical support. Choosing our high-quality communication boards effectively reduces elevator failure rate, shortens maintenance time and improves operational efficiency for elevator engineering companies.
