Elevator Car Lights TL-CL4W-C1 – Usage, Replacement Cycle & Maintenance Guide
By Nanjing Zhuye Elevatorparts

—

Introduction

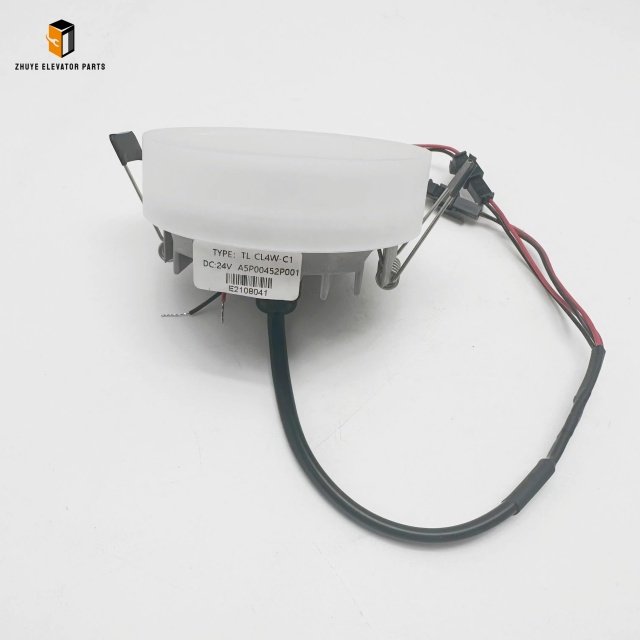

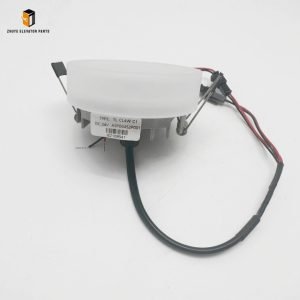

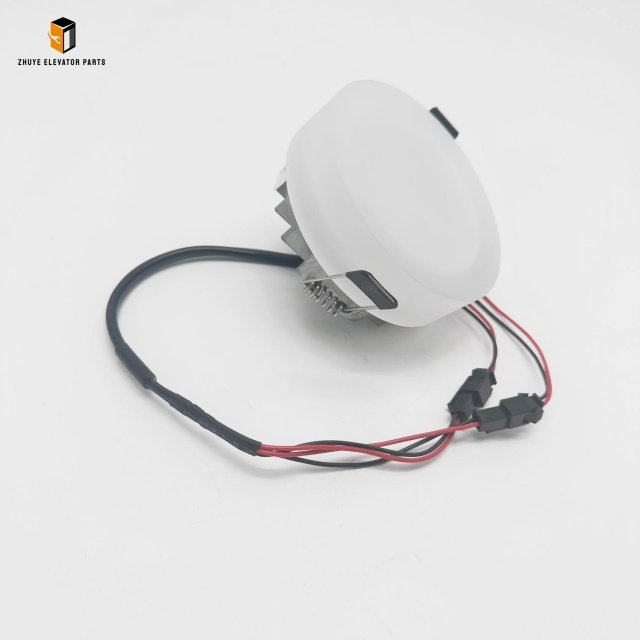

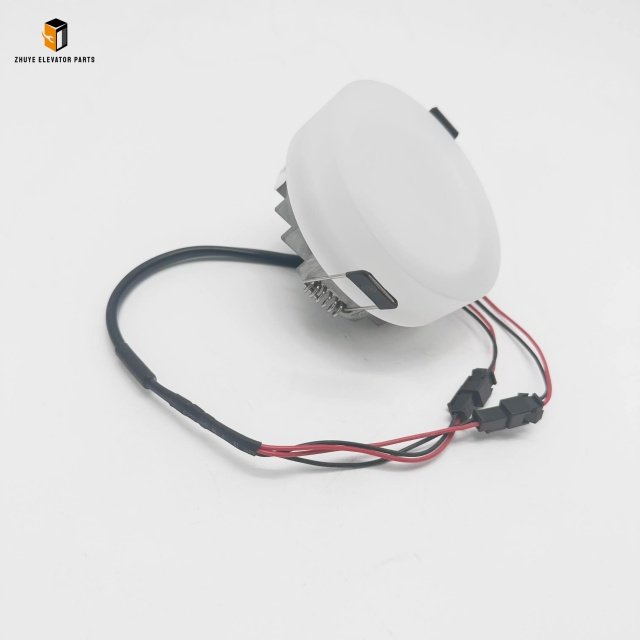

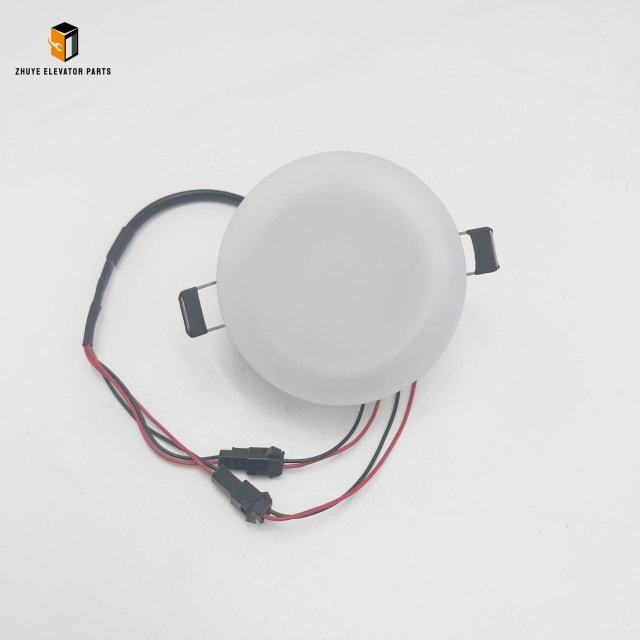

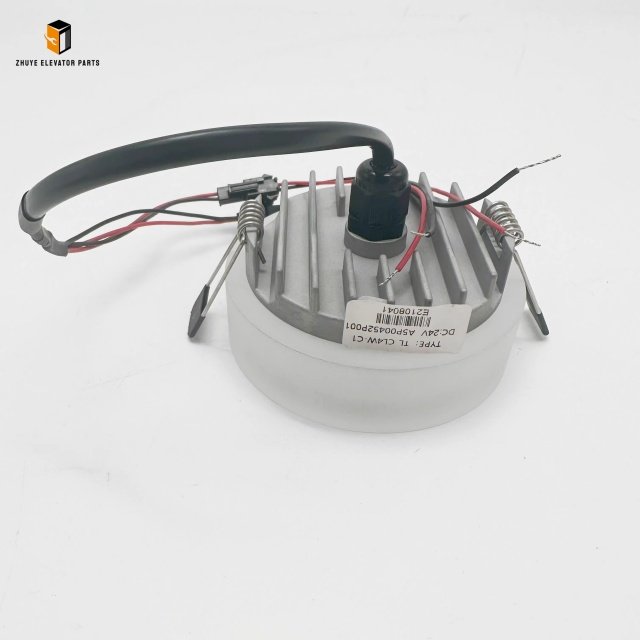

The TL-CL4W-C1 is a 24 V DC, 4 W LED car ceiling light engineered for modern elevator cabins. Manufactured and distributed worldwide by Nanjing Zhuye Elevatorparts, this IP54-rated module meets EN 81-20/50 and ASME A17.1 photometric standards, delivering 400 lm of uniform, low-glare illumination while reducing energy consumption by 80 %. This 800-word guide covers correct installation, daily operation, and the recommended replacement cycle to keep every cabin bright, safe, and code-compliant.

—

1. Product Highlights
– Power: 24 V DC ±10 %, 4 W, <200 mA
– Luminous Flux: 400 lm, 4000 K neutral white
– Beam Angle: 120 ° for uniform ceiling distribution
– Housing: IP54 ABS, anti-UV, –20 °C to +70 °C
– Life: 50,000 h @ 25 °C, 70 % lumen maintenance
– Mounting: Snap-fit 68 mm cut-out, no screws required

—

2. Installation Method
Step 1 – Preparation
De-energise the car; lock-out/tag-out main breaker. Record serial number and LED colour code.

Step 2 – Mounting
Drill 68 mm Ø cut-out in car ceiling panel. Insert TL-CL4W-C1 until snap-ring locks. Ensure gasket sits flush for IP54 seal.

Step 3 – Wiring
Route 2-core 0.75 mm² cable through PG9 gland. Connect red (+24 V) and black (0 V) to car-top lighting circuit. Torque screws 0.6 N·m.

Step 4 – Commissioning
Power-up; LED should illuminate uniformly. Measure lux at floor level (≥100 lx). Apply calibration sticker dated by technician.

—

3. Daily & Preventive Maintenance
Daily (Building Staff)
Visual check – LED bright, no flicker. Ensure lens clean.

Monthly
Wipe lens with 70 % IPA; check gasket integrity. Measure lux (≥100 lx).

Quarterly
Measure supply voltage (24 V ±1 V) and current (<200 mA). Cycle light 100× for thermal stress.

Annually
Replace desiccant pack. Perform full photometric test; log lux values.

—

4. Replacement Cycle & Indicators
| Duty Cycle | Replace Every | Hours | Warning Signs |
| Residential | 7–8 years | 50k | Lux <70 lx, flicker |
| Commercial | 5–6 years | 35k | Yellowing, >230 mA |
| High-traffic | 3–4 years | 25k | Cracks, IP54 failure |

Replace immediately if:
– Lux <70 % of original
– Physical damage or water ingress
– Repeated “lighting fault” logs
– Temperature >70 °C

Maintain one spare TL-CL4W-C1 per 25 cars for <4-hour response.

—

5. Why Choose Nanjing Zhuye Elevatorparts?
• Full traceability – laser-etched serial & QR code
• Same-day global dispatch via DHL/FedEx
• 24/7 multilingual hotline and on-site training
• Competitive tiered pricing and custom CCT for OEM projects

—

6. Conclusion
The TL-CL4W-C1 car light is small but mission-critical. By following the installation, testing, and replacement guidelines—and sourcing only from Nanjing Zhuye Elevatorparts—you guarantee code compliance, reduce energy costs, and enhance passenger experience.
