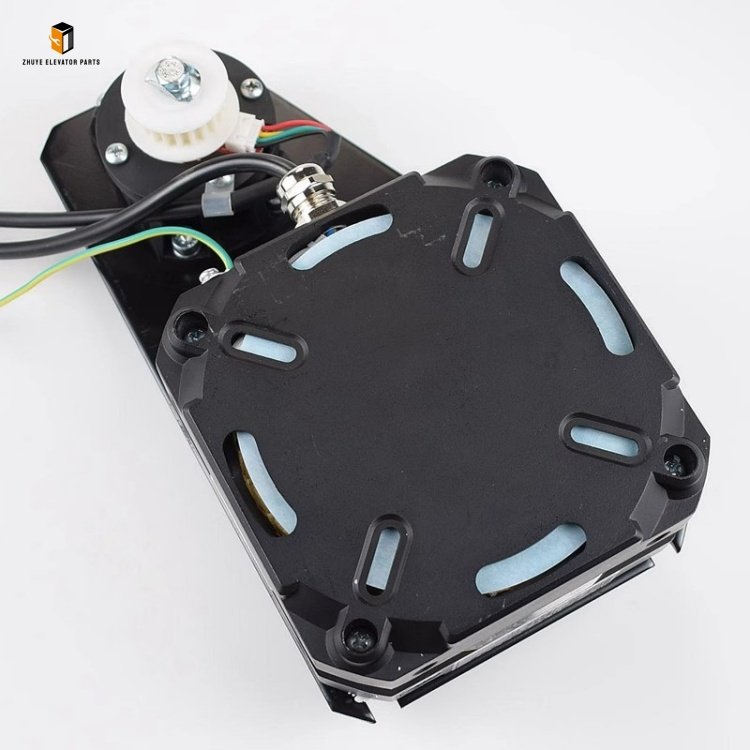

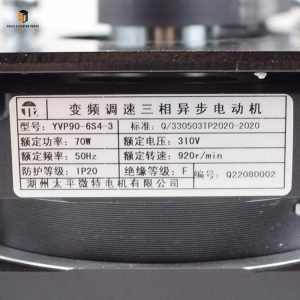

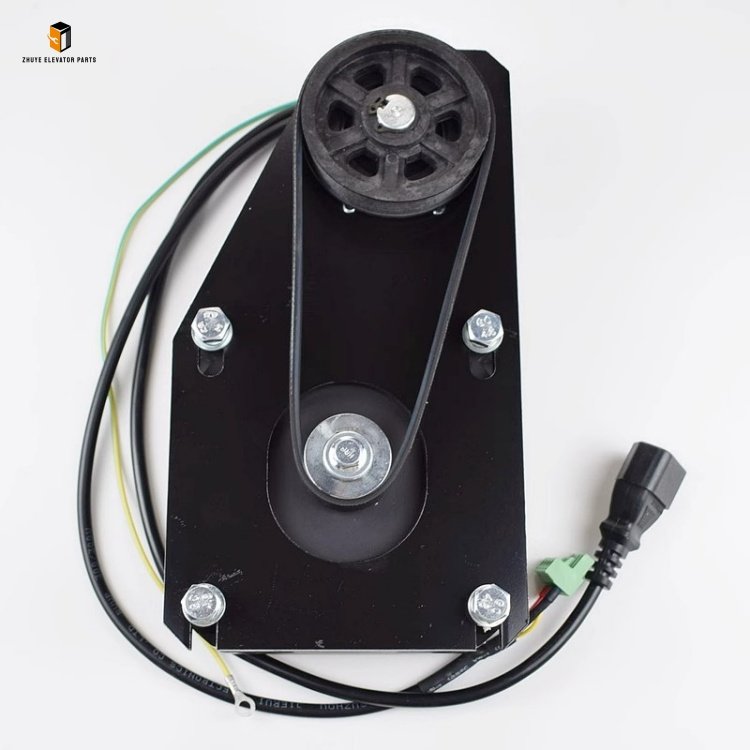

Zhangpeng Elevator Door Motor YVP90-6S4-3 & YBP90-6F2: Reliable Power for Smooth Door Operation

Proper Usage Methods of Zhangpeng Elevator Door Motor YVP90-6S4-3 & YBP90-6F2

1. Installation & Commissioning

• First, thoroughly clean the installation position on the elevator door machine beam to remove dust, oil stains, and debris, ensuring a stable and flat mounting base for the motor.
• Align the door motor with the preset mounting holes on the door machine beam, and fasten it firmly using original matching bolts and nuts. The tightening torque must comply with Zhangpeng’s technical requirements (typically 20–30 N·m) to prevent loosening during high-frequency door opening and closing operations.

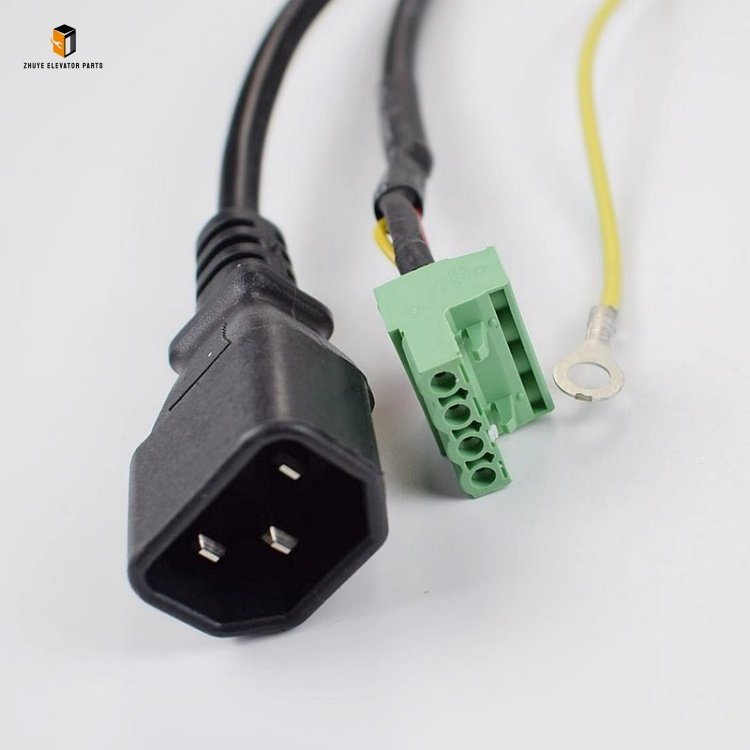

• Connect the motor wiring correctly: For YVP90-6S4-3, connect the three-phase power supply to the corresponding terminals (U, V, W) in accordance with the wiring diagram; for YBP90-6F2, connect the power supply and the encoder signal line to the matching terminals of the door controller. Ensure the wiring is tight and reliable, and the wire insulation layer is intact to avoid short circuits. Nanjing Zhuye Elevatorparts recommends checking the wiring diagram carefully before connection to prevent reverse wiring.
• After installation, conduct commissioning: Power on the elevator door system, test the door opening and closing functions, adjust the door opening and closing speed and buffer distance through the door controller, and ensure the door opens and closes smoothly without jitter or collision. For YBP90-6F2, calibrate the encoder signal to ensure accurate position control of the door leaf.

2. Daily Operation & Routine Inspection

• During elevator operation, monitor the sound of the door motor. Abnormal noises (such as squeaking, buzzing, or knocking sounds) usually indicate issues such as bearing wear, loose fasteners, or insufficient lubrication.
• Carry out weekly visual inspections: Check the appearance of YVP90-6S4-3/YBP90-6F2 for damage, such as cracks or deformation of the motor housing, looseness of bolts, and damage or aging of the wiring. Retighten loose fasteners in a timely manner and replace damaged wiring if necessary.
• Monitor the operating temperature of the motor regularly. The normal operating temperature should not exceed 80℃. If the motor is overheated (indicated by a temperature rise or thermal protection trigger), stop the machine immediately for inspection to avoid motor burnout.

3. Regular Maintenance

• Every 3 months, thoroughly clean the motor surface and the surrounding area. Use a dry, lint-free cloth to wipe off dust and debris; avoid using water, alcohol, or corrosive cleaners that may damage the motor housing and wiring.
• Every 6 months, lubricate the motor bearings. Apply an appropriate amount of high-temperature-resistant lubricating grease to the bearing positions of both models to reduce friction and wear. For YVP90-6S4-3, check the tightness of the fan cover and ensure the cooling fan operates normally.
• Annually, conduct a comprehensive performance test: Detect the motor’s operating current, speed, and insulation resistance. For YBP90-6F2, check the encoder’s working status and signal stability. If the performance indicators do not meet the requirements, contact Nanjing Zhuye Elevatorparts for professional maintenance or component replacement.

Recommended Replacement Cycle of Zhangpeng Elevator Door Motor YVP90-6S4-3 & YBP90-6F2

1. Standard Replacement Cycle

2. Scenario-Based Cycle Adjustment

• Harsh Operating Environments: For elevators operating in high-humidity coastal regions, high-dust construction sites, or high-temperature unventilated machine rooms, the replacement cycle should be shortened to 4–5 years. Harsh conditions accelerate the aging of motor windings, corrosion of bearings, and damage to insulation materials, reducing the motor’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with less than 5,000 monthly door cycles), the replacement cycle can be appropriately extended to 7–8 years after a professional inspection by Nanjing Zhuye Elevatorparts confirms that the motor’s windings, bearings, and encoder (for YBP90-6F2) are in good working condition.

3. Immediate Replacement Conditions

• The motor housing is severely cracked, deformed, or burned, and cannot be repaired.
• The motor windings are burned or short-circuited (indicated by tripping, abnormal odor, or insulation resistance below the standard value), resulting in failure to start or unstable operation.
• The bearings are severely worn or stuck, causing the motor to seize or operate with obvious noise and vibration, which cannot be resolved by lubrication.
• The encoder of YBP90-6F2 fails, resulting in inaccurate door position control and frequent door opening and closing faults that cannot be eliminated.
