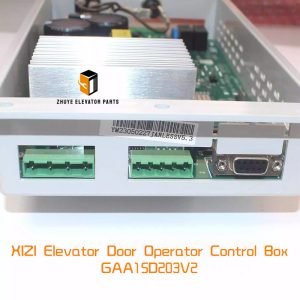

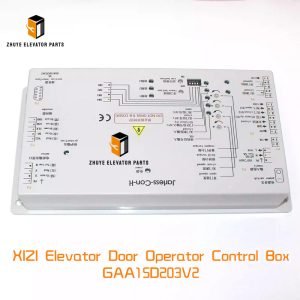

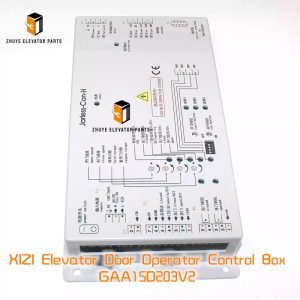

XIZI Elevator Door Operator Control Box GAA15D203V2 Brief Introduction

Product Name	XIZI Elevator Door Operator Control Box
Model Number	GAA15D203V2
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

XIZI Elevator Door Operator Control Box GAA15D203V2: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The XIZI Elevator Door Operator Control Box GAA15D203V2 is a critical integrated component designed to regulate and monitor the door operation system of XIZI elevators. As the “command center” for elevator doors, this control box orchestrates core functions including door opening/closing speed, obstacle detection response, and safety interlock coordination—ensuring smooth, safe, and reliable door movements in high-traffic commercial buildings, residential complexes, and public facilities. Compliant with global safety standards (EN 81, ASME A17.1, ISO 9001) and electromagnetic compatibility regulations (EN 61000), it integrates electronic control modules, power distribution circuits, and protective mechanisms to withstand the repetitive stress of daily elevator cycles. For elevator maintenance teams, property managers, and facility operators, mastering the correct usage, installation, and replacement timelines of the GAA15D203V2 is vital to minimize door-related malfunctions, avoid passenger inconvenience, and uphold safety compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic XIZI components, delivers the GAA15D203V2 that meets XIZI’s original manufacturing specifications, guaranteeing seamless compatibility with XIZI door operator systems, precise control, and long-term durability.

Proper Usage Methods of XIZI Elevator Door Operator Control Box GAA15D203V2

1. Pre-Installation Preparation

Before installing the GAA15D203V2, prioritize safety by shutting off the elevator’s main power supply and securing the control panel with a lockout tag. Inspect the control box for physical damage—such as cracked housings, loose terminal blocks, frayed wiring harnesses, or corrosion on circuit boards—defects that can cause door control failures, short circuits, or safety hazards. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each GAA15D203V2 unit arrives in optimal condition, with calibrated control modules, intact wiring, and pre-tested safety functions. Additionally, verify compatibility with your XIZI elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the control box’s voltage rating (typically 24V DC), communication protocol (e.g., CAN bus, dry contact), and door operator type (sliding, swing) match your system’s requirements.

2. Installation & Operation Steps

Mounting the Control Box:
- Locate the designated installation position near the door operator mechanism—typically on the elevator car top or in the hoistway door header. The mounting surface must be flat, stable, and protected from moisture or direct impact.
- Secure the GAA15D203V2 to the mounting bracket using corrosion-resistant bolts (provided), torquing them to the manufacturer’s recommended value (1.0–1.5 Nm) to prevent vibration-induced loosening during elevator operation. Ensure at least 10cm of clearance around the box for ventilation and maintenance access.
Wiring Connection:
- Follow the wiring diagram provided by XIZI or Nanjing Zhuye to connect the control box to the door motor, obstacle detection sensors (e.g., light curtains), safety interlocks, and elevator main controller:
  - Connect the power wires (positive/negative) to the designated terminals, ensuring correct polarity to avoid component burnout.
  - Attach the motor control wires to regulate door opening/closing speed and direction—match wire colors to the diagram to prevent misconnection.
  - Wire the safety interlock and sensor signals to enable immediate door reversal if obstacles are detected or interlocks are triggered.
  - Secure all connections with terminal blocks and use cable glands to seal wiring entries, preventing dust or moisture intrusion. Route wiring away from moving parts (e.g., door rails, motor shafts) to avoid mechanical damage.
Configuration & Functional Testing:
- Power on the control box and access the configuration menu via the built-in control panel or XIZI-approved diagnostic software:
  - Set door operation parameters: opening/closing speed (adjust for passenger flow), acceleration/deceleration rates, and door hold time (typically 2–5 seconds).
  - Calibrate obstacle detection sensitivity to ensure doors reverse promptly without false triggers.
- Conduct comprehensive tests:
  - Operate doors in automatic and manual modes to verify smooth movement and consistent speed.
  - Simulate obstacles (e.g., place a soft object in the door path) to confirm immediate reversal and safety interlock activation.
  - Test door interlock functionality by triggering safety switches—ensure doors cannot operate if interlocks are disengaged.
- Document test results in the elevator’s maintenance records to demonstrate compliance with safety standards.

3. Routine Usage Maintenance

To preserve the GAA15D203V2’s performance, implement these routine practices:

Conduct weekly visual inspections: Check for loose wiring, dust accumulation inside the control box, or damage to the housing. Clean the box with a dry, lint-free cloth and remove debris from ventilation slots.
Test door operation functionality monthly: Verify smooth speed regulation, obstacle detection response, and interlock performance. Document any irregularities (e.g., slow movement, delayed reversal).
Inspect wiring connections quarterly for corrosion, wear, or looseness; tighten terminals or replace damaged cables with genuine XIZI parts from Nanjing Zhuye.
Calibrate control parameters semi-annually to account for mechanical wear—consult XIZI’s technical manual or Nanjing Zhuye’s support team for calibration procedures.

Recommended Replacement Cycle

The service life of the XIZI Elevator Door Operator Control Box GAA15D203V2 depends on operating conditions (usage frequency, humidity, temperature), and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, stable environment), the GAA15D203V2 should be replaced every 6–8 years. This timeframe accounts for gradual degradation of electronic components (capacitors, microcontrollers), wiring wear, and firmware obsolescence—ensuring the control box maintains precise door control and compatibility with XIZI elevator system upgrades. Proactive replacement reduces the risk of sudden door failures (e.g., stuck doors, unresponsive controls), which can trap passengers or cause safety incidents.

2. Signs That Require Immediate Replacement

Replace the control box immediately if you encounter any of the following issues:

Door control malfunctions: Erratic opening/closing, inconsistent speed, failure to hold doors open, or unresponsive manual/auto controls—despite wiring checks and parameter resets.
Safety function failures: Doors do not reverse when obstacles are detected, or interlock signals are ignored—compromising passenger safety.
Physical damage: Cracked housing, water intrusion, burnt circuit boards, or corroded terminals that impair functionality.
Communication failures: Inability to connect to the elevator main controller, indicated by unlogged faults or non-synchronized door operation.
Frequent error codes: Persistent diagnostic alerts related to the door control box that cannot be resolved by troubleshooting.

3. Maintenance to Extend Service Life

To maximize the GAA15D203V2’s lifespan:

Maintain the installation area at a stable temperature (10–35°C) and low humidity (30–60%) to prevent component corrosion and circuit damage.
Protect the control box from power surges by installing surge protectors in the power supply line.
Ensure the door operator mechanism (motor, rails, belts) is properly maintained (lubricated, aligned) to reduce stress on the control box.
Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit control boxes may have inferior components, incorrect wiring, or compatibility issues with XIZI systems.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the XIZI Elevator Door Operator Control Box GAA15D203V2, Nanjing Zhuye Elevator Parts offers unmatched advantages for elevator professionals:

Authenticity & Compatibility: All GAA15D203V2 control boxes are manufactured to XIZI’s original specifications, ensuring seamless integration with XIZI door operator systems and adherence to global safety standards.
Strict Quality Assurance: Each unit undergoes rigorous testing—including door control accuracy, safety function verification, environmental durability, and voltage stability—to guarantee reliable performance in critical door operation scenarios.
Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation wiring and parameter configuration to troubleshooting door control issues, ensuring the box operates optimally.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers specialized XIZI components promptly worldwide, minimizing elevator downtime during replacement.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety and operational efficiency for XIZI elevators.

Conclusion

The XIZI Elevator Door Operator Control Box GAA15D203V2 is a foundational component that directly impacts elevator door safety, reliability, and passenger experience. By following proper usage and installation methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your XIZI elevators remain compliant, downtime-free, and user-friendly. Whether you need a replacement control box, technical support, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium components and professional services tailored to your needs. Invest in door operation integrity—choose Nanjing Zhuye Elevator Parts for your XIZI GAA15D203V2 door operator control box requirements.
