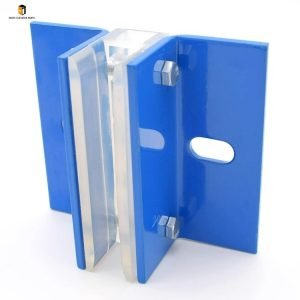

XIO Elevator Guide Shoe 120*10/16mm: Ensuring Smooth and Safe Elevator Car Travel

Smooth vertical movement and stable operation are the core indicators of elevator performance, and the XIO Elevator Guide Shoe 120*10/16mm is a key component that directly determines the running comfort and safety of elevator cars. Serving as the connection between the elevator car and guide rails, this guide shoe reduces friction during operation, prevents the car from shaking or deviating, and ensures a quiet and steady ride experience for passengers. As a professional supplier of premium elevator parts, Nanjing Zhuye Elevatorparts provides high-quality XIO 120*10/16mm guide shoes that perfectly match mainstream elevator models, delivering reliable support for elevator maintenance and upgrade projects worldwide.

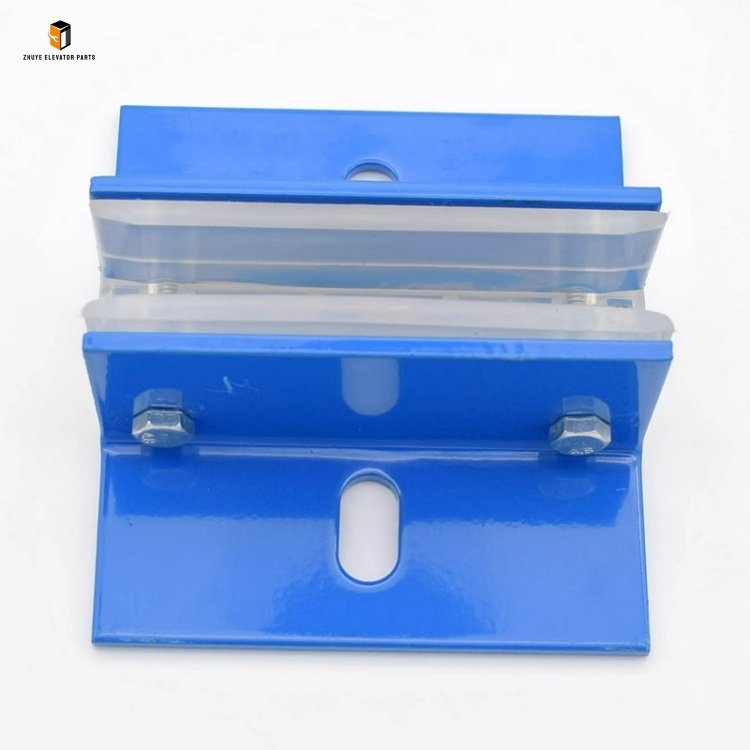

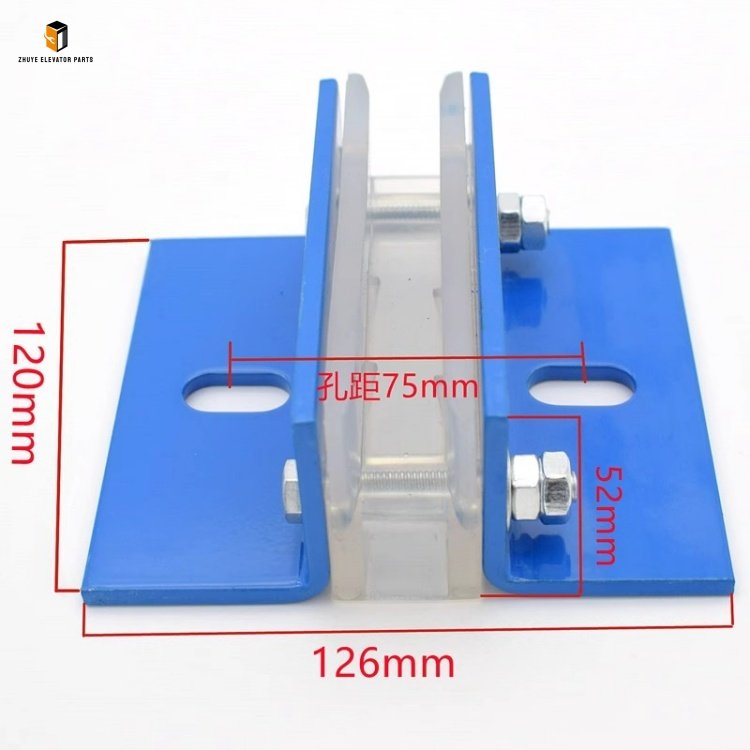

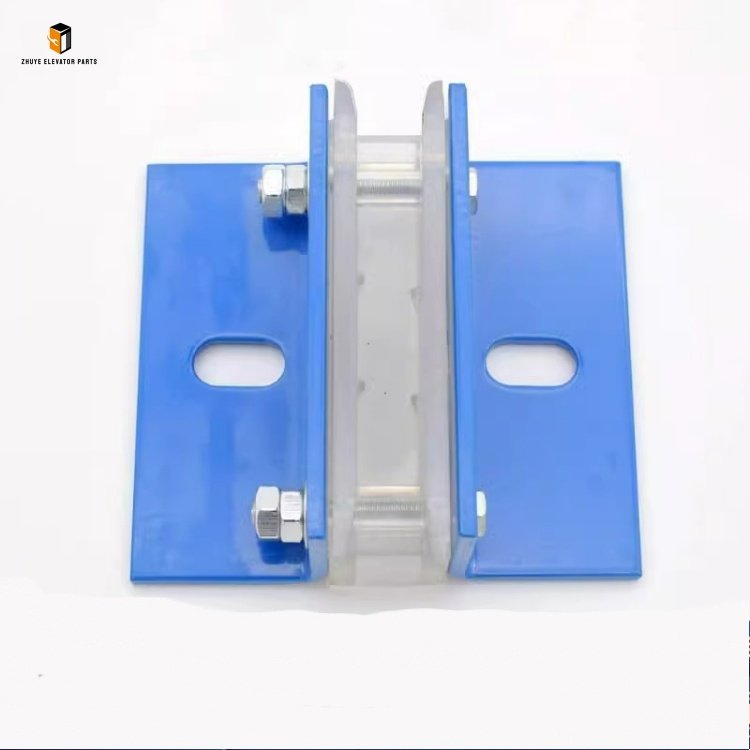

The XIO 120*10/16mm guide shoe is engineered with a precision-machined structure, available in 10mm and 16mm specifications to adapt to different guide rail sizes. Its wear-resistant lining is designed to minimize friction between the car and guide rails, while the sturdy metal frame ensures strong load-bearing capacity. Correct installation and usage are essential to maximize the service life of the guide shoe and maintain elevator operation stability.

For standardized installation and usage methods, first, pre-installation preparation is critical. Maintenance personnel should confirm that the guide shoe specifications match the guide rail size of the target elevator—10mm for narrow guide rails and 16mm for wider ones. Then, power off the elevator and lock it in maintenance mode to avoid accidental startup. Clean the surface of the guide rails and the mounting position of the guide shoe on the car frame to remove rust, dust, and oil stains that may affect installation accuracy. Next, fix the XIO guide shoe to the car frame using high-strength bolts, and adjust the gap between the guide shoe lining and the guide rail to 0.2–0.5mm with a feeler gauge; an overly large gap will cause car shaking, while a too-small gap will increase friction and accelerate lining wear. After installation, conduct a test run: the elevator car should run up and down the full height of the hoistway without abnormal noise or jolting. During daily use, regularly check the tightness of the fixing bolts and the condition of the guide shoe lining, and avoid using harsh chemicals to clean the guide rails, as this may corrode the lining material. Nanjing Zhuye Elevatorparts recommends applying a small amount of specialized lubricant to the guide rail surface every month to reduce friction and extend the guide shoe’s service life.

In terms of replacement cycles, the service life of the XIO 120*10/16mm guide shoe is mainly determined by the wear degree of its lining, which is affected by factors such as elevator usage frequency, load weight, and maintenance quality. Under normal operating conditions (residential buildings with moderate passenger flow and daily operation time of 8–10 hours), the recommended replacement cycle for the guide shoe lining is 6–12 months. For the entire guide shoe assembly, including the metal frame, the replacement cycle is 2–3 years under regular maintenance. For elevators operating in high-frequency scenarios, such as shopping malls, hospitals, and office buildings with heavy passenger flow, the lining replacement cycle should be shortened to 3–6 months, as continuous high-load operation will accelerate lining wear.

There are clear warning signs that indicate an urgent need for replacement. If the elevator car produces a squeaking or grinding noise during operation, if passengers can feel obvious shaking or deviation when the car runs at high speed, or if the guide shoe lining shows visible cracks, peeling, or wear exceeding 2mm, immediate replacement is required. Delaying replacement will not only degrade ride comfort but also cause damage to the guide rails and even pose safety risks. Nanjing Zhuye Elevatorparts suggests that maintenance teams conduct a comprehensive inspection of the guide shoes every 2 months, recording the lining wear condition and replacing worn parts in a timely manner.

Nanjing Zhuye Elevatorparts’ XIO 120*10/16mm guide shoes are made of high-quality polyurethane lining and high-strength steel frame. The polyurethane material features excellent wear resistance, low noise, and corrosion resistance, while the steel frame is processed with hot-dip galvanizing to prevent rust. All products undergo strict performance testing before leaving the factory, ensuring full compatibility with XIO elevator systems and seamless installation without additional modifications.

In conclusion, the XIO 120*10/16mm guide shoe is a small but indispensable component for ensuring elevator safety and ride comfort. Standardized installation, regular maintenance, and timely replacement are key to preventing elevator failures and extending the service life of the entire elevator system. With superior product quality and professional technical support, Nanjing Zhuye Elevatorparts is committed to providing global customers with cost-effective elevator part solutions, escorting the safe and smooth operation of every elevator.
