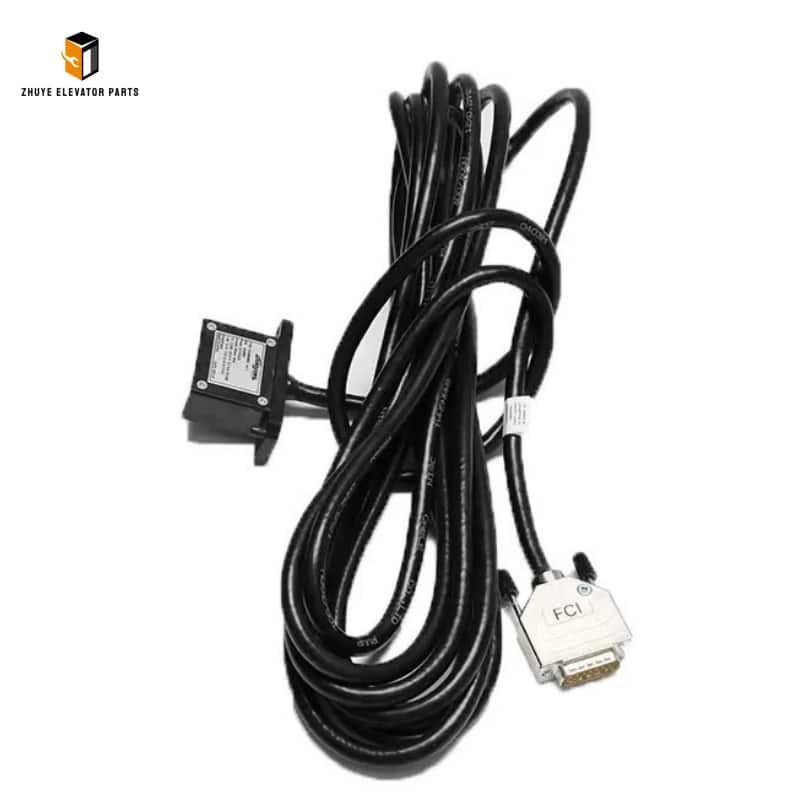

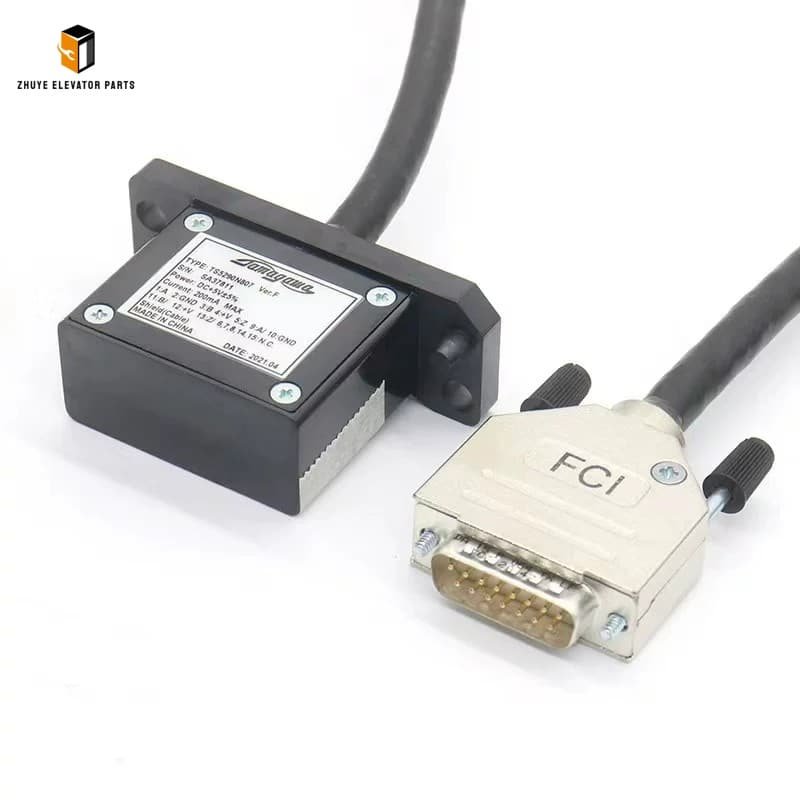

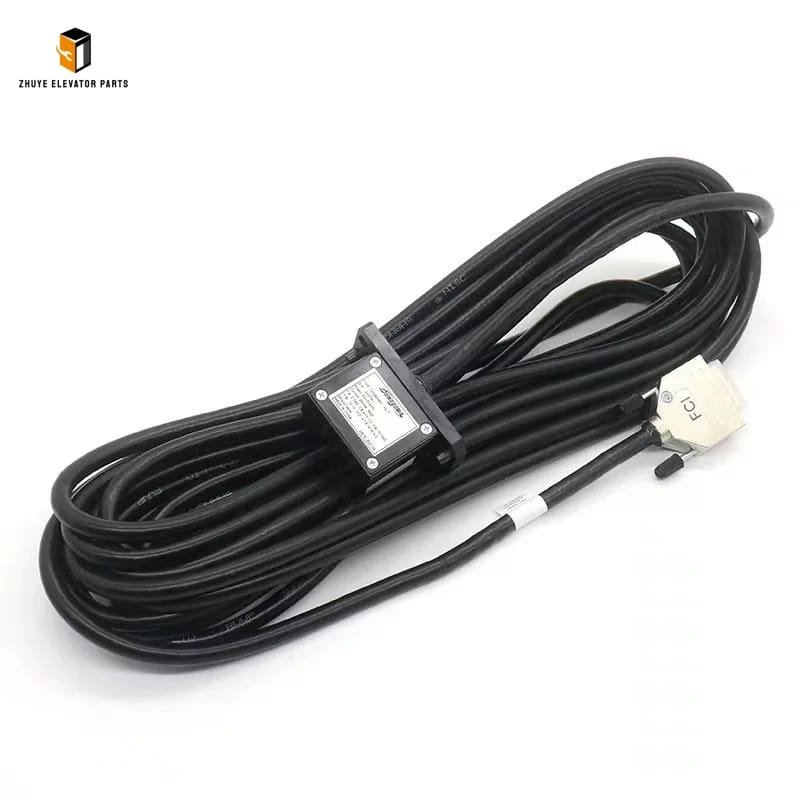

ThyssenKrupp Elevator Tamagawa Hoist Machine Encoder TS5290N812
|
Product Name |
ThyssenKrupp Elevator Tamagawa Hoist Machine Encoder |
| Model Number | TS5290N812
TS5290N807 TS5290N808 TS5290N809 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
ThyssenKrupp Elevator Tamagawa Hoist Machine Encoder TS5290N812
The Tamagawa Hoist Machine Encoder TS5290N812 is an original high-precision rotary sensing component professionally engineered for full compatibility with ThyssenKrupp elevators. Mounted on the elevator traction hoist motor shaft, this industrial-grade encoder serves as the core speed and position feedback unit for the main traction system. It captures real-time rotational pulse signals, feeding accurate motor speed, car position and operating status data back to the elevator main controller to achieve precise leveling, stable speed regulation and safe running logic. Common elevator faults including inaccurate floor leveling, jittery running speed, startup failure, system error codes and unstable traction linkage are mainly caused by internal sensor aging, pulse signal distortion, long-term mechanical vibration and dust contamination. Manufactured in strict accordance with ThyssenKrupp original electrical parameters and mounting standards, the TS5290N812 encoder is a standard OEM replacement part for daily maintenance, traction system debugging and bulk spare part inventory for global elevator service providers.
Adopting authentic Tamagawa optical sensing chips and anti-interference enclosed circuit structure, the TS5290N812 ThyssenKrupp hoist machine encoder delivers outstanding pulse accuracy, signal stability and ultra-long service life. Optimized for continuous high-load operation of elevator traction machines, it effectively resists mechanical vibration, electromagnetic interference and temperature fluctuations in machine room environments, ensuring lossless pulse signal output without drift or distortion. All mounting dimensions, pulse resolution, wiring definitions and electrical specifications fully comply with ThyssenKrupp factory standards, enabling direct plug-and-play installation without program modification or complex parameter calibration. Equipped with a durable dustproof and shockproof housing, this encoder maintains stable operating performance for all mainstream ThyssenKrupp residential and commercial elevator traction systems.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the TS5290N812 hoist machine encoder must be completed by certified professional technicians specializing in ThyssenKrupp elevator systems. Before maintenance work, completely cut off the elevator main power and traction control power loop, lock the safety isolation switch, and place a prominent “Maintenance In Progress” warning sign on-site. Live-line operation and blind disassembly are strictly prohibited to prevent circuit burnout, sensor damage and accidental elevator malfunction.
Access the elevator machine room with standard insulated maintenance tools and locate the original encoder mounted on the traction hoist motor shaft. Verify the equipment model to confirm full matching with TS5290N812 specifications. Disconnect signal wires and power cables one by one, and mark each wiring interface clearly to avoid misconnection during reinstallation. Remove the fixing bolts and safely detach the aging or faulty original encoder assembly from the motor shaft. Clean the motor shaft surface and mounting base thoroughly to remove dust and oil stains that may affect installation accuracy and signal sensing.
Install the brand-new TS5290N812 encoder on the traction motor shaft at the standard position, adjust installation coaxiality and gap strictly according to ThyssenKrupp assembly standards to avoid signal deviation caused by installation offset. Fasten anti-loose bolts firmly to prevent displacement from long-term motor vibration. Reconnect all cables following the marked sequence and double-check terminal firmness and circuit correctness. After installation, restore power supply and conduct multiple elevator running tests and system self-learning to verify accurate pulse feedback, stable speed regulation and precise floor leveling without abnormal faults.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the TS5290N812 hoist machine encoder depends on elevator operating frequency and machine room environmental conditions. For conventional residential and office elevators with moderate operation volume, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic venues such as shopping malls, medical centers and transport hubs, or humid and dusty machine room environments, the encoder endures long-term high-frequency vibration and environmental erosion. It is advisable to shorten the replacement cycle to 4 to 5 years to prevent sudden signal failure and unplanned elevator downtime.
Immediate replacement is required once abnormal symptoms occur, including unstable elevator running, intermittent signal loss, inaccurate leveling, system fault codes and delayed motor response. Timely replacement of the TS5290N812 encoder eliminates hidden operational risks and guarantees stable, safe and precise operation for all ThyssenKrupp elevator traction systems.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Tamagawa Hoist Machine Encoder TS5290N812, 100% compatible with all mainstream ThyssenKrupp elevator models. Every encoder undergoes strict pulse accuracy testing, signal matching verification and 72-hour continuous mechanical aging tests before shipment. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and provide professional remote installation and debugging guidance. Our high-precision OEM spare parts reduce on-site maintenance difficulty, minimize elevator downtime, and help global elevator contractors improve operational safety and service efficiency.
