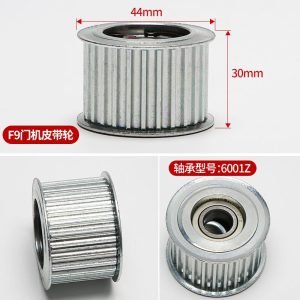

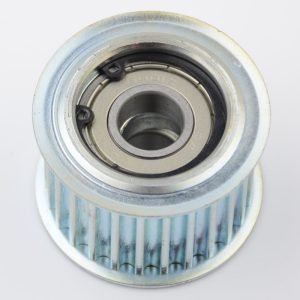

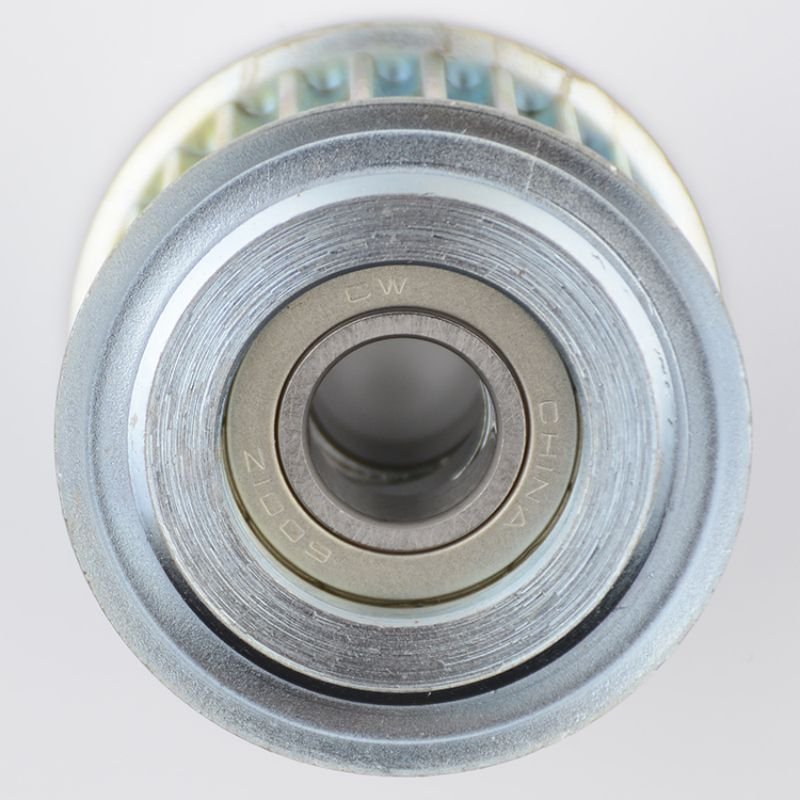

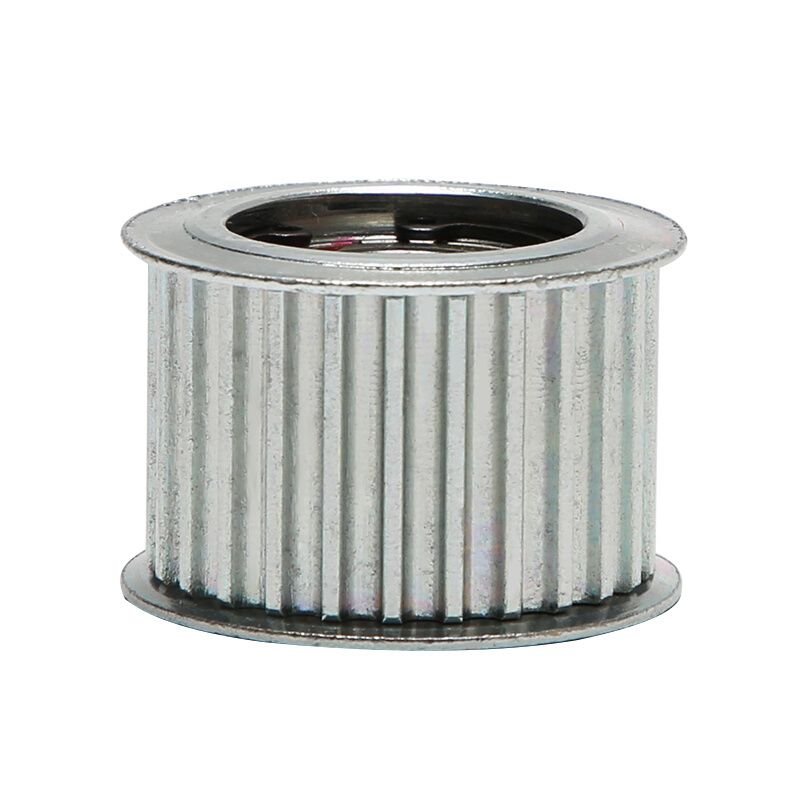

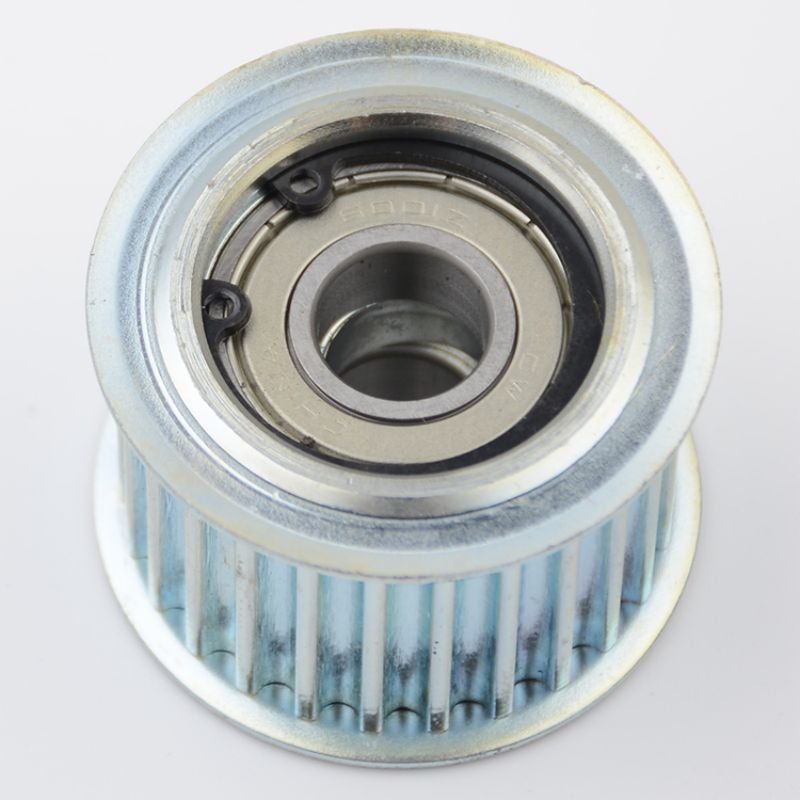

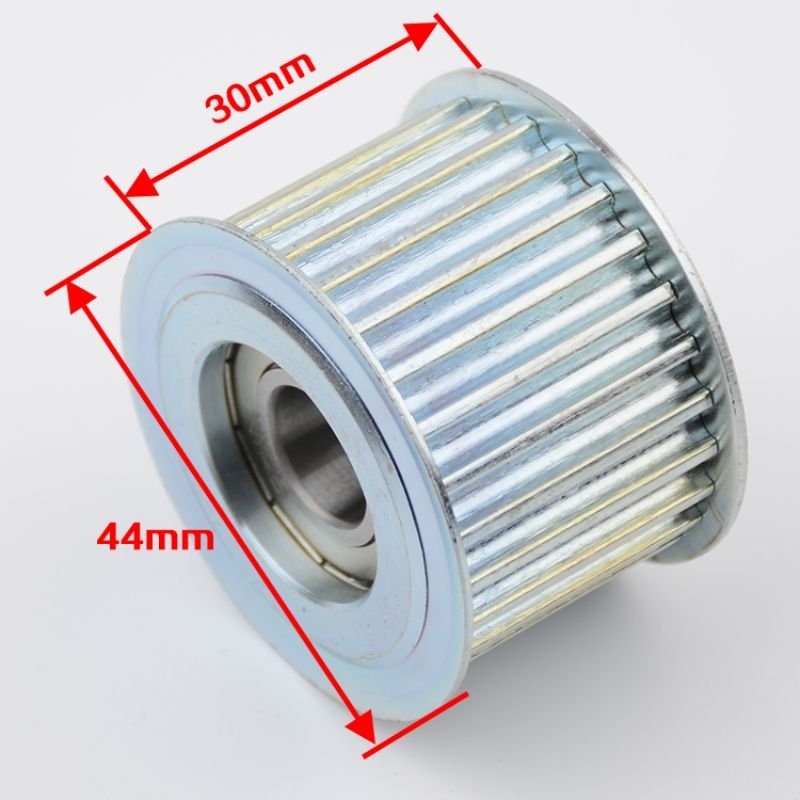

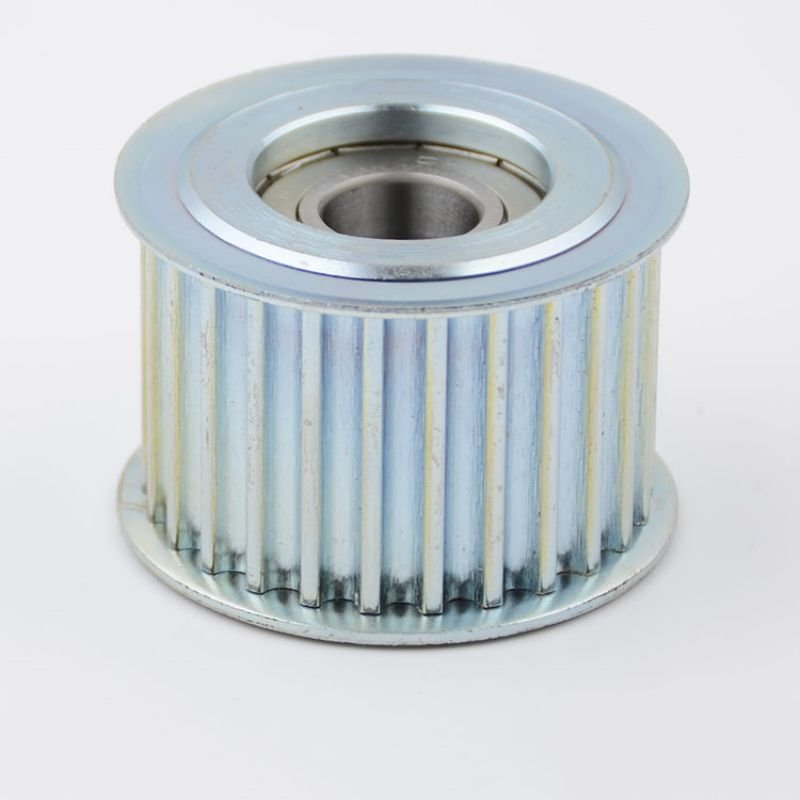

Thyssenkrupp Elevator Door Machine Belt Rollers: F5/F9 Controller & K8/S8 Door Machine Variants – Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Thyssenkrupp Door Machine Belt Rollers (F5/F9/K8/S8)

1. Pre-Installation Preparation

2. Installation & Alignment Steps

• Removal of Old Rollers:
  • Access the door operator assembly (located in the elevator cab or hoistway). Loosen the mounting bolts of the old roller using a torque wrench and carefully remove it from the bracket. Detach the door belt from the roller’s groove—note the belt’s direction to ensure correct reinstallation. Clean the mounting bracket and surrounding area to remove dust, debris, or belt residue that could interfere with alignment.
• Installation of New Rollers:
  • Align the new belt roller with the mounting bracket, ensuring the shaft fits securely into the bearing housing. Secure the roller with the provided high-strength bolts (torque to 3–5 Nm, following Thyssenkrupp’s specifications) to prevent vibration-induced loosening. Re-thread the door belt into the roller’s groove—ensure the belt is properly tensioned (neither too tight nor too loose) to avoid slippage or excessive roller wear.
• Mechanical Alignment:
  • Manually operate the elevator doors to verify the roller rotates freely without binding. Check that the belt runs centrally in the roller’s groove (no side contact) and that all rollers (drive and idler) are parallel to each other—misalignment can cause uneven belt wear and noisy operation. Adjust the mounting bracket position (if needed) to achieve perfect alignment, adhering to Thyssenkrupp’s door system guidelines.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Smooth Operation Test: Power on the elevator and test automatic/manual door modes—confirm doors open/close without jitter, hesitation, or unusual noise (e.g., squeaking, grinding), consistent with Thyssenkrupp’s performance standards.
    • Belt Tension Test: Verify the belt maintains tension during peak load (e.g., door resistance from wind or minor obstruction) without slipping on the roller.
    • Cycle Durability Test: Run 50 consecutive door cycles to ensure the roller performs consistently, with no bearing heating or belt misalignment.
  • Document installation details and test results in maintenance records, noting the specific variant (F5/F9/K8/S8) installed.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose mounting bolts, belt wear (fraying, cracks), or debris in the roller’s groove. Remove dust and residue with a soft brush—avoid harsh cleaners that can damage the roller’s surface.
• Monthly Operational Checks: Listen for unusual noises (e.g., squealing, rattling) during door operation, which may indicate bearing wear or misalignment. Manually spin the roller to confirm smooth rotation (no stiffness).
• Quarterly Belt & Roller Inspections: Inspect the door belt for tension and wear—replace worn belts with genuine Thyssenkrupp parts from Nanjing Zhuye. Check the roller’s rolling surface for cracks, flat spots, or deformation—address minor issues before they escalate.
• Semi-Annual Lubrication (If Applicable): For variants with lubrication points, apply Thyssenkrupp-approved lubricant to the roller bearings to minimize friction and extend lifespan. Avoid over-lubrication, as excess grease attracts dust.
• Annual Comprehensive Inspection: Remove the roller to inspect internal bearings for wear or corrosion. Measure the roller’s diameter (check for wear beyond 0.5mm, Thyssenkrupp’s tolerance limit) and replace if necessary.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Operational Failures: Doors stick, move unevenly, or fail to open/close fully—indicative of seized bearings, worn roller surfaces, or misalignment that cannot be adjusted.
• Excessive Wear: Roller surface wear exceeds 0.5mm (measured with a caliper), or the rolling surface develops cracks, flat spots, or permanent deformation—causing belt slippage or noisy operation.
• Bearing Issues: Roller rotates with stiffness, grinding, or excessive play (indicating bearing damage) or becomes hot to the touch after a few cycles—violating Thyssenkrupp’s safety thresholds.
• Belt Damage: Door belt frays, tears, or slips frequently—attributed to a damaged roller groove or misalignment that cannot be resolved.
• Physical Damage: Bent shafts, cracked roller housing, or irreparable mounting bracket damage—compromising mechanical integrity and safety.

3. Maintenance to Extend Service Life

• Protect from Contamination: Keep the door operator area clean and free from dust, debris, or water—contamination accelerates bearing wear and roller surface damage. Install dust covers (if not factory-fitted) to shield rollers from environmental debris.
• Maintain Belt Health: Replace worn or damaged door belts promptly—damaged belts increase friction and wear on rollers. Use only genuine Thyssenkrupp belts from Nanjing Zhuye to ensure compatibility.
• Avoid Overloading: Minimize unnecessary door cycles (e.g., disable automatic re-opening during low-traffic periods) to reduce wear on rollers and bearings, aligning with Thyssenkrupp’s maintenance best practices.
• Use Genuine Parts Only: For replacements, rely exclusively on authentic Thyssenkrupp belt rollers from Nanjing Zhuye. Counterfeit rollers may use inferior materials (e.g., low-grade rubber, untested bearings) or incorrect dimensions—compromising performance, safety, and Thyssenkrupp’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Thyssenkrupp Compatibility: All variants are manufactured to Thyssenkrupp’s original specifications, ensuring seamless integration with Thyssenkrupp door systems and compliance with global safety/mechanical standards.
• Strict Thyssenkrupp-Specific Quality Assurance: Each unit undergoes rigorous testing—including bearing durability, roller surface wear resistance, dimensional accuracy, and rotation smoothness—to guarantee reliable operation in critical Thyssenkrupp door systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Thyssenkrupp elevator systems, providing 24/7 assistance for variant selection, installation alignment, and troubleshooting (e.g., noisy operation, belt slippage) in Thyssenkrupp elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Thyssenkrupp’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Thyssenkrupp elevator components.
