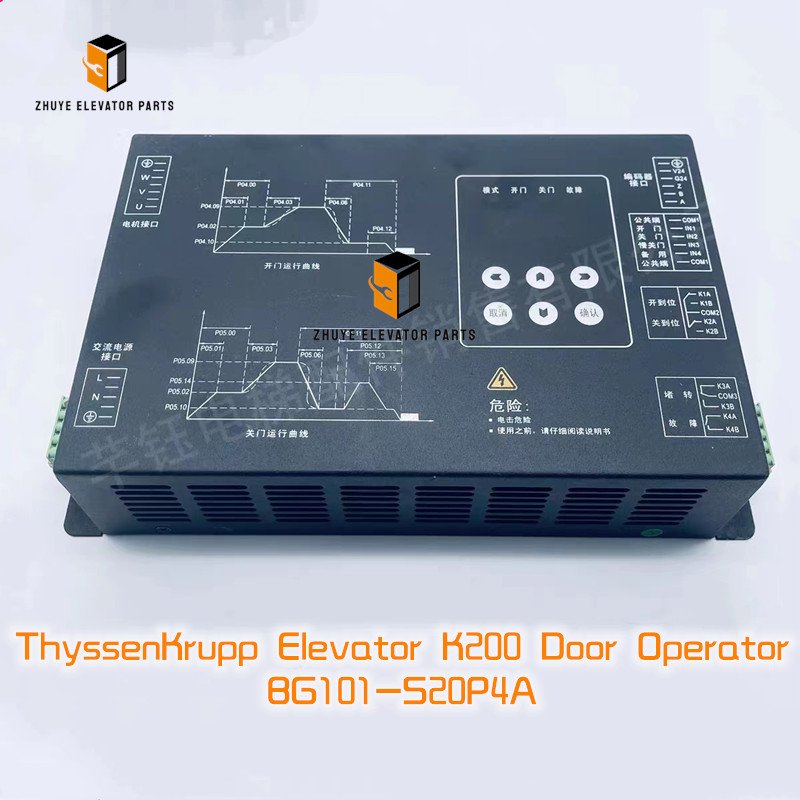

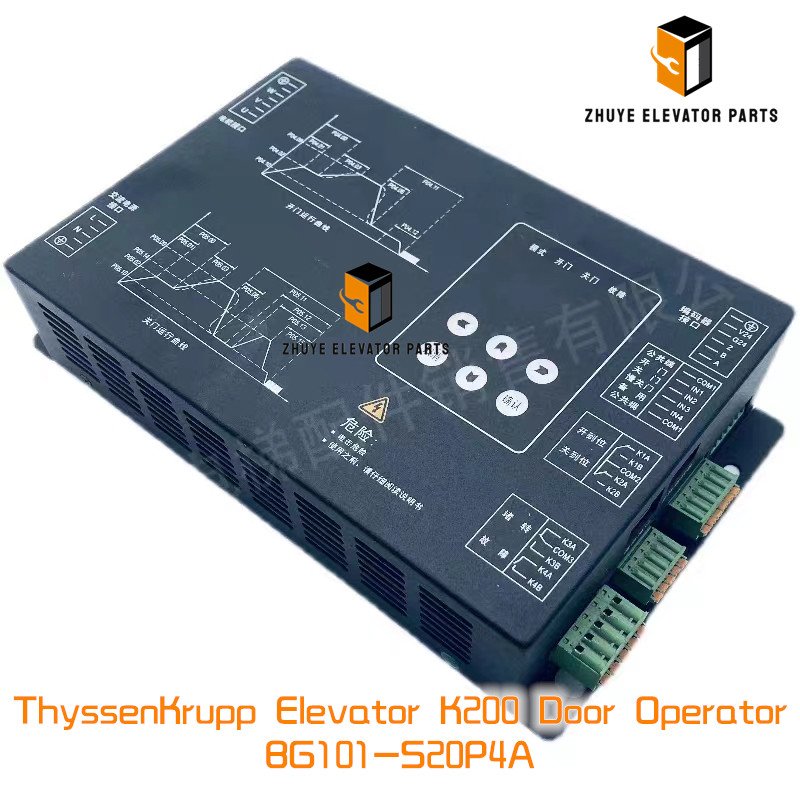

ThyssenKrupp Elevator K200 Door Operator BG101-S20P4A Brief Introduction
|
Product Name
|
ThyssenKrupp Elevator K200 Door Operator |
|
Model
|
BG101-S20P4A
|
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Thyssen K200 Door Operator BG101-S20P4A – Silent, Speed-Optimized Motion for K200 Cars | Nanjing Zhuye Elevator Parts
First impressions start with the door. The Thyssen BG101-S20P4A operator delivers the speed and silence K200 cars are famous for—0.4 m/s opening, 0.35 m/s closing, adaptive torque and ≤ 55 dB(A) at 1 m. Built into Thyssen K200, K200-MO and modernisation packages, it mates with the K200-MCB control board to open 900 mm panels in < 2.2 s while keeping closing force under 150 N. When belts slip or the encoder drifts, passengers feel a shudder or nudge-loop. Nanjing Zhuye Elevator Parts keeps genuine BG101-S20P4A operators—motor, belt, encoder and mounting template—in stock for next-day despatch worldwide, helping you restore premium door motion without costly OEM delays.
Product snapshot
-
Thyssen part number BG101-S20P4A, revision A4, firmware bundle K200-DO-12.5
-
180 W brushless PM motor, 24-48 V DC, 0.32 Nm continuous, 1.1 Nm peak, 3 000 rpm
-
Built-in 1 024 ppr encoder + Hall sensors, auto-learning in 60 s
-
Side-opening configuration, 400-1 000 mm clear opening, 80-150 kg panel mass
-
Poly-V belt 5PJ, 520 mm pitch, low-noise, anti-static, lifetime > 2 million cycles
-
Aluminium housing, e-coat anti-corrosion, IP54, −10 °C to +55 °C
-
Encoder IP65, shaft Ø 14 mm, key 5 × 5 × 20 mm, front flange B14, 4 × M6 on 63 mm PCD
-
Mass 2.8 kg, length 180 mm, mounting footprint 100 × 80 mm
-
CE, UL, RoHS, REACH and Thyssen QES 2024 approved
Where it works
-
Thyssen K200, K200-MO, K200-MRL side-opening passenger elevators
-
Modernisation packages replacing older K100 or relay-logic operators
-
Any door height 2 000-2 600 mm, sill width 400-1 100 mm, 1:1 or 2:1 belt arrangement
Installation method – 30-minute field swap
-
Place lift on inspection mode; open doors manually; switch OFF local breaker; lock & tag.
-
Remove operator cover; release belt tensioner; photograph encoder and power connectors.
-
Unbolt old operator (4 × M8); lower onto pad to avoid encoder damage.
-
Mount BG101-S20P4A template; torque M8 bolts to 18 Nm.
-
Install poly-V belt; tension to 2 % of length (deflection 6 mm at 200 mm span).
-
Connect 24-48 V DC (red +, black −), CAN-FD (H/L), encoder 8-pin, safety-edge 24 V.
-
Power up; green “RDY” LED blinks; board auto-detects motor direction and encoder type in 5 s.
-
Launch Thyssen K200 Tool (TK2-12) on laptop; auto-learn runs full stroke twice, records inertia, friction, backlash.
-
Fine-tune curves: open speed 0.4 m/s, close speed 0.35 m/s, nudging torque 45 %, brake delay 0.2 s.
-
Execute 50 continuous cycles; verify temperature < 50 °C on motor flange and no fault codes.
-
Apply torque-stripe paint; log serial number and date in maintenance book.
Replacement cycle & preventive maintenance Thyssen bulletin SB-K200-DO-2024-04 recommends:
-
Visual inspection every 6 months: check belt wear, encoder alignment, loose bolts.
-
Belt test: replace poly-V when cracks > 2 mm or ribs missing, or when deflection > 3 %.
-
Encoder test: oscilloscope trace must show clean 0-5 V square wave; replace motor if jitter > 5 %.
-
Replace entire operator every 12 years or 3 million cycles, whichever comes first.
-
Immediate replacement if:
– motor stalls with < 0.2 Nm torque (magnet demagnetisation),
– encoder Hall error persists after cable swap,
– temperature > 70 °C on flange (fan failure),
– belt slips after re-tension (pulley worn).
Pro tip: 60 % of premature failures are traced to over-tensioned belts—keep deflection at 2 % of span.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use the supplied key and torque driver; loose keys ovalise the shaft and destroy the encoder disk.
-
Never pressure-wash the operator; water enters the encoder and locks the Hall sensors.
-
Keep a spare BG101-S20P4A in every service van; at 2.8 kg it costs less than one callback night.
-
After heavy cleaning, run 5 cycles to redistribute grease inside bearings and verify encoder count.
-
Order the “K200 Door Kit” (operator + belt + encoder cable + torque tool) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are a Thyssen-authorised distributor, importing BG101-S20P4A directly from the Shanghai factory, balancing every rotor and testing encoder signals at 3 000 rpm. Operators are shipped with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse holds 300+ units year-round; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at five pieces; we can laser-mark your asset number and preload the encoder hub to cut on-site fitting time in half.
Conclusion
The Thyssen K200 Door Operator BG101-S20P4A is the silent muscle behind every perfect door movement. By installing the genuine unit, maintaining correct belt tension and replacing it before bearings growl, you ensure every passenger enters and exits smoothly—without even noticing the technology at work. Stock genuine BG101-S20P4A from Nanjing Zhuye Elevator Parts today—because when the door operator stops, the whole ride stops.
