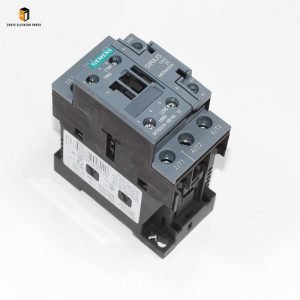

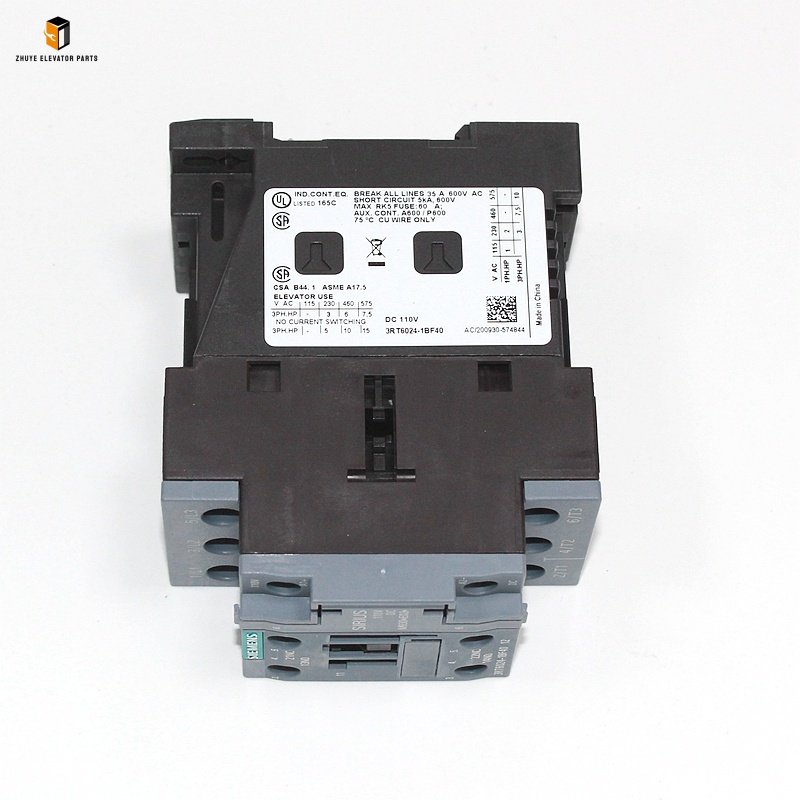

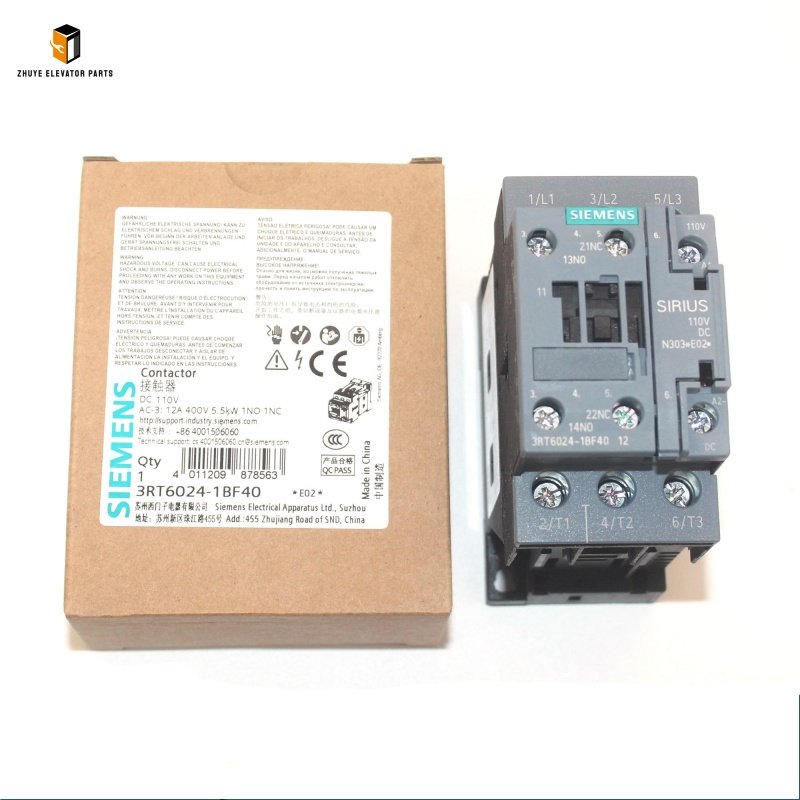

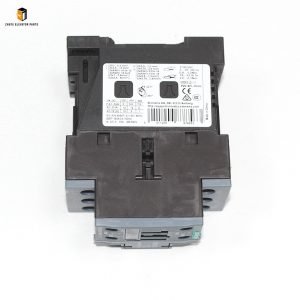

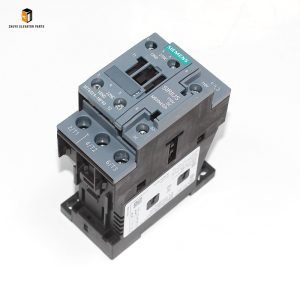

SIEMENS elevator contactor 3RT6024-1BF40 DC110V Brief Introduction

Product Name	SIEMENS elevator contactor 3RT6024-1BF40 DC110V
Model Number	3RT6024-1BF40 DC110V
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

SIEMENS Elevator Contactor 3RT6024-1BF40 DC110V: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The SIEMENS Elevator Contactor 3RT6024-1BF40 DC110V is a mission-critical power switching component exclusively engineered for SIEMENS elevator systems—essential for commercial high-rises, residential complexes, public transit facilities, and office buildings worldwide. As the “circuit control core” for SIEMENS’ mid-to-high-performance elevator models (including PORT3, MAX, and Eco series), this precision-manufactured contactor regulates the flow of electrical power to core subsystems: traction motors, door operators, safety circuits, and auxiliary power units. It integrates SIEMENS’ proprietary design features: silver-nickel alloy contact points for low resistance and anti-welding properties, arc-extinguishing grids to suppress electrical arcing, and high-efficiency DC110V electromagnetic coils for reliable actuation—ensuring seamless power switching while upholding the brand’s strict standards for safety, durability, and operational stability.

Compliant with global safety and electrical standards (EN 81, IEC 60947-4-1, UL 508, ISO 9001), the 3RT6024-1BF40 DC110V features a rugged, industrial-grade construction: flame-retardant polyamide housing (UL94 V0 rating), corrosion-resistant zinc-plated metal components, sealed contact chambers to prevent dust and moisture intrusion, and built-in thermal overload protection. This design withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-25°C to +55°C), mechanical vibration from elevator movement, and electrical stress from frequent switching cycles—critical for uninterrupted elevator performance and protection against short circuits or power surges. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, inspection, and replacement timelines of this contactor is vital to avoiding power system failures, elevator downtime, or electrical hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic SIEMENS components, delivers the 3RT6024-1BF40 DC110V that meets SIEMENS’ original manufacturing specifications—guaranteeing seamless compatibility, reliable power switching, and long-term durability.

Proper Usage Methods of SIEMENS Elevator Contactor 3RT6024-1BF40 DC110V

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, applying lockout-tagout (LOTO) procedures, and securing the machine room work area with warning signs. Inspect the new 3RT6024-1BF40 DC110V for physical damage—such as cracked housing, bent terminals, worn contact points, or damaged coil windings—defects that can cause electrical arcing, short circuits, or contactor failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact housing, clean contact surfaces, functional coils, and clear voltage/current labeling.

Verify compatibility with your SIEMENS elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the contactor’s rated control voltage (DC110V) matches the elevator’s control circuit, (2) the rated current (25A for AC-3 load) supports the connected subsystem’s power demands, and (3) the mounting dimensions fit the machine room’s contactor panel or DIN rail. Using an incompatible contactor can result in contact melting, subsystem damage, or erratic elevator operation. Additionally, prepare the installation area: clean the mounting surface, ensure a minimum 15cm clearance around the contactor for heat dissipation, and confirm access to wiring harnesses and grounding points.

2. Installation & Wiring Steps

Contactor Mounting:
- Secure the 3RT6024-1BF40 DC110V to the designated DIN rail (35mm standard) or mounting panel using the provided clips or screws (torque to 2.0–2.5 Nm) to prevent vibration-induced movement. Install the contactor vertically with terminals facing downward to minimize dust accumulation on contact points.
- Disconnect the old contactor (if replacing) by labeling and removing all input/output wires (power supply, subsystem connections, control circuit wires). Take detailed photos of the wiring configuration—note terminal assignments (typically L1/L2/L3 for input, T1/T2/T3 for output), wire colors, and phase alignment—to ensure accurate reinstallation.
Wiring & Connection:
- Connect the main power cables to the contactor’s power terminals, following SIEMENS’ wiring schematic. Use crimp terminals for stranded wires to ensure secure connections; torque terminal screws to SIEMENS’ specified 1.5–2.0 Nm to avoid loose connections and arcing.
- Connect the DC110V control circuit wires to the contactor’s coil terminals (typically labeled A1/A2), ensuring correct polarity. Route power and control wires separately to reduce electromagnetic interference (EMI), and secure all wiring with cable ties to minimize vibration stress.
Post-Installation Testing:
- Restore power to the elevator (performed by certified SIEMENS technicians only) and conduct three critical tests:
  1. Actuation Test: Activate the contactor via the elevator’s control system and verify smooth, noiseless operation—no sticking or delayed engagement of contacts. Use a multimeter to confirm power flows through output terminals when energized and is 切断 (interrupted) when de-energized.
  2. Load Test: Operate the connected subsystem (e.g., traction motor, door operator) through full cycles to confirm the contactor handles the rated current without overheating (housing temperature ≤60°C after 1 hour of operation).
  3. Safety Test: Simulate an overload or short circuit (per SIEMENS’ guidelines) to confirm the contactor’s thermal protection triggers and cuts power to prevent damage. Test grounding continuity to ensure electrical safety.
- Document installation details, wiring diagrams, and test results in maintenance records to demonstrate compliance with SIEMENS’ service requirements and safety regulations.

3. Routine Usage Maintenance

To preserve the 3RT6024-1BF40 DC110V’s performance and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check the contactor for physical damage, loose wires, or signs of overheating (discoloration of housing, burning odors). Verify the housing is free from dust and moisture.
Monthly Contact Check: Use a multimeter to measure contact resistance—replace the contactor if resistance exceeds 50mΩ (indicates worn or contaminated contacts). Inspect the arc-extinguishing grid for carbon buildup.
Quarterly Connection Inspections: Tighten all terminal screws and cable ties—vibration during elevator operation can loosen connections over time. Replace frayed or damaged wires with genuine SIEMENS parts from Nanjing Zhuye.
Semi-Annual Cleaning: Remove dust from the contactor’s surface, terminals, and cooling vents using compressed air (low pressure to avoid contact damage). Clean the surrounding area to maintain airflow.
Annual Performance Test: Conduct a full load switching test to verify contactor actuation speed, thermal stability, and overload protection. Compare results to initial installation records—replace the contactor if performance degrades by 15% or more.

Recommended Replacement Cycle

The service life of the SIEMENS Elevator Contactor 3RT6024-1BF40 DC110V depends on usage intensity (daily switching cycles), load capacity, and environmental conditions. Based on SIEMENS’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, ambient temperature -25°C to +55°C), the 3RT6024-1BF40 DC110V should be replaced every 4–6 years. This timeframe accounts for gradual contact wear, coil degradation, and housing material fatigue—proactive replacement avoids unexpected contactor failure.

2. Signs That Require Immediate Replacement

Replace the contactor immediately if you encounter any of the following issues:

Switching Failures: Delayed or stuck contacts, electrical arcing (visible sparks), or failure to energize/de-energize—resulting in subsystem malfunctions or elevator stalling.
Electrical Damage: Burned contact points, melted terminals, or damaged arc-extinguishing grids—indicating excessive current or poor connections.
Overheating Risks: Housing temperature >70°C during operation, burning odors, or insulation damage—posing a fire hazard.
Performance Degradation: Increased contact resistance (>50mΩ), frequent overload trips, or noisy actuation (buzzing from coil)—attributed to worn components.
Safety Compromise: Failed grounding continuity test, or contactor failure to cut power during overload—violating safety standards and risking electrical hazards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Install air conditioners or dehumidifiers if ambient temperature exceeds 55°C or humidity exceeds 85%.
Power Stabilization: Install external surge protectors and voltage regulators in the power circuit to shield the contactor from grid spikes.
Load Management: Avoid excessive switching cycles (e.g., frequent elevator idling and restarting) to reduce contact wear.
Genuine Parts Only: For replacements or repairs, use exclusively authentic SIEMENS 3RT6024-1BF40 DC110V contactors and components from Nanjing Zhuye. Counterfeit contactors use inferior materials, lack arc suppression, and risk catastrophic failure.

Why Choose Nanjing Zhuye Elevator Parts for SIEMENS 3RT6024-1BF40 DC110V?

When sourcing the SIEMENS Elevator Contactor 3RT6024-1BF40 DC110V, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine SIEMENS components, ensuring seamless integration with SIEMENS PORT3, MAX, and Eco series elevators.
Strict Quality Assurance: Each contactor undergoes rigorous testing (contact resistance, switching performance, thermal resilience, arc suppression) to meet SIEMENS’ original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring, troubleshooting, and maintenance—even for complex power system setups.
Global Efficient Delivery: Fast shipping to worldwide locations minimizes machine room downtime, ensuring uninterrupted elevator operation.
Competitive Pricing: Direct sourcing from SIEMENS’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The SIEMENS Elevator Contactor 3RT6024-1BF40 DC110V is a foundational power switching component that ensures safe, reliable control of critical elevator subsystems—directly impacting operational stability and passenger safety. By following proper installation, wiring, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep SIEMENS elevators downtime-free and compliant with global safety regulations. Whether you need a single replacement contactor, technical support for power system upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium SIEMENS components and tailored professional services. Invest in the power control reliability of your SIEMENS elevators—choose Nanjing Zhuye Elevator Parts for your 3RT6024-1BF40 DC110V contactor requirements.
