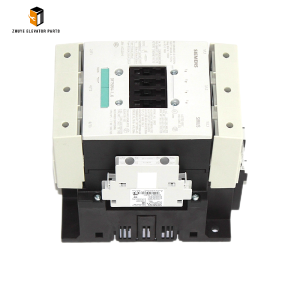

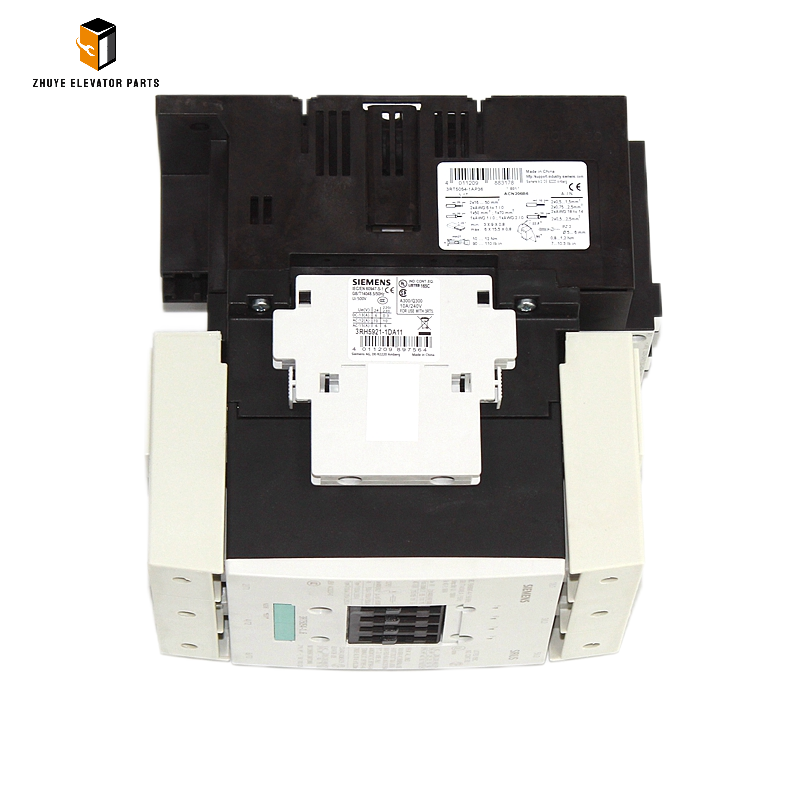

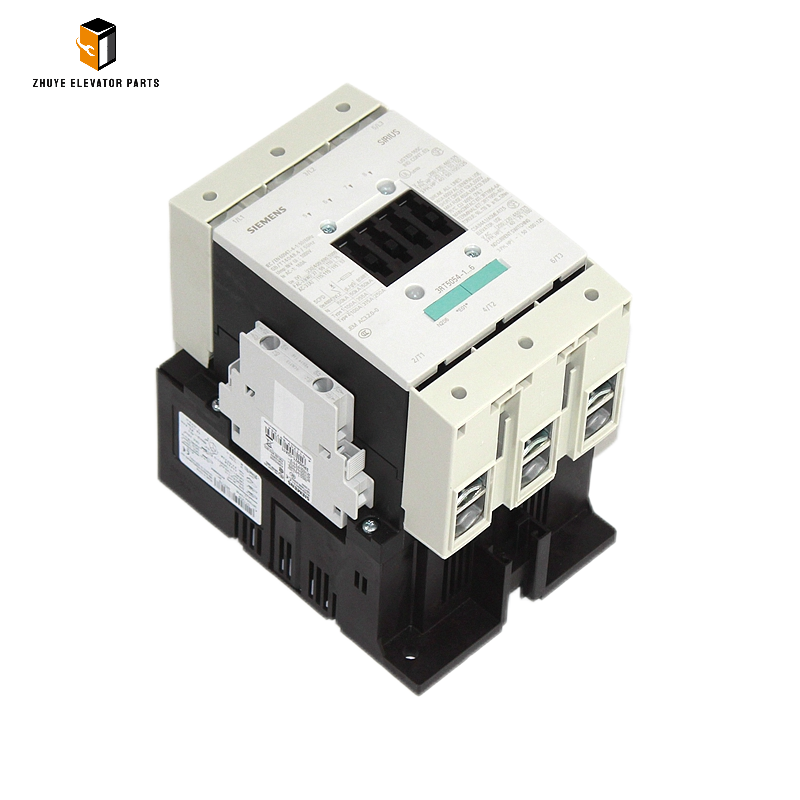

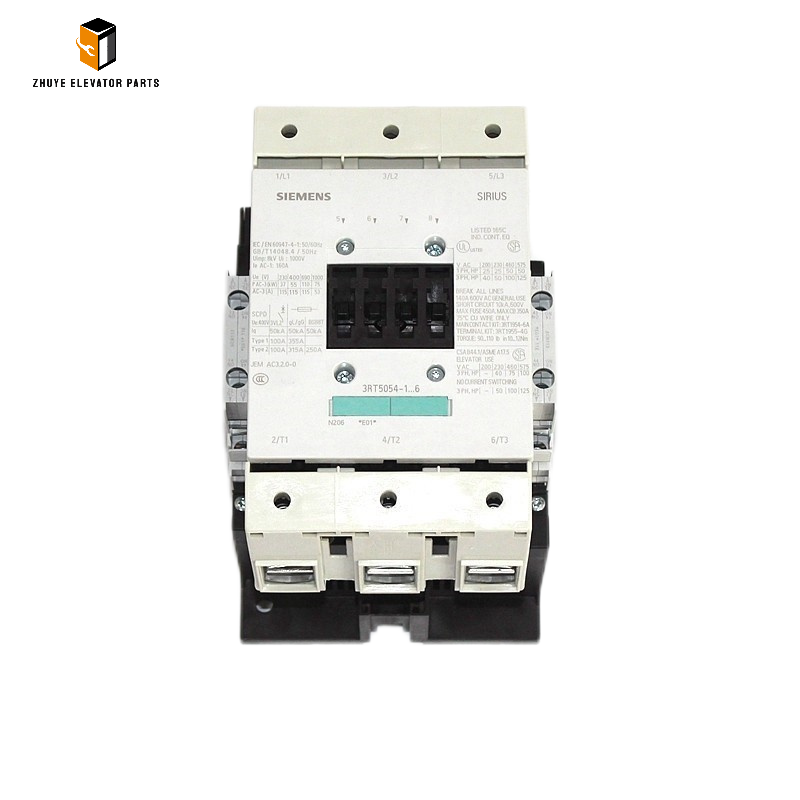

SIEMENS elevator contactor 3RT5054-1AP36 Brief Introduction
|
Product Name |
Elevator contactor |
| Model Number | 3RT5054-1AP36 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Siemens Elevator Contactor 3RT5054-1AP36: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Siemens Elevator Contactor 3RT5054-1AP36 is a high-performance electrical switching component engineered for heavy-duty power control in Siemens elevator systems—widely deployed in commercial high-rises, residential complexes, public transit hubs, and industrial buildings worldwide. As a core power distribution device, this contactor manages high-current circuits for critical elevator components such as traction motors, brake systems, and main power supplies. It enables reliable on/off switching of AC circuits (up to 63A rated current, 400V AC), ensuring stable power delivery and synchronized operation of traction systems while upholding Siemens’ strict standards for safety, durability, and industrial-grade performance.
Compliant with global electrical and safety standards (IEC 60947-4-1, EN 60947, ISO 9001), the 3RT5054-1AP36 features a robust, arc-resistant design: silver-nickel alloy contact points for low contact resistance and extended service life, encapsulated coil windings with surge protection, integrated arc-suppression chambers to minimize electrical arcing, and thermal overload protection. This construction withstands frequent switching cycles, voltage fluctuations, and harsh machine room environments—including temperature ranges of -25°C to +60°C, humidity up to 95% (non-condensing), and vibration. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, wiring, and replacement timelines of this contactor is critical to avoiding power system failures, elevator stalling, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Siemens components, delivers the 3RT5054-1AP36 contactor that meets Siemens’ original manufacturing specifications—guaranteeing consistent switching performance, reliable power distribution, and long-term durability.
Proper Usage Methods of Siemens 3RT5054-1AP36 Contactor
1. Pre-Installation Preparation
Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging residual voltage from the circuit, and securing the control cabinet with a lockout tag. Inspect the new 3RT5054-1AP36 contactor for physical damage—such as cracked housings, bent terminals, worn contact points, or damaged coil windings—defects that can cause electrical short circuits, failed switching, or component overheating. Nanjing Zhuye Elevator Parts conducts rigorous Siemens-specific quality control checks, so each unit arrives in optimal condition: intact contact points, functional coil windings, pre-tested switching performance, and clear terminal markings for error-free wiring.
Verify compatibility with your Siemens elevator model and power system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure the contactor’s specifications—AC 230V coil voltage, 63A rated current, 4-pole configuration (3NO+1NC), and mounting dimensions—match the elevator’s requirements. Using an incompatible contactor can damage traction motors, control circuits, or other critical power components.
2. Installation & Wiring Setup
- Contactor Installation:
- Access the control cabinet (located in the machine room) and locate the designated mounting position for the contactor. Disconnect the old contactor (if replacing) by labeling and removing power cables (line and load terminals) and control wires (coil terminals)—take photos of the wiring configuration to ensure accurate reinstallation. Clean the mounting surface with compressed air to remove dust or debris that could hinder heat dissipation.
- Secure the new 3RT5054-1AP36 contactor to the mounting rail (DIN rail compatible) using the integrated clips or provided screws (torque to 1.5–2.0 Nm) for stable positioning. Ensure proper spacing (minimum 5cm from adjacent components) to allow airflow and prevent overheating, especially given the contactor’s high-current operation.
- Wiring Configuration:

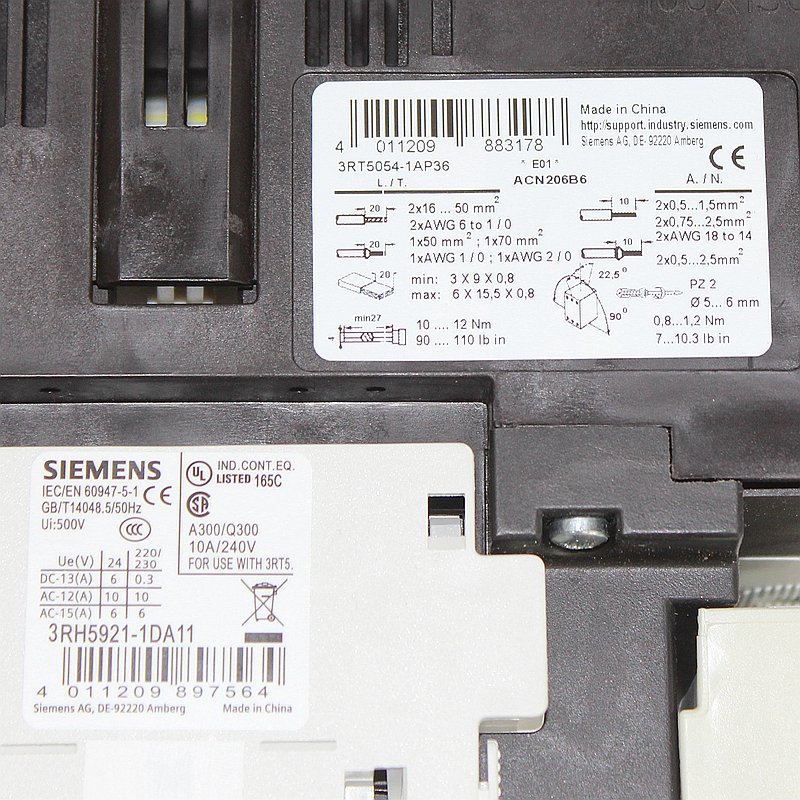

- Connect power cables (suitable for 63A current, e.g., 10mm² copper wire) to the line (L1/L2/L3) and load (T1/T2/T3) terminals—ensure wires are properly stripped (10–12mm) and tightened to Siemens’ specified torque (3.0–4.0 Nm) to prevent loose connections and electrical arcing. Connect control wires to the coil terminals (marked A1/A2) using AC 230V power from the elevator’s control circuit.
- Double-check wiring against the elevator’s schematic diagram and the contactor’s terminal markings. Ensure no wires are pinched or exposed, and secure all connections with cable ties to prevent vibration-induced damage. Separate power cables and control wires to minimize electromagnetic interference.
- Functional Testing:
- Conduct comprehensive tests (by certified technicians only) after installation:
- Coil Activation Test: Apply AC 230V power to the control circuit and verify the contactor engages with a clear “click”—confirm contact closure using a multimeter (continuity on NO contacts, open circuit on NC contacts when activated).
- Switching Performance Test: Operate the elevator through traction motor startup, brake activation, and shutdown cycles to ensure the contactor switches reliably without hesitation or arcing.
- Overload Test: Simulate high-load conditions (e.g., full elevator capacity) to confirm thermal protection functions properly and the contactor does not overheat (surface temperature should remain ≤80°C).
- Document installation details, wiring configurations, and test results in maintenance records to demonstrate compliance with Siemens’ service requirements.
- Conduct comprehensive tests (by certified technicians only) after installation:
3. Routine Usage Maintenance
To preserve performance and extend lifespan, implement these proactive maintenance practices:
- Weekly Visual Inspections: Check for loose wires, damaged terminals, or signs of arcing (blackening on contact points or housing). Remove dust from the contactor and surrounding area with compressed air—avoid using water or chemical cleaners.
- Monthly Functional Checks: Use a multimeter to test coil resistance (should match Siemens’ specifications: ~1.8kΩ for AC 230V coil) and contact continuity. Verify the contactor engages and disengages smoothly without sticking.
- Quarterly Contact Inspection: Remove the contactor cover (if applicable) and inspect contact points for wear, pitting, or oxidation. Clean lightly with a Siemens-approved contact cleaner if needed—replace the contactor if wear exceeds 1mm or pitting is severe.
- Semi-Annual Coil Inspection: Check coil windings for fraying, overheating, or moisture damage. Ensure coil connections are tight and free from corrosion, which can cause voltage drops and premature failure.
- Annual System Integration Test: Test the contactor’s interaction with other elevator components (e.g., traction motor, brake system, overload protector) to ensure synchronized operation and safety compliance—verify that power is interrupted immediately during emergency stops.
Recommended Replacement Cycle
The service life of the Siemens 3RT5054-1AP36 Contactor depends on usage intensity (daily switching cycles), environmental conditions (temperature, humidity, dust), and maintenance quality. Based on Siemens’ engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, and stable environment), the contactor should be replaced every 6–8 years. This timeframe accounts for gradual contact wear, coil degradation, and reduced arc-suppression efficiency—ensuring reliable switching performance and safety compliance for high-current elevator power circuits. Proactive replacement reduces the risk of unexpected contactor failure and costly elevator downtime.
2. Signs That Require Immediate Replacement
Replace the contactor immediately if you encounter any of the following issues:
- Switching Failures: Contactor fails to engage/disengage, sticks in one position, or switches intermittently—causing traction motor malfunctions, brake system failures, or power interruptions.
- Electrical Arcing: Visible sparks, burning odors, or discoloration during switching—indicates worn contact points or arc-suppression failure.
- Physical Damage: Cracked housing, bent terminals, or damaged coil windings—compromising electrical safety and performance.
- Performance Degradation: Increased contact resistance (measured via multimeter), coil overheating (excessive surface temperature), or frequent tripping of overload protectors.
- Safety Compromise: Contactor fails to interrupt power to the traction motor or brake system during emergency stops—violating Siemens’ safety standards and posing severe passenger risks.
3. Maintenance to Extend Service Life
To maximize the contactor’s lifespan and minimize replacement costs:
- Environmental Control: Keep the control cabinet clean, dry, and well-ventilated. Install cabinet heaters or dehumidifiers if humidity exceeds 85% to prevent coil corrosion.
- Power Stabilization: Install surge protectors and voltage regulators in the control circuit to shield the contactor from voltage spikes and transients.
- Minimize Unnecessary Switching: Avoid frequent elevator testing or idle operation that increases contactor wear—optimize elevator usage schedules where possible.
- Use Genuine Parts Only: For replacements, rely exclusively on authentic Siemens 3RT5054-1AP36 contactors from Nanjing Zhuye. Counterfeit contactors use inferior materials, inadequate arc suppression, or incorrect current ratings—compromising performance, safety, and Siemens’ warranty coverage.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Siemens Elevator Contactor 3RT5054-1AP36, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Siemens Compatibility: All contactors meet Siemens’ original manufacturing specifications, ensuring seamless integration with Siemens elevator systems and compliance with global safety standards.
- Strict Quality Assurance: Each unit undergoes rigorous testing—including switching performance, contact resistance, coil functionality, and arc-suppression efficiency—to guarantee reliable operation in critical high-current circuits.
- Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Siemens elevator systems, providing 24/7 assistance for installation, wiring configuration, compatibility verification, and troubleshooting (e.g., contactor sticking, arcing issues).
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers electrical control components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Siemens elevator components.
Conclusion
The Siemens Elevator Contactor 3RT5054-1AP36 is a foundational high-current switching component that ensures reliable power distribution and safe operation of Siemens elevator traction systems. By following proper installation, wiring, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can ensure elevators remain compliant, downtime-free, and safe for passengers. Whether you need a single replacement contactor, technical support for wiring setup, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Siemens components and tailored professional services. Invest in the power system reliability of your Siemens elevators—choose Nanjing Zhuye Elevator Parts for your 3RT5054-1AP36 contactor requirements.
