Description

Schneider Push Button Switch ZB2-BE101C/102C Brief Introduction

Product Name	Schneider Push Button Switch
Model Number	ZB2-BE101C ZB2-BE102C
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Schneider Push Button Switch ZB2-BE101C/102C: Reliable Operation & Maintenance Guide by Nanjing Zhuye Elevator Parts

In the control systems of elevators and industrial equipment, the push button switch serves as a fundamental interface for precise command input, directly impacting operational efficiency and safety. The Schneider Push Button Switch series—ZB2-BE101C and ZB2-BE102C—stands out for its robust design, consistent performance, and wide compatibility, engineered to meet Schneider’s stringent quality standards for industrial and elevator applications. As a trusted global supplier of genuine elevator and industrial components, Nanjing Zhuye Elevator Parts is proud to offer these high-performance push button switches, supporting maintenance, upgrades, and new installations for commercial buildings, industrial facilities, residential towers, and public infrastructure worldwide.

Product Overview: ZB2-BE101C/102C Push Button Switches

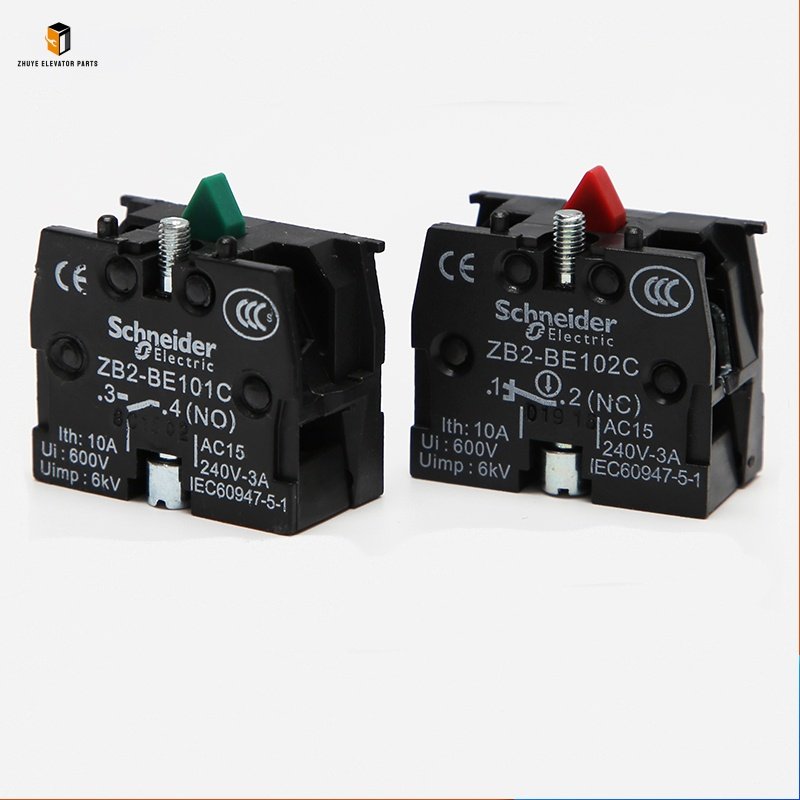

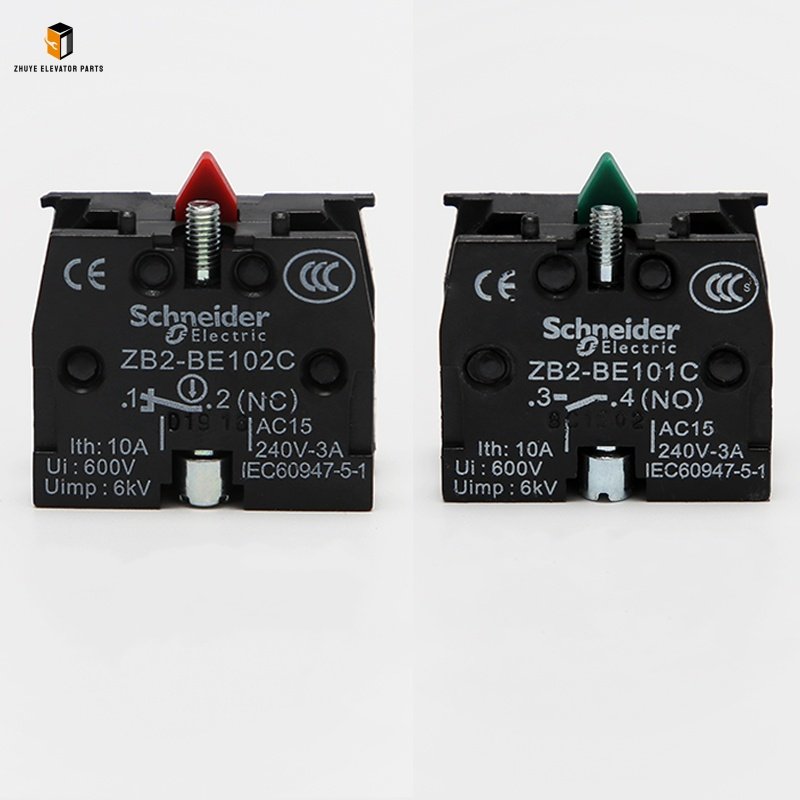

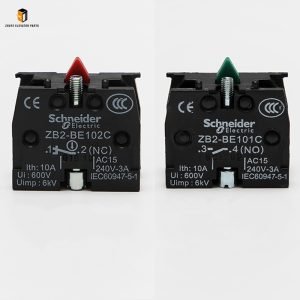

The Schneider ZB2-BE101C and ZB2-BE102C are specialized push button switches designed for intuitive control and long-lasting reliability. The ZB2-BE101C is a normally open (NO) switch, ideal for activating functions such as elevator call buttons, start commands, or signal triggers. The ZB2-BE102C features a normally closed (NC) design, suited for safety interlocks, emergency stop auxiliary controls, or circuit protection applications.

Crafted with high-grade thermoplastic housings and silver-alloy contacts, these switches resist impact, dust, and moisture (IP65 protection rating), ensuring durability in harsh industrial or high-traffic elevator environments. The ergonomic button design requires minimal actuation force, reducing user fatigue while delivering crisp, responsive feedback. Nanjing Zhuye Elevator Parts sources the ZB2-BE101C/102C directly from authorized Schneider manufacturers, guaranteeing 100% authenticity and seamless compatibility with Schneider control systems and major elevator brands. Each unit undergoes rigorous quality inspections, including contact resistance tests, durability assessments, and compliance verification with international standards such as IEC 60947 and ISO 9001.

How to Use the ZB2-BE101C/102C Push Button Switches

The ZB2-BE101C/102C is designed for user-friendly operation, while installation and maintenance require professional expertise. Below is a detailed usage guide:

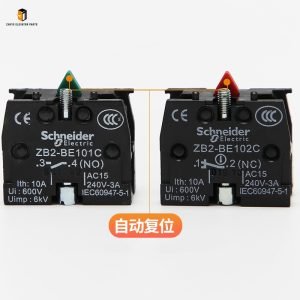

End-User Operation: For daily use, the switches operate with straightforward simplicity. Press the button to activate the intended function— the ZB2-BE101C closes the circuit to trigger actions like calling an elevator or starting a process, while the ZB2-BE102C breaks the circuit to halt operations or activate safety protocols. The button automatically resets to its original position after release, ensuring consistent performance.

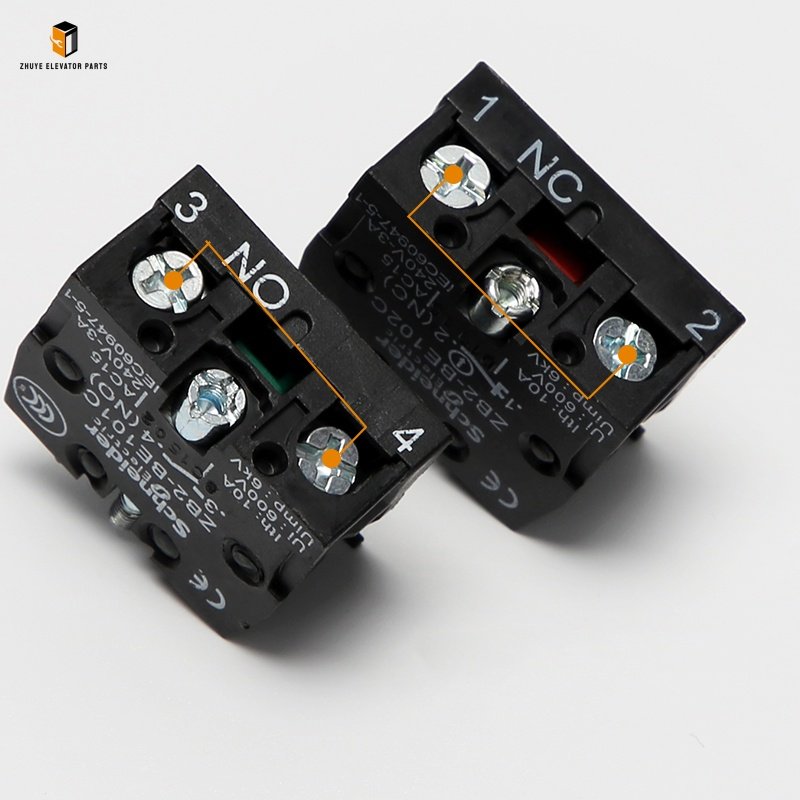

Professional Installation: Certified technicians must perform installation. First, power off the control system to avoid electrical hazards. Drill a 22mm mounting hole (standard for industrial push buttons) in the control panel, insert the switch, and secure it with the provided locknut. Connect the wiring to the terminal blocks according to Schneider’s technical schematics—ensuring correct polarity for NO/NC functions. Tighten connections to prevent loose contacts and signal interference.
Routine Operational Checks: Maintenance personnel should conduct regular inspections every 3 months. Verify that the button responds promptly without sticking or delayed reset. Check for signs of wear on the housing, loose wiring, or corrosion on terminals. Test the switch’s functionality using a multimeter to confirm proper circuit closure/opening. Clean the button surface with a dry, lint-free cloth to remove dust or debris—avoid abrasive cleaners that could damage the housing.
Basic Troubleshooting: If a switch fails to function, trained technicians should first check for loose wiring or terminal corrosion. Reconnecting or cleaning terminals may resolve minor issues. For persistent problems (e.g., unresponsive contacts or broken reset mechanisms), refer to Schneider’s technical manual or contact Nanjing Zhuye Elevator Parts for support.

Nanjing Zhuye Elevator Parts emphasizes that unauthorized disassembly or improper wiring can damage internal components, leading to operational failures or safety risks. All maintenance work must be performed by qualified professionals.

Recommended Replacement Cycle for ZB2-BE101C/102C

The service life of the ZB2-BE101C/102C depends on usage frequency, environmental conditions, and maintenance quality. Nanjing Zhuye Elevator Parts provides the following replacement guidelines:

Standard Usage Scenarios: For residential elevators or low-traffic industrial areas (300-600 daily presses), the switches typically last 5-8 years. Regular cleaning and terminal checks can extend this cycle by 1-2 years.
High-Traffic Environments: In shopping malls, airports, or industrial facilities with over 1,500 daily presses, the replacement cycle shortens to 3-5 years. Frequent actuation accelerates wear on contact points and the reset mechanism.
Environmental Considerations: Switches in harsh conditions—high humidity, dust, extreme temperatures, or chemical exposure—require more frequent replacements (every 2-4 years). These environments can degrade the housing, corrode terminals, or damage internal contacts.
Signs of Urgent Replacement: Key indicators include unresponsive presses, sticking buttons, intermittent circuit connection, visible damage to the housing (cracks or discoloration), corroded terminals, or inconsistent performance. If the switch fails multimeter tests or cannot maintain a stable circuit, immediate replacement is essential.

Nanjing Zhuye Elevator Parts advises scheduling bi-annual maintenance inspections to assess switch condition, ensuring early detection of issues and minimizing downtime.

Why Choose Nanjing Zhuye Elevator Parts for ZB2-BE101C/102C

When sourcing critical control components like the ZB2-BE101C/102C, partnering with a reliable supplier is non-negotiable. Nanjing Zhuye Elevator Parts earns global trust for these reasons:

Genuine Product Guarantee: We provide 100% authentic Schneider push button switches, eliminating the risk of counterfeit parts that compromise compatibility and safety.
Technical Expertise: Our team of industrial and elevator component specialists offers professional guidance on product selection, installation, and troubleshooting.
Rigorous Quality Control: Every unit undergoes strict testing to verify responsiveness, contact stability, and durability, adhering to international standards.
Efficient Global Logistics: With a robust supply chain network, we deliver products to over 60 countries, ensuring timely delivery to support maintenance and installation schedules.

The Schneider Push Button Switch ZB2-BE101C/102C is a cornerstone of reliable control systems, bridging user intent with operational precision in elevators and industrial equipment. By choosing Nanjing Zhuye Elevator Parts as your supplier, you gain access to genuine parts, expert technical support, and a commitment to quality that aligns with your operational goals.

Whether you’re a building manager, maintenance company, or equipment manufacturer, these switches deliver the durability, responsiveness, and reliability needed to keep systems running seamlessly. Contact Nanjing Zhuye Elevator Parts today to learn more about our product range and secure tailored solutions for your component needs.
