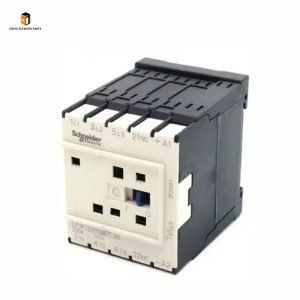

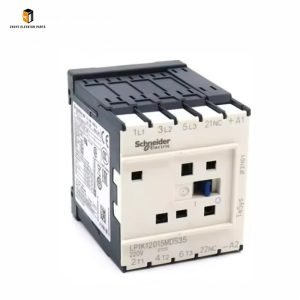

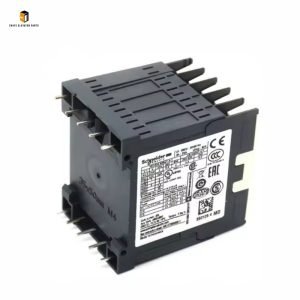

Description

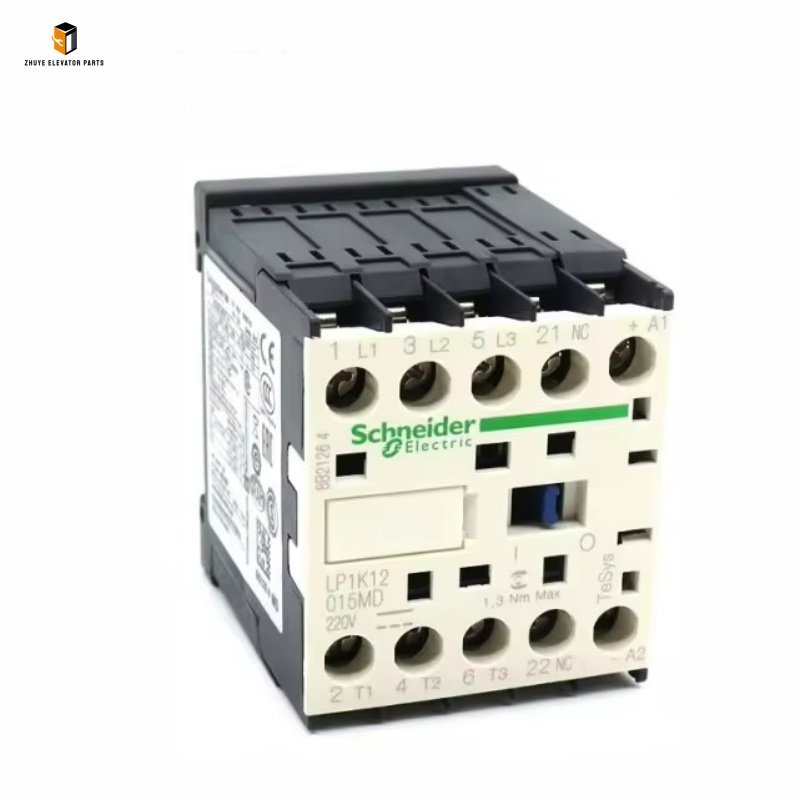

1. Professional Installation & Wiring: Installation must be performed by certified elevator electricians. Before starting, shut off the elevator’s main power supply and follow lockout-tagout protocols to eliminate electrical hazards. Mount the contactor on a stable metal bracket in the control cabinet using the provided mounting screws, ensuring secure fixation to withstand high-current operation vibrations. Refer to Schneider’s official service manual for wiring diagrams: connect the coil terminals (compatible with standard control voltages) to the elevator’s control signal output, and the main contact terminals to the target high-current circuit (e.g., traction motor power supply). Double-check wiring connections for tightness and correctness—loose connections can cause arcing or overheating, while incorrect wiring may damage the contactor or other components. After installation, power on the system and verify operation: a clear “click” sound indicates successful electromagnetic activation, and the auxiliary contact status LED confirms normal switching performance.

2. Routine Inspection & Maintenance: Maintenance teams should conduct regular inspections, ideally quarterly. Check for loose wiring, corrosion on terminal blocks, or signs of overheating (discolored housing, melted insulation, or burning odors). Inspect the contact surfaces for pitting, silver plating wear, or excessive oxidation—clean contacts with Schneider-approved contact cleaner if debris accumulates. Nanjing Zhuye Elevator Parts recommends using a multimeter to verify coil voltage (consistent with the elevator’s control system specifications) and contact resistance (should be less than 30mΩ) during each inspection. Document inspection results, including switching response time and contact condition, to track performance trends and identify potential issues early.

3. Troubleshooting Switching Issues: If the elevator experiences failed high-current circuit activation, intermittent power supply to critical systems, or contactor-related error codes, the LP1K12015MDS35 may be faulty. First, verify the power supply to the coil and check wiring connections for damage or loose contacts. Test the coil with a multimeter for continuity—an open circuit indicates coil failure. Inspect the main contacts for welding, excessive wear, or carbon deposition, which can cause poor conductivity or short circuits. For persistent issues such as inconsistent switching, abnormal heating, or failure to carry rated current, contact Nanjing Zhuye Elevator Parts’ technical support team for expert guidance tailored to Schneider high-capacity contactors.

4. Safety Precautions: Never handle the contactor without proper electrical training or while the system is powered on, especially given its high-current application. Allow residual electrical energy to discharge for at least 10 minutes after powering off the elevator. Use insulated tools and wear protective gloves and goggles to prevent electric shock or arc injury. Avoid modifying the contactor’s structure, coil parameters, or contact specifications—such alterations compromise safety, reduce load-bearing capacity, and void the manufacturer’s warranty.

1. Standard Replacement Cycle: Under normal operating conditions (8-12 hours of daily use in medium-traffic buildings, with stable high-current loads), the LP1K12015MDS35 has an average service life of 6-8 years. Nanjing Zhuye Elevator Parts recommends a comprehensive performance audit every 3-4 years to assess contact wear, coil integrity, and insulation performance.

2. Factors Shortening Lifespan: High-traffic environments (e.g., airports, shopping malls, or high-rise buildings) with 14+ hours of daily operation or frequent heavy-load switching (near the 12A rated current) may require replacement every 4-5 years. Unstable power supply, frequent voltage surges, high humidity, poor ventilation in control cabinets, or exposure to dust and corrosive substances can accelerate contact degradation and coil damage. Neglecting routine maintenance, especially contact cleaning, also significantly reduces the contactor’s service life.

3. Key Signs for Replacement: Replace the contactor if you observe persistent high-current circuit switching failures, inconsistent electromagnetic activation, visible contact damage (pitting, welding, or excessive silver plating wear), coil overheating, or frequent elevator electrical malfunctions linked to main power circuits. Delaying replacement can lead to electrical short circuits, damage to expensive elevator components (e.g., traction motors or main controllers), and potential safety hazards for passengers.

4. Replacement Best Practices: Always use a genuine Schneider LP1K12015MDS35 from a trusted supplier like Nanjing Zhuye Elevator Parts to ensure full compatibility, rated current capacity, and safety compliance. Label wiring connections before removing the old contactor to simplify reinstallation. Install the new contactor following Schneider’s guidelines, confirm alignment with the elevator’s control voltage and current requirements, and conduct a full system test—including switching response time, high-load bearing capacity, and safety interlock verification—before returning the elevator to service. Dispose of the old contactor in accordance with local electrical waste regulations.
