Description

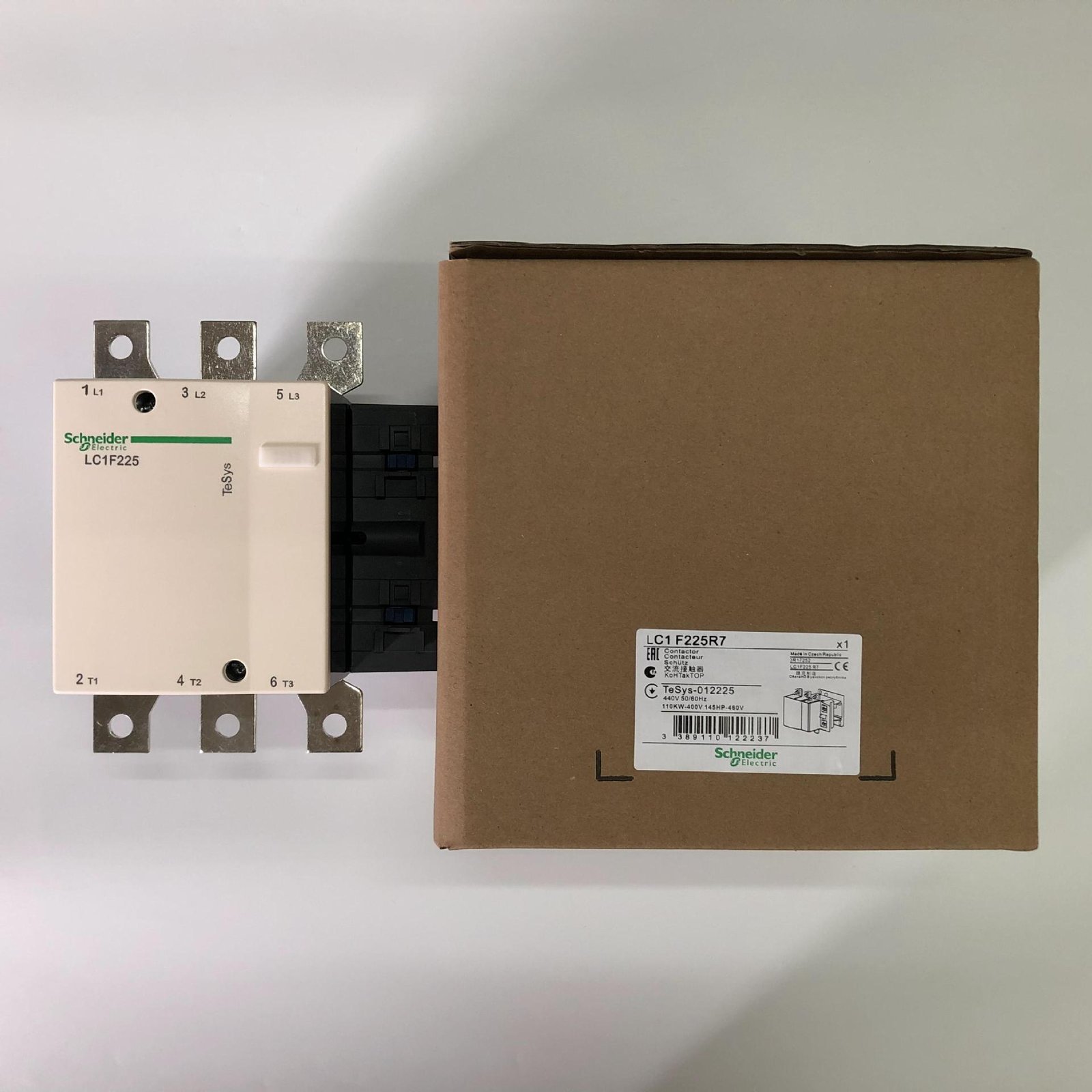

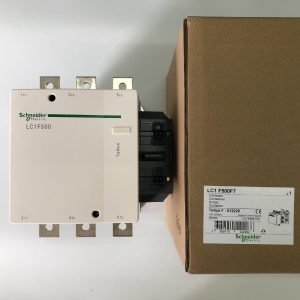

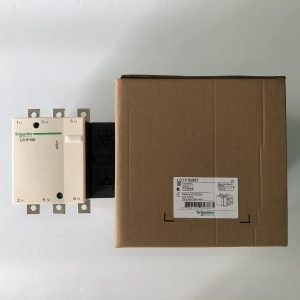

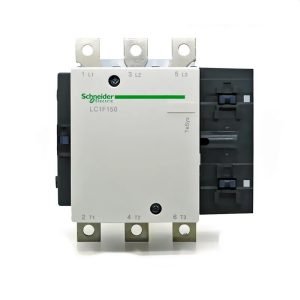

Schneider elevator contactor LC1F150 Brief Introduction

Product Name	SIEMENS elevator contactor
Model Number	LC1F150 LC1F185 LC1F225 LC1F265 LC1F330 LC1F400 LC1F500 LC1F630
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Schneider Elevator Contactor LC1F150: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Schneider Elevator Contactor LC1F150 is a mission-critical electrical switching component engineered for heavy-duty elevator systems—including Schneider’s own elevator platforms and compatible third-party setups—essential for commercial high-rises, residential complexes, transit hubs, and industrial facilities worldwide. As the “power switch” of the elevator’s electrical system, this contactor controls the flow of high-current power to critical components such as traction motors, door operators, and hydraulic pumps, enabling safe start/stop operations and load switching. It integrates Schneider’s proprietary TeSys F technology, silver-nickel alloy contact points, and robust electromagnetic actuation—upholding the brand’s strict standards for durability, current handling capacity (150A), and operational safety in high-demand environments.

Compliant with global electrical and elevator safety standards (IEC 60947-4-1, EN 81-20, UL 508, ISO 9001), the LC1F150 features a rugged, industrial-grade design: flame-retardant polyamide housing (UL94 V0 rating), dustproof and splash-proof protection (IP20 rating), anti-vibration mounting brackets, and built-in arc suppression technology (prevents electrical arcing during switching). This construction withstands 24/7 operation under heavy electrical loads, enduring temperature fluctuations (-25°C to +60°C), voltage surges, and mechanical vibration—critical for preventing electrical failures, motor damage, or unexpected elevator shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, inspection, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Schneider components, delivers the LC1F150 that meets Schneider’s original manufacturing specifications—guaranteeing seamless compatibility, reliable power switching, and long-term performance.

Proper Usage Methods of Schneider LC1F150 Elevator Contactor

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, locking the circuit breaker, and securing the work area (machine room electrical panel) with warning signs and lockout-tagout (LOTO) devices. Verify that the power is fully disconnected using a voltage tester to avoid electric shock. Inspect the new LC1F150 for physical damage—cracked housing, bent contact pins, corroded terminals, or loose internal components—defects that can cause short circuits, arcing, or contactor failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact contact points, functional electromagnetic coil, secure wiring terminals, and pre-tested switching performance.

Verify compatibility with your elevator system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the contactor’s rated current (150A) and voltage (220V AC/380V AC) match the elevator’s electrical system requirements, (2) the mounting dimensions (typically 100x160x80mm) fit the electrical panel’s rail or bracket, and (3) the coil voltage (e.g., 24V DC, 110V AC) is compatible with the elevator’s control circuit. Using an incompatible contactor can overload electrical components, cause persistent tripping, or lead to unsafe operation. Additionally, prepare the installation area: Clean the electrical panel to remove dust and debris, ensure adequate ventilation (minimum 15cm clearance around the contactor for heat dissipation), and gather necessary tools (screwdriver set, torque wrench, wire strippers).

2. Installation & Configuration Steps

Mounting the Contactor: Attach the LC1F150 to the electrical panel’s DIN rail or mounting bracket using the built-in clips or screws (torque to 2.0–2.5 Nm) to ensure stability. Avoid mounting near heat sources (e.g., resistors, transformers) or moving parts to prevent overheating or mechanical damage.
Wiring & Connection: Follow Schneider’s wiring schematic to connect the power cables and control wires. Connect the high-current power cables (input/output) to the main terminals (L1/L2/L3 for three-phase, L/N for single-phase) and tighten terminals to 3.0–3.5 Nm to prevent arcing or loose connections. Connect the control circuit wires to the auxiliary terminals (A1/A2) ensuring correct coil voltage polarity. Use cable lugs for stranded wires to enhance contact reliability. Label all wires during old contactor removal to avoid misconnection.
Post-Installation Testing: Restore power to the elevator (performed exclusively by certified electricians/elevator technicians) and conduct three mandatory tests:
1. Switching Test: Activate the contactor via the elevator’s control system—verify smooth engagement/disengagement without loud arcing or buzzing.
2. Current Load Test: Measure the operating current under full load using a clamp meter—confirm it remains below the contactor’s 150A rating.
3. Temperature Test: Operate the elevator through 10–15 full cycles and check the contactor’s housing temperature (should not exceed 70°C) to ensure proper heat dissipation.

  Document all installation details, test results, and contactor serial number in maintenance records to track lifespan and compliance.

3. Routine Usage Maintenance

To preserve the LC1F150’s performance and extend its lifespan, implement proactive maintenance practices tailored to electrical switching components:

Daily Visual Inspections: Check the contactor for loose wiring, physical damage, or signs of overheating (discoloration, melting plastic, or burning odors). Verify no abnormal noise (buzzing, clicking) during operation.
Weekly Functional Test: Trigger the contactor manually (via test button if available) to confirm smooth switching and proper reset.
Monthly Connection Check: Tighten all power and control wire terminals (vibration can loosen connections over time). Inspect cables for fraying, insulation damage, or corrosion—replace with Schneider-compatible cables from Nanjing Zhuye if needed.
Quarterly Cleaning: Remove dust and debris from the contactor’s housing and terminals using low-pressure compressed air or a soft brush—dust buildup can cause overheating or electrical leakage.
Semi-Annual Contact Inspection: Disconnect power and inspect the contact points for wear, pitting, or oxidation—clean with a contact cleaner (if minor) or plan replacement if damage is severe.

Recommended Replacement Cycle

The service life of the Schneider LC1F150 Elevator Contactor depends on usage intensity (daily switching cycles, load magnitude), environmental conditions, and maintenance quality. Based on Schneider’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -25°C to +60°C), the LC1F150 should be replaced every 6–8 years. This timeframe aligns with the typical lifespan of heavy-duty contactors (100,000–200,000 switching cycles), ensuring proactive replacement before contact wear or coil degradation leads to failure.

2. Signs That Require Immediate Replacement

Replace the contactor immediately if:

Switching Failures: The contactor fails to engage/disengage, sticks in the closed position, or trips the circuit breaker repeatedly—risks motor burnout or electrical fires.
Contact Damage: Contact points show severe pitting, welding, or oxidation—causes high resistance, overheating, or arcing.
Abnormal Behavior: Loud buzzing, excessive heat (housing temperature >80°C), or visible smoke during operation—indicates internal component failure.
Coil Malfunction: The contactor does not activate when energized (coil burnout) or remains engaged when de-energized (coil short circuit).
Safety Compromise: Electrical arcing or short circuits occur during switching—violates EN 81/UL safety standards for elevator electrical systems.

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Maintain temperature between 10°C–45°C and humidity <75%—extreme conditions accelerate contact and coil aging.
Power Stabilization: Install external surge protectors and voltage regulators to shield the contactor from voltage spikes and transients.
Load Management: Ensure the elevator operates within rated load limits—excessive current draw increases contact wear and coil stress.
Genuine Parts Only: Use exclusively authentic Schneider LC1F150 contactors from Nanjing Zhuye. Counterfeit units use inferior contact materials, lack arc suppression technology, and risk catastrophic electrical failures.

Why Choose Nanjing Zhuye Elevator Parts for Schneider LC1F150?

When sourcing a critical electrical switching component like the Schneider LC1F150, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Schneider components, ensuring seamless integration with Schneider elevator systems and compatible third-party setups—eliminating fit or function issues.
Strict Quality Assurance: Each contactor undergoes rigorous testing (switching durability, current handling capacity, arc suppression efficiency) to meet Schneider’s original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring configuration, troubleshooting, and compatibility verification—even for legacy elevator models.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where electrical failures disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Schneider’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Schneider Elevator Contactor LC1F150 is a foundational electrical component that ensures safe, reliable power switching for elevator systems—protecting critical machinery and safeguarding passengers. By following proper installation, maintenance, and replacement practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep elevator systems downtime-free, compliant with global safety standards, and optimized for long-term performance. Whether you need a single replacement contactor, bulk orders for a building fleet, or technical support for maintenance teams, Nanjing Zhuye delivers premium Schneider components and tailored professional services. Invest in the electrical safety and reliability of your elevators—choose Nanjing Zhuye Elevator Parts for your LC1F150 contactor requirements.
