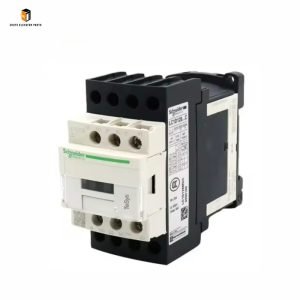

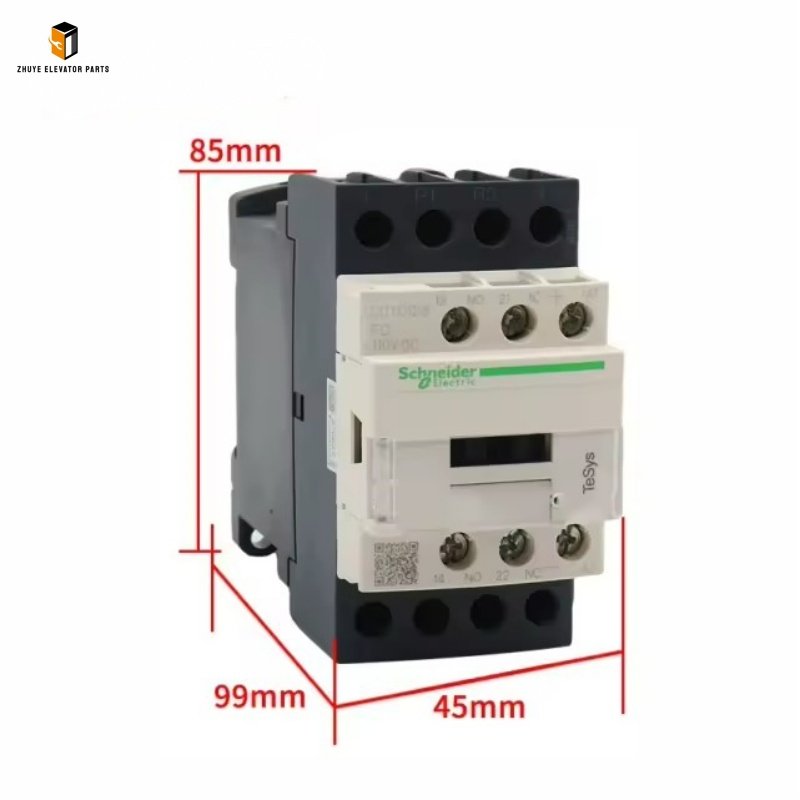

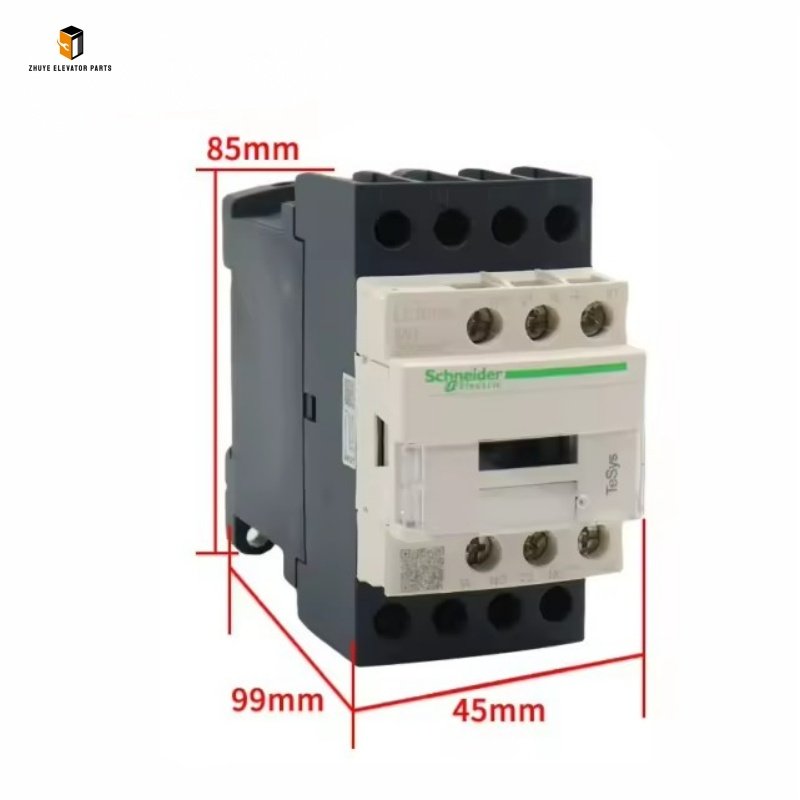

1. Professional Installation & Wiring: Installation must be performed by certified elevator electricians. Before starting, shut off the elevator’s main power supply and follow lockout-tagout protocols to eliminate electrical hazards. Mount the contactor on a stable metal bracket in the control cabinet using the provided screws, ensuring secure fixation to reduce vibration during operation. Refer to Schneider’s official service manual for wiring diagrams: connect the DC24V coil terminals (marked with “+” and “-”) to the elevator’s control signal output, and the main contact terminals to the target circuit (e.g., door operator power supply). Double-check wiring polarity and tightness—reverse polarity or loose connections can cause coil damage or arcing. After installation, power on the system and verify operation: a crisp “click” sound indicates successful electromagnetic activation, and the auxiliary contact status LED confirms normal switching performance.

2. Routine Inspection & Maintenance: Maintenance teams should conduct regular inspections, ideally quarterly. Check for loose wiring, corrosion on terminal blocks, or signs of overheating (discolored housing, melted insulation, or burning odors). Inspect the contact surfaces for pitting, silver plating wear, or excessive oxidation—clean contacts with Schneider-approved contact cleaner if debris accumulates. Nanjing Zhuye Elevator Parts recommends using a multimeter to verify DC24V coil voltage (within ±5% of rated value) and contact resistance (should be less than 40mΩ) during each inspection. Document inspection results to track performance trends and identify potential issues early.

3. Troubleshooting Switching Issues: If the elevator experiences failed circuit activation, intermittent power supply, or contactor-related error codes, the LC1D128MDC may be faulty. First, verify the DC24V power supply to the coil and check wiring connections for damage. Test the coil with a multimeter for continuity—an open circuit indicates coil failure. Inspect the main contacts for welding, excessive wear, or carbon deposition, which can cause poor conductivity. For persistent issues such as inconsistent switching or abnormal heating, contact Nanjing Zhuye Elevator Parts’ technical support team for expert guidance tailored to Schneider DC24V contactors.

4. Safety Precautions: Never handle the contactor without proper electrical training or while the system is powered on. Allow residual electrical energy to discharge for at least 5 minutes after powering off the elevator. Use insulated tools and wear protective gloves to prevent electric shock. Avoid modifying the contactor’s structure, coil parameters, or contact specifications—such alterations compromise safety, reduce performance, and void the manufacturer’s warranty.

1. Standard Replacement Cycle: Under normal operating conditions (8-12 hours of daily use in medium-traffic buildings), the LC1D128MDC has an average service life of 7-9 years. Nanjing Zhuye Elevator Parts recommends a comprehensive performance audit every 4 years to assess contact wear, coil integrity, and insulation performance.

2. Factors Shortening Lifespan: High-traffic environments (e.g., airports, shopping malls, or transit hubs) with 14+ hours of daily operation or frequent switching cycles may require replacement every 5-6 years. Unstable DC24V power supply, frequent voltage surges, high humidity, poor ventilation in control cabinets, or exposure to dust and corrosive substances can accelerate component degradation. Neglecting routine maintenance also reduces the contactor’s service life.

3. Key Signs for Replacement: Replace the contactor if you observe persistent switching failures, inconsistent electromagnetic activation, visible contact damage (pitting, welding, or excessive silver plating wear), coil overheating, or frequent elevator electrical malfunctions linked to circuit switching. Delaying replacement can lead to electrical short circuits, damage to expensive elevator components (e.g., controllers or motors), and potential safety hazards for passengers.

4. Replacement Best Practices: Always use a genuine Schneider LC1D128MDC from a trusted supplier like Nanjing Zhuye Elevator Parts to ensure full compatibility and safety compliance. Label wiring connections before removing the old contactor to simplify reinstallation. Install the new contactor following Schneider’s guidelines, confirm DC24V coil voltage compatibility, and conduct a full system test—including switching response time, load-bearing capacity, and safety interlock verification—before returning the elevator to service. Dispose of the old contactor in accordance with local electrical waste regulations.
