Description

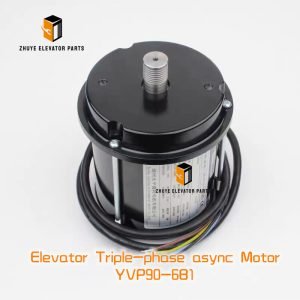

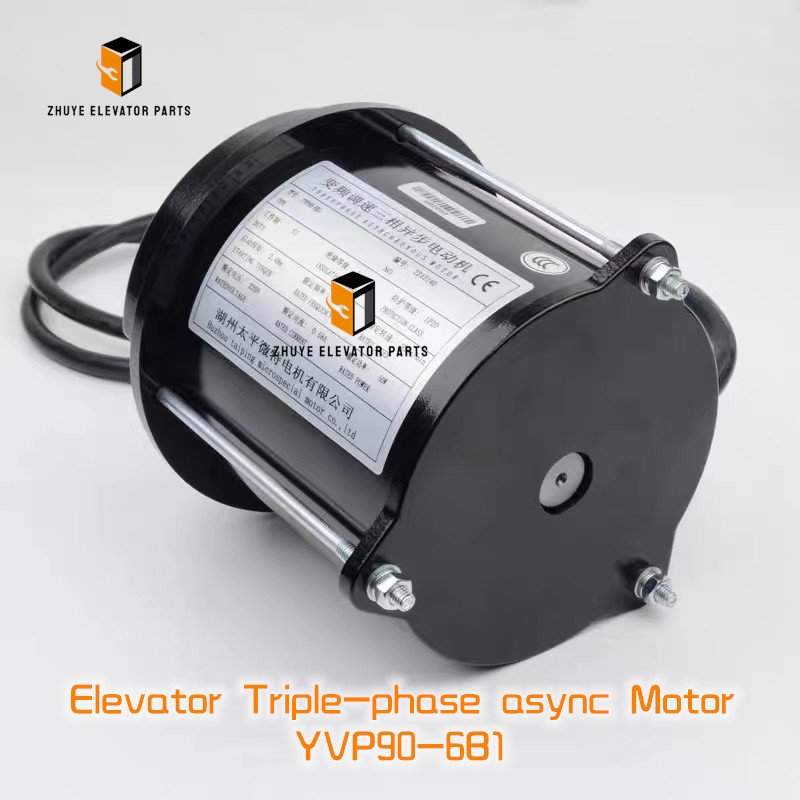

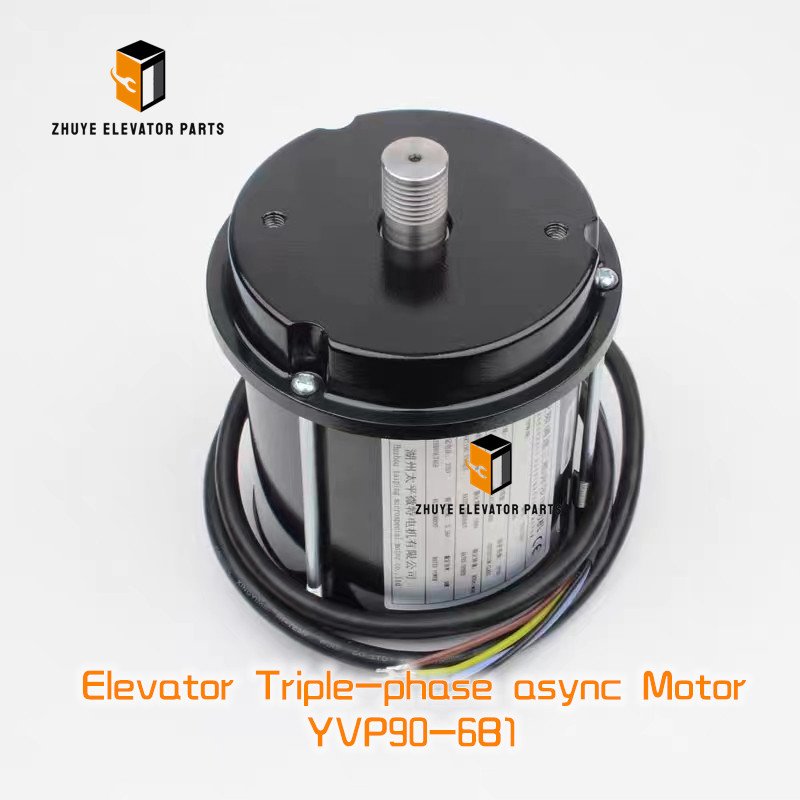

Otis Triple-phase async Motor YVP90-6B1 Brief Introduction
|
Product Name |
Otis Triple-phase async Motor |
| Model Number | YVP90-6B1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Triple-phase Async Motor YVP90-6B1 – Silent, Vector-Ready Power for Modern Elevator Drives | Nanjing Zhuye Elevator Parts
Every smooth Otis ride begins with a quiet revolution — 1,000 of them per minute. The YVP90-6B1 triple-phase asynchronous motor is that powerhouse. Rated 2.2 kW at 380 V, 6-pole, 1,000 rpm, it is built for vector drives (VFD), regenerative braking and 24-hour duty in Gen2® Switch, 4200 and modernisation packages. When windings burn or bearings howl, the car jerks, levels poorly, or refuses to start. Nanjing Zhuye Elevator Parts keeps genuine YVP90-6B1 motors in OEM packaging, ready for next-day despatch worldwide — helping you restore whisper-quiet power without costly OEM delays.
Product snapshot
-
Otis part number YVP90-6B1, 2.2 kW, 380 V Δ, 5.0 A, 50 Hz, 1,000 rpm, 6-pole
-
Vector-control optimised, Class F insulation, IP55, IC411 self-cooling, < 55 dB(A) at 1 m
-
B5 flange, 90 mm frame, 14 mm shaft, key 5 × 5 × 25 mm, foot-mount optional
-
Efficiency IE3, power factor 0.78, starting torque 2.2 × rated, regenerative braking capable
-
Temperature −25 °C to +40 °C ambient, altitude 1 000 m without derating, 30 000 h bearing life
-
CE, UL, RoHS, REACH and Otis QES 2024 approved
Where it works
-
Gen2® Switch geared machines ≤ 2.5 m/s, 630 kg, 1:1 or 2:1 roping
-
4200/5200 modernisation packages replacing obsolete YVP90-6A or DC motors
-
Any controller expecting IE3 efficiency and vector-control compatibility
Installation method – 45-minute precision swap
-
Place lift on inspection mode; stop at mid-shaft; switch OFF main breaker; lock & tag.
-
Remove motor cover; photograph encoder, brake and power connections.
-
Release brake; sling motor; remove coupling bolts and earth strap.
-
Slide old motor out; clean flange face and keyway.
-
Insert YVP90-6B1; torque M10 flange bolts to 45 Nm in star pattern.
-
Install key, coupling, brake disc; torque coupling to 30 Nm.
-
Connect 3-phase L1/L2/L3, earth 6 mm², encoder (EnDat 2.2), brake 24 V.
-
Power up; run auto-tune via Otis Drive Tool (ODT-6B1); 120 s vector calibration.
-
Run 20 full-speed cycles; verify temperature < 65 °C and no vibration > 1 mm/s.
-
Apply torque-stripe paint; log serial number and test date in maintenance book.
Replacement cycle & preventive maintenance
Otis bulletin SB-MOT-2024-03 recommends:
-
Visual inspection every 6 months: check for oil, loose bolts, bearing noise.
-
Vibration test every 12 months: RMS < 1 mm/s, bearing temperature < 65 °C.
-
Replace entire motor every 10 years or 30 000 operating hours, whichever comes first.
-
Immediate replacement if:
– insulation < 1 MΩ between phases and earth,
– bearing noise > 55 dB(A) or temperature > 75 °C,
– encoder error frames > 1 % after cable swap,
– vibration > 2 mm/s RMS.
Pro tip: 70 % of premature failures are traced to loose coupling bolts — re-torque to 30 Nm every year.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use EnDat 2.2 encoder cable; generic cables cause position drift.
-
Never pressure-wash the motor; water kills IP55 in minutes.
-
Keep a spare YVP90-6B1 in every high-rise store; at 18 kg it fits on a shelf and saves a week.
-
After heavy rain, run empty car and check bearing temperature < 65 °C.
-
Order the “Motor Kit” (YVP90-6B1 + coupling + key + calibration certificate) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are an Otis-authorised distributor, importing YVP90-6B1 directly from the Czech factory, balancing every rotor and testing vector compatibility at 1 000 rpm. Motors are shipped with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse keeps 200+ units in stock; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at five pieces; we can pre-install the encoder and include a loaner motor to keep your lifts running during the swap.
Conclusion
The YVP90-6B1 triple-phase async motor is the silent workhorse that turns every Otis lift into a smooth, energy-saving ride. By installing the genuine unit, following the torque schedule and replacing it before bearings howl, you ensure every landing is level, every stop is silent, and every passenger steps out with confidence. Stock genuine YVP90-6B1 from Nanjing Zhuye Elevator Parts today — because when the motor stops, the lift stops.
