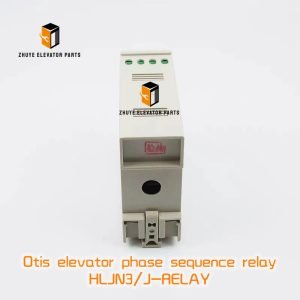

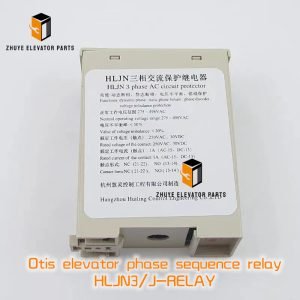

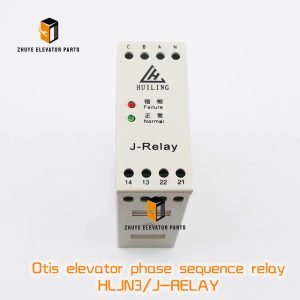

Otis Elevator Phase Sequence Relay HLJN3/J-RELAY Brief Introduction
|
Product Name |
Otis Elevator Phase Sequence Relay |
| Model Number |
HLJN3/J-RELAY |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Phase Sequence Relay HLJN3/J-RELAY: Essential Protection for Elevator Motors | Available at sNanjing Zhuye Elevator Part
In modern elevator systems, protecting the motor and control circuitry from incorrect phase sequence is critical. A wrong phase rotation can cause the elevator to move in the opposite direction, leading to serious safety hazards and equipment damage. The Otis Phase Sequence Relay HLJN3/J-RELAY is specifically designed to prevent such issues by monitoring the phase sequence of the power supply and ensuring correct motor rotation. Available now through Nanjing Zhuye Elevator Parts, this relay is a vital component for maintaining safe and reliable elevator operation.
What is the HLJN3/J-RELAY?
The HLJN3/J-RELAY is a phase sequence monitoring relay developed by Otis, one of the world’s leading elevator and escalator manufacturers. This relay continuously monitors the phase sequence and phase loss in a three-phase power supply. If an incorrect sequence or a phase failure is detected, the relay immediately disconnects the control circuit, preventing the motor from starting or continuing to operate under unsafe conditions.
This relay is widely used in Otis elevator systems, especially in geared and gearless traction machines, where motor direction and phase integrity are essential for safe operation.
Key Features and Benefits
-
Phase Sequence Protection: Prevents motor reversal due to incorrect wiring or utility-side phase changes.
-
Phase Loss Detection: Shuts down the system if any phase is missing, protecting the motor from damage.
-
Compact Design: Easily fits into standard elevator control panels.
-
LED Indicators: Provides real-time status feedback for quick troubleshooting.
-
High Reliability: Built to Otis specifications for long-term performance in demanding environments.
-
Plug-and-Play Compatibility: Designed for direct replacement in Otis systems, minimizing downtime.
How to Use the HLJN3/J-RELAY
Installing and configuring the HLJN3/J-RELAY is straightforward, but it must be done with care to ensure proper protection. Here’s a step-by-step guide:
-
Power Off: Always disconnect the main power supply before beginning installation.
-
Mounting: Secure the relay on the DIN rail inside the elevator controller. Ensure it is firmly seated and properly grounded.
-
Wiring:
-
Connect the three-phase supply lines (L1, L2, L3) to the input terminals of the relay.
-
Connect the output terminals to the motor contactor or control circuit.
-
Ensure all connections are tight and follow the wiring diagram provided by Otis.
-
-
Testing:
-
After installation, restore power and observe the LED indicators.
-
A green LED typically indicates normal phase sequence.
-
A red LED or no LED may indicate incorrect sequence or phase loss.
-
Temporarily swap two phases to test the relay’s response—it should prevent motor startup.
-
-
Final Check: Once confirmed working, document the installation and update maintenance logs.
Replacement Cycle and Maintenance
Although the HLJN3/J-RELAY is built for durability, it is not immune to wear and tear. Regular inspection and timely replacement are essential to ensure uninterrupted protection.
Recommended Replacement Cycle:
Under standard operating conditions, the relay should be replaced every 6 to 8 years. However, this can vary depending on:
Under standard operating conditions, the relay should be replaced every 6 to 8 years. However, this can vary depending on:
-
Environmental conditions: High humidity, dust, or temperature extremes can shorten lifespan.
-
Electrical stress: Frequent phase imbalances or voltage fluctuations may degrade internal components.
-
Usage frequency: Elevators with high daily run cycles may require earlier replacement.
Signs that replacement is needed:
-
Relay fails to detect phase reversal during testing
-
False triggering or nuisance faults
-
Burnt or discolored terminals
-
LED indicators not functioning correctly
Maintenance Tips:
-
Include the relay in quarterly control panel inspections
-
Test phase sequence and loss detection during routine maintenance
-
Clean dust from terminals and check for loose wiring
-
Replace immediately if any irregularities are found
Why Choose Nanjing Zhuye Elevator Parts?
At Nanjing Zhuye Elevator Parts, we are committed to providing original, high-quality elevator components to customers around the world. Our inventory includes a wide range of Otis-approved parts, including the HLJN3/J-RELAY, all sourced from certified suppliers.
When you partner with us, you benefit from:
-
100% genuine Otis components
-
Fast international shipping
-
Technical support and installation guidance
-
Bulk pricing for maintenance companies and OEMs
-
24/7 customer service
We understand how critical it is to keep elevators running safely and efficiently. That’s why we ensure that essential safety components like the HLJN3/J-RELAY are always in stock and ready to ship.
Conclusion
The Otis Phase Sequence Relay HLJN3/J-RELAY is a small but essential device that plays a big role in elevator safety. By monitoring phase sequence and detecting phase loss, it protects the motor and ensures the elevator moves in the correct direction every time. Whether you’re performing routine maintenance or upgrading an older system, this relay is a must-have component.
Trust Nanjing Zhuye Elevator Parts to deliver the HLJN3/J-RELAY quickly and reliably, helping you maintain the highest standards of safety and performance in every elevator you service.
