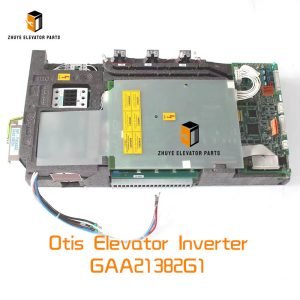

Otis Inverter GAA21382G1 Brief Introduction
|
Product Name |
Otis Inverter |
| Model Number |
GAA21382G1/G2 GAA21382H1/H2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Inverter GAA21382G1 – Compact Power and Precision for Geared & Gearless Elevators | Nanjing Zhuye Elevator Parts
Tucked inside the controller, the Otis GAA21382G1 inverter is the compact powerhouse that turns fixed-frequency mains into silky, variable-frequency motion. Delivering 22 kW of three-phase power from a book-sized chassis, it drives induction or permanent-magnet motors up to 2.5 m/s while returning regenerative energy to the grid. When it hiccups you feel jerky starts, over-current faults or sudden shutdowns. Nanjing Zhuye Elevator Parts keeps genuine GAA21382G1 units in original packaging, pre-flashed with the latest firmware and ready for same-day despatch—helping you restore smooth rides without costly OEM delays.
Product snapshot
-
Otis part number 713A21382-G1, hardware rev. F4, firmware INV-G1-12.3
-
22 kW rated, 30 kW 60 s overload, 380-480 V three-phase, 50/60 Hz input
-
Output 0-480 V, 0-400 Hz, vector or V/F mode, 4 kHz switching, efficiency > 97 %
-
Built-in DC reactor, class A EMI filter, brake chopper 15 kW continuous, 20 % duty
-
Dual encoder ports: incremental 5 V / 12 V and absolute EnDat 2.2, 100 kHz max
-
Dual safety STO (Safe Torque Off), SIL-3 certified, hardware redundancy
-
CAN-FD and RS-485 for real-time speed, torque and health telemetry
-
Operating temperature −10 °C to +50 °C, altitude 1 000 m without derating
-
IP20 book-style chassis, 270 × 110 × 165 mm, 4.8 kg, through-panel or DIN-rail mount
-
CE, UL, RoHS, REACH and Otis QES 2024 approved
Where it works
-
Otis GeN2® Life, GeN2® Switch geared machines 5.5–22 kW
-
4200/5200 gearless modernisations up to 2.5 m/s, 1 000 kg
-
Foreign motor retrofits needing 400 V vector control and regenerative braking
-
Any controller demanding < 1 % speed ripple and ±2 mm levelling accuracy
Installation method – 30-minute plug-and-play
-
Place lift on inspection mode; stop at mid-shaft; switch OFF main breaker; lock & tag.
-
Wait 5 min for DC bus to discharge (< 50 V indicated on LED).
-
Photograph existing wiring; note encoder plug orientation.
-
Remove four mounting screws; slide old inverter out of panel.
-
Install new GAA21382G1; torque screws to 1.5 Nm.
-
Re-connect mains L1/L2/L3, earth 10 mm², motor U/V/W, brake resistor, encoder, CAN-FD, 24 V logic.
-
Power up; green “RDY” LED must illuminate within 3 s, “CAN” LED blinks blue.
-
Launch Otis Inverter Tool (OIT-G1) on laptop; auto-tune detects motor parameters in 120 s.
-
Run 20 full-speed cycles; verify temperature < 60 °C on heat-sink and no over-current alarms.
-
Seal panel; log serial number and firmware v12.3 in maintenance book.
Replacement cycle & preventive maintenance
Although solid-state, inverters live on the edge of heat and voltage stress. Otis bulletin SB-INV-2024-06 recommends:
-
Visual inspection every 6 months: clean dust from fan guard, check for swollen DC-link capacitors.
-
Measure IGBT Vce sat < 1.8 V at rated current; replace if > 2.5 V.
-
Capacitor reform every 8 years or 30 000 operating hours; if ESR > 150 % of nominal, replace entire inverter.
-
Replace cooling fan (24 V, 80 mm ball-bearing) every 4 years—bearing lock is the #1 cause of overtemperature faults.
-
Immediate replacement if:
– HMI shows “Over-current 03” at start-up (IGBT short),
– DC-bus ripple > 5 V under load,
– heat-sink temperature > 70 °C with clean filter,
– STO function fails quarterly test.
Pro tip: 60 % of premature failures are traced to loose motor terminals—re-torque to 2.5 Nm every year.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use shielded encoder cable, foil facing inward, grounded at inverter only, to prevent Hall-sensor noise.
-
Never run motor cables in the same trunking as 400 V mains—induced spikes kill gate drivers.
-
Keep a spare GAA21382G1 in every service room; at 4.8 kg it fits on a shelf and saves a night call.
-
After lightning storm, check DC-bus voltage ripple < 3 V; mains sag forces higher current and overheats IGBTs.
-
Order the “Inverter Bundle” (GAA21382G1 + fan + thermal paste) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are an Otis-authorised distributor, importing GAA21382G1 directly from the Czech factory, pre-loading firmware INV-G1-12.3 and testing every unit on a 22 kW motor rig for 45 min under full load. Inverters are shipped in anti-static foam with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse holds 150+ units year-round; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at three pieces; we can pre-set motor parameters and include a loaner inverter to keep your lifts running during the swap.
Conclusion
The GAA21382G1 inverter is the compact virtuoso behind every smooth ride and energy-saving stop. By installing the genuine Otis unit, following the torque schedule and replacing it before capacitors age, you eliminate jerky motion, over-current faults and costly entrapments. Stock genuine GAA21382G1 from Nanjing Zhuye Elevator Parts today—because when the drive stops, the whole building notices.
