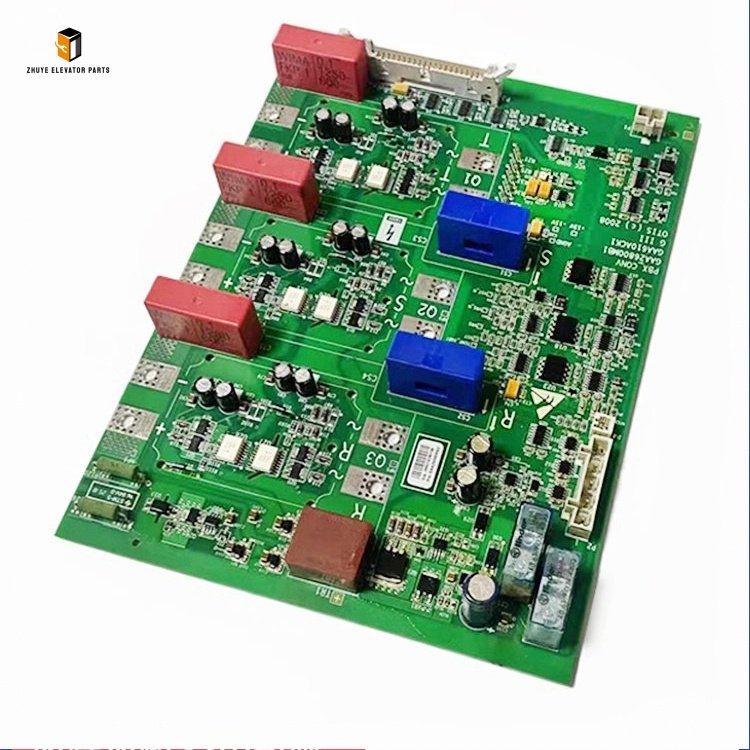

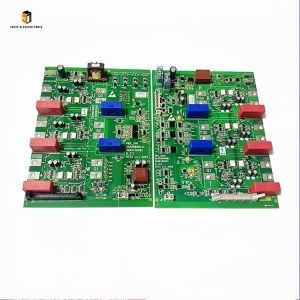

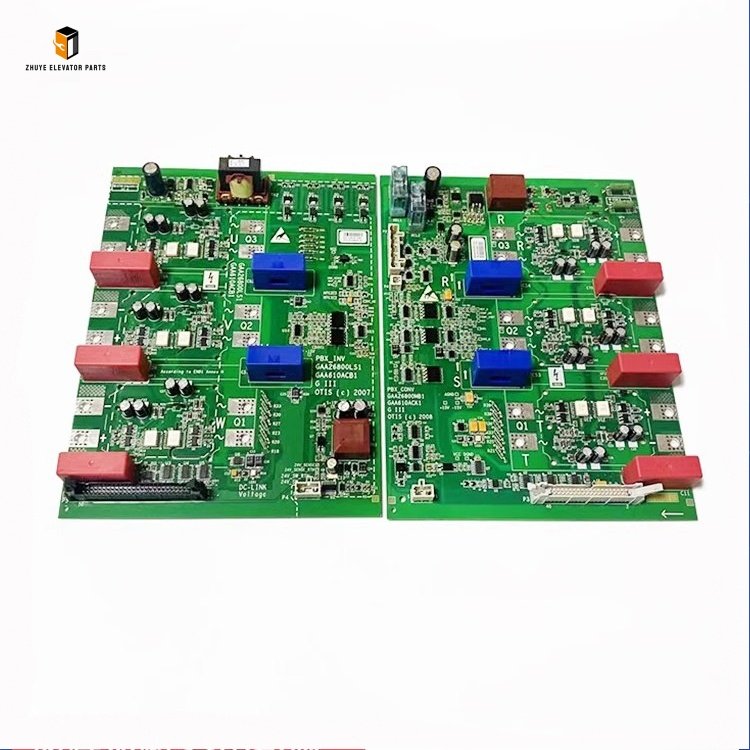

1. High-Voltage Safety Preparation: Before installation, shut off the elevator’s main power supply, disconnect the inverter cabinet power, and discharge all high-voltage capacitors (verify with a voltage tester). Implement LOTO (Lockout/Tagout) procedures and post high-voltage warning signs to prevent electrical hazards. Access the inverter cabinet (typically in the machine room) using a stable platform, wearing insulating gloves (class 00 or higher), safety glasses, and an anti-static wristband to protect sensitive components and personnel.

2. Remove the Old Board: Locate the existing GAA26800LS1/LS2 board in the Otis inverter cabinet (mounted on the backplane with high-torque fixing screws and locking clips). Disconnect all wiring harnesses—take detailed photos of terminal connections (note labels like L1/L2/L3 for input, U/V/W for motor output, PE for ground, and communication ports) to ensure correct reconnection. Remove the fixing screws (torque wrench required) and release the locking clips, then carefully lift the old board out of the backplane (avoid touching high-voltage terminals) to prevent damage to connectors or traces.

3. Prepare the Mounting Area: Clean the backplane high-voltage connectors and heat sink with a dry, lint-free cloth to remove dust or debris. Inspect the connectors for bent pins, corrosion, or arcing marks (replace the backplane if damaged) to ensure reliable electrical contact. Verify all wiring harnesses (especially high-power cables) are in good condition—check for fraying, insulation damage, or crimping issues (replace if necessary) to prevent short circuits.

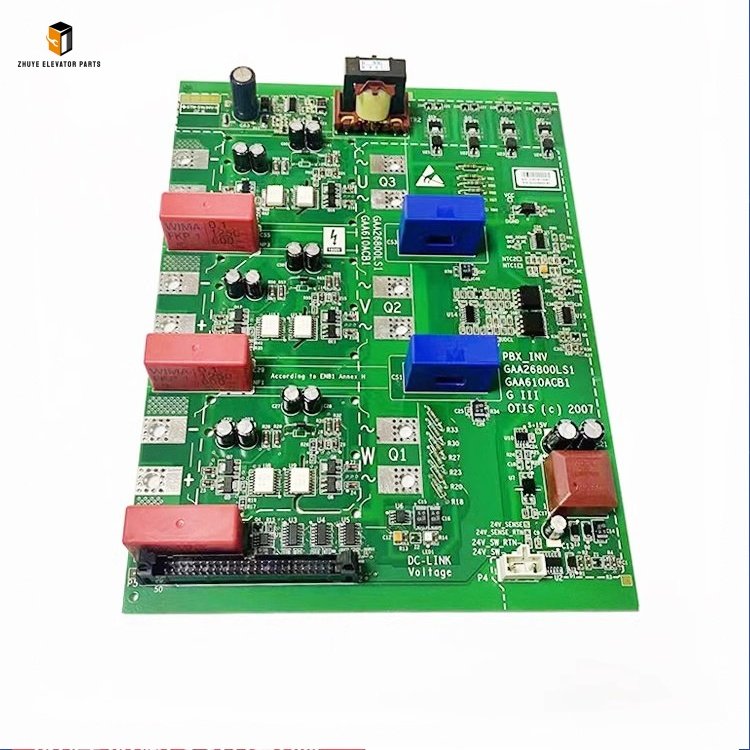

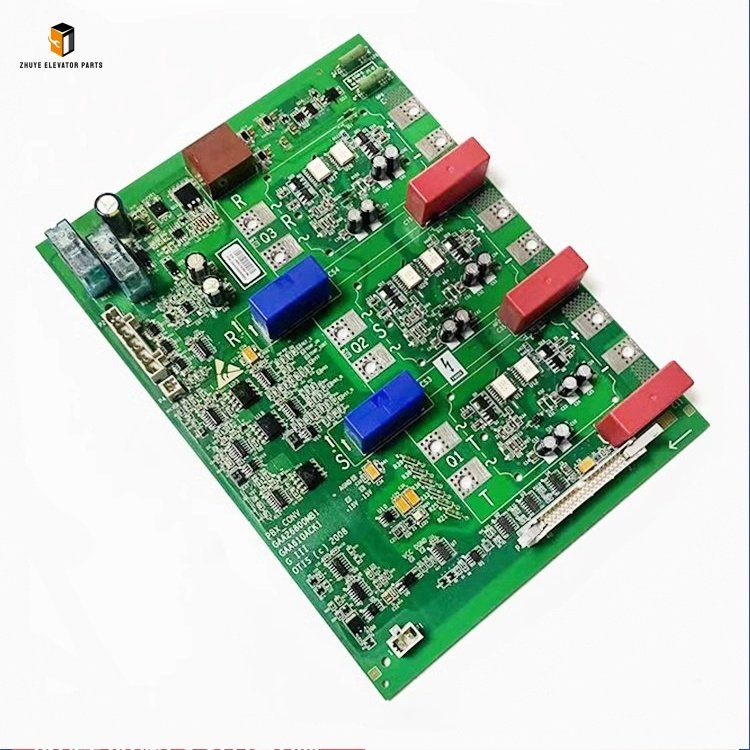

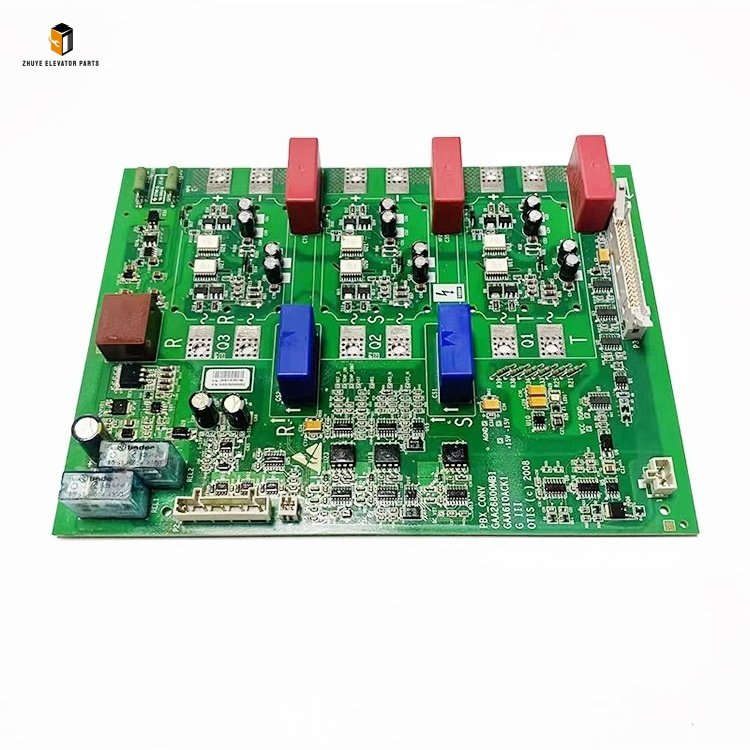

4. Install the New Board: Align the Nanjing Zhuye Elevator Parts GAA26800LS1/LS2 (match the original model’s power rating) with the backplane guides, ensuring the edge connector fully seats into the backplane socket. Secure the board with original high-torque screws (torque: 2.0-2.5 N·m) to prevent vibration-induced loosening. Reconnect all wiring harnesses according to the photos: high-power cables must be tightened to specified torque (3.0-3.5 N·m) to avoid resistance heating, while control wires should be properly seated. Double-check phase alignment for power input/output and ground connections to prevent motor damage or electrical faults.

5. Configure and Test: Restore power to the inverter cabinet (follow Otis’ high-voltage power-up sequence: main power → control power → pre-charge → inverter enable). Access Otis’ service software (e.g., Otis Service Tool Pro) via the communication port to verify the board is recognized. Upload the original inverter parameters (saved from the old board) to the new board—this includes high-power speed curves, load-dependent acceleration/deceleration times, current limits, and protection thresholds. Conduct a comprehensive test: run the elevator in inspection mode to check high-load speed control smoothness, verify regenerative braking (if applicable), and test emergency stop functionality. Run 15+ full elevator cycles under rated load (e.g., 3,000kg for LS2) to validate consistent performance, with no fault codes (e.g., E15 for high-voltage fault, E23 for IGBT overload) or operational anomalies.

• Parameter Backup & Validation: Always back up the old board’s high-power parameters before replacement. Incorrect parameters (e.g., current limits, voltage thresholds) can cause severe inverter damage, motor burnout, or unsafe high-load operation.

• High-Voltage Safety: Never work on the board with power applied—always discharge high-voltage capacitors and use insulated tools. Avoid touching high-voltage terminals (marked with ⚡) to prevent electric shock.

• Anti-Static & Physical Handling: Store the board in an anti-static bag when not in use. Never touch exposed IGBT modules or high-voltage components with bare hands—static electricity or oil residue can cause permanent failure.

• Software & Voltage Compatibility: Use only Otis-approved service software for parameter configuration. Ensure the input voltage matches the board’s requirements (380-480V AC, 3-phase)—voltage fluctuations beyond ±10% trigger protection alarms or damage components.

• Heat Management Maintenance: Clean the board’s integrated heat sink and cabinet cooling fan monthly (high-power operation generates significant heat). Ensure airflow is unobstructed—overheating is the leading cause of high-power component failure.

• High-Traffic/High-Load Areas: Airports, shopping malls, or industrial facilities (Otis elevators operating 12+ hours daily, full-load cycles ≥800 per day) – replace every 6-8 years. Continuous high-power conversion accelerates IGBT module and capacitor aging.

• Medium-Traffic/Medium-Load Areas: High-rise offices or hotels (8-10 hours daily, full-load cycles 400-800 per day) – replace every 8-10 years.

• Low-Traffic/Heavy-Duty Applications: Industrial warehouses or low-occupancy high-rises (4-6 hours daily, full-load cycles <400 per day) – replace every 10-13 years, with quarterly high-power performance checks.

• Persistent High-Power Fault Codes: Recurring “high-voltage overload,” “IGBT overheating,” or “load mismatch” codes that persist after software resets, wiring checks, and heat management maintenance.

• High-Load Operational Failures: Elevator struggles to accelerate with full load, exhibits erratic speed under heavy weight, or shuts down during high-load cycles – indicating IGBT module or DSP degradation.

• Physical Damage: Burnt high-voltage components, swollen capacitors, arcing marks on terminals, or PCB discoloration – common in cabinets exposed to power surges or poor ventilation.

• Startup Failures: The board fails to initialize (no LED activity on high-voltage status indicators) or enters a continuous pre-charge fault loop.

• Efficiency Drop: Significant increase in energy consumption (verified via Otis service software) or reduced high-load speed responsiveness – indicating power conversion inefficiency.

• 1:1 Otis Compatibility: Engineered to match Otis’ original high-power hardware and software specifications, ensuring seamless integration with Otis heavy-duty inverter systems—no modifications required.

• High-Power Reliability: Manufactured with industrial-grade high-voltage IGBT modules, thick-film resistors, and long-life capacitors – delivering the same durability and load-handling capacity as Otis’ OEM boards.

• Rigorous Quality Assurance: 100% pre-delivery testing, including high-power load validation (up to 30kW), environmental stress testing, and compatibility checks with Otis inverter systems.

• Expert Otis High-Power Support: Our team of certified engineers specializes in Otis heavy-duty drive systems, providing professional guidance on high-voltage installation, parameter configuration, and troubleshooting.

• Fast Emergency Delivery: We maintain a large inventory of both GAA26800LS1 and GAA26800LS2 variants to fulfill urgent replacement orders within 24-48 hours, minimizing downtime for critical elevator operations.
