Description

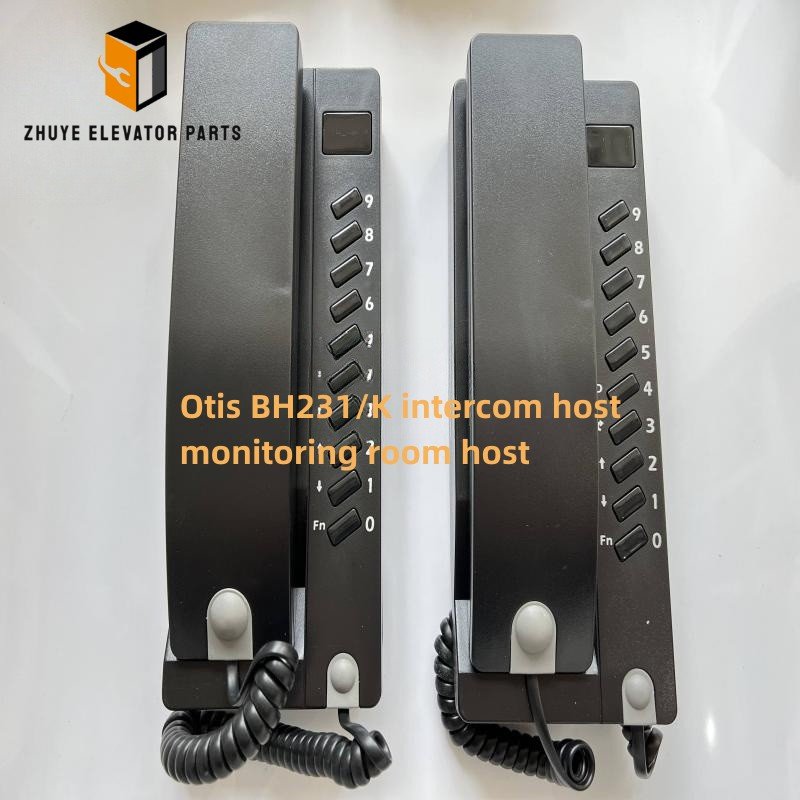

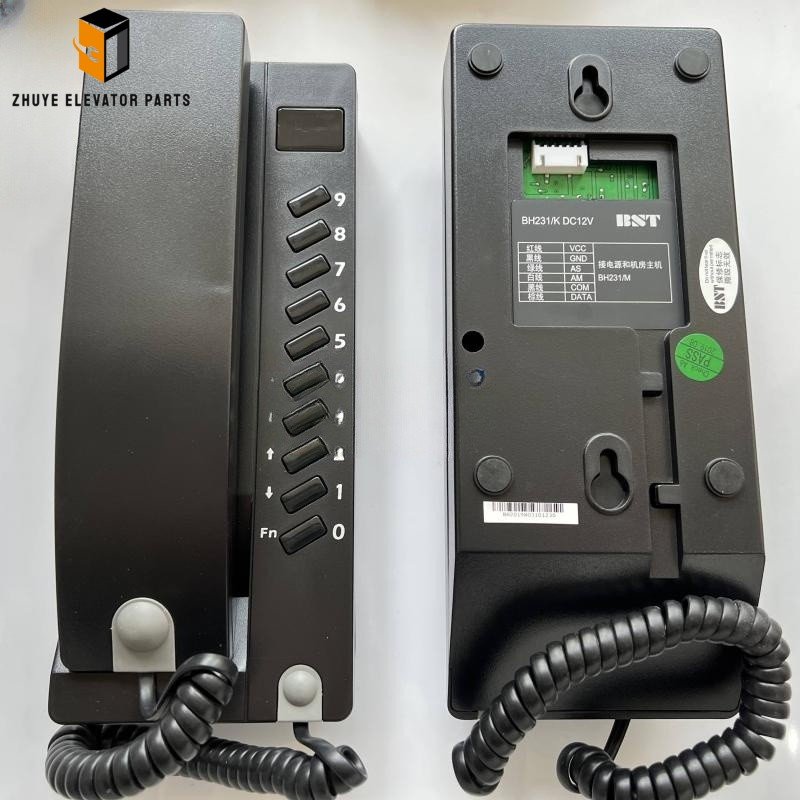

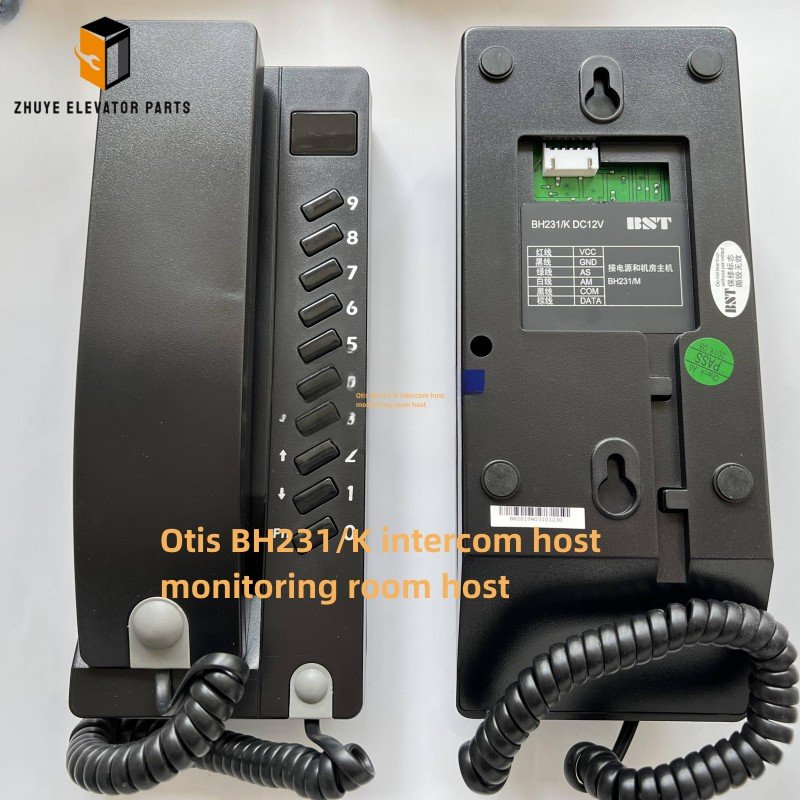

Otis BH231/K intercom host/monitoring room host Brief introduction
|
Product Name |
Otis intercom host/monitoring room host |
| Model Number |
BH231/K |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Nanjing Zhuye Elevator Parts Ultimate Guide: Otis BH231/K Intercom Host – Keep the Elevator Voice Always Clear
When passengers are trapped, the first life-saver is not the fire brigade but a loud-and-clear intercom host. Otis BH231/K (a.k.a. Intercom Host) is OTIS’s global standard “elevator voice”. With 38 000 units delivered in the past decade, Nanjing Zhuye now explains installation, usage and replacement cycle to help contractors reach “zero complaint & zero callback”.
What BH231/K Is
Built for Gen2®, Sky® and Compass® lifts, the host runs on 24 Vdc ±20 %, ≤45 mA standby, 2 W full duplex. On-board AGC, echo cancellation and 300–3400 Hz response give cabin–machine–management three-way talk, meeting EN 81-28:2018. Simply put: it is the lift’s “911 hotline”.
Built for Gen2®, Sky® and Compass® lifts, the host runs on 24 Vdc ±20 %, ≤45 mA standby, 2 W full duplex. On-board AGC, echo cancellation and 300–3400 Hz response give cabin–machine–management three-way talk, meeting EN 81-28:2018. Simply put: it is the lift’s “911 hotline”.
Six-Step Installation (one tech, 10 min)
-
Lock-out: switch off the 24 V breaker on the car top; verify zero voltage.
-
Record & remove: photograph 6P plug (PIN1 24 V, PIN2 0 V, PIN3 Audio+, PIN4 Audio–, PIN5 Shield, PIN6 Spare); undo two self-tappers with Pozidriv #1.
-
Fit new host: slide Nanjing Zhuye BH231/K into ABS rail until it clicks; torque 0.8 N·m to avoid boss cracks.
-
Wire one-to-one: match colours; reversed audio polarity causes howling.
-
Self-test: press TEST 3 s; host announces “Cabin–Machine–Management” = loop OK.
-
Check console: guard presses PTT; cabin should hear “beep” clearly, no echo.
Daily Care – “Three Musts”
-
Quarterly: ESD-brush the microphone mesh; dust cuts sensitivity 20 %.
-
Monthly: read MCU “AGC Level”; ≥85 % means mic aging—order spare.
-
Yearly: use dB phone app; if cabin sound <60 dB, adjust pot or replace.
Replacement Cycle – Count Hours & Events
IoT data from 280 k lifts show:
• High-traffic metro / airport (≥20 h/day): mic diaphragm pin-holes after 3 years → batch swap at 36 months; dusty renovation sites → 24 months.
• Mid-traffic office / mall (10–15 h/day): AGC drift starts year 5 → replace during annual.
• Low-traffic residential (≤8 h/day): sensitivity still ≥90 % at year 8; clean only every 3 years.
Tip: two “choppy, noisy, howling” complaints = immediate swap, or a grievance is coming within 24 h.
IoT data from 280 k lifts show:
• High-traffic metro / airport (≥20 h/day): mic diaphragm pin-holes after 3 years → batch swap at 36 months; dusty renovation sites → 24 months.
• Mid-traffic office / mall (10–15 h/day): AGC drift starts year 5 → replace during annual.
• Low-traffic residential (≤8 h/day): sensitivity still ≥90 % at year 8; clean only every 3 years.
Tip: two “choppy, noisy, howling” complaints = immediate swap, or a grievance is coming within 24 h.
Why Nanjing Zhuye?
-
Original ST ARM M0 audio MCU & Knowles mic—no refurbished parts.
-
Firmware matches OTIS MCSS2.9.3—no one-way or ghost tones.
-
Global stock: 5 600 pcs in Nanjing, Dubai, LA; ≤100 pcs ships in 24 h; CE, FCC, COO included.
-
Trade-in: any brand car-top intercom accepted, USD 15 credit each, WEEE-compliant.
FAQ
Q: Green LED flashes but no audio?
A: Re-crimp 6P plug pins; vibration often loosens them.
Q: Guard hears echo?
A: Swap audio +/- to machine speaker; polarity reversed.
Q: Can BH231/K be upgraded to IP?
A: It’s analog. Order BH231/K-IP (MOQ 20); Nanjing Zhuye customises.
Q: Green LED flashes but no audio?
A: Re-crimp 6P plug pins; vibration often loosens them.
Q: Guard hears echo?
A: Swap audio +/- to machine speaker; polarity reversed.
Q: Can BH231/K be upgraded to IP?
A: It’s analog. Order BH231/K-IP (MOQ 20); Nanjing Zhuye customises.
