OTIS HBP22 Lop LMBS430SD-ED-OS display Brief Introduction
1. Full Supply Chain For Otis, Kone, Schindler, Mitsubishi, Thyssenkrupp Elevator Lift and Escalator All Brand Spare Parts
2. 100% Original New with a one-year free Guarantee.
3. Fast Delivery
4. Huge Customer From European
| Product Name: | OTIS HBP22 Lop LMBS430SD-ED-OS display |
| Model Number: | HBP22 with Touch buttons |
| Brand: | Otis elevator lop call box |
| Feature: | 100% Original New |
| Guarantee: | One-Year Free Guarantee |
| Delivery Time: | 3-5working days once get the payment |

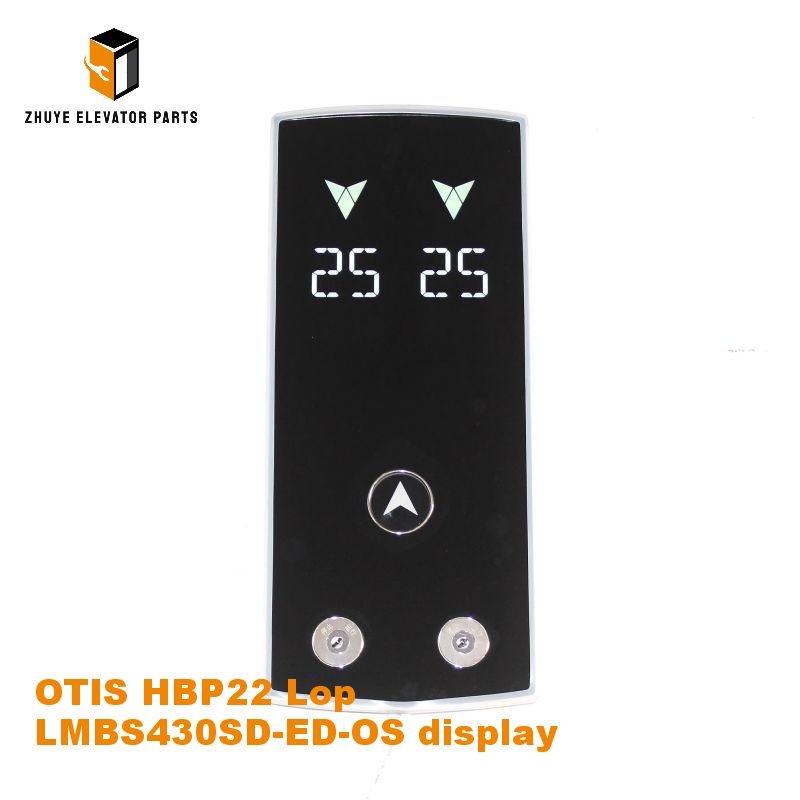

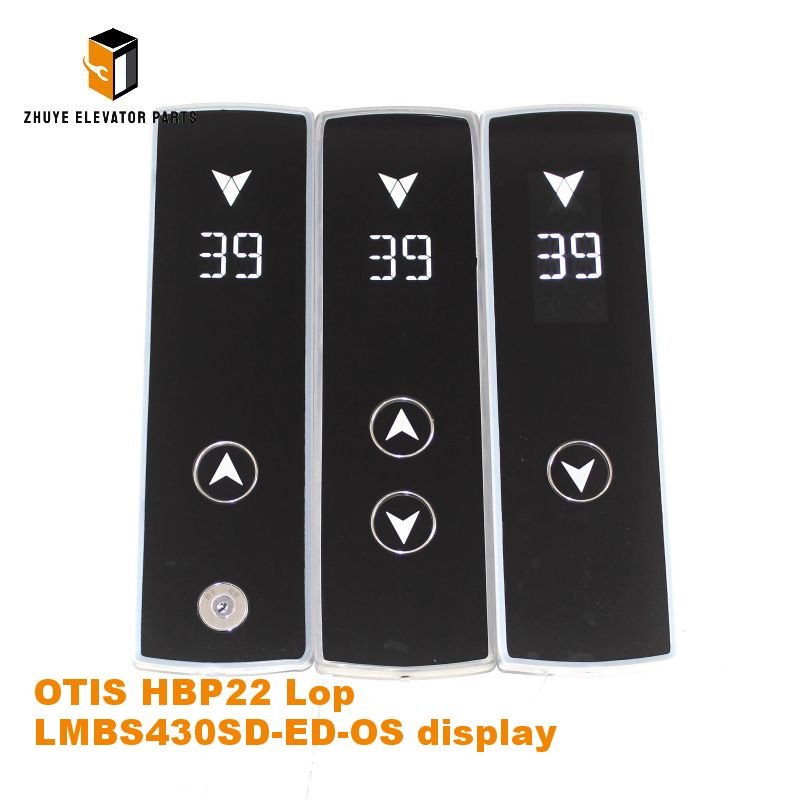

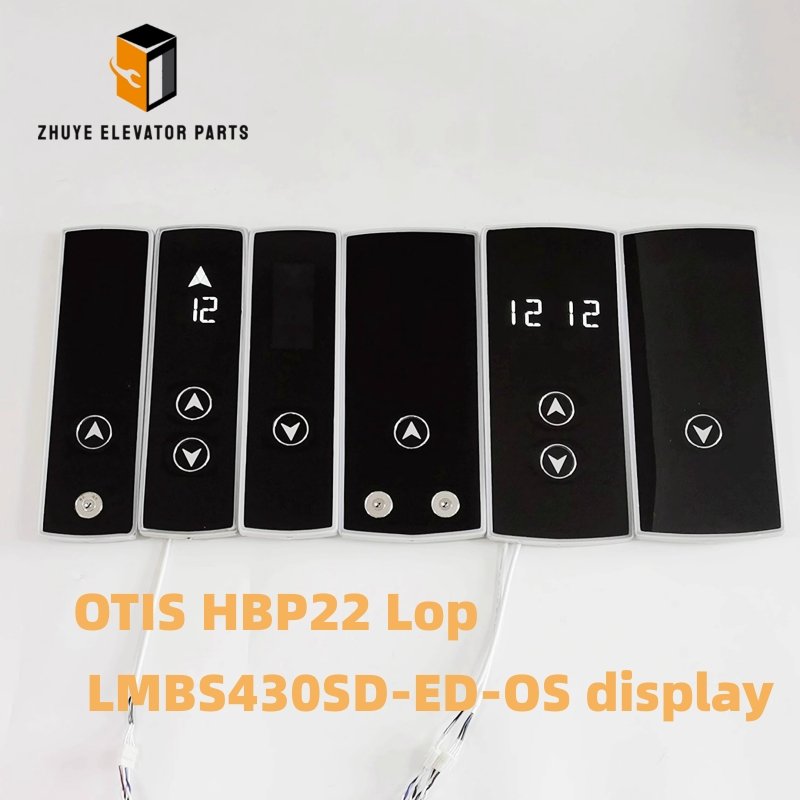

OTIS HBP22 LOP LMBS430SD-ED-OS Display – The 4.3-Inch OLED Window That Turns Every Landing into a Visual Experience
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Every landing you walk towards is silently advertising the elevator’s health — through colour, animation and crystal-clear floor numbers. The HBP22 LOP LMBS430SD-ED-OS is Otis’ latest 4.3-inch OLED landing operation panel, originally engineered for HBP22 headers, but universally retrofittable for any controller demanding EN-81.70 compliant visuals. Nanjing Zhuye Elevator Parts keeps factory-sealed displays in anti-static stock for next-day despatch. Below we explain what the display does, how to commission it in under 10 minutes, and the replacement cycle that prevents expensive “blank screen” call-backs.
1. What LMBS430SD-ED-OS Really Is
-
Screen: 4.3-inch OLED, 480 × 272 px, 1,000 nits, 178° viewing angle
-
Interface: CAN-open 125 kbit/s + 24 VDC power (2 W max)
-
Colours: 16.7 M, 256-level grey, 60 Hz refresh — no ghosting
-
Brightness: auto-dims to 30 % after 22:00 (energy code)
-
Housing: IP54 aluminium, -25 °C to +70 °C, UV-stabilised for outdoor scenic lifts
-
Cable: 4-way M12, 3 m PVC, gold-plated contacts
-
Pack Unit: 1 display + 2 M4 screws + 1 × 2 mm Allen key + EVA gasket
The display fits Otis HBP22, Gen2-R2®, SkyRise® and Chinese-brand LOPs with 120 × 70 mm cut-out.
2. Where It Is Used
-
Otis HBP22, Gen2-R2®, SkyRise® 1.0–4.0 m s⁻¹
-
Thyssen TCM-MC3 retrofit kits with HBP22 geometry
-
Machine-room-less (MRL) or machine-room (MR) centre-opening doors
-
Suitable for 800–1,400 mm clear openings, indoor or outdoor
3. Installation – 10-Minute Retrofit
Safety: place lift on inspection, lock main breaker, tag out.
-
Remove old display — undo 2 M4 screws; unplug 4-way M12.
-
Clean surface — IPA wipe to remove dust and oil; allow 30 s to dry.
-
Mount LMBS430SD-ED-OS — push into 120 × 70 mm cut-out until snap-ring clicks; stick EVA gasket.
-
Connect plug — brown +24 V, blue 0 V, white CAN-H, black CAN-L.
-
Power on — OLED lights automatically; green LED steady = CAN synced.
-
Test — run car on inspection; display must show floor, arrow and language pack.
No laptop is required; the display self-syncs on power-up.
4. Daily Operation – What the Display Actually Does
-
Updates floor every 50 ms; no ghosting or tearing
-
Auto-dims to 30 % after 22:00 (energy code)
-
Built-in 24 h self-test — if pixel defect >3, “Display Fault” is logged
-
IP54 gasket resists car-wash water jets; UV-stabilised for outdoor shafts
-
Consumes 2 W — meets EN 81-20 standby power limits
5. Replacement Cycle & Preventive Maintenance
-
High-traffic office (>1,000 trips day⁻¹) – wipe screen every 3 months, replace display every 6 years
-
Residential tower (300–600 trips day⁻¹) – inspect annually, replace every 8 years
-
Low-rise freight (≤200 trips day⁻¹) – inspect every 18 months, replace every 10 years
Replace immediately if:
-
Pixel defect >3 or dead pixels >5
-
Brightness <700 nits at max setting
-
CAN “Display Fault” logged ≥3 times in 30 days
-
Cable insulation cracked or oil-soaked
-
UV discoloration >50 % surface area
6. Extending Life – 3 Pro Tips
-
Keep screen vertical; horizontal mounting collects dust 3× faster
-
Clean with 70 % isopropyl, not ammonia glass spray — prevents crazing
-
Check alignment every 6 months; 2 mm offset reduces brightness by 40 %
7. Why Buy LMBS430SD-ED-OS from Nanjing Zhuye Elevator Parts?
-
Factory-new OLED, not refurbished; passes 1,000-hour salt-spray and 50,000-cycle pixel test
-
Pre-calibrated; matches Otis original colour map, no re-programming required
-
Anti-static foam box + silica gel — safe for air freight
-
Dual stock: 520 pcs Nanjing, 180 pcs Dubai — next-day to 65 countries
-
Bundle kit: display + 3 m M12 cable + cleaning wipe — 5 % discount
-
24 months warranty against pixel defect or brightness loss
-
7×24 WhatsApp/WeChat video support; average response 10 minutes
Conclusion
The OTIS HBP22 LOP LMBS430SD-ED-OS display is the invisible window that advertises every landing — yet never asks for attention until it fades. Stock a spare from Nanjing Zhuye on every service truck, swap it on schedule, and replace “blank screen” panic with a ten-minute planned fix — one cool, crystal-clear entrance at a time.
