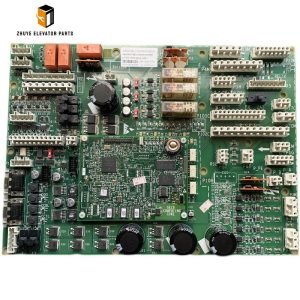

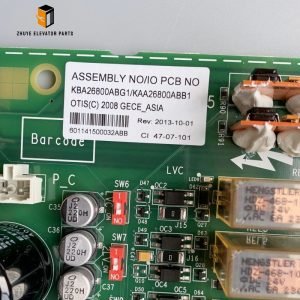

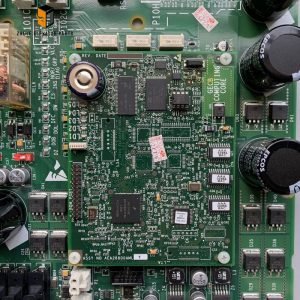

Otis GECB Board KAA/KBA26800ABB/ABG1/2/3/6/8: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis GECB KAA/KBA26800ABB/ABG Series Board

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the elevator’s control cabinet (located in the machine room) and locate the designated mounting position for the GECB board. Disconnect the old board (if replacing) by detaching power cables (24V DC/110V AC), communication connectors (to drive units, push button panels, safety sensors, and IoT modules), and safety interlock wires—label all cables clearly to avoid cross-connection errors. Clean the mounting area and backplane connector with compressed air to remove dust or debris that could interfere with electrical contact.
  • Align the new KAA/KBA26800ABB/ABG series board with the mounting holes and backplane connector, then insert it firmly until seated. Secure the board with the provided screws (torque to 0.6–1.0 Nm) to prevent vibration-induced loosening. Reconnect all cables—ensure power cables are connected last to avoid ESD damage, and verify connectors are fully locked to prevent intermittent connectivity.
• Configuration Setup:
  • Power on the control cabinet (performed by certified technicians only) and access the configuration menu via Otis’s diagnostic software (e.g., Otis Service Tool, OCSS, or IoT Elevator Manager):
    • System Parameters: Load the elevator’s specific settings (e.g., floor count, door operation timing, speed limits, load capacity, dispatching logic) into the GECB board—these parameters are critical for matching the elevator’s mechanical and electrical characteristics.
    • Safety Interlock Configuration: Verify or set safety interlock logic (e.g., door closed confirmation, overload detection, overspeed protection, emergency stop triggering) to comply with Otis’s safety protocols.
    • Smart Feature Setup: Configure IoT connectivity, remote monitoring, and predictive maintenance features (if applicable) to enable real-time performance tracking and fault alerts.
    • Device Sync: Sync the GECB board with peripheral components (drive systems, display panels, emergency modules, IoT sensors) to ensure seamless data exchange and coordinated operation.
• Functional Testing:
  • Conduct comprehensive tests to validate performance:
    • Operational Test: Run the elevator through full cycles (empty, half-loaded, full-loaded) to confirm floor dispatching, door control, and speed regulation work flawlessly—no delays, jitter, or incorrect responses.
    • Safety Test: Simulate emergency scenarios (e.g., door obstruction, fire service mode, power loss, overspeed) to verify the board triggers appropriate responses (e.g., door re-opening, emergency stop, backup power activation, remote fault alerts).
    • Smart Connectivity Test: Verify IoT connectivity and remote monitoring functionality—ensure real-time data (speed, load, temperature) is transmitted accurately to the Otis Elevator Manager platform.
  • Document configuration settings and test results in maintenance records to demonstrate compliance with Otis’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation, or component overheating (discoloration of the board or connectors). Remove dust with compressed air—avoid water or chemical cleaners that can damage electronic parts.
• Monthly Diagnostic Scans: Use Otis’s diagnostic software or IoT platform to review system logs, error codes, and parameter integrity. Address minor alerts (e.g., “Communication Warning,” “Parameter Drift,” “Low Power”) promptly to prevent system degradation.
• Quarterly Cable Inspections: Inspect power and communication cables for fraying, corrosion, or loose contacts. Tighten connectors as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance control logic, fix software bugs, improve smart features, and ensure compatibility with system upgrades.
• Annual Comprehensive Inspection: Verify all system parameters and safety settings remain aligned with Otis’s specifications. Test redundancy features and IoT connectivity to ensure fail-safe operation during component failures or network disruptions.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• System Failures: Elevator fails to start, stalls mid-cycle, becomes unresponsive to floor selections, or experiences erratic dispatching—indicative of core control logic failure.
• Persistent Critical Errors: Repeated safety-related error codes (e.g., “Safety Interlock Fault,” “Motor Control Mismatch,” “IoT Communication Failure”) that cannot be resolved with troubleshooting or firmware updates.
• Physical Damage: Cracked circuit board, burned IC chips, water damage, or damaged communication ports—compromising electrical safety and system functionality.
• Performance Degradation: Noticeable delays in door operation, inconsistent speed control, frequent false alarms, or loss of smart features (remote monitoring, predictive maintenance)—attributed to aging components or internal circuit damage.
• Safety Compromise: The board fails to enforce safety interlocks (e.g., elevator operates with doors open, does not trigger emergency stop) —violating Otis’s safety standards and posing severe passenger risks.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and uninterruptible power supply (UPS) units to shield the board from power spikes, blackouts, and voltage fluctuations—common causes of component damage.
• Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Ensure the control cabinet is sealed and ventilated to prevent dust accumulation and overheating.
• Minimize EMI Interference: Route power cables and communication lines separately (minimum distance of 25cm) and use shielded cables for IoT and CANopen connections to reduce electromagnetic interference.
• Update Firmware Regularly: Stay current with Otis’s firmware releases to address security vulnerabilities, improve performance, and extend compatibility with smart features—avoids obsolescence-related issues.
• Use Genuine Parts Only: For replacements, rely exclusively on authentic Otis KAA/KBA26800ABB/ABG series boards (matching the correct variant) from Nanjing Zhuye. Counterfeit boards may use inferior components, pirated firmware, incorrect wiring, or non-compatible communication protocols—compromising performance, safety, smart connectivity, and Otis’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Variant Compatibility: All boards are manufactured to Otis’s original specifications, ensuring seamless integration with respective Otis elevator models and compliance with global safety/electronic standards.
• Strict Otis-Specific Quality Assurance: Each unit undergoes rigorous testing—including control logic precision, safety interlock functionality, communication reliability, thermal stability, and IoT connectivity—to guarantee reliable operation in critical Otis systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Otis elevator systems, providing 24/7 assistance for variant selection, installation, configuration, firmware updates, and troubleshooting (e.g., system errors, IoT connectivity issues).
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers critical electronic components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Otis’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant, and smart-enabled Otis elevator components.
