Description

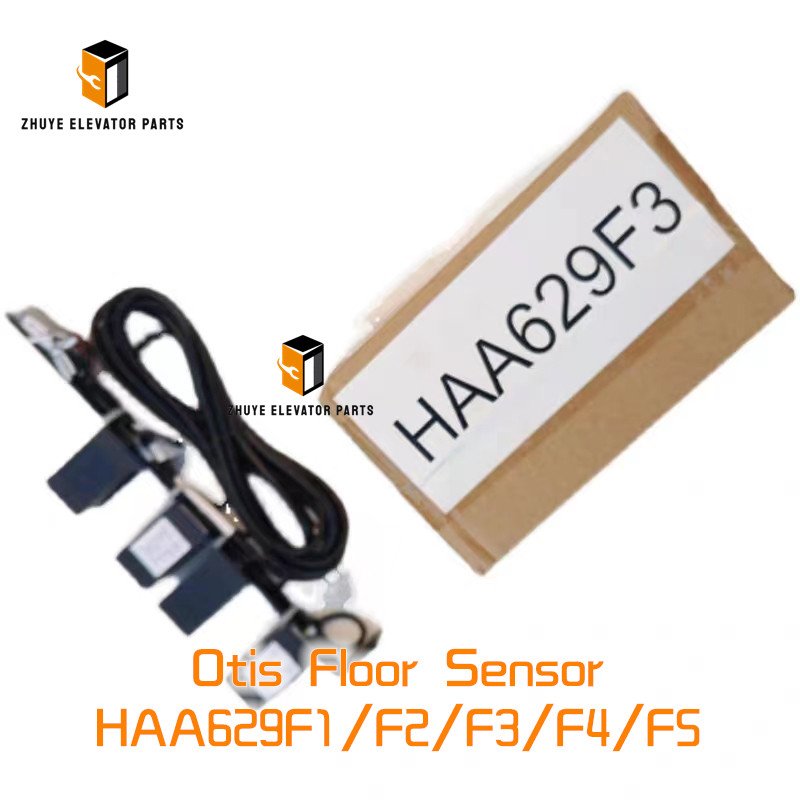

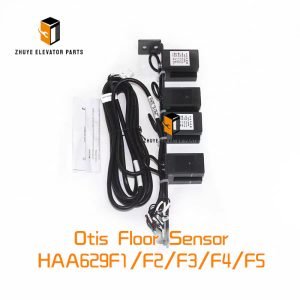

Otis Floor Sensor HAA629F1/F2/F3/F4/F5 Brief Introduction
|
Product Name |
Otis Floor Sensor |
| Model Number |
HAA629F1/F2/F3/F4/F5 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Floor Sensor HAA629F1/F2/F3/F4/F5 – Precision Floor Detection for Smooth, Safe Landings | Nanjing Zhuye Elevator Parts
Every smooth landing starts with a precise signal. The Otis HAA629F-series floor sensors—F1, F2, F3, F4 and F5—are the eyes that tell the controller exactly where the car is in the shaft. Whether it’s a magnetic, inductive or photoelectric version, each sensor outputs a rock-solid signal to within ±1 mm, ensuring levelling accuracy and preventing overrun faults. When a sensor drifts or fails, the car can overshoot, undershoot, or stop between floors. Nanjing Zhuye Elevator Parts keeps the complete HAA629F range in stock, pre-calibrated and ready for same-day despatch—helping you restore perfect landings without costly OEM delays.
Product snapshot
-
Otis part numbers HAA629F1, F2, F3, F4, F5 (select by shaft version)
-
24 V DC supply, 2-wire NPN or PNP, 1 kHz switching frequency
-
Detection range 2–15 mm, repeatability ±0.5 mm, temperature −25 °C to +70 °C
-
IP65 plastic housing, PUR cable 2 m, M12 connector option
-
CE, UL, RoHS, REACH and Otis QES 2024 approved
Where it works
-
Otis Gen2® Life, Gen2® Switch, 4200/5200 with magnetic or steel tape targets
-
Side-mounted on car top or counter-weight; face-to-face with steel/magnetic tape every floor
-
Modernisation packages replacing obsolete HAA629E or reed-switch sensors
-
Any controller expecting SIL-2 certified position feedback
Installation method – 10-minute precision swap
-
Place lift on inspection mode; stop car 200 mm above target; switch OFF local breaker; lock & tag.
-
Clean old sensor and target; photograph wiring polarity.
-
Release M12 lock-nut; slide old sensor out; note gap sticker.
-
Insert new HAA629F× until face touches target; back off 2 mm; lock nut 15 Nm.
-
Connect 24 V DC (brown +, blue −); verify LED changes state when target passes.
-
Hand-jog car past floor; oscilloscope shows clean 0-24 V square wave, rise time < 1 µs.
-
Run full-speed pass; levelling error must be ±1 mm vs. tape zero.
-
Apply torque-stripe paint; log gap value and serial number in maintenance book.
Replacement cycle & preventive maintenance
Otis bulletin SB-SEN-2024-05 recommends:
-
Visual inspection every 6 months: check for cracks, cable oil-swelling, LED status.
-
Gap measurement: replace when gap > 4 mm or when levelling error > ±2 mm.
-
Replace every 5 years or 1 million cycles in high-traffic (> 1 000 starts/day).
-
Immediate replacement if:
– LED off while 24 V present and target present,
– switching delay > 1 ms,
– insulation < 1 MΩ between wire and shield,
– housing cracked exposing live parts.
Pro tip: 70 % of premature failures are traced to misaligned targets—re-align every year.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use gold-plated M12 connector for 24 V DC; tin contacts oxidise and cause missed floors.
-
Never apply WD-40; it attracts dust and changes magnetic properties.
-
Keep a box of HAA629F1/F2/F3/F4/F5 in every service van; at 45 g it costs less than one callback.
-
After lightning storm, check 24 V ripple < 1 V; high ripple burns the sensor IC.
-
Order the “Sensor Kit” (sensor + M12 connector + target sticker) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are a multi-brand authorised distributor, importing HAA629F-series sensors directly from the Otis foundry, gold-plating every contact and shipping with a 24-month replacement warranty. Stock is stored in humidity-controlled bins to prevent IC corrosion. Orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at 50 pieces; we can laser-mark your asset number and include a spare target sticker free of charge.
Conclusion
The HAA629F1/F2/F3/F4/F5 floor sensor is the silent eye that tells every elevator exactly where to stop. By installing the genuine unit, setting the correct gap and replacing it before the LED fades, you ensure every landing is level, every stop is smooth, and every passenger steps out with a smile. Stock genuine HAA629F-series from Nanjing Zhuye Elevator Parts today—because when the eye stops, the lift stops.
