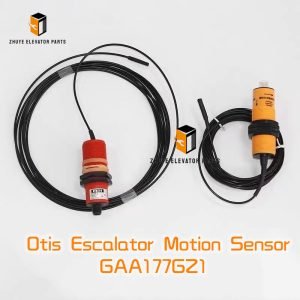

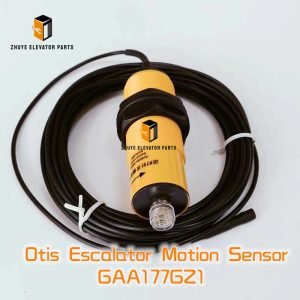

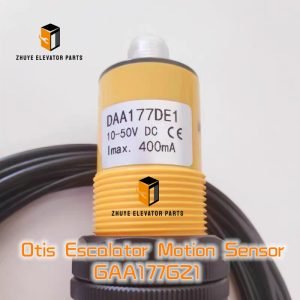

Otis Escalator Motion Sensor GAA177GZ1 Brief Introduction
|
Product Name |
Otis Escalator Motion Sensor |
| Model Number | GAA177GZ1
DAA177DE1 DAA177DE2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Escalator Motion Sensor GAA177GZ1 – Precision Movement Monitoring for Safer Steps | Nanjing Zhuye Elevator Parts
Every escalator step must move in perfect synchrony — and the GAA177GZ1 motion sensor is the eye that watches it. This SIL-2 rated, magnetic-field device measures step speed, direction and stand-still in real time, streaming data to the XECB or GECB-AP controller. Rated 0–2 m/s with ±1 % accuracy, it prevents reverse motion, detects slip and triggers emergency stop before passengers feel a jolt. When it drifts, steps can reverse, handrail speed mismatches, or the whole truss stops. Nanjing Zhuye Elevation Parts keeps genuine GAA177GZ1 sensors in anti-static packaging, pre-calibrated and ready for next-day despatch — helping you restore perfect synchrony without costly OEM delays.
Product snapshot
-
Otis part number GAA177GZ1, hardware rev. GZ1, embedded magnetic-field ASIC
-
0–2 m/s measuring range, ±1 % accuracy, 0.01 m/s resolution, temperature drift < 0.02 %/°C
-
24 V DC supply, 5 V differential output, 3 m PUR cable, M12 8-pin connector
-
IP65 aluminium housing, UV-stable, oil-resistant, −25 °C to +70 °C
-
Compatible with Otis XECB 1.0/1.1/2.0, GECB-AP, 506/508/510 NCE escalators
-
CE, UL, RoHS, REACH and Otis QES 2024 approved
Where it works
-
Step or handrail side-mount on Otis 506 NCE, 508 NCE, 510 NCE up to 12 m rise, 0.65 m/s
-
Modernisation packages replacing obsolete GAA177GZ0 or reed-switch sensors
-
Any controller expecting SIL-2 certified speed and direction feedback
Installation method – 10-minute precision swap
-
Place escalator on inspection mode; stop at upper landing; switch OFF main breaker; lock & tag.
-
Remove old sensor; photograph M12 connector and target magnet orientation.
-
Clean target surface; check for burrs — dress lightly with 400 grit.
-
Mount GAA177GZ1 on supplied bracket; gap 2 mm ±0.5 mm to target magnet.
-
Connect 24 V DC (brown +, blue −), signal (white +, grey −), shield to PE.
-
Power up; green “RUN” LED must illuminate within 3 s, “SYNC” LED flashes with steps.
-
Zero calibration: stationary steps, OES-GZ1 software, output = 0.00 m/s ±0.01 m/s.
-
Span calibration: rated speed, output = 2.00 m/s ±0.02 m/s (example).
-
Run full-speed up/down 10 cycles; verify speed error < ±1 % at each step.
-
Seal cable gland; apply torque-stripe paint; log zero/span values and serial number.
Replacement cycle & preventive maintenance
Otis bulletin SB-SENSOR-2024-05 recommends:
-
Zero check every 6 months: drift > ±0.02 m/s requires recalibration.
-
Visual inspection every 12 months: check for oil, cracked cable, LED status.
-
Replace entire sensor every 5 years or 1 million cycles, whichever comes first.
-
Immediate replacement if:
– zero drift > ±0.05 m/s after recalibration,
– insulation < 1 MΩ between wire and shield,
– housing cracked exposing electronics,
– LED off while 24 V present and target moving.
Pro tip: 70 % of premature failures are traced to loose M12 connector — re-seat and apply thread-locker every year.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use gold-plated M12 connector for 24 V DC; tin contacts oxidise and cause drift.
-
Never pressure-wash the sensor; water kills IP65 in minutes.
-
Keep a spare GAA177GZ1 in every service van; at 0.3 kg it costs less than one callback.
-
After heavy rain, run empty escalator and check zero drift < 0.01 m/s.
-
Order the “Sensor Kit” (GAA177GZ1 + M12 connector + calibration certificate) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are an Otis-authorised distributor, importing GAA177GZ1 directly from the Czech factory, vacuum-calibrating every unit and shipping with a 24-month replacement warranty. Stock is stored in humidity-controlled bins to prevent electronics drift. Orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at ten pieces; we can supply pre-calibrated sensors with your job-specific zero/span values and include a loaner unit to keep your escalators sensing during the swap.
Conclusion
The GAA177GZ1 motion sensor is the silent speedometer that tells every Otis escalator exactly how fast the steps are moving. By installing the genuine unit, calibrating zero/span correctly and replacing it before oil ingress, you ensure every step is synchronised, every stop is smooth, and every passenger walks away with confidence. Stock genuine GAA177GZ1 from Nanjing Zhuye Elevator Parts today — because when the sensor stops, synchronisation stops.
