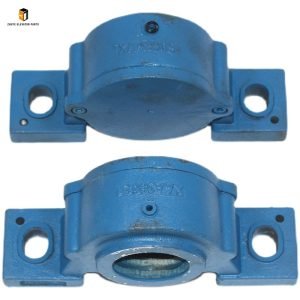

Proper Usage Methods of Otis XAA396S1/D1 Bearing Seat

1. Pre-Installation Preparation & Safety Precautions

2. Installation & Alignment Steps

• Bearing Seat Mounting:
  • Align the XAA396S1/D1 with the pre-drilled mounting holes on the escalator frame, ensuring the bearing seat’s centerline is perfectly concentric with the drive shaft (maximum misalignment ≤0.1mm). Secure the unit using the provided high-tensile screws (torque to 8–10 Nm) to prevent vibration-induced loosening. Use shims if needed to adjust alignment—poor concentricity causes uneven bearing wear and handrail vibration.
  • If replacing an old bearing seat, remove the existing unit by unfastening the mounting screws and sliding it off the drive shaft (use a puller tool if stuck, avoiding hammer blows that damage the shaft). Clean the mounting surface with a wire brush and degreaser—residual debris undermines alignment accuracy.
• Shaft Installation & Bearing Lubrication:
  • Apply a thin layer of Otis-recommended high-temperature grease (or Nanjing Zhuye’s compatible lubricant) to the drive shaft and bearing inner race. Slide the drive shaft into the bearing seat until fully seated—ensure smooth rotation without resistance. Reattach the handrail drive pulley and tighten the set screws to secure it to the shaft.
• Post-Installation Testing:
  • Restore power to the escalator (performed by certified Otis technicians only) and conduct three critical tests:
    1. Smooth Operation Test: Run the escalator at normal speed and verify the handrail moves synchronously with the steps (no slippage or lag). Listen for abnormal noises (grinding, squeaking) from the bearing seat—indicating misalignment or insufficient lubrication.
    2. Load Test: Operate the escalator with simulated handrail pressure (apply 50N force to the handrail) to confirm the bearing seat handles load without vibration or temperature rise.
    3. Temperature Check: After 2 hours of continuous operation, measure the bearing seat’s surface temperature (should not exceed 65°C)—excessive heat indicates friction or lubrication issues.
  • Document installation details, alignment measurements, and test results in maintenance records to demonstrate compliance with safety regulations.

3. Routine Usage & Maintenance Practices

• Daily Visual Inspections: Check the bearing seat for oil leaks, loose mounting screws, or debris accumulation. Verify the handrail moves smoothly without deviation—address any abnormal movement immediately.
• Weekly Lubrication Check: Inspect the bearing seals for grease leakage. Add a small amount of high-temperature grease (5–10g) through the grease fitting if lubrication levels are low—avoid over-lubrication, which attracts dust.
• Monthly Alignment Verification: Use a laser alignment tool to confirm the bearing seat remains concentric with the drive shaft. Adjust mounting screws or shims if misalignment exceeds ±0.1mm—vibration from heavy use can shift positions.
• Quarterly Bearing Rotation Test: With power off, manually rotate the drive shaft to check for resistance, grinding, or roughness. Replace the bearing seat if rotation is not smooth—indicating internal bearing damage.
• Semi-Annual Comprehensive Inspection: Remove the bearing seat’s protective cover (if equipped) to inspect the bearing seals and inner race for wear or corrosion. Clean the housing exterior and remove accumulated dust or debris.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Mechanical Failures: Handrail slippage, uneven movement, or complete stoppage—indicating bearing seizure or drive shaft misalignment.
• Abnormal Noises: Persistent grinding, squealing, or rumbling from the bearing seat—signaling worn bearings or damaged inner race.
• Excessive Heat: Surface temperature >75°C during operation, or burning odors—indicating friction-induced damage.
• Physical Damage: Cracks in the housing, broken bearing seals, or grease leakage—compromising load-bearing capacity and safety.
• Wear Indicators: Visible corrosion on the housing, excessive play in the drive shaft, or irregular handrail speed—attributed to bearing deterioration.

3. Maintenance to Extend Service Life

• Environmental Protection: Keep the handrail drive area clean, dry, and free from debris. Install dust covers if the escalator is in a dusty environment (e.g., construction zones).
• Lubrication Best Practices: Use only Otis-approved or Nanjing Zhuye-recommended high-temperature, anti-wear grease. Replace old lubricant entirely every 12 months to prevent contamination.
• Shaft Maintenance: Regularly inspect the drive shaft for wear, corrosion, or bending—smooth, undamaged shafts minimize bearing stress.
• Genuine Parts Only: For replacements, use exclusively authentic Otis XAA396S1/D1 bearing seats from Nanjing Zhuye. Counterfeit units use inferior materials, lack precision machining, and risk catastrophic handrail failure.
