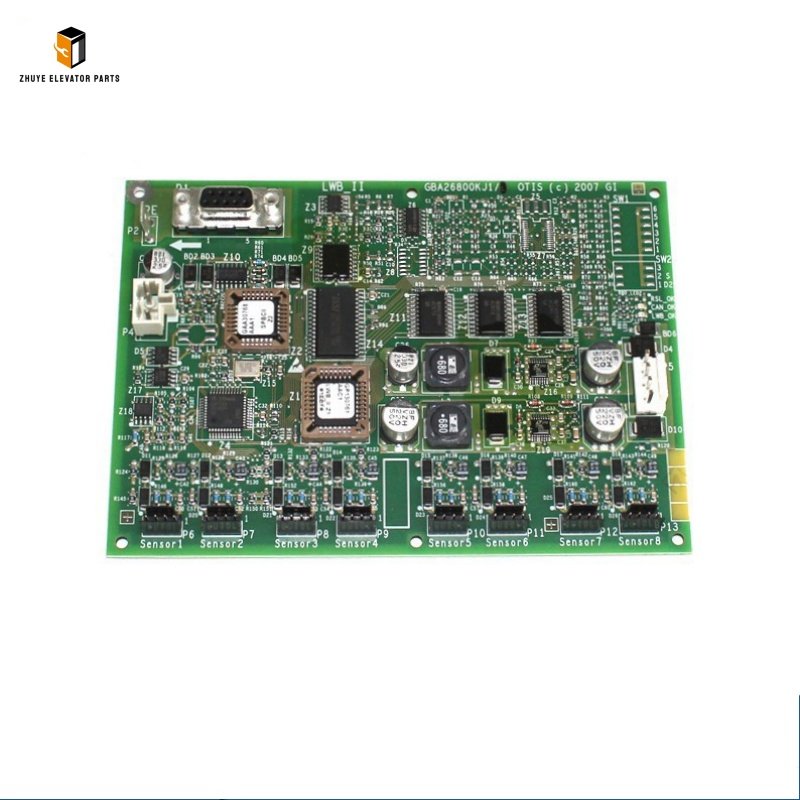

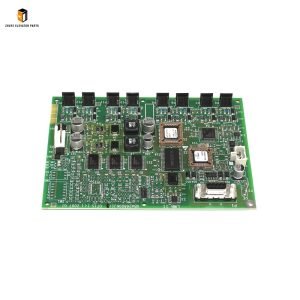

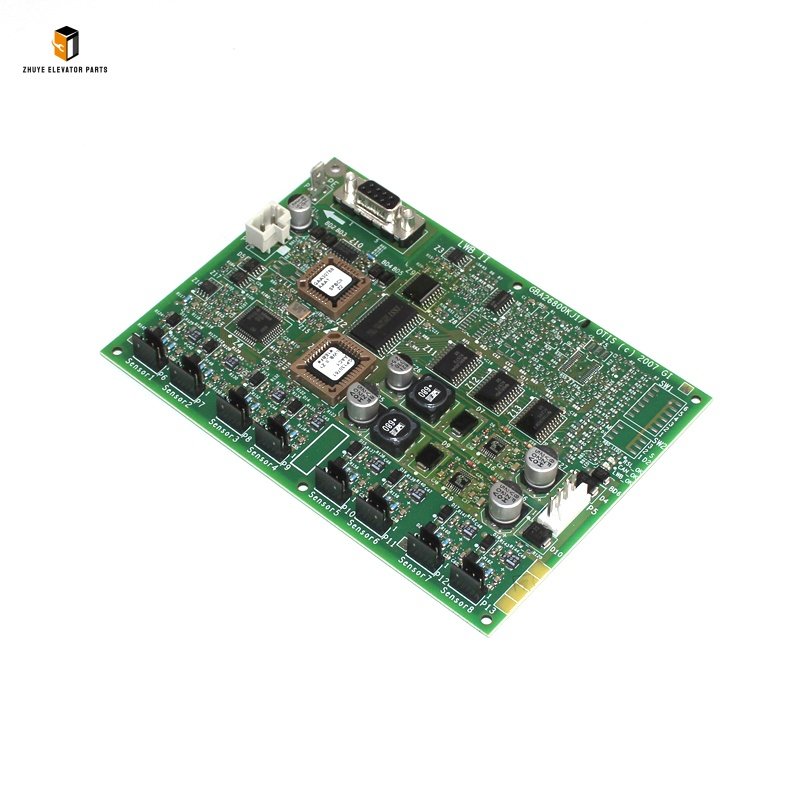

Otis Elevator Weighing Board GBA26800KJ1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Weighing Board GBA26800KJ1

1. Pre-Installation Preparation

2. Installation & Calibration Steps

• Board Installation:
  • Access the Otis elevator control cabinet (typically located in the machine room or elevator car) and locate the designated mounting position for the weighing board. Disconnect the old board (if replacing) by releasing the locking latches and disconnecting power, sensor, and communication cables—label all cables clearly to ensure correct reconnection. Clean the mounting surface to remove dust or debris that could interfere with electrical contact.
  • Align the GBA26800KJ1 with the cabinet’s guide rails and backplane connector. Insert the board firmly until it locks into place, ensuring proper seating to establish reliable electrical connections. Secure the board with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening. Reconnect the cables: power wires to the 24V DC input, load cell wires to the sensor ports (matching polarity), and communication cables to the Otis main controller.
• Calibration Setup:
  • Power on the control cabinet and confirm the GBA26800KJ1 initializes correctly (status LED illuminates green, and the main controller recognizes the board). Access the calibration menu via Otis-approved diagnostic software (e.g., Otis Service Tool) by certified technicians:
    • Zero Calibration: Ensure the elevator car is empty, then initiate zero-point calibration to set the board’s baseline weight reading (critical for accuracy).
    • Load Calibration: Place certified test weights (matching 25%, 50%, 75%, and 100% of the elevator’s rated capacity) in the car, following Otis’s calibration protocol. Input the test weight values into the software to calibrate the board’s weight detection range.
    • Overload Threshold Setting: Configure the overload alarm threshold (typically 110% of rated capacity) and safety response (e.g., door lockout, alarm activation) to align with Otis’s safety standards.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Weight Accuracy Test: Verify weight readings with test weights across the calibration range—ensure deviations are within ±3% of actual weight (Otis’s precision requirement).
    • Overload Response Test: Exceed the rated capacity with test weights to confirm the board triggers the overload alarm and locks the doors, preventing elevator operation.
    • Load Compensation Test: Operate the elevator with varying loads to ensure the main controller adjusts motor torque based on weight data, resulting in smooth acceleration/deceleration.
  • Document calibration data and test results in maintenance records to demonstrate compliance with Otis’s safety and performance standards.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or damaged sensor connections. Remove dust with compressed air—avoid water or chemical cleaning agents that can damage components or corrode connectors.
• Monthly Weight Accuracy Checks: Test weight detection with known loads (e.g., standard passenger count) to confirm readings remain within Otis’s precision tolerance. Address minor deviations promptly to prevent safety risks.
• Quarterly Sensor & Cable Inspections: Inspect load cell cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye—poor sensor connections are a leading cause of inaccurate readings.
• Semi-Annual Recalibration: Re-calibrate the weighing board using certified test weights to account for sensor drift or environmental changes—critical for maintaining regulatory compliance.
• Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance weight detection algorithms, fix software bugs, and improve compatibility with Otis system upgrades.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Weight Detection Failures: Inaccurate readings (deviations >±5% of actual weight), failure to detect overloads, or erratic weight fluctuations—posing serious safety hazards to passengers.
• Safety System Malfunctions: The board fails to trigger overload alarms or door lockout when exceeding rated capacity, despite calibration and sensor checks—violating Otis’s safety protocols.
• Physical Damage: Cracked circuit board, water intrusion, burned components, or irreparable sensor port damage—compromising electrical safety and functionality.
• Communication Errors: Persistent disconnection from the Otis main controller, or unresolvable error codes (e.g., “Sensor Communication Fault”) that appear after firmware updates and troubleshooting.
• Performance Degradation: Frequent calibration drift, unresponsive sensor inputs, or inability to pass weight accuracy tests—indicative of internal component failure.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from voltage spikes or sags—common causes of circuit board and sensor interface damage in Otis elevators.
• Control Environmental Conditions: Maintain the machine room/elevator car temperature between 10–35°C and humidity between 30–60%. Avoid exposure to dust, water, or extreme vibrations that can degrade precision components.
• Protect Load Cells & Cables: Ensure load cells are properly mounted and insulated to prevent mechanical damage. Route sensor cables away from high-voltage power lines (minimum distance of 30cm) to avoid electromagnetic interference.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis components from Nanjing Zhuye. Counterfeit boards may use inferior sensor interfaces, untested firmware, or incompatible communication protocols—compromising safety, accuracy, and Otis’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Otis Compatibility: All GBA26800KJ1 boards are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevator systems and compliance with global safety/electronic standards.
• Strict Otis-Specific Quality Assurance: Each unit undergoes rigorous testing—including weight detection accuracy, sensor interface reliability, communication protocol validation, and thermal resistance—to guarantee reliable operation in critical safety scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Otis elevator systems, providing 24/7 assistance for installation, calibration, and troubleshooting board-specific issues (e.g., weight drift, communication errors) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers weighing boards promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Otis’s safety standards.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Otis elevator components.
