Description

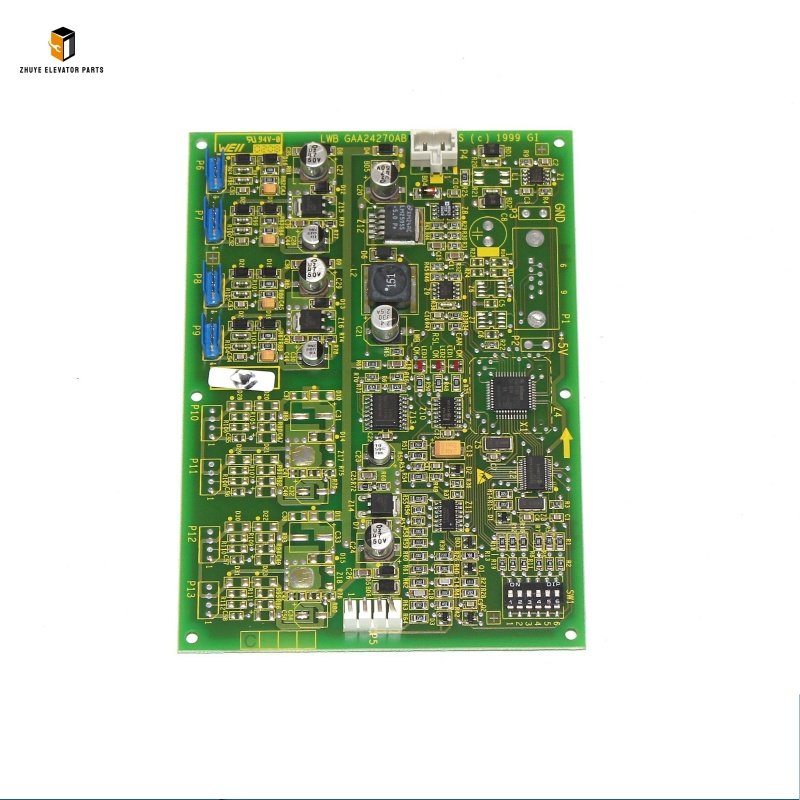

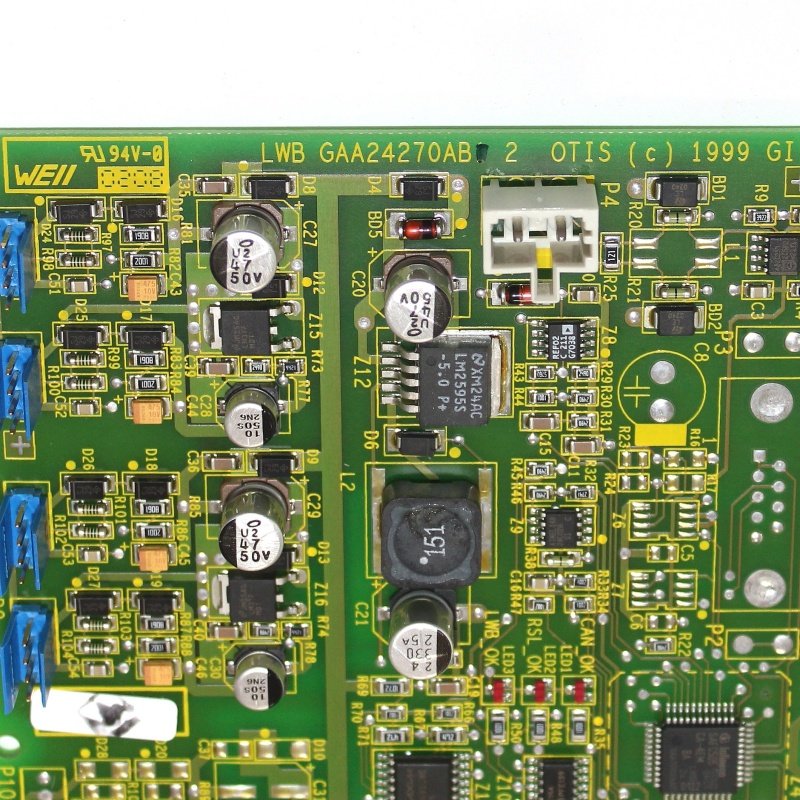

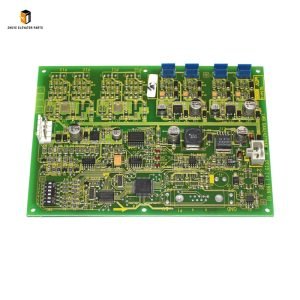

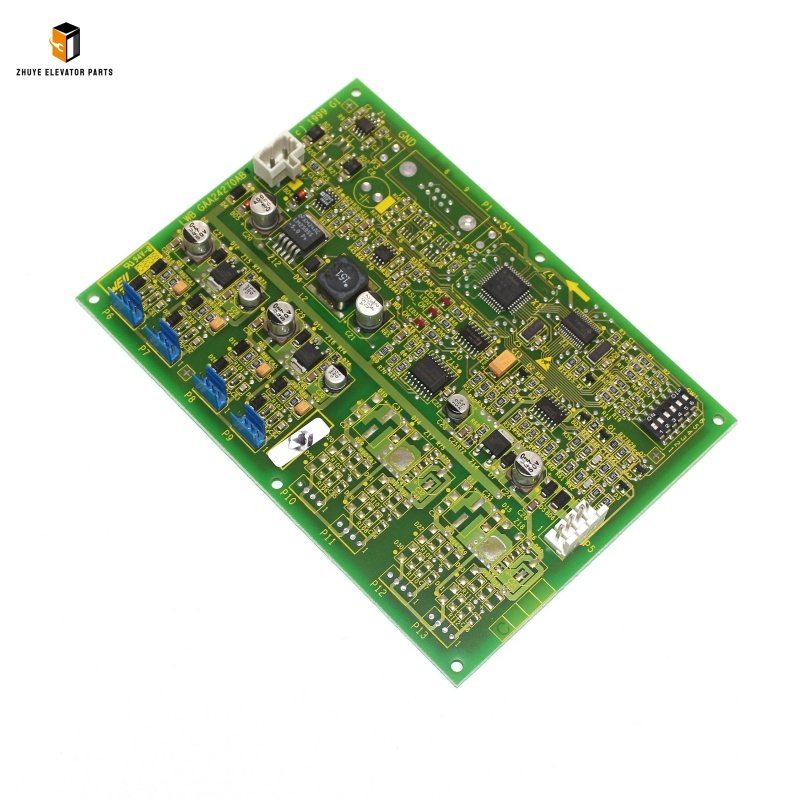

Otis Elevator Weighing Board GAA24270AB2 Brief Introduction
|
Product Name |
Otis Elevator Weighing Board |
| Model Number | GAA24270AB2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator Weighing Board GAA24270AB2: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Otis Elevator Weighing Board GAA24270AB2 is a mission-critical safety component exclusively engineered for Otis elevator systems—including GEN2, SPBC-II, and LCB-II platforms—essential for commercial high-rises, residential complexes, hospitals, and public facilities worldwide. As the “load monitor” of the elevator, this board accurately detects the weight of passengers and cargo in the car, transmits real-time load data to the main control system, and triggers safety mechanisms (e.g., overload alarms, restricted acceleration) to prevent overloading. It integrates Otis’ proprietary strain gauge signal processing technology, high-precision ADC (Analog-to-Digital Converter), and redundant safety logic—upholding the brand’s strict standards for load accuracy (±2% of rated capacity), reliability, and operational safety.
Compliant with global elevator safety and measurement standards (EN 81-20/50, ASME A17.1, OIML R61, ISO 9001), the GAA24270AB2 features a rugged, interference-resistant design: multi-layer PCB with conformal coating (resists dust, moisture, and electromagnetic interference), shielded signal terminals (minimizes noise), flame-retardant ABS housing (UL94 V0 rating), and built-in overload protection circuits. This construction withstands 24/7 operation in elevator car bottoms or machine rooms, enduring temperature fluctuations (-10°C to +55°C), mechanical vibration, and electrical grid instability—critical for preventing elevator overloading, traction system damage, or catastrophic failures. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, calibration, and replacement timelines is vital to ensuring regulatory compliance, passenger safety, and optimal elevator performance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the GAA24270AB2 that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility, precise load detection, and long-term reliability.
Proper Usage Methods of Otis GAA24270AB2 Weighing Board
1. Pre-Installation Preparation
Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (elevator car bottom or machine room) with warning signs and lockout-tagout (LOTO) devices. Inspect the new GAA24270AB2 for physical damage—cracked PCB traces, bent terminals, swollen capacitors, or corrosion on signal ports—defects that can cause inaccurate weight detection or safety hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact signal processing circuits, functional ADC modules, secure solder joints, and pre-loaded Otis-compatible firmware.
Verify compatibility with your Otis elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s signal input type matches the elevator’s load sensors (e.g., strain gauges, load cells), (2) the mounting dimensions (typically 160x120x40mm) fit the car bottom or control cabinet slot, and (3) the power supply requirements (24V DC ±10%) are compatible with the elevator’s electrical system. Using an incompatible weighing board can result in incorrect load readings, disabled safety features, or persistent fault codes. Additionally, prepare the installation area: Clean the mounting location to remove dust and debris, disconnect the old board’s wiring (label signal and power cables for easy reinstallation), and gather necessary tools (screwdriver set, multimeter, calibration weights).
2. Installation & Calibration Steps
- Board Installation: Align the GAA24270AB2 with the mounting brackets in the car bottom or control cabinet, ensuring signal terminals face the load sensor wiring. Secure the board with the provided screws (torque to 0.8–1.1 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or housing. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to reduce electromagnetic interference.
- Wiring & Connection: Connect the load sensor cables (typically 4-wire or 6-wire strain gauge connections) to the board’s signal input terminals, following Otis’ wiring schematic exactly. Ensure correct polarity and shielding to avoid signal noise. Connect the power supply cables (24V DC ±10%) to the positive (+) and negative (-) terminals, and the communication cable to the elevator’s main control board (e.g., SPBC-II GCA26800NB4). Tighten terminal screws to 1.0–1.3 Nm to ensure secure connections.
- Calibration & Testing: Restore power to the elevator (performed exclusively by certified Otis technicians) and calibrate the weighing board using Otis’ diagnostic software (e.g., OTIS Service Tool):
- Zero Calibration: Ensure the elevator car is empty, then initiate zero calibration to set the board’s baseline weight.
- Load Calibration: Place certified calibration weights (25%, 50%, 75%, 100%, and 110% of the elevator’s rated capacity) in the car, and calibrate the board to match each weight point for accuracy.
- Safety Function Test: Verify the overload alarm activates when exceeding 110% of rated capacity, and the elevator restricts acceleration/deceleration to prevent strain on the traction system.
Document calibration data, installation details, and test results in maintenance records to demonstrate compliance with safety standards.
3. Routine Usage Maintenance
To preserve the GAA24270AB2’s accuracy and extend its lifespan, implement proactive maintenance practices tailored to load monitoring components:
- Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discoloration of PCB, burning odors, or hot components). Verify the status LED (green = normal, red = fault) shows no active errors.
- Weekly Zero Check: Confirm the board’s zero weight reading is accurate when the car is empty—adjust zero calibration if deviations exceed ±1% of rated capacity.
- Monthly Load Test: Test the board with known weights (e.g., standard cargo or passenger groups) to ensure weight detection accuracy.
- Quarterly Wiring Check: Inspect load sensor and communication cables for fraying, insulation damage, or corrosion—tighten terminals or replace cables with genuine Otis-compatible wires from Nanjing Zhuye if needed.
- Semi-Annual Calibration Validation: Re-calibrate the board using certified weights to maintain accuracy and compliance with safety standards (required by EN 81 and ASME regulations).
Recommended Replacement Cycle
The service life of the Otis GAA24270AB2 Weighing Board depends on usage intensity (daily load cycles, environmental conditions), and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours daily use, regular calibration, ambient temperature -10°C to +55°C), the GAA24270AB2 should be replaced every 7–9 years. This timeframe aligns with the typical lifespan of high-precision ADC modules and signal processing circuits, ensuring proactive replacement before accuracy degrades below regulatory thresholds.
2. Signs That Require Immediate Replacement
Replace the weighing board immediately if:
- Accuracy Issues: Weight readings are inconsistent, inaccurate (deviations >±3% of rated capacity), or fail to update—compromises overload safety.
- Safety Function Failure: Overload alarm does not activate when exceeding rated capacity, or the elevator operates normally under overloaded conditions—violates EN 81/ASME safety standards.
- Persistent Fault Codes: The main control board displays load-related errors (e.g., “Weight Sensor Communication Loss,” “Calibration Failed”) that cannot be resolved by re-calibration or wiring checks.
- Physical Damage: Cracked PCB, water intrusion, or burned components—signaling irreparable internal damage.
- Regulatory Non-Compliance: Fails annual safety inspections due to inaccurate weight detection or non-functional overload protection.
3. Maintenance to Extend Service Life
- Environmental Control: Keep the mounting location (car bottom or control cabinet) clean, dry, and well-ventilated. Maintain temperature between 10°C–45°C and humidity <80%—extreme conditions degrade ADC accuracy and sensor signal quality.
- Power Stabilization: Install external surge protectors to shield the board from voltage spikes, which can damage signal processing circuits.
- Sensor Care: Regularly inspect and clean load sensors (strain gauges/load cells)—debris or damage to sensors affects weight detection accuracy.
- Genuine Parts Only: Use exclusively authentic Otis GAA24270AB2 weighing boards from Nanjing Zhuye. Counterfeit units lack Otis’ precision calibration, display inaccurate weights, and risk overloading hazards.
Why Choose Nanjing Zhuye Elevator Parts for Otis GAA24270AB2?
When sourcing a critical safety component like the Otis weighing board, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:
- Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with GEN2/SPBC-II/LCB-II elevator systems—eliminating fit or function issues.
- Strict Quality Assurance: Each board undergoes rigorous testing (weight detection accuracy, safety logic validation, environmental resistance) to meet Otis’ original manufacturing and safety standards.
- Expert Technical Support: Certified engineers provide 24/7 assistance for installation, calibration, troubleshooting, and compatibility verification—even for legacy Otis models.
- Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for residential and commercial facilities where safety compliance is non-negotiable.
- Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising safety or accuracy.
Conclusion
The Otis Elevator Weighing Board GAA24270AB2 is a foundational safety component that ensures elevator load compliance and protects passengers from overloading hazards. By following proper installation, calibration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can maintain regulatory compliance, optimize elevator performance, and safeguard passenger safety. Whether you need a single replacement board, bulk orders for a building fleet, or technical support for calibration teams, Nanjing Zhuye delivers premium Otis components and tailored professional services. Invest in elevator safety and accuracy—choose Nanjing Zhuye Elevator Parts for your GAA24270AB2 weighing board requirements.
