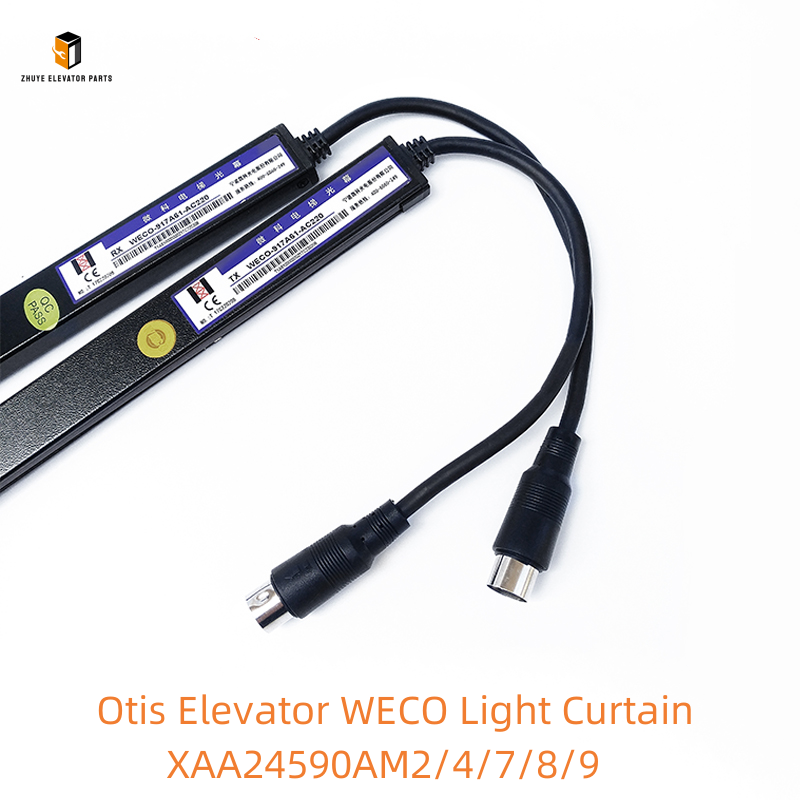

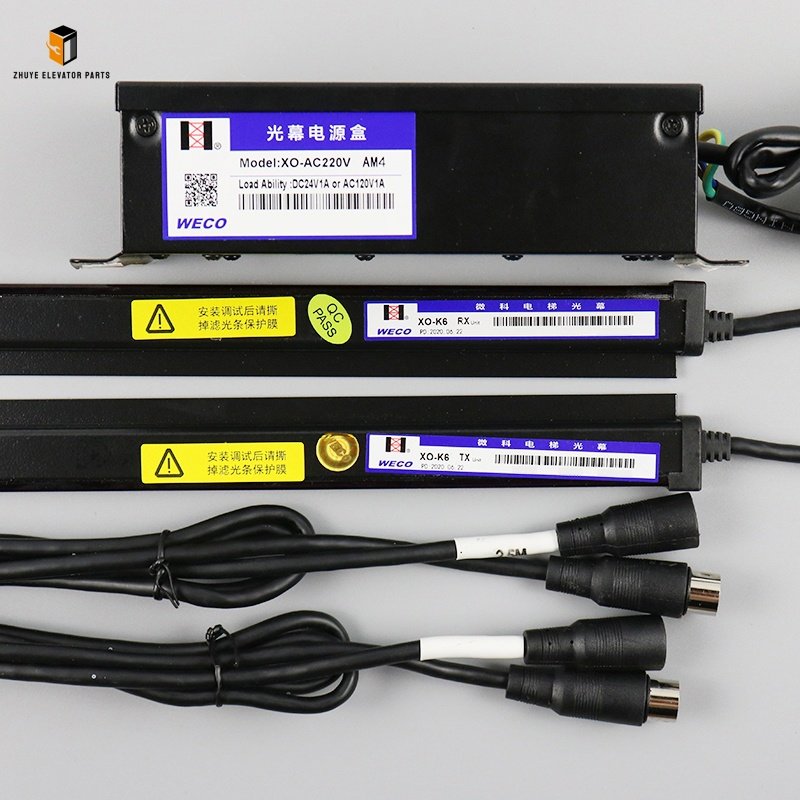

Otis Elevator WECO Light Curtain XAA24590AM2/4/7/8/9: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis WECO Light Curtain Series

1. Pre-Installation Preparation

2. Installation & Calibration Steps

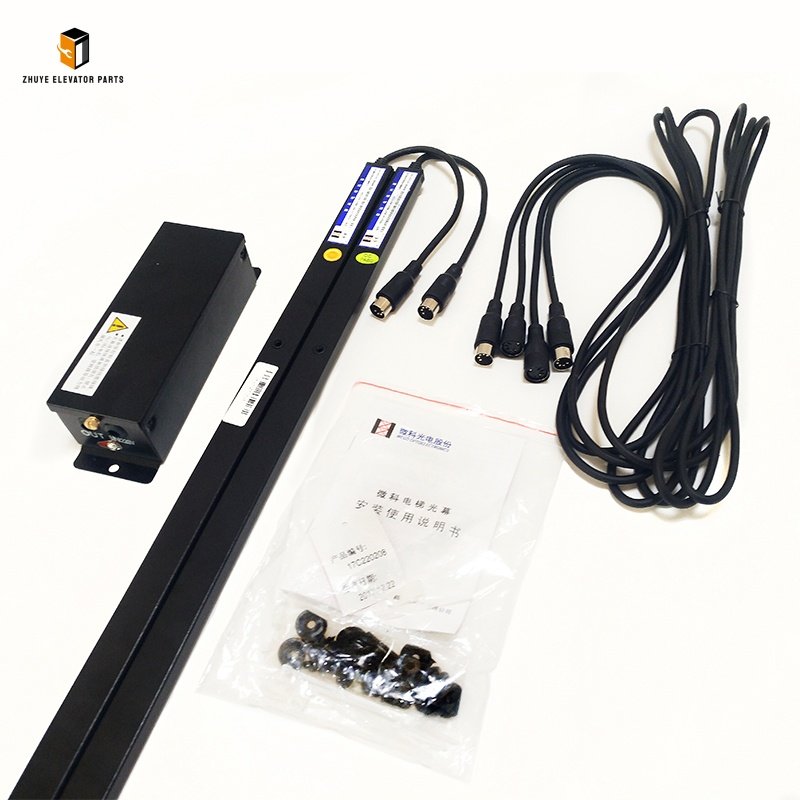

• Mounting the Light Curtain:
  • Locate the designated installation positions on the elevator car door and landing door frames (typically along the inner edges). The emitter (transmitter) and receiver units must be aligned perfectly (±2mm) to form an unobstructed beam grid. Use the provided mounting brackets and screws (torque to 3–4 Nm) to secure the units—ensure the housings are vertical, and the beam grid covers the entire door opening (from floor to ceiling, per variant’s height).

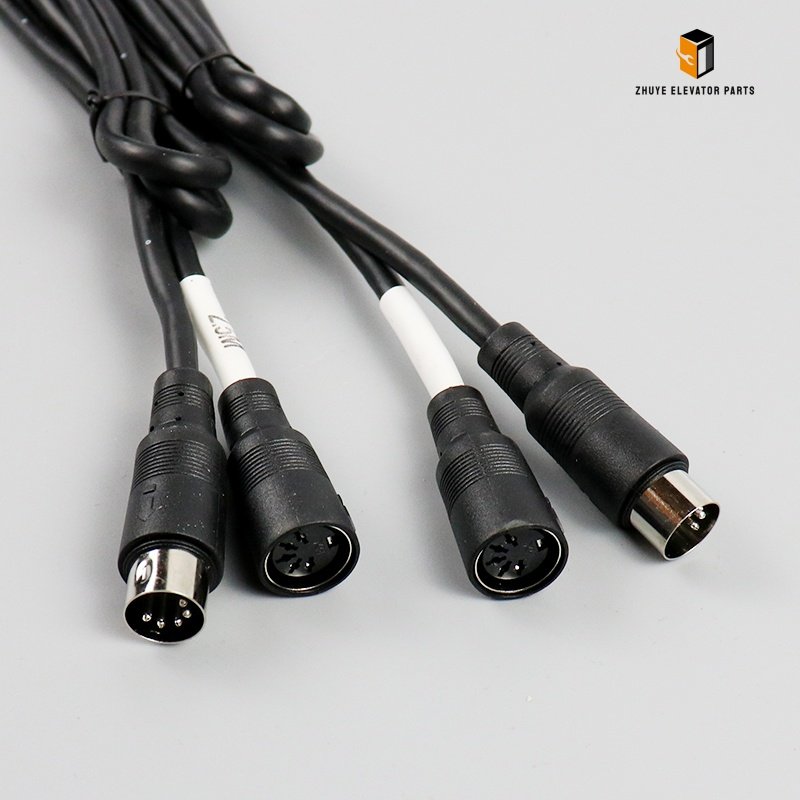

  • Route the connecting cables (power and signal) through the door frame’s cable channels, avoiding sharp edges or moving parts that can damage insulation. Connect the cables to the door operator control board or main controller, following the variant-specific wiring diagram (provided by Otis or Nanjing Zhuye)—ensure correct polarity and protocol matching (e.g., dry contact for basic variants, CAN bus for advanced models).
• Calibration & Functional Testing:
  • Power on the elevator and initiate the light curtain’s self-calibration process (automatic for most variants, or via Otis diagnostic software for advanced models). The LED status indicators will illuminate green once calibration is successful—red or flashing lights indicate misalignment or wiring errors.
  • Perform manual alignment adjustments (if needed) using the built-in leveling screws: move the emitter/receiver units slightly until the beam grid is continuous and detection is consistent across the entire door opening.
  • Conduct comprehensive safety tests (by certified technicians only):
    • Obstacle Detection Test: Pass objects of varying sizes (≥5mm, e.g., a pen, hand, or test rod) through different areas of the door opening—confirm the doors reverse immediately each time, with no delay (≤0.2s).
    • Edge Case Test: Test detection at the top, bottom, and corners of the door opening (common blind spots) to ensure full coverage.
    • Environmental Interference Test: Verify detection reliability under bright ambient light (sunlight), dark conditions, or electromagnetic interference (e.g., near motors)—WECO’s anti-interference design should maintain performance without false triggers.
  • Document test results in maintenance records, noting the specific XAA24590AM variant installed.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose mounting brackets, damaged housings, or debris accumulation on optical lenses. Clean lenses with a soft, lint-free cloth (slightly dampened with water if needed)—avoid harsh chemicals that can scratch or degrade the surface.
• Monthly Functionality Checks: Test obstacle detection with standard objects to confirm immediate door reversal. Verify LED status indicators (green = normal, red = fault) and check for error codes on the elevator control panel.
• Quarterly Cable Inspections: Inspect power and signal cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis-WECO parts from Nanjing Zhuye—damaged cables are a leading cause of false triggers or detection failures.
• Semi-Annual Alignment Verification: Use a laser level to confirm emitter/receiver alignment—misalignment (common after elevator vibrations) can create detection gaps. Re-calibrate if necessary to ensure full beam coverage.
• Annual Environmental Adaptation Check: Test the light curtain under seasonal environmental changes (e.g., extreme cold, high humidity) to confirm consistent performance. Replace optical lenses if they show signs of fogging or scratches.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Detection Failures: The light curtain fails to detect obstacles (≥5mm) or triggers delayed door reversal (＞0.2s)—posing a serious entrapment or pinching hazard.
• False Triggers: Doors reverse unexpectedly without obstacles, or the light curtain logs frequent error codes (e.g., “Beam Interruption,” “Alignment Error”) that cannot be resolved by cleaning or re-calibration.
• Physical Damage: Cracked housings (compromising IP54 protection), broken LED arrays, or irreparable cable damage—compromising safety functionality.
• Performance Degradation: Reduced detection range, inconsistent beam coverage, or failure to pass safety tests (e.g., edge case detection)—indicative of internal component failure.
• Safety Compliance Issues: The light curtain no longer meets local safety standards (e.g., EN 81-20) due to outdated technology or worn components.

3. Maintenance to Extend Service Life

• Keep Optical Lenses Clean: Regularly remove dust, fingerprints, or debris from lenses—dirty lenses reduce LED intensity and detection accuracy.
• Protect from Environmental Damage: Ensure the door frame area is free from water leaks, excessive dust, or extreme temperatures (operating range: -20°C to +60°C). Avoid direct exposure to sunlight or harsh cleaning chemicals.
• Prevent Physical Impact: Avoid hitting or scraping the light curtain housings during elevator maintenance—impact can misalign components or damage LEDs.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis-WECO components from Nanjing Zhuye. Counterfeit light curtains lack WECO’s safety certification, detection precision, and anti-interference design—compromising passenger safety and violating regulatory requirements.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Variant Compatibility: All XAA24590AM variants are genuine Otis-WECO collaborations, meeting original safety standards and ensuring seamless integration with Otis door systems.
• Strict WECO-Specific Quality Assurance: Each unit undergoes rigorous testing—including detection accuracy, LED intensity, anti-interference performance, and environmental resistance—to guarantee compliance with global safety standards (EN 81-20, ASME A17.1).
• Expert Safety Support: Nanjing Zhuye’s certified engineers specialize in Otis-WECO safety systems, providing 24/7 assistance for variant-specific installation, calibration, and troubleshooting (e.g., false triggers, alignment issues).
• Global Efficient Delivery: Prompt delivery minimizes elevator downtime during replacement—critical for maintaining safety compliance and avoiding operational disruptions.
• Competitive Pricing: Eliminating middlemen ensures cost-effective solutions without compromising WECO’s premium safety quality—ideal for bulk orders or fleet maintenance of Otis elevators.
