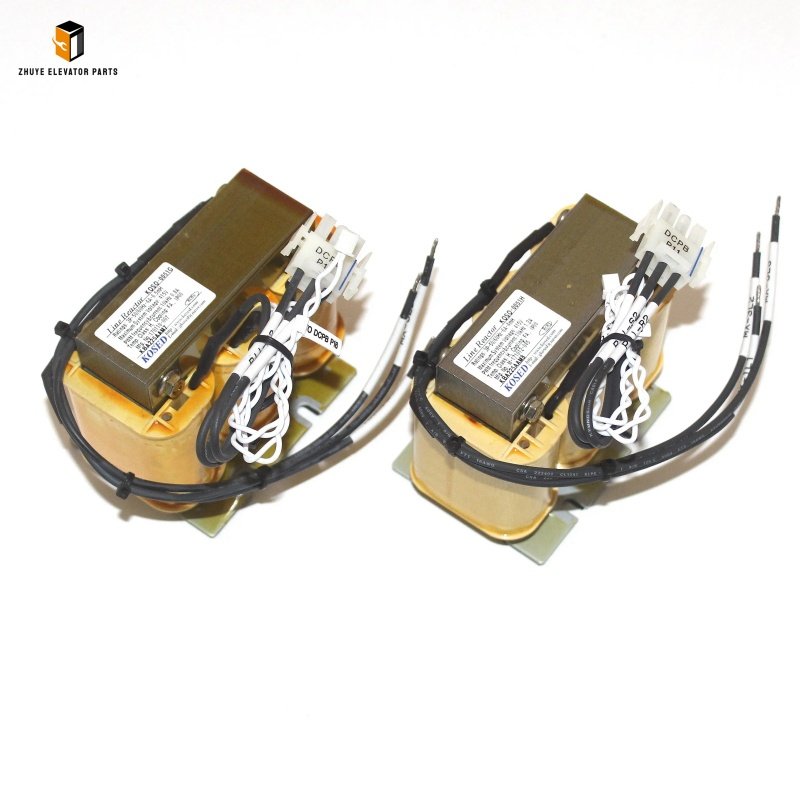

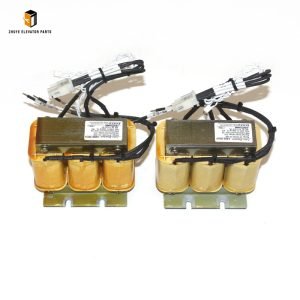

Otis elevator transformer KBA225AAM4 Brief Introduction

Product Name	Otis elevator transformer KBA225AAM4
Model Number	KBA225AAM4 KBA225AAM6 KBA225AAM7 KBA225AAM8 KBA225AAM9 KBA225AAM10
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

10: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Transformer KBA225AAM series (including variants 4/6/7/8/9/10) is a foundational power conversion component exclusively engineered for Otis elevator systems—essential for commercial high-rises, residential complexes, public transit facilities, and office buildings worldwide. As the “voltage regulation backbone” for Otis Gen2, SkyRise, and NCE series elevators, this multi-variant transformer converts incoming mains power (typically 380V/400V three-phase AC) into stable, subsystem-specific voltages (e.g., 24V DC for control systems, 110V AC for lighting, 36V AC for safety circuits). Each variant is tailored to match the power demands of different elevator configurations, while all share Otis’ proprietary core design: high-efficiency copper windings, magnetic shielding for EMI reduction, and built-in overload protection—upholding the brand’s strict standards for power reliability, safety, and energy efficiency.

Compliant with global safety and electrical standards (EN 81, IEC 61558, UL 506, ISO 9001), the KBA225AAM series features a rugged, industrial-grade construction: corrosion-resistant steel core, flame-retardant insulation materials, sealed terminal boxes to prevent dust and moisture intrusion, and thermal cutoffs for overheating protection. This design withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +45°C), mechanical vibration, and electrical stress—critical for uninterrupted power delivery to core elevator subsystems (main controller, door operator, emergency devices, display panels). For maintenance teams, facility managers, and elevator service providers, mastering the correct selection, installation, and replacement timelines of this transformer is vital to avoiding subsystem damage, power-related downtime, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers all KBA225AAM variants that meet Otis’ original manufacturing specifications—guaranteeing seamless compatibility, stable voltage output, and long-term durability.

Proper Usage Methods of Otis KBA225AAM Series Transformer

1. Pre-Installation Preparation & Variant Selection

Before installation, prioritize safety by shutting off the building’s main power supply to the elevator circuit, applying lockout-tagout (LOTO) procedures, and securing the machine room work area with warning signs. Variant Selection is critical: consult Otis’ technical manual or Nanjing Zhuye’s technical support to match the KBA225AAM variant (4/6/7/8/9/10) to your elevator model and power requirements—each variant differs in output voltage/current ratings (e.g., KBA225AAM4 for 24V DC control systems, KBA225AAM10 for higher-power traction motor auxiliaries). Using the wrong variant can cause subsystem burnout or insufficient power supply.

Inspect the selected KBA225AAM transformer for physical damage—such as dented housing, damaged terminal boxes, loose windings, or insulation cracks—defects that can cause short circuits, voltage leakage, or fire risks. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact windings, properly sealed terminals, clear voltage labeling, and pre-tested efficiency and regulation performance. Additionally, prepare the installation area: clean the mounting surface, ensure a minimum 25cm clearance around the transformer for heat dissipation, and confirm access to grounding points and wiring routes.

2. Installation & Wiring Steps

Mounting the Transformer:
- Secure the KBA225AAM transformer to the designated concrete or metal mounting bracket using the provided high-torque bolts (torque to 4.5–5.5 Nm) to handle the unit’s weight (typically 15–25kg) and prevent vibration-induced movement. Ensure the transformer is installed upright with terminal boxes facing outward for easy wiring and maintenance.
- Disconnect the old transformer (if replacing) by labeling and removing all input/output cables (mains power, subsystem connections, grounding wires). Take detailed photos of the wiring configuration—note terminal assignments, cable colors, and phase alignment (L1, L2, L3 for input)—to ensure accurate reinstallation.
Wiring & Connection:
- Connect the building’s three-phase mains power cable to the transformer’s input terminals, following Otis’ wiring schematic and ensuring correct phase alignment. Use cable glands to seal entry points and protect wires from abrasion; torque terminal screws to Otis’ specified 2.5–3.0 Nm to avoid loose connections and arcing.
- Connect subsystem cables to the corresponding output terminals (e.g., 24V DC to control panel, 110V AC to lighting)—verify voltage ratings match subsystem requirements before finalizing connections. Route power and signal cables separately to reduce electromagnetic interference (EMI), and secure all wiring with clips to minimize vibration stress.
Post-Installation Testing:
- Restore power to the elevator (performed by certified Otis technicians only) and conduct three critical tests:
  1. Voltage Output Test: Use a multimeter to verify output voltages match the transformer’s rated specifications (tolerance ±3%)—e.g., 24.0V DC ±0.72V for control system output.
  2. Load Test: Operate the elevator through full cycles (calling, moving, stopping) to confirm voltage stability under varying load conditions—no fluctuations exceeding ±5% are acceptable.
  3. Safety Test: Check for overheating (housing temperature ≤60°C after 1 hour of operation) and verify the thermal cutoff triggers if temperatures exceed safe limits. Test grounding continuity to ensure electrical safety.
- Document installation details, variant selection, test results, and wiring diagrams in maintenance records to demonstrate compliance with Otis’ service requirements and safety regulations.

3. Routine Usage Maintenance

To preserve the KBA225AAM series’ performance and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check the transformer for physical damage, loose cables, or signs of overheating (discoloration, burning odors). Verify terminal boxes are securely sealed and free from dust or moisture.
Monthly Voltage Monitoring: Use a power quality analyzer to measure input/output voltages and record data—identify trends in grid fluctuations or internal winding degradation.
Quarterly Connection Inspections: Tighten all terminal screws and cable glands—vibration during elevator operation can loosen connections over time. Replace frayed or damaged cables with genuine Otis parts from Nanjing Zhuye.
Semi-Annual Cleaning: Remove dust from the transformer’s exterior, cooling fins, and terminal boxes using compressed air (low pressure to avoid insulation damage). Clean the machine room to maintain airflow and prevent dust buildup.
Annual Comprehensive Inspection: By authorized technicians, inspect internal windings (via access panels if applicable) for corrosion or insulation wear. Test efficiency and voltage regulation against Otis’ factory standards—replace if performance degrades by 10% or more.

Recommended Replacement Cycle

The service life of the Otis KBA225AAM series transformer depends on variant, usage intensity (daily operational hours), environmental conditions, and electrical stress. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, ambient temperature -10°C to +45°C), the KBA225AAM series should be replaced every 8–10 years. This timeframe accounts for gradual winding insulation degradation, core magnetization loss, and thermal cutoff wear—proactive replacement avoids catastrophic power failure and subsystem damage.

2. Signs That Require Immediate Replacement

Replace the transformer immediately if you encounter any of the following issues:

Voltage Instability: Persistent output voltage fluctuations exceeding ±5%, or failure to maintain rated voltage under load—resulting in erratic elevator operation or subsystem malfunctions.
Overheating & Safety Risks: Housing temperature >70°C during operation, burning odors, or melted insulation—indicating internal winding damage and fire risk.
Physical Damage: Severe dents, water intrusion, or terminal corrosion that cannot be cleaned—compromising electrical safety and insulation integrity.
Performance Degradation: Efficiency drop of >10% (measured via power input/output ratio), or frequent thermal cutoff activation—attributed to winding short circuits or core damage.
Safety Compromise: Failed grounding continuity test, or thermal cutoff failure to trigger—violating Otis’ safety standards and regulatory requirements (e.g., EN 81-20, UL 506).

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Install air conditioners or dehumidifiers if ambient temperature exceeds 45°C or humidity exceeds 85%—extremes accelerate insulation degradation.
Power Stabilization: Install external surge protectors and voltage regulators in the mains power circuit to shield the transformer from grid spikes and fluctuations.
Load Management: Avoid prolonged elevator idling at full load—reduce unnecessary power draw to minimize thermal stress on windings.
Genuine Parts Only: For replacements or repairs, use exclusively authentic Otis components (including matching KBA225AAM variants) supplied by Nanjing Zhuye. Counterfeit transformers lack proper insulation, thermal protection, and compatibility—risking system failure or electrical hazards.

Why Choose Nanjing Zhuye Elevator Parts for Otis KBA225AAM Series?

When sourcing the Otis KBA225AAM4/6/7/8/9/10 transformer, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Variant Compatibility: All units are genuine Otis components, with precise matching of each variant to elevator models—ensuring seamless integration with Gen2, SkyRise, and NCE series.
Strict Quality Assurance: Each transformer undergoes rigorous testing (voltage regulation, efficiency, thermal resilience, safety cutoff performance) to meet Otis’ original standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for variant selection, installation, wiring, troubleshooting, and maintenance—even for complex power system setups.
Global Efficient Delivery: Fast shipping to worldwide locations minimizes machine room downtime, ensuring uninterrupted elevator operation.
Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Otis Elevator Transformer KBA225AAM series (4/6/7/8/9/10) is a foundational power conversion component that ensures stable, safe voltage delivery to all critical elevator subsystems—directly impacting operational reliability and passenger safety. By following proper variant selection, installation, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can ensure Otis elevators remain downtime-free, compliant with safety regulations, and energy-efficient. Whether you need a specific KBA225AAM variant for a replacement, technical support for power system upgrades, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Otis components and tailored professional services. Invest in the power reliability of your Otis elevators—choose Nanjing Zhuye Elevator Parts for your KBA225AAM series transformer requirements.
