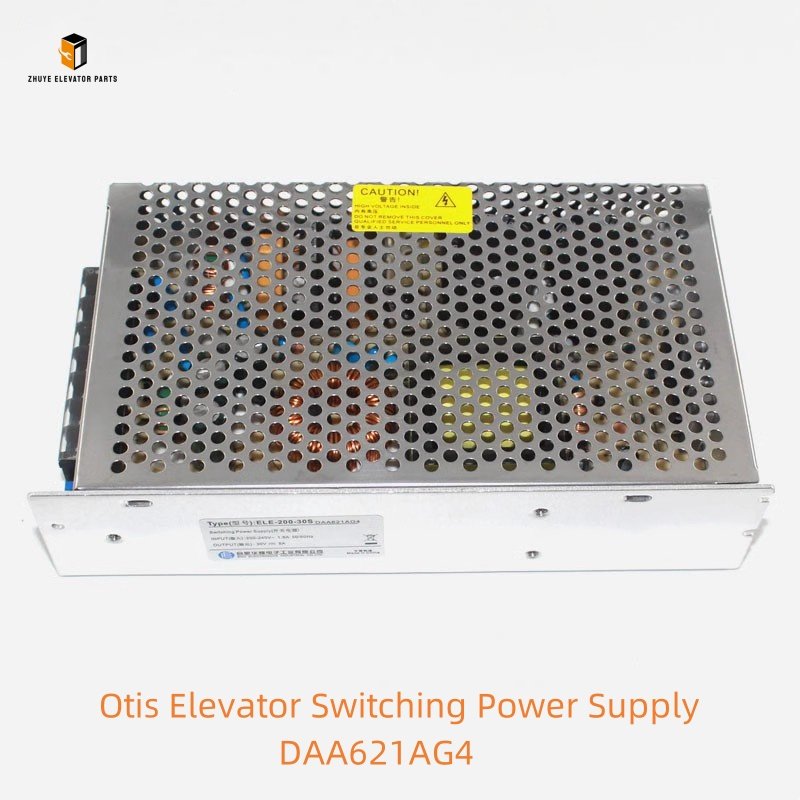

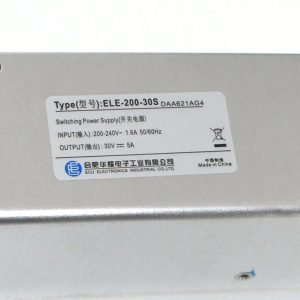

Otis Elevator Switching Power Supply DAA621AG4: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Switching Power Supply DAA621AG4

1. Pre-Installation Preparation

2. Installation & Testing Steps

• Mounting the Power Supply:
  • Locate the designated installation position in the elevator control cabinet (typically a dedicated shelf, DIN rail, or mounting bracket). The mounting surface must be flat, rigid, and well-ventilated to ensure efficient heat dissipation—switching power supplies generate moderate heat during operation. Maintain a minimum clearance of 10cm around the unit to avoid thermal buildup, which can reduce efficiency and shorten lifespan.
  • Secure the DAA621AG4 with provided mounting screws or DIN rail clips (per Otis’s recommendations) to prevent vibration-induced loosening. Ensure vertical installation to optimize airflow through the housing’s ventilation grilles, critical for thermal management.
• Wiring Connection:
  • Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the power supply to the main AC input and DC output subsystems:
    • Connect AC input wires (L 火线，N 零线，PE 地线) to the designated terminals—ensure proper grounding (PE) to prevent electrical shock and electromagnetic interference (EMI). Use copper cables of the specified gauge (typically 2.5mm² for AC input, 1.5mm² for DC output) and secure with terminal blocks to avoid loose connections.
    • Attach DC output wires (positive +24V, negative GND) to the corresponding terminals, strictly matching the polarity required by elevator subsystems (e.g., control boards, sensors). Use color-coded wires (red for +24V, black for GND) to minimize misconnection risks.
    • Install a dedicated AC circuit breaker (matching the power supply’s rated input current of 5–8A) in the input line to provide additional overload and short-circuit protection.
• Functional Testing:
  • Conduct comprehensive tests (by certified electricians/technicians only):
    • Input/Output Voltage Test: Power on the power supply and measure AC input voltage (ensure it falls within the DAA621AG4’s wide operating range of 85–264V AC) and DC output voltage (verify it remains stable at 24V ±1% under both no-load and full-load conditions).
    • Load Stability Test: Connect a test load (matching the elevator’s typical power draw) or operate the control system to simulate real-world usage. Monitor the DC output voltage for fluctuations—ensure no significant drops (≤0.5V) occur, which could cause subsystem malfunctions (e.g., unresponsive sensors, control board errors).
    • Protection Function Test: Simulate fault conditions (e.g., short-circuit on DC output, overvoltage on AC input) to confirm the power supply triggers immediate protective shutdown and resumes normal operation once the fault is resolved.
    • Thermal Performance Test: Run the power supply continuously for 2 hours and check the housing temperature—ensure it remains within the safe range (≤75°C) to prevent thermal shutdown or component degradation.
  • Document test results in maintenance records to demonstrate compliance with electrical safety standards and Otis’s performance requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose mounting screws, damaged housing, or debris accumulation around the power supply. Remove dust from ventilation grilles and terminals with a dry, lint-free cloth—avoid water or chemical cleaning agents that can damage components or corrode terminals.
• Monthly Voltage Checks: Use a multimeter to measure DC output voltage and verify stability. Document any fluctuations (≥2% of rated value) for troubleshooting, as this may indicate internal component degradation or wiring issues.
• Quarterly Terminal Inspections: Inspect AC input and DC output terminals for corrosion, wear, or loose connections. Tighten terminals as needed or replace damaged terminal blocks with genuine Otis parts from Nanjing Zhuye to prevent poor electrical contact.
• Semi-Annual Insulation Resistance Test: Use a megohmmeter to verify insulation resistance between input/output terminals and ground—ensure it meets or exceeds 10MΩ to prevent leakage current and electrical hazards.
• Annual Ventilation & Thermal Checks: Clean ventilation grilles thoroughly to ensure unobstructed heat dissipation. Verify the power supply’s thermal performance during peak load conditions and check for unusual noises (e.g., buzzing, clicking) that indicate internal circuit issues.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Voltage Instability: DC output voltage fluctuates beyond ±2% of rated value, or drops significantly under load—causing subsystem malfunctions (e.g., unresponsive control boards, erratic door operation, or safety interlock failures).
• Protection Function Failure: The power supply fails to trigger shutdown during short-circuit, overvoltage, or overcurrent conditions—posing fire or electrical shock risks.
• Thermal Issues: The power supply triggers frequent thermal shutdowns, or the housing becomes excessively hot (≥85°C) during normal use—indicating internal component failure or poor ventilation.
• Physical Damage: Cracked housing, water intrusion, burned components, or frayed wiring that cannot be repaired—compromising safety and performance.
• Audible Anomalies: Persistent buzzing, clicking, or whining sounds—indicative of internal circuit issues (e.g., failing capacitors, faulty transformers).

3. Maintenance to Extend Service Life

• Stabilize Input Voltage: Install industrial-grade surge protectors and voltage regulators in the main AC line to shield the power supply from voltage spikes or sags—common causes of capacitor damage and circuit board degradation.
• Ensure Proper Ventilation: Keep the machine room well-ventilated and maintain ambient temperature between 10–35°C. Avoid installing the control cabinet near heat sources (e.g., motors, heaters) or in damp environments.
• Prevent Overloading: Avoid connecting non-Otis devices to the power supply’s DC output—overloading accelerates capacitor aging and reduces efficiency. Adhere to the DAA621AG4’s rated output current limit of 15A.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on genuine Otis components from Nanjing Zhuye. Counterfeit power supplies may use inferior capacitors, substandard circuit design, or incorrect voltage ratings—compromising safety, performance, and compatibility with Otis systems.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All DAA621AG4 power supplies are manufactured to Otis’s original specifications, ensuring seamless integration with Otis control systems and compliance with global safety/electrical standards (EN 60950, ASME A17.1).
• Strict Quality Assurance: Each unit undergoes rigorous testing—including output voltage stability, protection function validation, thermal performance, and efficiency measurement—to guarantee reliable power conversion in critical elevator systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation wiring and voltage calibration to troubleshooting power supply-specific issues (e.g., voltage fluctuations, thermal shutdown) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers electrical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic commercial or residential buildings.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for reliable, compliant elevator components.
