Otis Elevator SWEET Lop Display Board DAA26800AS1/AS2/CR1/CR3 Brief Introduction

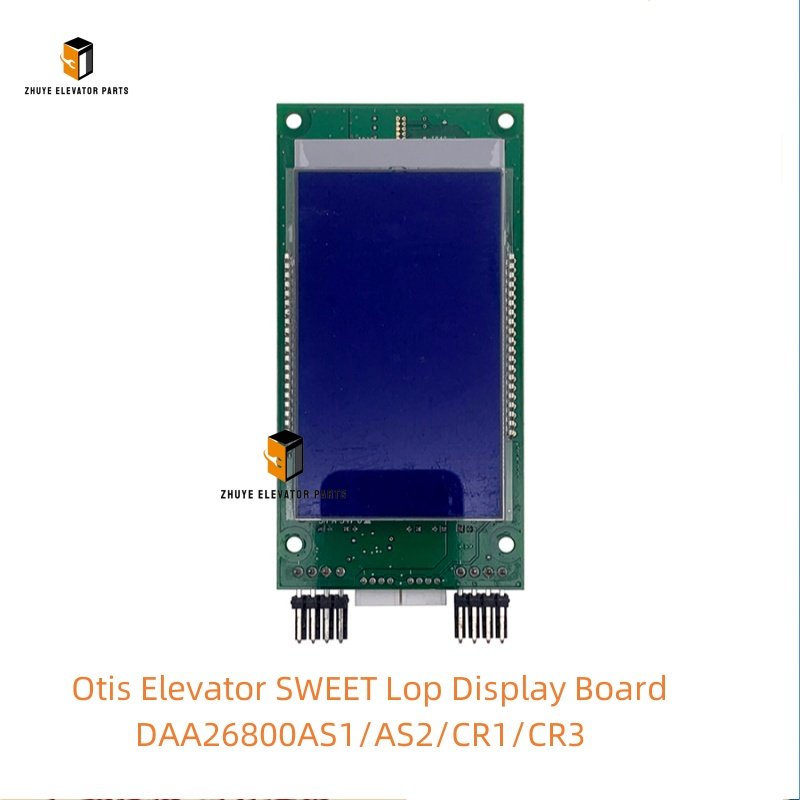

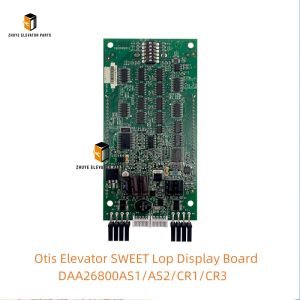

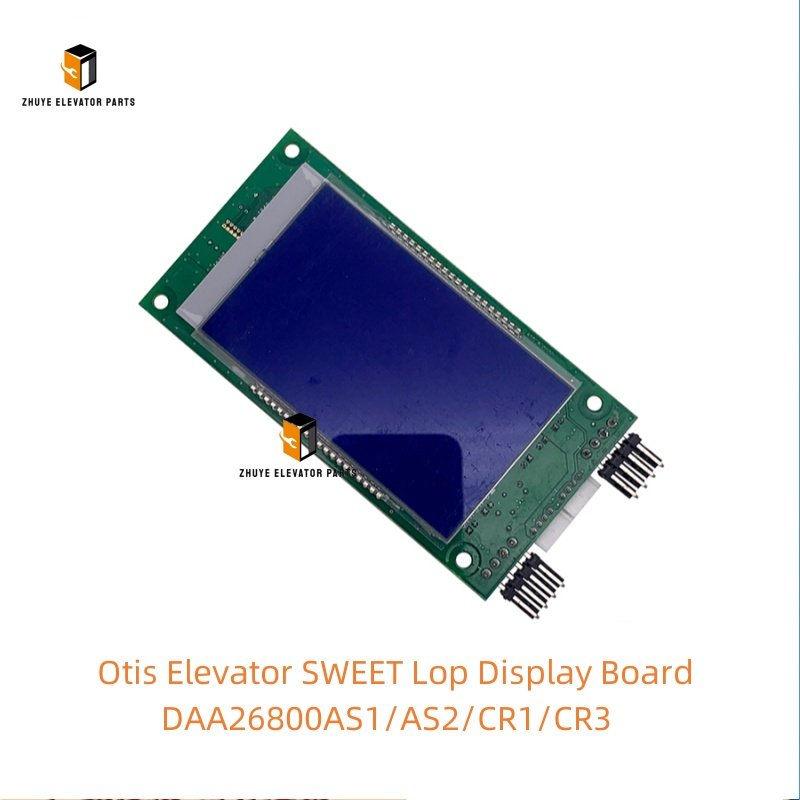

Product Name	Otis Elevator SWEET Lop Display Board
Model Number	DAA26800AS1/AS2/CR1/CR3
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

CR3: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator SWEET LOP Display Board series (DAA26800AS1/AS2/CR1/CR3) is a family of specialized lobby operation panels exclusively engineered for Otis SWEET-series elevators—widely installed in residential complexes, commercial buildings, and public facilities. As the primary user interface in elevator lobbies, these LOP boards unify core functionalities across variants: up/down call buttons, real-time elevator position indicators, direction signals, fault notifications, and optional accessibility features (e.g., tactile buttons, Braille labels for CR1/CR3 models). Compliant with global safety and accessibility standards (EN 81, ASME A17.1, ADA, ISO 9001), the series features durable, vandal-resistant housings, high-visibility LED indicators, and anti-glare surfaces to ensure usability for all passengers. For property managers, facility operators, and elevator maintenance teams, mastering the correct installation, configuration, and replacement timelines of these boards is vital to enhance user experience, maintain operational efficiency, and uphold regulatory compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the DAA26800AS1/AS2/CR1/CR3 series that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility with SWEET elevators, reliable performance, and long-term durability.

Proper Usage Methods of Otis Elevator SWEET LOP Display Board Series

1. Pre-Installation Preparation

Before installing any variant (AS1/AS2/CR1/CR3), prioritize safety by shutting off the elevator’s main power supply and securing the lobby control panel junction box with a lockout tag. Inspect the LOP board for physical damage—such as cracked housing, non-functional buttons, dim LEDs, loose connectors, or damaged wiring harnesses—defects that can compromise usability or signal transmission. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each unit arrives in flawless condition: responsive buttons (tactile for CR1/CR3), bright uniform LEDs, intact labels, and pre-tested circuitry. Additionally, verify variant compatibility with your Otis SWEET elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the board’s voltage rating (typically 24V DC), communication protocol (e.g., CAN bus), and mounting cutout dimensions match your lobby panel and control system requirements.

2. Installation & Configuration Steps

Mounting the LOP Board:
- Locate the designated installation position in the elevator lobby wall—per accessibility standards, the panel must be mounted at 90–120cm above the floor (reachable by wheelchair users) and free of obstructions. Ensure the wall surface is flat, rigid, and capable of supporting the board’s weight (0.8–1.2kg).
- Remove the existing LOP panel (if replacing) by unscrewing retaining screws. Align the new board (AS1/AS2/CR1/CR3) with the wall cutout, ensuring buttons and status indicators are clearly visible. Secure the board with provided anti-vibration screws (torque to 0.5–0.8 Nm) to prevent movement and protect internal components.
Wiring Connection:
- Follow the variant-specific wiring diagram (provided by Otis or Nanjing Zhuye) to connect the board to the elevator’s main controller and power supply:
  - Connect power wires (positive/negative) to designated terminals—incorrect polarity can damage LEDs or button circuitry.
  - Attach communication wires to enable call signal transmission (up/down requests) and status data reception (elevator position, direction, faults).
  - For CR1/CR3 variants with accessibility features (e.g., extended button response), ensure dedicated wires are connected to support these functions.
  - Secure all connections with terminal blocks and route wiring through wall conduit to avoid damage or signal interference.
Functionality Configuration:
- Restore power and confirm the board initializes correctly (LEDs illuminate briefly). Access the configuration menu via Otis-approved diagnostic software (by certified technicians):
  - Set display parameters: LED brightness (adjust for lobby lighting), call button response time (3–5 seconds for CR1/CR3), and fault notification duration.
  - Sync with the main controller: Verify call requests transmit instantly, and status indicators (floor numbers, direction arrows) update in real time.
  - For variant-specific features (e.g., Braille label alignment for CR3), ensure calibration aligns with accessibility standards.
Functional Testing:
- Validate all functions across variants:
  - Test call buttons: Press up/down buttons to confirm illumination (user feedback) and signal transmission.
  - Verify status visualization: Operate the elevator to ensure floor position and direction indicators update accurately.
  - Simulate faults (e.g., elevator out of service) to confirm fault notifications activate clearly.
  - For CR1/CR3: Test extended button response and tactile feedback to ensure accessibility compliance.
- Document test results to demonstrate adherence to safety and accessibility standards.

3. Routine Usage Maintenance

To preserve performance across the series, implement these routine practices:

Weekly Visual Inspections: Check for loose mounting, damaged housing, or debris on buttons. Clean the board with a soft, lint-free cloth—avoid harsh chemicals or abrasives that scratch surfaces or damage tactile markers (CR1/CR3).
Monthly Functionality Tests: Verify all buttons are responsive, LEDs are bright, and status indicators sync correctly. Document dim/non-functional components for repair.
Quarterly Wiring Checks: Inspect terminals for corrosion, wear, or looseness; tighten or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
Semi-Annual Accessibility Checks (CR1/CR3): Confirm tactile buttons and Braille labels remain intact and legible. Adjust response time if needed based on user feedback.

Recommended Replacement Cycle

The service life of the SWEET LOP Display Board series depends on usage intensity, environmental conditions (lobby humidity, dust, contact), and maintenance quality. Based on industry standards and Nanjing Zhuye’s expertise:

1. Standard Replacement Cycle

Under normal conditions (12–18 hours daily use, regular maintenance), all variants (AS1/AS2/CR1/CR3) should be replaced every 6–8 years. This timeframe accounts for button wear (tactile markers fading on CR1/CR3), LED degradation, and circuitry aging—ensuring usability, accessibility compliance, and reliable signal transmission. Proactive replacement avoids non-compliance and user frustration from unresponsive buttons.

2. Signs That Require Immediate Replacement

Replace any variant immediately if:

Usability Failures: >20% of buttons/LEDs are non-functional, or status indicators display incorrect information.
Physical Damage: Cracked housing, broken buttons, or damaged Braille/tactile markers (CR1/CR3) that cannot be repaired.
Signal Errors: Call requests fail to transmit, or status data is delayed despite wiring checks.
Accessibility Non-Compliance (CR1/CR3): Tactile buttons become stiff or Braille labels fade, rendering the board unusable for impaired users.
Corrosion/Water Damage: Rust on terminals or internal component failure from moisture (common in high-humidity lobbies).

3. Maintenance to Extend Service Life

Protect from Damage: Install protective covers (especially in high-traffic lobbies) to shield buttons and housing. For CR1/CR3, avoid pressing tactile markers with excessive force.
Control Environment: Maintain lobby temperature (10–35°C) and humidity (30–60%) to prevent button degradation and LED failure.
Genuine Parts Only: Use Nanjing Zhuye’s authentic Otis components for repairs—counterfeits may lack variant-specific features (e.g., proper Braille spacing for CR3) or compatibility.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the SWEET LOP Display Board series, Nanjing Zhuye offers unmatched advantages:

Authenticity & Variant Compatibility: All units meet Otis’s original specs, ensuring seamless integration with SWEET elevators and compliance with global standards (ADA, EN 81).
Strict Quality Assurance: Each variant undergoes testing for button responsiveness, LED brightness, signal accuracy, and environmental durability—critical for high-traffic lobbies.
Expert Technical Support: Certified engineers provide 24/7 assistance for variant-specific installation, accessibility calibration, and troubleshooting.
Global Efficient Delivery: Prompt delivery minimizes downtime during replacement, maintaining lobby functionality and passenger satisfaction.
Competitive Pricing: Eliminating middlemen ensures cost-effective solutions without compromising quality—ideal for bulk orders across residential/commercial fleets.

Conclusion

The Otis SWEET LOP Display Board series (DAA26800AS1/AS2/CR1/CR3) is a cornerstone of user-friendly lobby design, unifying reliability across variants while catering to accessibility needs (CR1/CR3). By following proper installation, maintenance, and replacement guidelines—paired with Nanjing Zhuye’s authentic components—you ensure Otis SWEET elevators remain accessible, compliant, and user-centric. Whether you need a single replacement (e.g., CR3 for a healthcare facility) or bulk orders (AS1 for residential towers), Nanjing Zhuye delivers premium components and tailored support. Invest in user experience and compliance—choose Nanjing Zhuye Elevator Parts for your Otis SWEET LOP Display Board needs.
