The Otis Elevator Steel Belt Guide Wheel AAA20780P1/2/3/4/7/AC3 series represents a critical component in modern elevator traction systems, ensuring smooth belt operation and optimal elevator performance. As precision-engineered pulleys manufactured by Otis, these guide wheels play a vital role in maintaining proper steel belt alignment and tension. Nanjing Zhuye Elevator Parts, a leading supplier of elevator components, provides these essential parts with guaranteed authenticity and superior quality.

The AAA20780 series steel belt guide wheels are specifically designed for Otis Gen2 elevator systems, featuring robust construction and precise engineering. These guide wheels accommodate the flat steel belts that have revolutionized elevator technology, replacing traditional steel ropes with more efficient and durable polyurethane-coated belts. The series includes multiple variants (P1, P2, P3, P4, P7, and AC3) to suit different elevator configurations and belt arrangements.

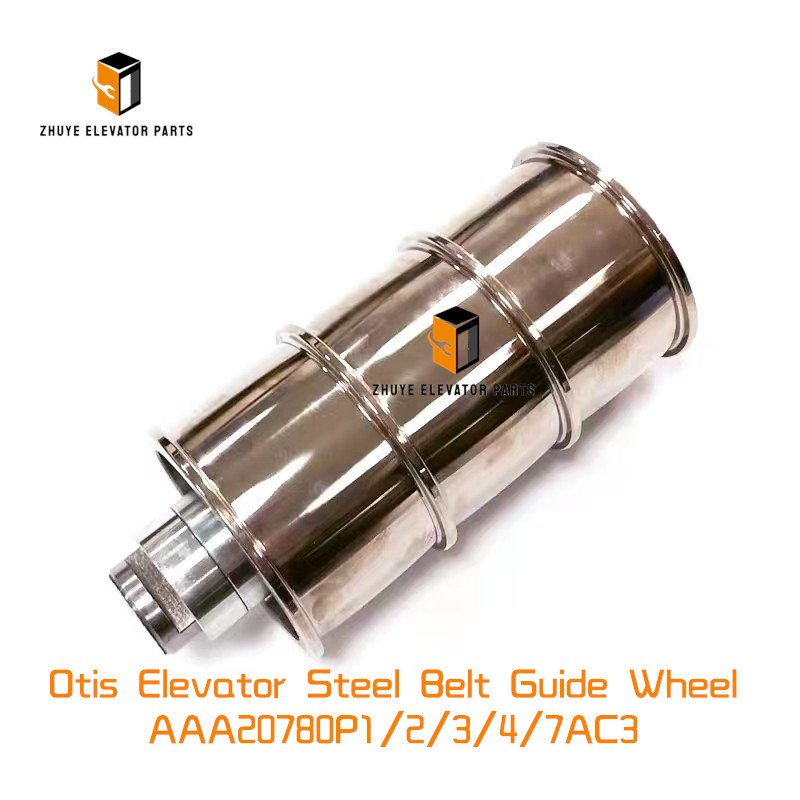

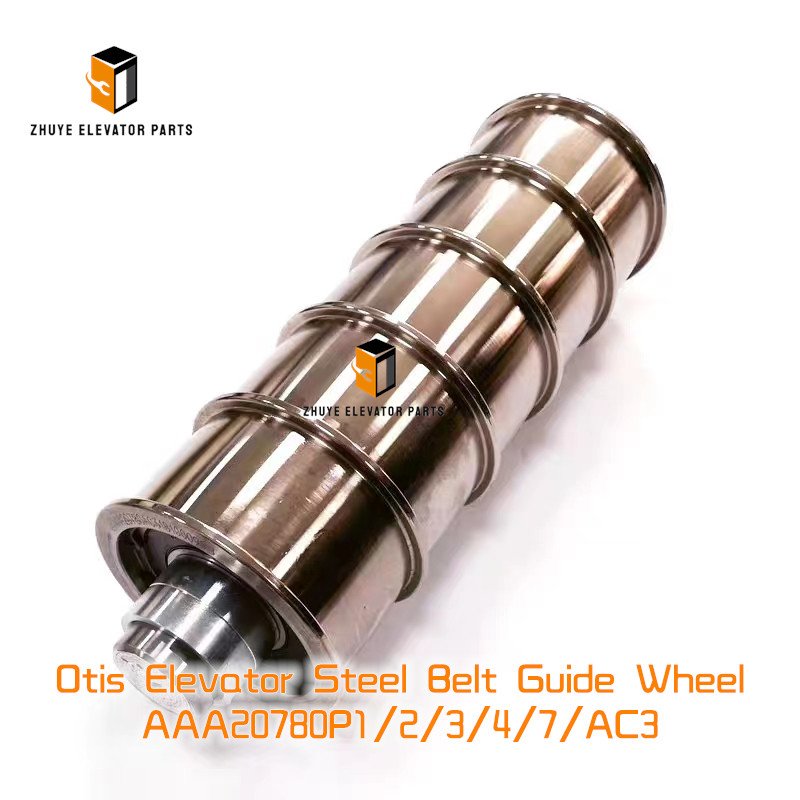

Manufactured from high-grade materials, these guide wheels typically feature diameters of 330mm × 110mm with shaft diameters of 40mm. The wheels come with varying groove configurations – from 2 to 5 grooves – depending on the specific model. Each guide wheel is equipped with high-quality bearings (6308RS) to ensure smooth rotation and extended service life. The precision-machined grooves are designed to perfectly match the profile of Otis steel belts, preventing slippage and ensuring optimal power transmission.

Proper installation of the AAA20780 series steel belt guide wheels is crucial for elevator safety and performance. The installation process requires professional technicians with expertise in Otis Gen2 systems and should always be performed following strict safety protocols.

The installation begins with a thorough inspection of the existing guide wheel assembly and surrounding components. Technicians must verify that the elevator is properly secured and all power sources are disconnected before commencing work. The old guide wheel removal process involves carefully documenting the existing belt routing and tension settings.

Mounting the new guide wheel requires precise alignment to ensure proper belt tracking. The wheel must be positioned exactly perpendicular to the belt path, with the shaft properly supported and lubricated. Installation involves securing the wheel assembly with appropriate torque specifications, ensuring all mounting bolts are tightened according to Otis standards.

Belt routing is a critical aspect of the installation process. The steel belts must be carefully threaded through the guide wheel grooves, maintaining proper alignment and avoiding any twisting or kinking. Technicians must verify that the belts seat properly in each groove and that the tension is evenly distributed across all belts.

Once installed, the AAA20780 series guide wheels serve multiple critical functions within the elevator system. These wheels guide the steel belts along their proper path, maintaining alignment between the traction machine, car, and counterweight. The precision-engineered surface profile ensures smooth belt operation while minimizing wear and extending belt life.

The guide wheels operate under significant loads, supporting the weight of the elevator car and passengers while maintaining precise positioning. The bearings are designed to handle both radial and axial loads, ensuring smooth rotation even under maximum operating conditions. Proper lubrication and sealing prevent contamination while maintaining optimal performance.

Key operational functions include:

Regular maintenance of the AAA20780 series steel belt guide wheels is essential for long-term reliability and safety. The recommended maintenance schedule includes monthly visual inspections, quarterly detailed examinations, and annual comprehensive evaluations.

Monthly inspections should focus on visual examination of the guide wheel surfaces for signs of wear, scoring, or damage. Technicians should check for proper belt seating in the grooves and verify that no debris has accumulated. The wheel rotation should be smooth without binding or unusual noise.

Quarterly maintenance involves more detailed examination, including bearing condition assessment, groove wear measurement, and alignment verification. Technicians should check for any signs of belt slippage, unusual wear patterns, or changes in belt tension.

The typical replacement cycle for steel belt guide wheels ranges from 8 to 12 years, depending on usage intensity, environmental conditions, and maintenance quality. However, several factors may necessitate earlier replacement:

Signs indicating the need for replacement include visible groove wear exceeding 2mm depth, bearing noise or rough operation, belt slippage or poor tracking, and vibration during operation.

Nanjing Zhuye Elevator Parts has established itself as a premier supplier of genuine Otis elevator components, offering the complete AAA20780 series steel belt guide wheels. With extensive experience in the elevator industry, the company provides not only quality parts but also comprehensive technical support and expertise.

The company’s advantages include guaranteed authentic Otis components, competitive pricing through direct sourcing relationships, comprehensive inventory ensuring immediate availability, expert technical support for installation and troubleshooting, worldwide shipping capabilities, and comprehensive warranty coverage.

The Otis Elevator Steel Belt Guide Wheel AAA20780P1/2/3/4/7/AC3 series represents a crucial component for maintaining optimal elevator performance and safety. Proper installation, regular maintenance, and timely replacement of these guide wheels ensure smooth elevator operation while extending the service life of steel belts and other related components. With Nanjing Zhuye Elevator Parts as your trusted supplier, you gain access to genuine components, expert support, and reliable service. Investing in quality guide wheels and maintaining them properly is essential for elevator operators committed to safety, reliability, and long-term performance optimization. Regular attention to these critical components contributes significantly to passenger safety, operational efficiency, and reduced maintenance costs throughout the elevator system’s operational lifespan.
