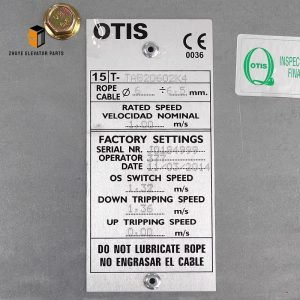

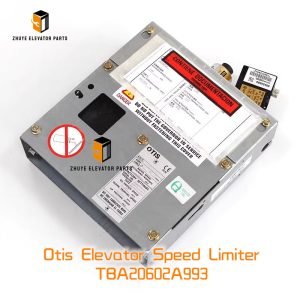

Otis Elevator Speed Limiter TBA20602A993 Brief Introduction
|
Product Name |
Otis Elevator Speed Limiter |
| Model Number | TBA20602A993 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator Speed Limiter TBA20602A993: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Otis Elevator Speed Limiter TBA20602A993 is a critical safety component designed to prevent elevator overspeed incidents—one of the most dangerous elevator malfunctions. As a mandatory device under global safety standards (EN 81, ASME A17.1, ISO 9001), it monitors elevator car speed in real time and triggers the emergency braking system if the speed exceeds the rated limit (typically 115% of the maximum operational speed). This mechanical-electronic hybrid device acts as the “safety sentinel” for elevators, ensuring controlled deceleration and protecting passengers from catastrophic injuries. For elevator maintenance teams, property managers, and facility operators, mastering the correct usage, installation, and replacement timelines of the TBA20602A993 is non-negotiable to uphold safety compliance and mitigate liability risks. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis safety components, delivers the TBA20602A993 speed limiter that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility, precise speed monitoring, and long-term durability for Otis elevator systems.
Proper Usage Methods of Otis Elevator Speed Limiter TBA20602A993
1. Pre-Installation Preparation
Before installing the TBA20602A993, prioritize safety by shutting off the elevator’s main power supply, locking the hoistway access doors, and securing the control panel with a lockout tag. Inspect the speed limiter for physical damage—such as worn gears, bent shafts, damaged springs, or corroded housings—defects that can impair its speed-sensing or braking-triggering capabilities. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each TBA20602A993 unit arrives in optimal condition, with calibrated internal mechanisms and intact safety features. Additionally, verify compatibility with your Otis elevator model by cross-referencing the elevator’s technical manual or consulting Nanjing Zhuye’s technical support team—ensure the speed limiter’s rated speed range, load capacity (typically 1000–3000 kg), and mounting dimensions match your system’s requirements.
2. Installation & Operation Steps
- Mounting the Speed Limiter:
- Locate the designated installation position in the elevator machine room—typically above the hoistway, aligned with the elevator car’s guide rails. Ensure the mounting surface is flat, level, and capable of withstanding the device’s operating forces (consult structural guidelines if needed).
- Secure the TBA20602A993 to the mounting bracket using high-strength bolts, torquing them to the manufacturer’s recommended value (8–10 Nm) to prevent vibration-induced loosening. Align the device’s sheave with the elevator’s governor rope to ensure smooth rope movement without friction.
- Rope Installation & Tensioning:
- Thread the governor rope through the speed limiter’s sheave and connect it to the elevator car’s safety gear and counterweight. Ensure the rope is properly lubricated (use Otis-approved lubricant) to reduce wear on both the rope and sheave.
- Adjust the rope tension using the tensioning weight (provided with the device) to maintain the correct slack (typically 5–10 mm)—over-tensioning can cause premature wear, while under-tensioning may affect speed sensing accuracy.
- Functional Testing:
- Conduct a static test: Manually rotate the speed limiter’s sheave to verify smooth operation and confirm the activation mechanism (typically a centrifugal clutch) engages at the preset overspeed threshold.
- Perform a dynamic test (by certified technicians only): Use the elevator’s test mode to simulate an overspeed condition. Ensure the speed limiter triggers the safety gear within 0.5 seconds of exceeding the rated speed, and the elevator decelerates to a stop within the maximum allowable g-force (≤1.5g for passenger elevators).
- Verify the reset function: After testing, ensure the speed limiter resets automatically once the elevator returns to normal speed. Document all test results in the elevator’s maintenance records to demonstrate compliance.
3. Routine Usage Maintenance
To preserve the TBA20602A993’s safety performance, implement these routine practices:
- Conduct monthly visual inspections: Check for rope wear, lubrication levels, loose bolts, or corrosion on the device’s housing. Replace the governor rope if signs of fraying or strand breakage are detected.
- Lubricate the speed limiter’s gears, bearings, and sheave quarterly using Otis-approved lubricant to reduce friction and prevent seizing.
- Test the speed limiter’s activation function semi-annually by simulating an overspeed scenario (follow strict safety protocols) to confirm responsive operation.
- Clean the device and surrounding area annually to remove dust, debris, and oil buildup—contaminants can interfere with mechanical components.
Recommended Replacement Cycle
The service life of the Otis Elevator Speed Limiter TBA20602A993 depends on environmental conditions (humidity, corrosion), usage intensity, and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:
1. Standard Replacement Cycle
Under normal operating conditions (protected machine room, regular maintenance), the TBA20602A993 should be replaced every 8–10 years. This timeframe accounts for mechanical wear (gears, springs, bearings), rope degradation, and electronic component aging—ensuring the device maintains precise speed sensing and reliable activation. Proactive replacement is critical, as a failed speed limiter can render the emergency braking system inoperable during an overspeed incident.
2. Signs That Require Immediate Replacement
Replace the speed limiter immediately if you encounter any of the following issues:
- Failure to trigger the safety gear during overspeed testing, even after adjusting the activation mechanism.
- Excessive rope wear (more than 10% of rope diameter reduction) or frequent rope breakage.
- Physical damage: Cracked housing, bent shafts, or seized gears that cannot be repaired.
- Corrosion that penetrates the device’s internal components or compromises structural integrity.
- Inability to calibrate the speed sensing mechanism to meet safety standards.
3. Maintenance to Extend Service Life
To maximize the TBA20602A993’s lifespan:
- Keep the machine room at a stable temperature (10–35°C) and low humidity to prevent corrosion and lubricant degradation.
- Apply anti-corrosion coating to the device’s external surfaces annually (if installed in harsh environments).
- Replace the governor rope every 3–5 years, regardless of visible wear, to ensure optimal performance.
- Use only genuine replacement parts and lubricants from Nanjing Zhuye—counterfeit products can compromise safety and void certifications.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Otis Elevator Speed Limiter TBA20602A993, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Compliance: All TBA20602A993 speed limiters are manufactured to Otis’s original specifications, ensuring seamless compatibility with Otis elevator systems and adherence to global safety standards.
- Strict Quality Assurance: Each unit undergoes rigorous testing—including speed accuracy calibration, load capacity verification, and durability simulations—to guarantee reliable performance in critical emergency scenarios.
- Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation guidance and testing protocols to troubleshooting mechanical/electronic issues, ensuring the device meets safety requirements.
- Global Efficient Delivery: With a robust supply chain, Nanjing Zhuye delivers orders promptly worldwide, minimizing downtime during replacement and keeping your elevators compliant.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs.
Conclusion
The Otis Elevator Speed Limiter TBA20602A993 is a non-negotiable safety component that stands between passengers and catastrophic overspeed incidents. By following proper installation and maintenance methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your Otis elevators remain compliant, reliable, and safe. Whether you need a replacement speed limiter, technical support, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium safety components and professional services tailored to your needs. Invest in passenger safety—choose Nanjing Zhuye Elevator Parts for your Otis TBA20602A993 speed limiter requirements.
