Description

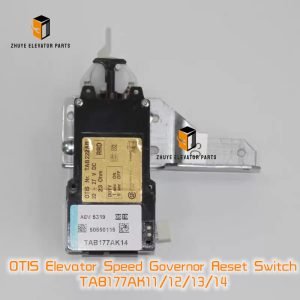

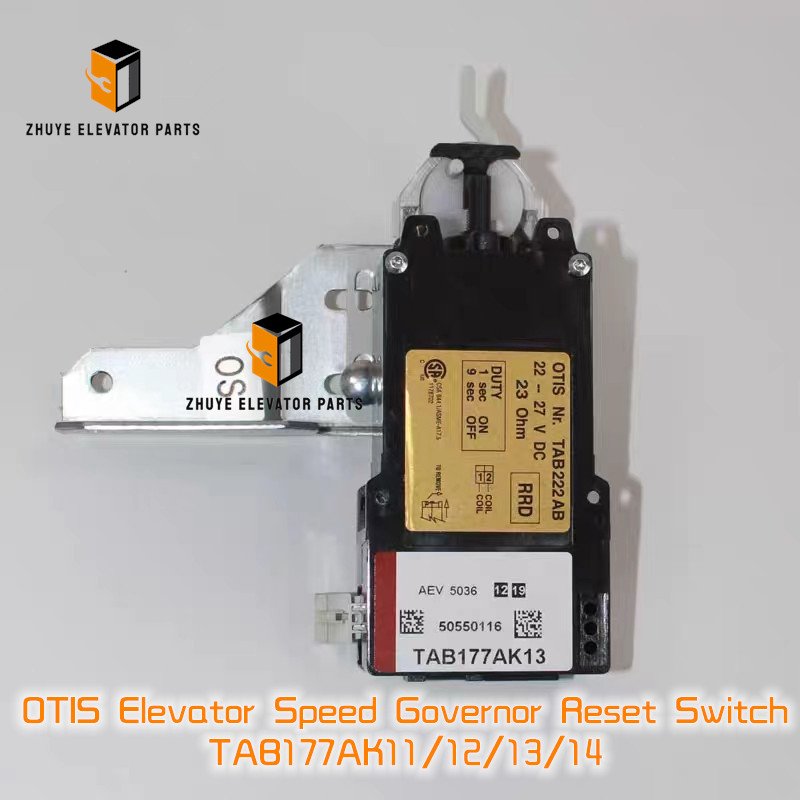

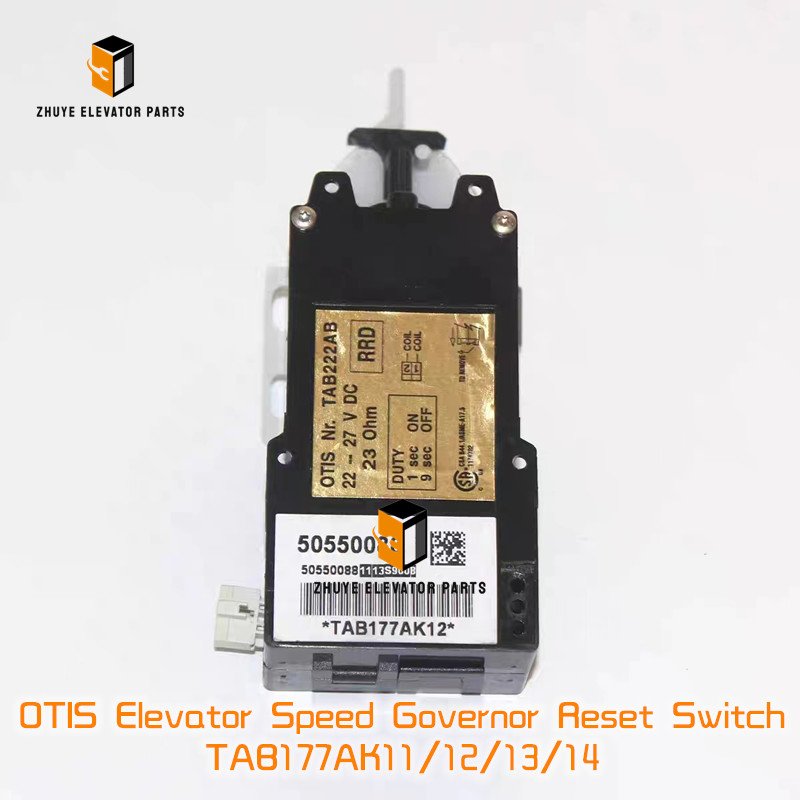

1. Part-number breakdown TAB177AK11 = base switch, 24 VDC, 1 N/O + 1 N/C, 10 A, IP54, –25 °C…+70 °C
   AK12 = AK11 + gold-plated contacts, 1 A minimum, 0.1 A gold layer
   AK13 = AK12 + 2 kV isolation, red actuator, IP65 front
   AK14 = AK13 + metal actuator, IK08 impact, MTBF 100 kh @ 25 °C
   All variants: positive-break mechanism, 4 mm contact gap, 45 N operating force ±5 N
2. Safety first—lock-out & verify The switch interrupts 110 VDC governor circuits. Lock the main disconnect, engage the car-top inspection switch and wait 60 s for the rail to fall below 5 V. Keep the new NYE switch in its anti-static bag until mounting—ESD can damage the gold-plated contacts.
3. Mechanical mounting—keep it positive Housing: 60 × 40 × 25 mm, mass 0.12 kg.
   Mount on governor head or car-top bracket using 2 × M4 screws, torque 1.5 N·m.
   Maintain 2 mm contact gap; every 0.2 mm reduction halves breaking capacity. NYE supplies a free stainless bracket (NY-BRACKET-AK) and 2 mm spacer (NY-SPAC-AK) for quick alignment.
4. Connection map (print and stick inside guard) N/O: gold-plated, 24 VDC logic to GECB
   N/C: silver, 110 VDC safety chain to brake
   Earth: 4 mm² green/yellow to bracket PE; continuity <0.1 Ω
   Torque: 0.3 N·m for 0.5 mm², 0.8 N·m for 2.5 mm²
5. Reset procedure & functional test Insert Otis T-key, turn 45° clockwise; N/C must open, N/O must close within 10 ms.
   Release key; contacts must revert within 10 ms, continuity <50 mΩ.
   If travel >60° or continuity >100 mΩ, contacts are worn—replace switch immediately.
6. Contact life & electrical ratings Gold: 1 A 24 VDC, 100 k operations minimum.
   Silver: 10 A 110 VDC, 50 k operations minimum.
   Positive-break: 4 mm gap, 1 000 V insulation, 2 kV surge.
7. Temperature & lifetime model Contact life: 1 million cycles; at 600 resets/year = 16 years.
   Spring stainless: 1 million cycles, no wear below 70 °C.
   Translate to building traffic: Light traffic (residence, 300 resets/year) – switch ≈ 30 years; inspect every 5 years. Medium traffic (office, 600 resets/year) – switch ≈ 16 years; inspect every 3 years. Heavy traffic (mall/metro, 1 200 resets/year) – switch ≈ 8 years; inspect every 2 years.
8. Preventive inspection checklist Monthly: visual actuator, insert T-key, listen for crisp click. Quarterly: measure contact continuity; >100 mΩ schedules replacement. Annually: megger contacts to PE >100 MΩ; <10 MΩ indicates moisture ingress. Bi-annually: torque test M4 screws; vibration loosens them, causing misalignment.
9. Rapid swap (downtime < 2 min) a) Place car at mid-floor, lock-out, tag out.
   b) Photograph wire numbers with phone.
   c) Remove 2 screws, slide old switch out.
   d) Insert new NYE TAB177AK11/12/13/14, torque 1.5 N·m, set gap 2 mm.
   e) Restore cables, perform reset test.
   f) Log serial number and continuity; return old unit for recycling.
10. Recycling & sustainability Nanjing Zhuye offers prepaid UPS labels inside every carton.
    Returned switches are stripped: gold contacts refined, silver contacts remelted, stainless spring reused. One recycled AKx saves 0.2 kg CO₂—enough to power the same governor for a week.
