Description

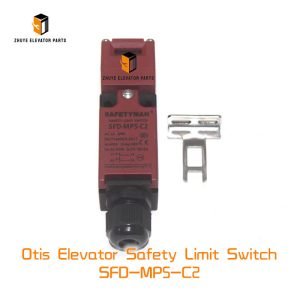

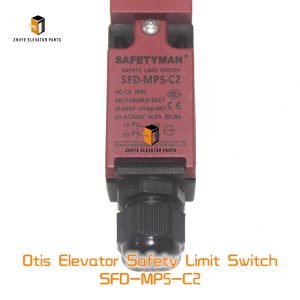

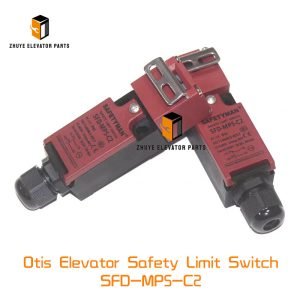

Otis Elevator Safety Limit Switch SFD-MP5-C2 Brief Introduction
|
Product Name |
Otis Elevator Safety Limit Switch |
| Model Number | SFD-MP5-C2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator Safety Limit Switch SFD-MP5-C2: Comprehensive Installation, Operation, and Maintenance Guide
The Otis Elevator Safety Limit Switch SFD-MP5-C2 represents a critical component in modern elevator safety systems, providing reliable position detection and overtravel protection. As a precision-engineered safety switch manufactured specifically for Otis elevator systems, this device plays a vital role in preventing dangerous overtravel conditions and ensuring passenger safety. Nanjing Zhuye Elevator Parts, a leading supplier of elevator components, provides these essential safety switches with guaranteed authenticity and superior quality.
Product Overview and Technical Specifications
The SFD-MP5-C2 safety limit switch is specifically designed for Otis elevator applications, featuring robust construction and precise operation to meet stringent safety standards. This switch is typically used as a terminal stopping device or final limit switch, providing the last line of defense against elevator overtravel in both upward and downward directions.
Manufactured with high-quality materials and precision engineering, the switch incorporates advanced contact technology for reliable operation. The unit features positive opening contacts that ensure safe disconnection even in the event of contact welding. The switch mechanism is designed to withstand the harsh operating conditions of elevator environments, including vibration, temperature variations, and continuous operation.
The switch construction includes a durable housing with IP-rated protection against dust and moisture, ensuring long-term reliability. The actuator mechanism is designed for precise engagement with elevator car-mounted cams, providing consistent and accurate switching points. The unit is compatible with standard Otis mounting configurations and can be easily integrated into existing safety circuits.
Installation Procedure and Setup
Proper installation of the SFD-MP5-C2 safety limit switch requires professional technicians with expertise in elevator safety systems and electrical controls. The installation process must follow strict safety protocols and manufacturer specifications to ensure reliable operation.
The installation begins with ensuring the elevator is properly secured and all power sources are disconnected. Technicians must verify that the car is positioned to provide safe access to the installation location, with all safety devices engaged. The existing limit switch removal process involves carefully documenting all wire connections and their locations.
Before installing the new switch, technicians must thoroughly inspect the mounting area for any signs of damage, misalignment, or wear. The mounting brackets should be checked for proper positioning and secure attachment. The car-mounted cam or actuator should be inspected for wear and proper alignment.
Mounting the new safety limit switch requires precise positioning according to Otis specifications. The switch must be positioned to ensure proper engagement with the car-mounted cam throughout the entire activation range. The mounting should be rigid and secure, with all fasteners tightened to specified torque values.
Electrical connections must be made following the manufacturer’s wiring diagram, with particular attention to proper wire sizing and termination. All connections should be tight and properly insulated. The switch should be connected in series with the elevator safety circuit to ensure fail-safe operation.
The installation process concludes with comprehensive testing to verify proper operation and switching points. The switch should be tested multiple times to ensure consistent and reliable operation.
Operational Function and Performance
Once installed and calibrated, the SFD-MP5-C2 safety limit switch operates as a critical safety device in the elevator system. The switch is designed to activate when the elevator car approaches the terminal landing, initiating an emergency stop if normal stopping devices fail to function properly.
The switch executes several critical functions:
-
Terminal Stopping: Provides backup protection if normal terminal stopping devices fail
-
Overtravel Prevention: Prevents the car from traveling beyond safe limits
-
Emergency Stop Initiation: Triggers immediate stop when activated
-
Safety Circuit Integration: Interfaces with the elevator safety chain for fail-safe operation
-
Position Detection: Provides precise position feedback for control systems
The switch’s positive opening mechanism ensures that contacts will open even in the event of contact welding, maintaining safety integrity. The robust design provides reliable operation throughout the switch’s service life, even under harsh operating conditions.
Maintenance Requirements and Replacement Schedule
Regular maintenance of the SFD-MP5-C2 safety limit switch is essential for long-term reliability and safety. The recommended maintenance schedule includes monthly visual inspections, quarterly functional testing, and annual comprehensive evaluations.
Monthly inspections should focus on visual examination of the switch for signs of damage, loose connections, or misalignment. Technicians should check for proper mounting security, clean contact surfaces, and verify that the actuator mechanism operates freely without binding.
Quarterly maintenance involves functional testing of the switch operation, checking electrical connections for tightness and signs of corrosion, and verifying proper alignment with the car-mounted cam. The switch should be cleaned to remove any dust, debris, or contamination that could affect operation.
Annual maintenance requires comprehensive testing including:
-
Switch activation point verification
-
Contact resistance measurement
-
Insulation resistance testing
-
Mechanical wear assessment
-
Proper torque verification of all connections
The typical replacement cycle for safety limit switches ranges from 5 to 8 years, depending on usage intensity and environmental conditions. High-traffic installations may require more frequent replacement, typically every 3-5 years.
Several factors may necessitate earlier replacement:
-
Contact Wear: Pitted or burned contacts affecting reliable operation
-
Mechanical Damage: Broken or worn actuator mechanisms
-
Electrical Faults: Internal faults affecting switch performance
-
Environmental Damage: Corrosion or contamination affecting functionality
-
Performance Degradation: Inconsistent operation or failure to meet specifications
Signs indicating the need for replacement include inconsistent switching points, excessive contact resistance, physical damage to components, failure to activate or reset properly, and visible wear or corrosion affecting operation.
Nanjing Zhuye Elevator Parts: Your Trusted Partner
Nanjing Zhuye Elevator Parts has established itself as a premier supplier of genuine Otis elevator components, including the SFD-MP5-C2 safety limit switch. With extensive experience in the elevator industry, the company provides not only quality parts but also comprehensive technical support and expertise.
The company’s advantages include guaranteed authentic Otis components manufactured to original specifications, competitive pricing through direct sourcing relationships, comprehensive inventory ensuring immediate availability, expert technical support for installation and calibration, worldwide shipping capabilities, and comprehensive warranty coverage.
Conclusion
The Otis Elevator Safety Limit Switch SFD-MP5-C2 represents a critical safety component that demands proper installation, regular maintenance, and timely replacement. This precision-engineered switch provides essential overtravel protection, ensuring passenger safety and regulatory compliance. With Nanjing Zhuye Elevator Parts as your trusted supplier, you gain access to genuine components, expert support, and reliable service. Investing in quality safety switches and maintaining them properly is essential for elevator operators committed to safety, regulatory compliance, and long-term performance. Regular attention to these critical safety components contributes significantly to preventing overtravel incidents and maintaining optimal elevator safety throughout the system’s operational lifespan.
