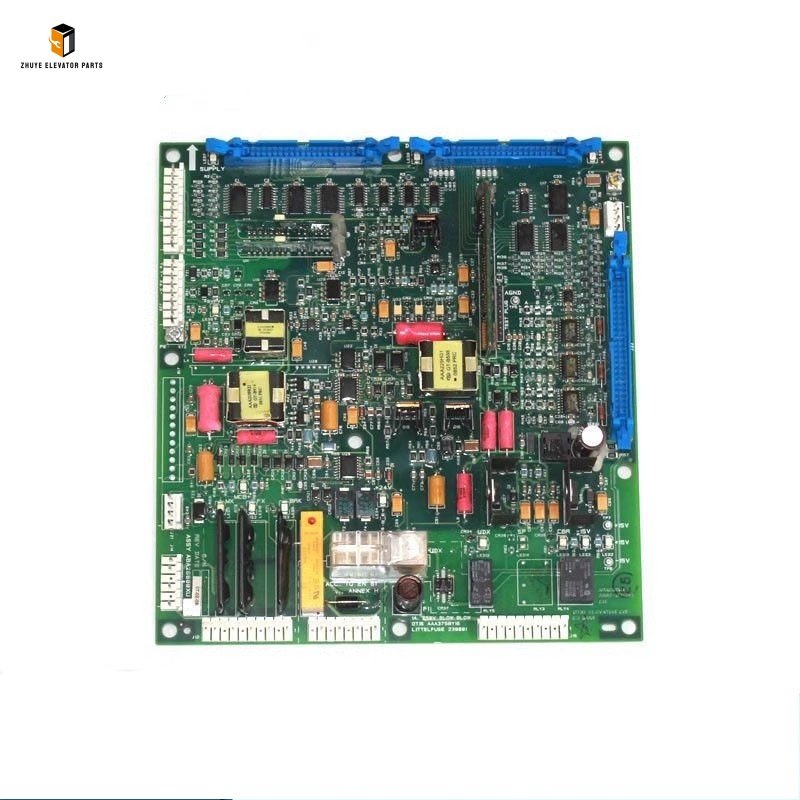

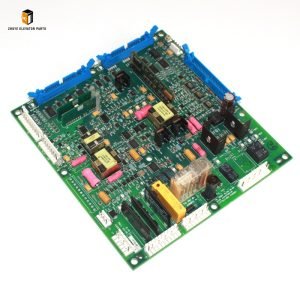

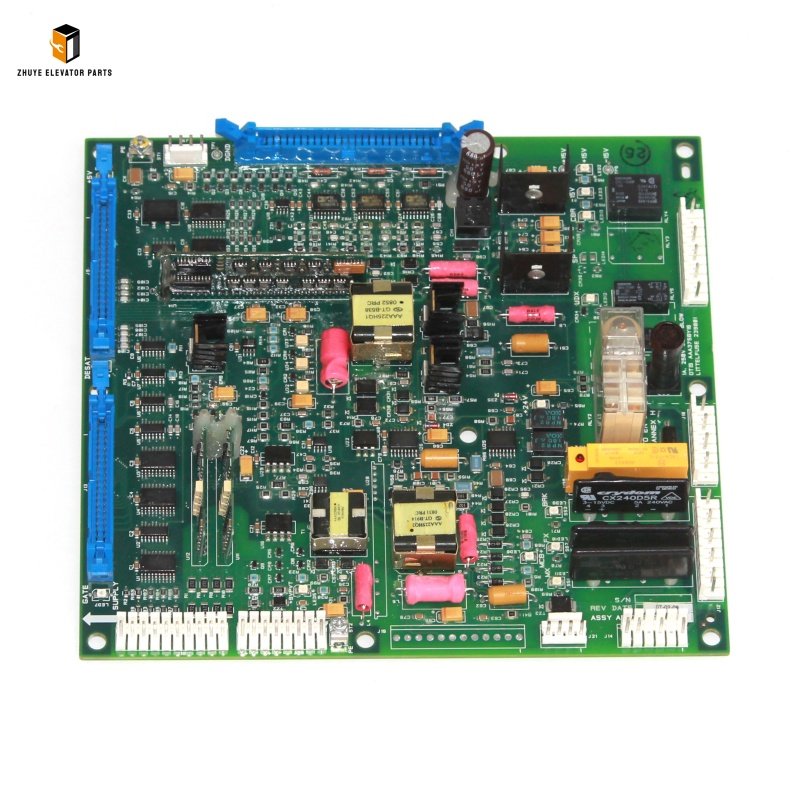

Otis elevator OVF30 inverter driver board ABA26800XU5 Brief Introduction

Product Name	Otis elevator OVF30 inverter driver board
Model Number	ABA26800XU1 ABA26800XU2 ABA26800XU5
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator OVF30 Inverter Driver Board ABA26800XU5: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator OVF30 Inverter Driver Board ABA26800XU5 is a mission-critical power conversion component exclusively engineered for Otis OVF30 series inverters—essential for commercial high-rises, residential complexes, office buildings, and public transit facilities worldwide. As the “motor control core” for Otis GEN2, Sigma, and Series 300 elevators, this driver board converts stable DC bus voltage into variable-frequency AC power to regulate traction motor speed, enabling smooth acceleration/deceleration, precise floor leveling, and energy-efficient operation (up to 30% energy savings compared to conventional drives). It integrates Otis’ proprietary PWM (Pulse Width Modulation) technology, advanced IGBT (Insulated Gate Bipolar Transistor) modules, and real-time motor feedback control—upholding the brand’s strict standards for reliability, precision, and safety.

Compliant with global elevator safety and electrical standards (EN 81, IEC 61800-5-1, UL 1012, ISO 9001), the ABA26800XU5 features a rugged, high-performance design: flame-retardant aluminum alloy housing for efficient heat dissipation, conformal-coated PCB (resists dust and moisture), high-voltage insulated terminals, and multi-layer protection (overvoltage, overcurrent, short-circuit, overtemperature, and ground fault). This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +55°C), mechanical vibration, and electrical stress—critical for preventing motor damage, elevator jitter, or unexpected shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the ABA26800XU5 that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility with OVF30 inverters, stable motor control, and long-term performance.

Proper Usage Methods of Otis ABA26800XU5 Inverter Driver Board

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging the inverter’s DC bus capacitor (wait 10+ minutes after power-off), and securing the work area (machine room inverter cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new ABA26800XU5 for physical damage—cracked housing, bent IGBT pins, damaged capacitors, or corrosion on terminals—defects that can cause short circuits, IGBT burnout, or drive failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact components, functional IGBT modules, secure solder joints, and pre-tested power conversion performance.

Verify compatibility with your Otis OVF30 inverter model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s IGBT rating (voltage/current) matches the traction motor specifications, (2) the control signal protocol is compatible with the inverter’s main CPU board, and (3) the mounting dimensions fit the inverter cabinet’s slot. Using an incompatible driver board can damage the motor, trigger inverter faults, or cause erratic elevator movement. Additionally, prepare the installation area: Clean the inverter cabinet slot, ensure 10cm clearance for heat dissipation, and verify the DC bus wiring and motor output cables are in good condition (no fraying or insulation damage).

2. Installation & Configuration Steps

Board Installation:
- Align the ABA26800XU5 with the guide rails in the inverter cabinet and slide it into place until fully seated. Secure the board with the provided retaining screws (torque to 1.0–1.5 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB. Ensure all connectors (DC bus, motor output, control signals) are aligned with the cabinet’s terminal blocks.
- If replacing an old driver board, disconnect the existing unit by labeling and removing all wiring (DC bus positive/negative, motor U/V/W, control signals). Take detailed photos of the wiring configuration and component positions to ensure accurate reinstallation—incorrect wiring is the leading cause of post-replacement inverter failures.
Wiring & Connection:
- Connect the DC bus cables (red = positive, black = negative) to the board’s high-voltage terminals, ensuring tight connections (torque to 2.0–2.5 Nm) to prevent arcing. Connect the motor output cables (U/V/W) to the corresponding terminals—swap cables only if motor direction is incorrect (verified during testing). Connect the control signal cable to the inverter’s CPU board, matching pin assignments per Otis’ wiring schematic.
Post-Installation Configuration & Testing:
- Restore power to the inverter (performed by certified Otis technicians only) and configure the driver board parameters via the inverter’s keypad or diagnostic software. Input critical settings: motor rated voltage/current, PWM frequency, acceleration/deceleration time, and protection thresholds—use values from the elevator’s technical manual or backup parameters.
- Conduct three critical tests:
  1. No-Load Test: Run the elevator without passengers to verify motor runs smoothly, no abnormal noise, and inverter displays no fault codes.
  2. Load Test: Operate the elevator with rated load to confirm stable speed regulation, smooth floor leveling (deviation ≤±3mm), and driver board temperature ≤70°C.
  3. Protection Function Test: Simulate an overcurrent (e.g., temporary motor short-circuit) to confirm the driver board triggers protection and shuts down output—preventing motor/driver damage.
- Document installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Otis’ service requirements.

3. Routine Usage Maintenance

To preserve the ABA26800XU5’s performance and extend its lifespan, implement these proactive maintenance practices:

Daily Visual Inspections: Check the driver board for loose wiring, physical damage, or signs of overheating (discoloration of PCB, burning odors, or hot IGBT modules). Verify the inverter’s status display shows no fault codes.
Weekly Heat Dissipation Check: Clean dust from the board’s heat sink and inverter cabinet using a soft brush or low-pressure compressed air—dust buildup blocks heat dissipation and causes IGBT overheating. Ensure cabinet cooling fans are functioning.
Monthly Parameter Verification: Use diagnostic software to check driver board parameters—confirm no unintended changes (e.g., due to electrical interference) and back up settings to a secure location.
Quarterly Connection Inspections: Tighten DC bus and motor terminal screws—vibration can loosen connections over time. Inspect control signal cables for fraying or damage; replace with genuine Otis cables from Nanjing Zhuye if needed.
Semi-Annual IGBT Health Check: Use a multimeter to test IGBT module continuity and insulation resistance—replace the driver board if modules show signs of degradation (e.g., increased leakage current).

Recommended Replacement Cycle

The service life of the Otis OVF30 Inverter Driver Board ABA26800XU5 depends on usage intensity (daily operating hours, load frequency), environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -10°C to +55°C), the ABA26800XU5 should be replaced every 6–8 years. This timeframe accounts for gradual IGBT module degradation, capacitor aging, and thermal stress—proactive replacement avoids sudden inverter failure.

2. Signs That Require Immediate Replacement

Replace the driver board immediately if:

Drive Failures: Inverter displays persistent fault codes (e.g., “IGBT Overheat,” “Overcurrent,” “No Motor Feedback”) that cannot be resolved by parameter adjustment or wiring checks.
Motor Malfunctions: Motor runs erratically, jitters, or fails to start—indicating unstable power output from the driver board.
Electrical Damage: Burned terminals, melted wires, or visible IGBT module damage—indicating short circuits or overload.
Performance Degradation: Elevator accelerates/decelerates roughly, leveling accuracy decreases (>±5mm), or driver board temperature exceeds 80°C during operation.
Safety Compromise: Driver board fails to trigger protection functions, risking motor burnout or elevator 失控 —violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Maintain temperature between 10°C–40°C and humidity <80%—extreme conditions accelerate component aging.
Power Stabilization: Install external surge protectors and voltage regulators in the main power circuit to shield the driver board from grid spikes and fluctuations.
IGBT Care: Avoid frequent full-load starts/stops—reduce thermal stress by optimizing acceleration/deceleration parameters (per Otis recommendations).
Genuine Parts Only: For replacements, use exclusively authentic Otis ABA26800XU5 driver boards from Nanjing Zhuye. Counterfeit units use inferior IGBT modules, lack protection functions, and risk catastrophic elevator failure.

Why Choose Nanjing Zhuye Elevator Parts for Otis ABA26800XU5?

When sourcing the Otis OVF30 Inverter Driver Board ABA26800XU5, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with OVF30 inverters and Otis GEN2/Sigma/Series 300 elevators—eliminating compatibility risks.
Strict Quality Assurance: Each driver board undergoes rigorous testing (IGBT performance, power conversion efficiency, protection function reliability) to meet Otis’ original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, troubleshooting, and maintenance—even for complex inverter systems.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where inverter failures disrupt operation.
Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Otis OVF30 Inverter Driver Board ABA26800XU5 is a foundational power conversion component that ensures precise, energy-efficient traction motor control—directly impacting elevator performance, passenger comfort, and safety. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Otis elevators downtime-free, compliant with global safety standards, and optimized for efficiency. Whether you need a single replacement driver board, technical support for inverter upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium Otis components and tailored professional services. Invest in the reliability and performance of your Otis elevators—choose Nanjing Zhuye Elevator Parts for your ABA26800XU5 inverter driver board requirements.
