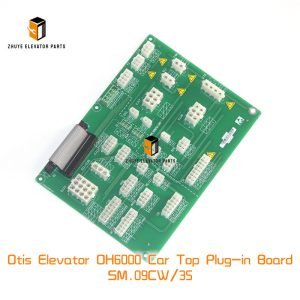

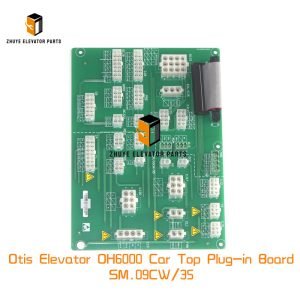

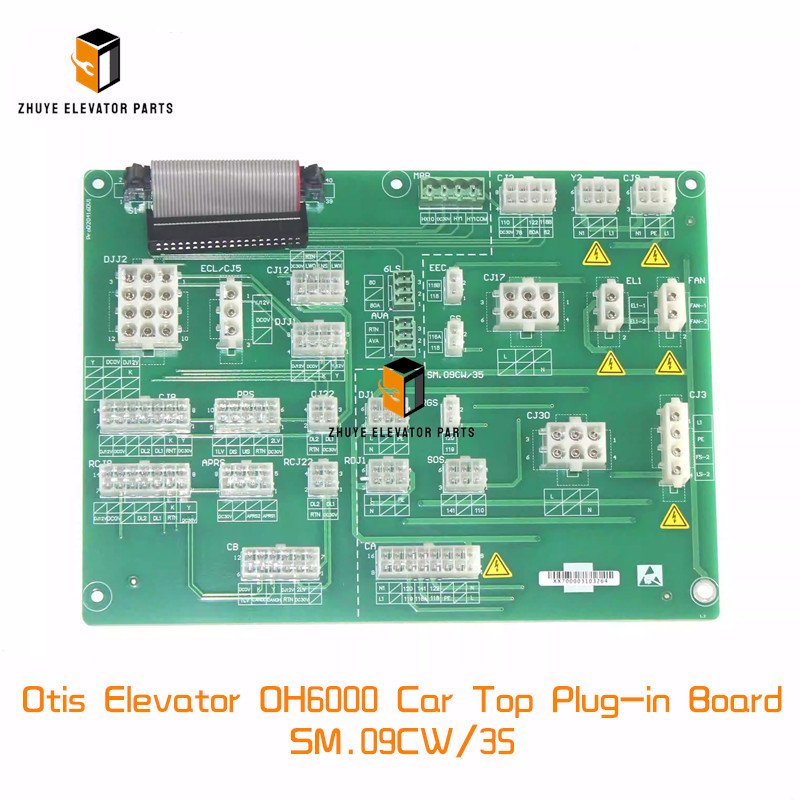

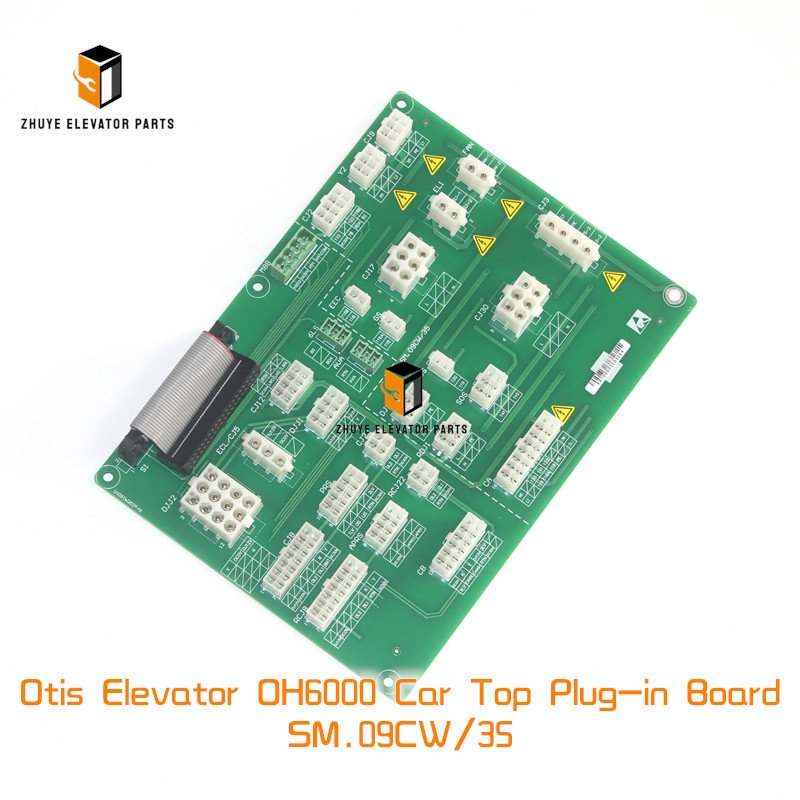

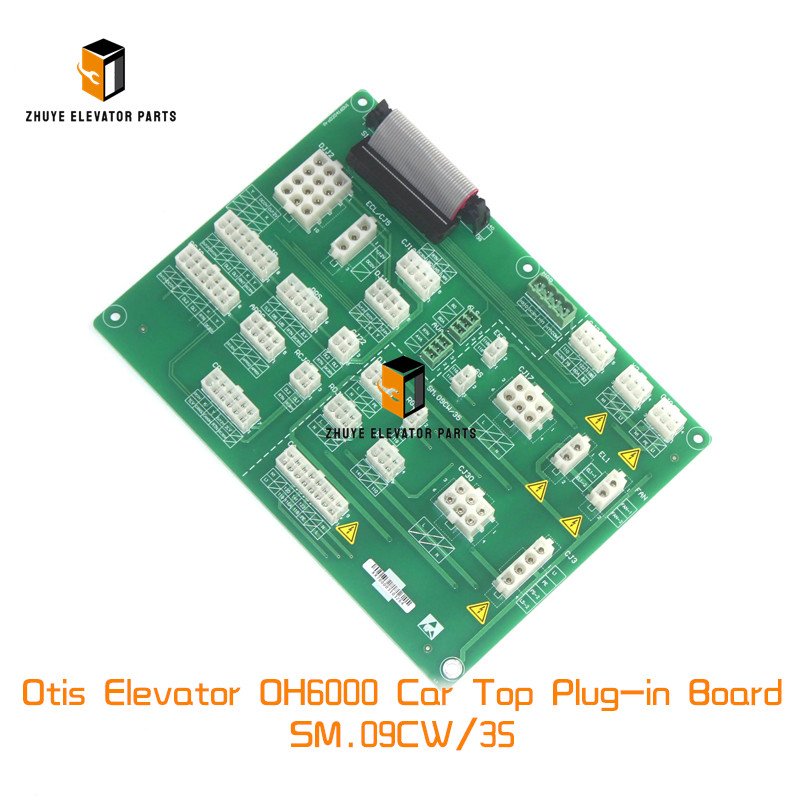

Otis Elevator OH6000 Car Top Plug-in Board SM.09CW/35: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis OH6000 Car Top Plug-in Board SM.09CW/35

1. Pre-Installation Preparation

2. Installation & Operation Steps

• Car Top Preparation:
  • Access the elevator car top and locate the designated plug-in slot on the car top control box—marked with “SM.09CW/35” or “Car Top Control Board” for easy identification.
  • Clean the slot and surrounding area to remove dust, debris, or oil—contaminants can cause poor contact or short circuits between the board and slot.
• Board Installation:
  • Align the SM.09CW/35 with the plug-in slot, ensuring the guiding notches match to prevent pin bending. Insert the board firmly until it clicks into place—do not force the board, as this can damage pins or internal components.
  • Secure the board with the provided locking clips or screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening during elevator operation.
• Wiring & Connection Verification:
  • Confirm all pre-wired connectors (from car top components: door operators, lights, emergency call buttons) are securely attached to the board’s terminals—refer to Otis’s wiring diagram for correct pin assignments.
  • Check for loose or frayed wires; repair or replace damaged cables with genuine Otis parts from Nanjing Zhuye to ensure reliable signal transmission.
• Functional Testing:
  • Restore power to the elevator and conduct a system initialization:
    • Verify the board’s LED indicator lights (typically on the front panel) illuminate correctly—steady green indicates normal operation; flashing red signals errors (refer to the diagnostic manual for code interpretation).
    • Test core functions:
      • Activate door operation (automatic and manual modes) to confirm smooth opening/closing.
      • Check car lighting, ventilation fan, and emergency call button responsiveness—ensure signals are transmitted to the main controller.
      • Trigger safety interlocks (e.g., car top guardrail switch) to confirm the board sends stop signals to the elevator system.
  • Operate the elevator through 5–10 full cycles (ascending/descending, floor stopping) to ensure stable performance without signal interruptions.

3. Routine Usage Maintenance

• Conduct monthly visual inspections: Check for loose connections, dust accumulation on the board, or damage to the car top control box. Use compressed air (low pressure) to remove dust from the board’s surface and connectors.
• Test core functions quarterly to confirm door operation, emergency call, and safety interlock signals work correctly—document results in maintenance records.
• Inspect wiring connections semi-annually for corrosion or wear; tighten terminals or replace cables as needed.
• Update the board’s firmware annually as recommended by Otis or Nanjing Zhuye to address bugs and improve compatibility with system upgrades.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Persistent error codes related to the car top control board that cannot be resolved by resetting or firmware updates.
• Intermittent malfunction of car top components (e.g., unresponsive doors, non-functional emergency call, lights failing) that persists after checking wiring.
• Physical damage: Cracked circuit board, bent pins, water intrusion, or corrosion that affects terminal contact.
• Inability to communicate with the main controller—indicated by system offline alerts or failed signal transmission.
• Frequent system reboots or crashes linked to the car top board, disrupting normal elevator operation.

3. Maintenance to Extend Service Life

• Keep the car top environment dry (humidity ≤60%) and temperature-stable (10–35°C) to prevent component corrosion and circuit damage.
• Protect the board from excessive vibration by ensuring the car top control box is securely mounted and free from loose parts.
• Avoid unauthorized modifications to the board’s firmware or wiring—such changes can cause system incompatibility or safety risks.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit boards may have inferior components or incorrect pin configurations.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All SM.09CW/35 boards are manufactured to Otis’s original specifications, ensuring seamless integration with OH6000 elevator systems and adherence to global safety standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including signal transmission accuracy, temperature resistance, vibration durability, and firmware compatibility—to guarantee reliable performance in critical car top control scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from firmware updates and wiring guidance to troubleshooting diagnostic errors, ensuring the board operates optimally with OH6000 systems.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers specialized OH6000 components promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety and operational efficiency for OH6000 elevators.
