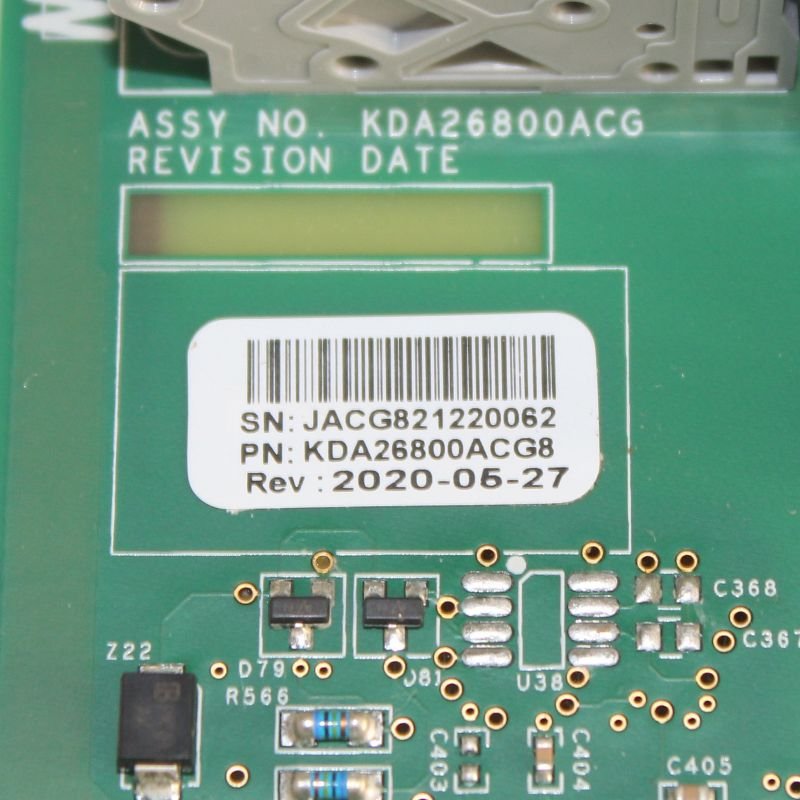

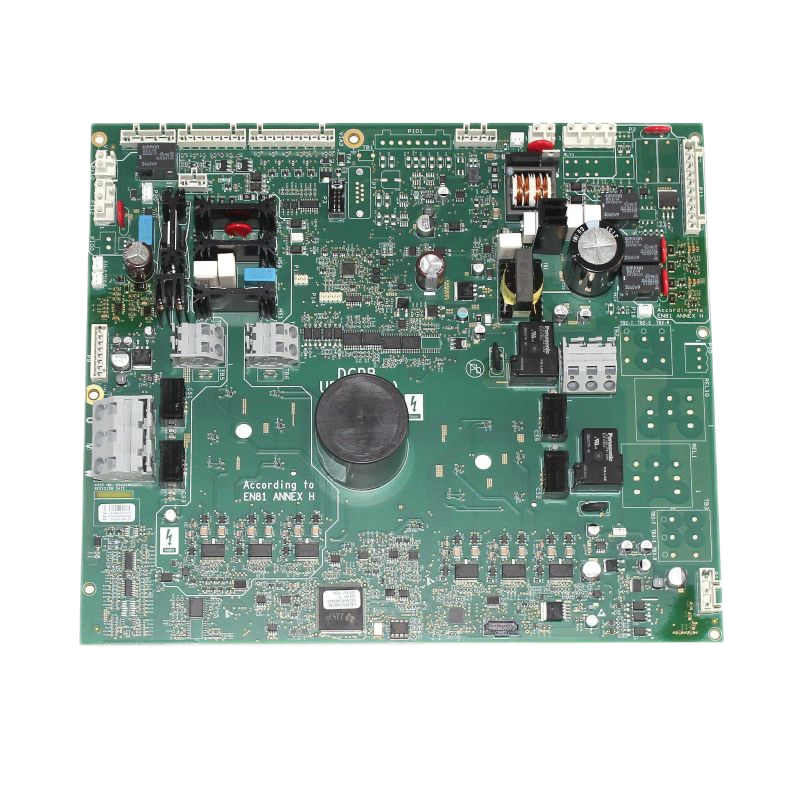

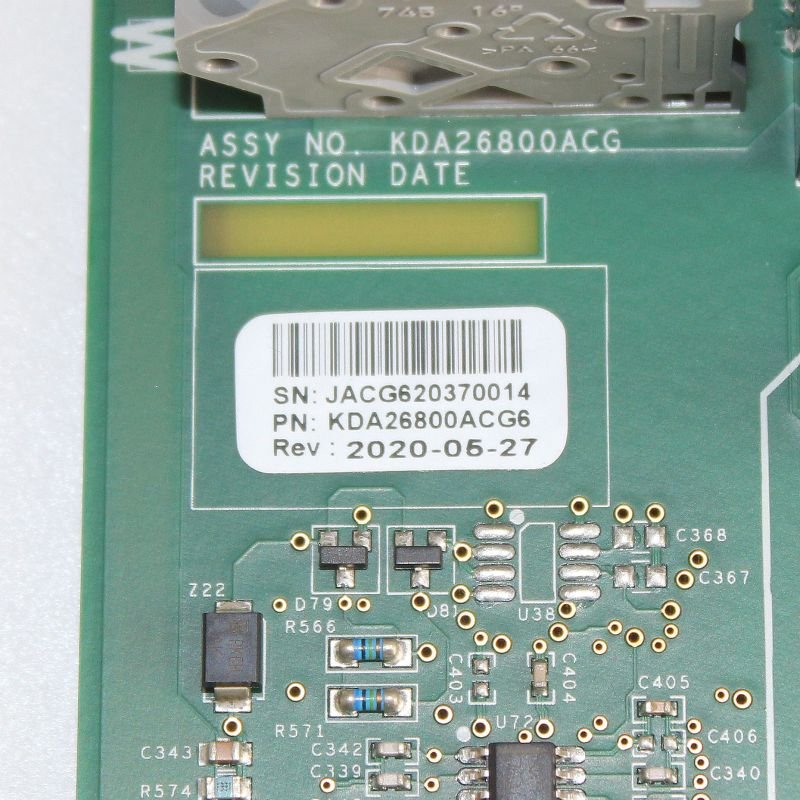

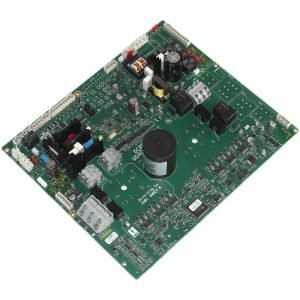

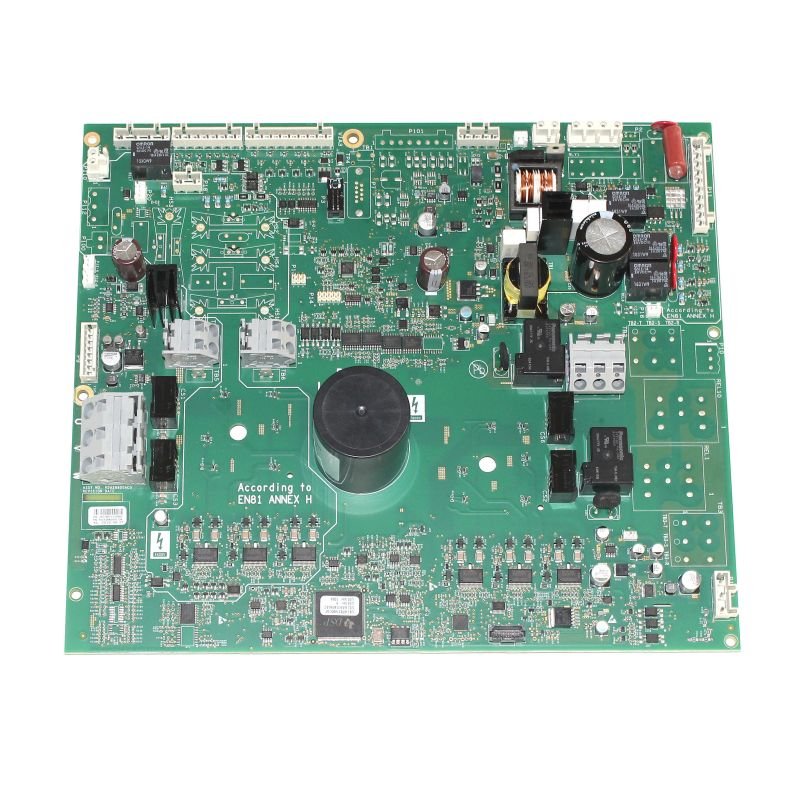

• Otis Elevator LRU-UD404 Inverter Driver Board KDA26800ACG6: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

  The Otis Elevator LRU-UD404 Inverter Driver Board KDA26800ACG6 is a mission-critical power conversion component exclusively engineered for Otis LRU-UD404 series inverters—essential for high-traffic commercial buildings, residential complexes, transit hubs, and public facilities worldwide. As the “traction motor control core” for Otis SKY, GEN2-MRL, and Series 400 elevators, this driver board converts stable DC bus voltage into variable-frequency AC power, enabling smooth acceleration/deceleration, precise floor leveling (deviation ≤±2mm), and energy-efficient operation (up to 35% energy savings compared to traditional drives). It integrates Otis’ proprietary vector control technology, high-performance IGBT (Insulated Gate Bipolar Transistor) modules, and real-time motor feedback calibration—upholding the brand’s strict standards for reliability, precision, and operational safety.
  Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61800-5-1, UL 1012, ISO 9001), the KDA26800ACG6 features a rugged, high-temperature-resistant design: anodized aluminum alloy housing for enhanced heat dissipation, conformal-coated PCB (Printed Circuit Board) to resist dust and moisture, high-voltage insulated terminals, and multi-layer protection mechanisms (overvoltage, overcurrent, short-circuit, overtemperature, ground fault, and under-voltage lockout). This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +60°C), mechanical vibration, and electrical grid instability—critical for preventing motor damage, elevator jitter, or unexpected shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the KDA26800ACG6 that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility with LRU-UD404 inverters, stable motor control, and long-term performance.

  Proper Usage Methods of Otis KDA26800ACG6 Inverter Driver Board

  1. Pre-Installation Preparation

  Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging the inverter’s DC bus capacitor (wait a minimum of 15 minutes after power-off to avoid electric shock), and securing the work area (machine room inverter cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new KDA26800ACG6 for physical damage—cracked housing, bent IGBT pins, swollen capacitors, corroded terminals, or loose solder joints—defects that can cause short circuits, IGBT burnout, or drive failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact components, functional IGBT modules, secure connections, and pre-tested power conversion performance.
  Verify compatibility with your Otis LRU-UD404 inverter model by cross-referencing the elevator’s technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s IGBT rating (voltage/current) matches the traction motor’s specifications (typically 600V/50A for LRU-UD404 systems), (2) the control signal protocol is compatible with the inverter’s main CPU board, and (3) the mounting dimensions (180x120x60mm standard) fit the inverter cabinet’s slot. Using an incompatible driver board can damage the motor, trigger persistent inverter faults, or cause erratic elevator movement. Additionally, prepare the installation area: Clean the inverter cabinet slot to remove dust and debris, ensure a minimum 10cm clearance around the board for heat dissipation, and verify the DC bus wiring and motor output cables are intact (no fraying, insulation damage, or corrosion).

  2. Installation & Configuration Steps

  • Board Installation: Align the KDA26800ACG6 with the guide rails in the inverter cabinet and slide it into place until fully seated. Secure the board with the provided stainless steel retaining screws (torque to 1.2–1.5 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or terminal blocks. Ensure all connectors (DC bus, motor output, control signals) are properly aligned with the cabinet’s terminal interfaces.
  • Wiring & Connection: Connect the DC bus cables (red = positive, black = negative) to the board’s high-voltage terminals, ensuring tight connections (torque to 2.0–2.5 Nm) to prevent arcing or overheating. Connect the motor output cables (U/V/W) to the corresponding terminals—note that cable order directly impacts motor direction (adjust only if testing confirms reverse movement). Connect the control signal cable to the inverter’s CPU board, matching pin assignments exactly per Otis’ wiring schematic (incorrect pin connections are the leading cause of post-installation faults).
  • Post-Installation Configuration & Testing: Restore power to the inverter (performed exclusively by certified Otis technicians) and configure the driver board parameters via the inverter’s keypad or Otis’ diagnostic software (e.g., OTIS Service Tool). Input critical settings: motor rated voltage/current, PWM (Pulse Width Modulation) frequency (typically 8kHz), acceleration/deceleration time (per elevator load capacity), and protection thresholds—use values from the elevator’s technical manual or backup parameter files. Conduct three mandatory tests:
    1. No-Load Test: Run the elevator without passengers to verify smooth motor operation, no abnormal noise (e.g., humming, grinding), and no inverter fault codes.
    2. Load Test: Operate the elevator with rated load (up to 100% capacity) to confirm stable speed regulation, precise floor leveling, and driver board temperature ≤75°C.
    3. Protection Function Test: Simulate an overcurrent (temporary motor short-circuit) to confirm the board triggers immediate protection and shuts down output—preventing motor or driver damage.

       Document all installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Otis’ service requirements and safety regulations.

  3. Routine Usage Maintenance

  To preserve the KDA26800ACG6’s performance and extend its lifespan, implement proactive maintenance practices tailored to high-voltage power components:
  • Daily Visual Inspections: Check the driver board for loose wiring, physical damage, or signs of overheating (discoloration of PCB, burning odors, or hot IGBT modules). Verify the inverter’s status display shows no active fault codes.
  • Weekly Heat Dissipation Check: Clean dust from the board’s heat sink and inverter cabinet using a soft brush or low-pressure compressed air—dust buildup blocks heat dissipation and accelerates IGBT degradation. Ensure cabinet cooling fans (if equipped) are functioning and free of debris.
  • Monthly Parameter Verification: Use diagnostic software to review driver board parameters—confirm no unintended changes (e.g., due to electrical interference) and back up settings to a secure location.
  • Quarterly Connection Inspections: Tighten DC bus and motor terminal screws (vibration can loosen connections over time). Inspect control signal cables for fraying or insulation damage; replace with genuine Otis cables from Nanjing Zhuye if needed.
  • Semi-Annual IGBT Health Check: Use a multimeter to test IGBT module continuity and insulation resistance—replace the driver board if modules show signs of degradation (e.g., increased leakage current, inconsistent resistance readings).

  Recommended Replacement Cycle

  The service life of the Otis LRU-UD404 Inverter Driver Board KDA26800ACG6 depends on usage intensity (daily operating hours, load frequency), environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

  1. Standard Replacement Cycle

  Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -10°C to +60°C), the KDA26800ACG6 should be replaced every 7–9 years. This timeframe aligns with the typical lifespan of IGBT modules and capacitors in high-voltage inverter applications, ensuring proactive replacement before component degradation leads to unexpected failures.

  2. Signs That Require Immediate Replacement

  Replace the driver board immediately if:
  • Drive Failures: The inverter displays persistent fault codes (e.g., “IGBT Overheat,” “Overcurrent,” “Motor Feedback Loss”) that cannot be resolved by parameter adjustment or wiring checks.
  • Motor Malfunctions: The traction motor runs erratically, jitters, or fails to start—indicating unstable power output from the driver board.
  • Electrical Damage: Burned terminals, melted wires, or visible IGBT module damage—signaling short circuits or overload.
  • Performance Degradation: Elevator acceleration/deceleration becomes rough, leveling accuracy decreases (>±5mm), or driver board temperature exceeds 85°C during operation.
  • Safety Compromise: The board fails to trigger protection functions, risking motor burnout or elevator instability—violating EN 81/ASME safety standards.

  3. Maintenance to Extend Service Life

  • Environmental Control: Maintain the machine room at 10°C–45°C with humidity <80%—extreme temperatures or moisture accelerate component aging. Install additional ventilation if the cabinet is enclosed.
  • Power Stabilization: Install external surge protectors and voltage regulators in the main power circuit to shield the driver board from grid spikes and fluctuations.
  • IGBT Care: Avoid frequent full-load starts/stops—optimize acceleration/deceleration parameters (per Otis recommendations) to reduce thermal stress on IGBT modules.
  • Genuine Parts Only: Use exclusively authentic Otis KDA26800ACG6 driver boards from Nanjing Zhuye. Counterfeit units use inferior IGBT modules, lack proper protection mechanisms, and risk catastrophic elevator failure.

  Why Choose Nanjing Zhuye Elevator Parts for Otis KDA26800ACG6?

  When sourcing a critical component like the Otis LRU-UD404 inverter driver board, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:
  • Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with LRU-UD404 inverters and Otis SKY/GEN2-MRL/Series 400 elevators—eliminating compatibility risks.
  • Strict Quality Assurance: Each driver board undergoes rigorous testing (IGBT performance, power conversion efficiency, protection function reliability) to meet Otis’ original manufacturing standards.
  • Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, troubleshooting, and maintenance—even for complex inverter systems.
  • Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where inverter failures disrupt operation and passenger safety.
  • Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

  Conclusion

  The Otis LRU-UD404 Inverter Driver Board KDA26800ACG6 is a foundational power conversion component that defines elevator performance, efficiency, and safety. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Otis elevators downtime-free, compliant with global safety standards, and optimized for energy efficiency. Whether you need a single replacement driver board, technical support for inverter upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium Otis components and tailored professional services. Invest in the reliability and performance of your Otis elevators—choose Nanjing Zhuye Elevator Parts for your KDA26800ACG6 inverter driver board requirements.

•
