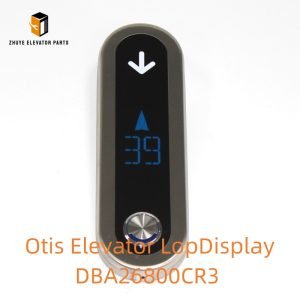

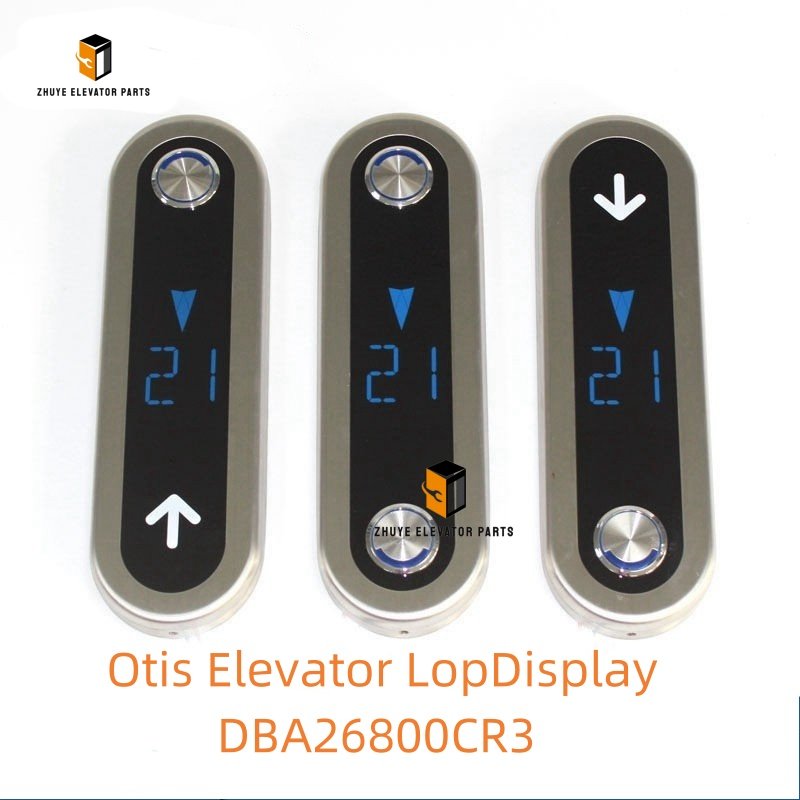

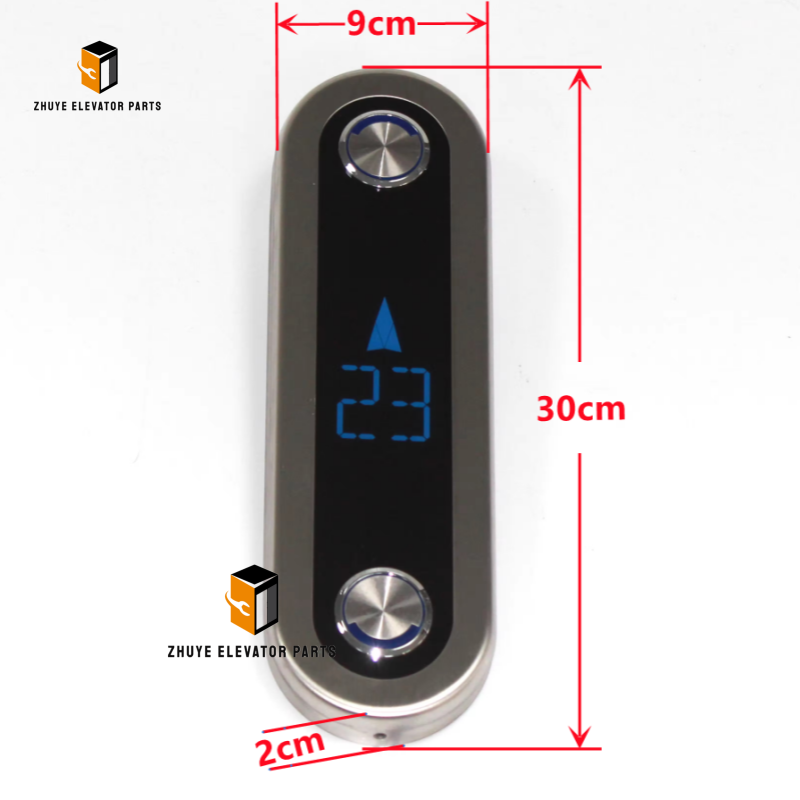

Otis Elevator LOP Display DBA26800CR3: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator LOP Display DBA26800CR3

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Mounting the LOP Display:
  • Locate the designated installation position in the elevator lobby wall—per accessibility standards, the panel must be mounted at a height of 90–120cm above the floor (reachable by wheelchair users) and positioned to avoid obstructions. Ensure the wall surface is flat, rigid, and capable of supporting the display’s weight.
  • Remove the existing LOP panel (if replacing) by unscrewing the retaining screws from the front or rear. Align the DBA26800CR3 with the wall cutout, ensuring the buttons and status indicators are clearly visible and easily accessible. Secure the display using the provided anti-vibration screws (torque to 0.5–0.8 Nm) to prevent movement and protect internal components.
• Wiring Connection:
  • Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the display to the elevator’s main controller and power supply:
    • Connect the power wires (positive/negative) to the designated terminals—incorrect polarity can damage the LED modules or button circuitry.
    • Attach the communication wires to enable call signal transmission (up/down requests) and status data reception (elevator position, direction, fault alerts).
    • Secure all connections with terminal blocks and route wiring neatly through the wall conduit to avoid damage or signal interference.
• Functionality Configuration:
  • Restore power to the elevator and confirm the display initializes correctly (LEDs illuminate briefly during startup). Access the configuration menu via Otis-approved diagnostic software (by certified technicians):
    • Set display parameters: LED brightness (adjust for lobby lighting conditions), call button response time (extended to 3–5 seconds for accessibility), and fault notification duration.
    • Sync with the main controller: Verify that call requests are transmitted instantly, and elevator status indicators (floor numbers, direction arrows) update in real time.
• Functional Testing:
  • Validate all LOP display functions:
    • Test call buttons: Press up/down buttons to confirm they illuminate (feedback for users) and send signals to the elevator controller.
    • Verify status visualization: Operate the elevator to ensure floor position, direction, and “in use” indicators update accurately.
    • Simulate a fault condition (e.g., elevator out of service) to confirm the fault notification light activates clearly.
  • Document test results to demonstrate compliance with safety and accessibility standards.

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for loose mounting, damaged housing, non-illuminated LEDs, or debris on the button surfaces. Clean the display with a soft, lint-free cloth—avoid harsh chemicals or abrasive materials that can scratch the surface or damage buttons.
• Test functionality monthly: Verify all call buttons are responsive, LEDs are bright and uniform, and status indicators sync correctly with elevator operations. Document any dim or non-functional components for repair.
• Inspect wiring connections quarterly for corrosion, wear, or looseness; tighten terminals or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
• Check the display’s weather resistance (if installed in semi-outdoor lobbies) semi-annually to ensure the housing seal remains intact—replace the unit if water intrusion is detected.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Usability failures: Unresponsive call buttons, dim/flickering LEDs, or missing status indicators that impair user interaction (more than 20% of buttons or LEDs non-functional).
• Physical damage: Cracked housing, broken buttons, or damaged tactile markers that cannot be repaired.
• Signal transmission errors: Call requests not reaching the elevator controller, or status indicators displaying incorrect information (e.g., elevator position mismatch).
• Accessibility non-compliance: Buttons become too stiff for easy operation, or LEDs dim to the point of being unreadable by low-vision users.
• Corrosion or water damage: Rust on terminals or internal component failure due to moisture—common in high-humidity or semi-outdoor environments.

3. Maintenance to Extend Service Life

• Protect the display from physical damage: Install a protective cover (if not factory-equipped) in high-traffic lobbies to shield buttons and housing from impacts or vandalism.
• Maintain the lobby environment at a stable temperature (10–35°C) and low humidity (30–60%) to prevent button degradation and LED failure.
• Avoid overloading the buttons with excessive force—educate building occupants on gentle use to reduce wear.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit displays may lack proper accessibility features, incorrect button spacing, or compatibility issues with Otis systems.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compliance: All DBA26800CR3 displays are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevators and adherence to global safety/accessibility standards (ADA, EN 81).
• Strict Quality Assurance: Each unit undergoes comprehensive testing—including button responsiveness, LED brightness uniformity, signal transmission accuracy, and environmental durability—to guarantee usability and reliability in high-traffic lobbies.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and accessibility configuration to troubleshooting button or LED failures.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers user-centric LOP displays promptly worldwide, minimizing downtime during replacement while maintaining compliance.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you meet accessibility obligations while managing maintenance budgets.
