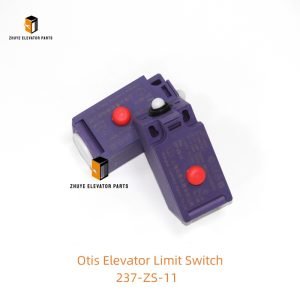

Otis Elevator Limit Switch 237-ZS-11: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Limit Switch 237-ZS-11

1. Pre-Installation Preparation

2. Installation & Adjustment Steps

• Removal of Old Switch:
  • Access the limit switch mounting location (top/bottom of the hoistway, adjacent to the elevator car guide rails). Disconnect the electrical wires from the old switch (mark wires to ensure correct reconnection—typically “NO” for normally open, “NC” for normally closed, and “COM” for common).
  • Use a torque wrench to remove the mounting bolts securing the old switch to the hoistway bracket. Remove the old switch and clean the mounting surface with a wire brush to eliminate dust, debris, or rust—contaminants that can affect switch alignment.
• Installation of New Switch:
  • Align the 237-ZS-11 with the hoistway bracket’s mounting holes, ensuring the roller actuator faces the elevator car’s striking plate (a metal tab on the car frame that triggers the switch). The switch must be positioned so the actuator is fully depressed when the car reaches the overtravel limit (typically 50–100mm before the mechanical stop).
  • Secure the switch with the provided high-strength bolts (torque to 4–6 Nm) to prevent vibration-induced loosening. Reconnect the electrical wires to the corresponding terminals, matching the marked connections to avoid polarity errors. Route wires through protective conduits to prevent damage from moving parts.
• Functional Adjustment & Testing:
  • Manually move the elevator car (using maintenance mode) to fine-tune the switch’s position:
    • When the car’s striking plate contacts the roller actuator, the switch should toggle crisply, cutting power to the traction motor and engaging the emergency brake.
    • Adjust the switch’s horizontal/vertical position using slotted mounting holes to ensure activation at the exact overtravel limit specified by Otis.
  • Conduct mandatory safety tests (by certified technicians only):
    • Continuity Test: Use a multimeter to verify electrical continuity when the switch is activated (actuator depressed) and no continuity when deactivated (actuator released).
    • Over travel Test: Operate the elevator in maintenance mode toward the top/bottom limits to confirm the switch triggers at the correct position, halting the car immediately.
    • Fault Simulation Test: Disconnect the switch to confirm the elevator enters a safe mode (e.g., displays an error code, refuses to operate beyond normal limits) as required by safety standards.
  • Document test results in the elevator’s maintenance records to demonstrate compliance.

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for loose mounting bolts, damaged roller actuators, or debris blocking the actuator’s movement. Remove dust or oil from the switch housing with a dry cloth—avoid lubricants, as they can attract dust and impair functionality.
• Test electrical continuity monthly: Use a multimeter to verify the switch’s contacts toggle reliably between open and closed positions—replace the switch if continuity is intermittent or non-existent.
• Inspect the striking plate and actuator semi-annually: Check for wear or misalignment on the car’s striking plate; adjust or replace if it no longer makes full contact with the switch’s roller.
• Lubricate the roller actuator’s bearing annually with Otis-approved lubricant to ensure smooth rotation—avoid over-lubrication, as excess grease can interfere with contact toggling.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Intermittent or no electrical continuity, even after cleaning or adjustment.
• Failure to trigger: Elevator does not halt when reaching the overtravel limit (switch contacts stuck open).
• False tripping: Switch triggers unexpectedly during normal operation (contacts stuck closed), causing unnecessary downtime.
• Physical damage: Broken roller actuator, cracked housing, or corroded terminals that cannot be repaired.
• Abnormal resistance readings: Multimeter tests show inconsistent or excessively high resistance in the switch contacts (≥5Ω).

3. Maintenance to Extend Service Life

• Maintain the hoistway at a stable temperature (10–35°C) and low humidity (≤60%) to prevent corrosion of contacts and housing.
• Keep the hoistway clean and free from dust, debris, or foreign objects that can jam the roller actuator or damage the switch.
• Avoid subjecting the switch to excessive impact (e.g., from misaligned striking plates), as this accelerates actuator and contact wear.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit switches may have inferior materials, incorrect dimensions, or compatibility issues with Otis systems.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All 237-ZS-11 switches are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevator systems and adherence to global safety standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including contact continuity verification, actuator durability, corrosion resistance, and impact resistance—to guarantee reliable fail-safe operation in critical overtravel scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and continuity testing to troubleshooting overtravel protection issues specific to Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers safety-critical components promptly worldwide, minimizing elevator downtime during replacement while ensuring compliance.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs for Otis elevators.
