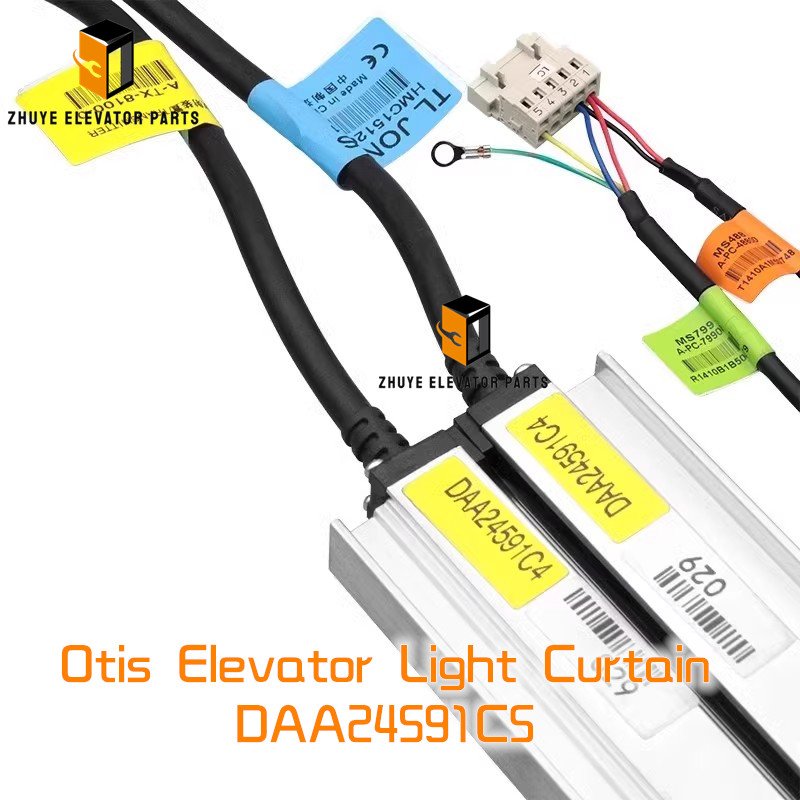

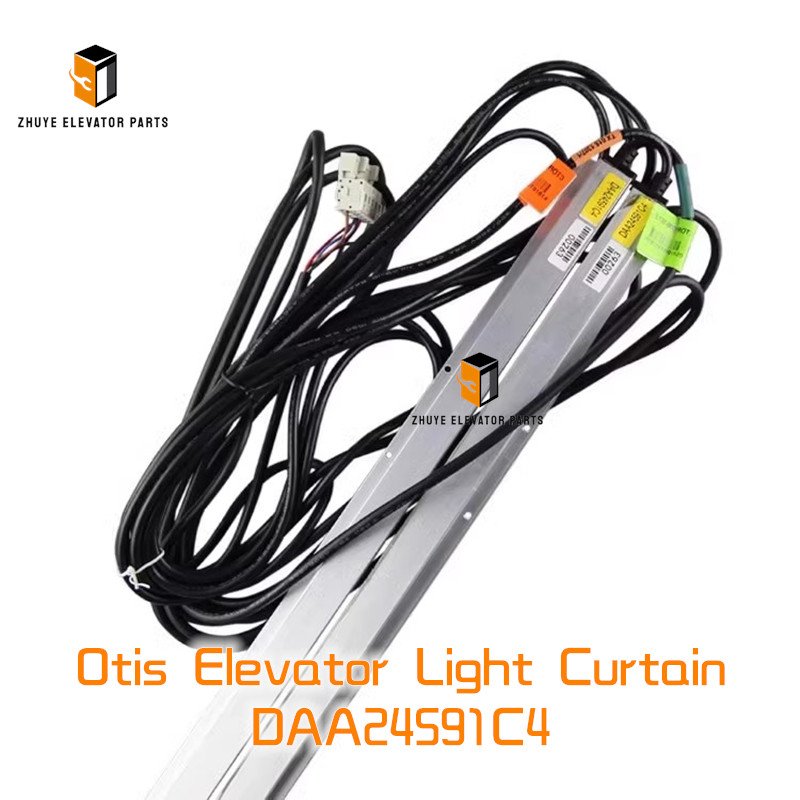

Otis Elevator Light Curtain DAA24591C4: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Light Curtain DAA24591C4

1. Pre-Installation Preparation

2. Installation & Operation Steps

• Mounting the Transmitter & Receiver:
  • Locate the designated installation positions on the elevator door jambs—one side for the transmitter (emits infrared beams) and the opposite side for the receiver (detects beams). Mount the units vertically, using a level tool to ensure perfect alignment—misalignment will break the beam grid and cause constant false triggers.
  • Secure the brackets with the provided screws (torque to 0.8–1.2 Nm) and attach the transmitter/receiver to the brackets. Maintain a minimum 5cm clearance from door edges, moving parts, and reflective surfaces (to avoid beam interference) to prevent mechanical damage or signal distortion.

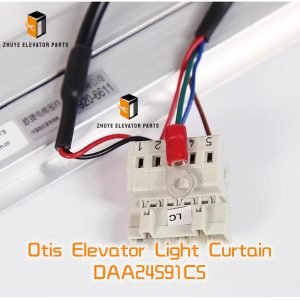

• Wiring Connection:
  • Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the light curtain to the elevator’s door control system and power supply:
    • Connect the power wires (positive/negative) to the designated terminals, ensuring correct polarity to avoid component burnout.
    • Attach the signal wires to the door controller—these wires transmit obstacle detection signals to trigger immediate door reversal (response time ≤0.2 seconds, per safety standards).
    • Use cable glands to secure wiring entries, preventing dust, moisture, or debris from entering the transmitter/receiver housings. Route cables away from high-voltage lines and motor components to minimize electromagnetic interference (EMI).
• Calibration & Functional Testing:
  • Power on the elevator and initiate the light curtain’s self-calibration mode (refer to the user manual for specific steps). The system will automatically align beams, compensate for minor misalignment, and set optimal detection sensitivity.
  • Conduct a comprehensive detection test:
    • Wave a hand, soft object (e.g., a towel), or narrow item (e.g., a pen) across the entire door opening (top to bottom, left to right) to verify immediate door reversal at all points—critical for child safety and small object detection.
    • Test with the elevator doors in motion: Activate door closing and place an obstacle in the path to confirm the doors reverse smoothly without hesitation.
    • Check for false triggers by running the doors without obstacles—ensure the light curtain does not interfere with normal operation.
  • Verify the LED status indicators: Steady green indicates normal operation; flashing red signals beam misalignment, faults, or power issues (refer to the manual for troubleshooting).

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for dirt, dust, smudges, or debris on the transmitter/receiver lenses (clean with a soft, lint-free cloth if needed) and ensure mounting brackets are secure. Lens contamination is the most common cause of false triggers or detection failures.
• Test the detection function monthly by simulating obstacle scenarios—document results in maintenance records to demonstrate compliance with safety regulations.
• Inspect wiring connections quarterly for looseness, corrosion, or damage; tighten terminals or replace cables as needed to maintain reliable signal transmission.
• Keep the elevator door area free from excessive dust, moisture, oil, or cleaning chemicals—these can degrade lenses, corrode terminals, or interfere with beam transmission.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Failed or inconsistent obstacle detection (e.g., doors do not reverse when obstacles are present) that persists after cleaning lenses, recalibrating, and checking wiring.
• Frequent false triggers (doors reverse without obstacles) that disrupt normal operation, even after adjusting alignment or shielding reflective surfaces.
• Physical damage: Cracked casings, scratched lenses (beyond repair), water intrusion into the transmitter/receiver, or bent mounting brackets that cannot be realigned.
• Dim or non-functional LED indicators, indicating internal component failure or power issues that cannot be resolved.
• Inability to integrate with elevator system upgrades—older models may lack compatibility with new door control modules or remote monitoring systems.

3. Maintenance to Extend Service Life

• Maintain elevator cab humidity between 30–60% and temperature between 10–35°C to prevent lens fogging, electronic component corrosion, and LED degradation.
• Apply a protective film (optional) to the lenses to reduce scratch risk from accidental contact with bags, keys, or cleaning tools.
• Avoid using harsh chemicals (e.g., ammonia-based cleaners) or abrasive materials on the lenses—use only water or mild detergent if necessary, and dry immediately.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit components can compromise detection accuracy, safety compliance, and void Otis’s warranty.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compliance: All DAA24591C4 light curtains are manufactured to Otis’s original specifications, ensuring seamless compatibility with Otis elevator systems and adherence to global safety standards (EN 81-70, ASME A17.1, ISO 13849).
• Strict Quality Assurance: Each unit undergoes rigorous testing—including detection range verification, obstacle sensitivity checks, environmental durability simulations (temperature, humidity), and false trigger resistance—to guarantee reliable performance in critical safety scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and calibration to troubleshooting false triggers or signal issues, ensuring the light curtain operates optimally.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly worldwide, minimizing downtime during replacement and keeping your elevators compliant.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs.
