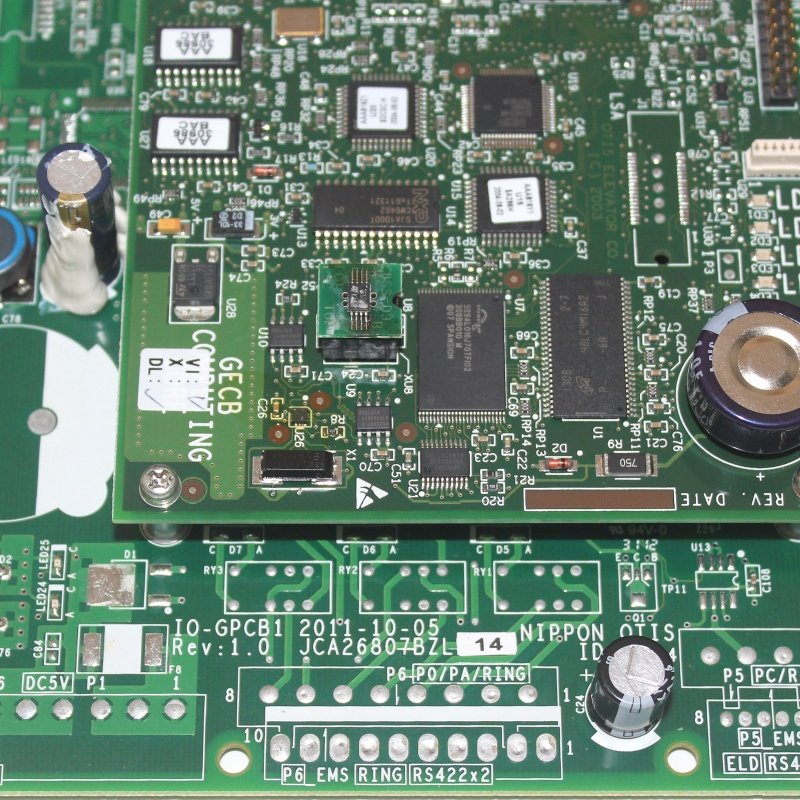

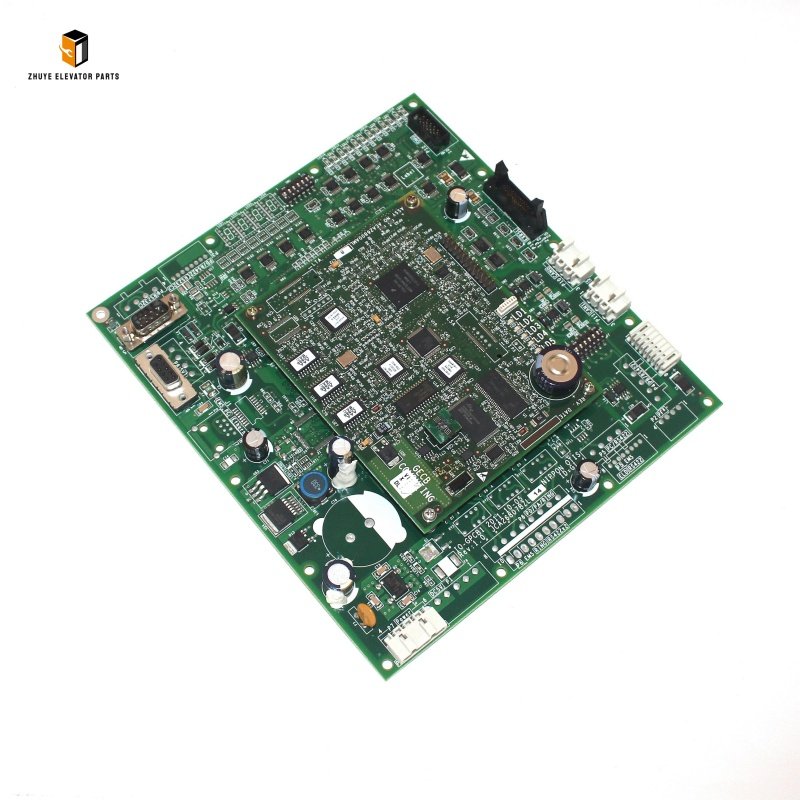

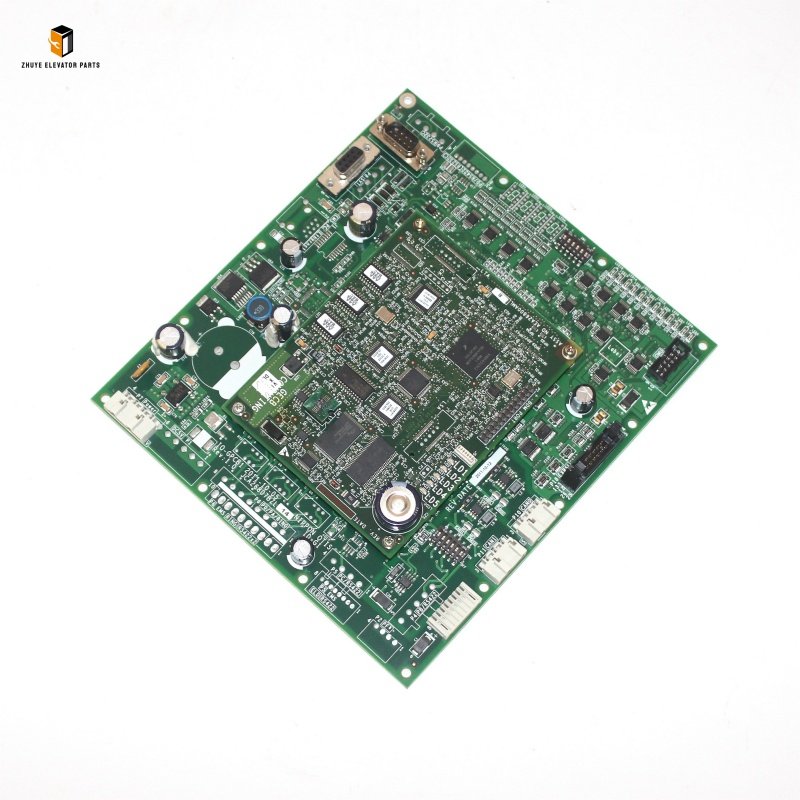

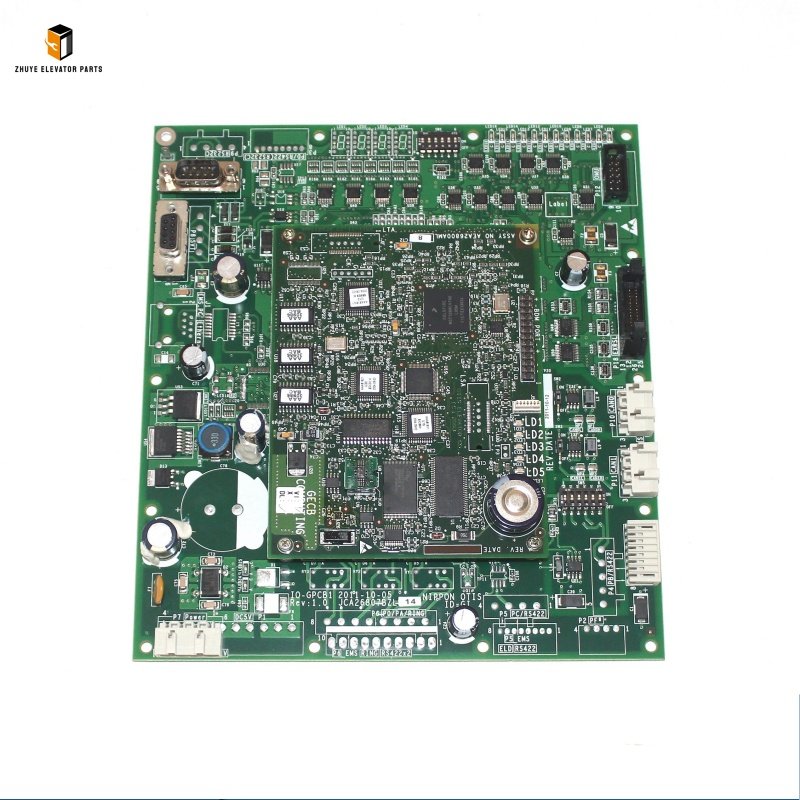

Otis Elevator IO-GPCB1 Motherboard JCA26807BZL14/15: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator IO-GPCB1 Motherboard JCA26807BZL14/15

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the Otis elevator control cabinet and locate the designated mounting slot for the IO-GPCB1 motherboard. Disconnect the old board (if replacing) by releasing the locking latches and disconnecting power, signal, and communication cables—label all cables clearly to avoid cross-connection errors. Clean the mounting slot and backplane connector to remove dust or debris that could interfere with electrical contact.
  • Align the JCA26807BZL14/15 with the cabinet’s guide rails and backplane connector. Insert the board firmly until it locks into place, ensuring proper seating to establish reliable electrical connections. Secure the board with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening. Reconnect the cables to the corresponding terminals: power wires to the 24V DC input, subsystem signal wires to labeled I/O ports, and communication cables to the Otis main controller.
• Configuration Setup:
  • Power on the control cabinet and confirm the motherboard initializes correctly (status LED illuminates green, and the main controller recognizes the board). Access the configuration menu via Otis-approved diagnostic software (e.g., Otis Service Tool) by certified technicians:
    • Parameter Restoration: If replacing an existing IO-GPCB1 board, restore Otis-specific parameters (e.g., subsystem addresses, signal threshold settings, safety interlock logic) from a backup (saved from the old board) to maintain operational consistency. Alternatively, load default parameters for your Otis model (provided by Nanjing Zhuye or Otis).
    • I/O Port Mapping: Configure I/O ports to match connected subsystems (e.g., assign door operator signals to Port 1, safety interlock signals to Port 2) as specified in Otis’s wiring diagram.
    • Communication Sync: Verify data exchange between the motherboard and main controller—ensure signals are transmitted/received without delay (≤10ms response time) to meet Otis’s performance standards.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Signal Transmission Test: Trigger actions from each connected subsystem (e.g., open doors, activate emergency stop) and confirm the motherboard relays signals to the main controller accurately, with no signal distortion or loss.
    • Fault Simulation Test: Simulate subsystem disconnections or signal interference to verify the board logs error codes correctly and activates fail-safe modes (e.g., elevator stop, alarm) as required by Otis’s safety protocols.
    • Subsystem Integration Test: Operate the elevator through full cycles to ensure all subsystems (doors, display, weighing) work in sync—no delays or miscommunications should occur between the motherboard and main controller.
  • Document test results in maintenance records, noting the specific JCA26807BZL variant installed.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or damaged I/O ports. Remove dust with compressed air—avoid water or chemical cleaning agents that can damage components or corrode gold-plated ports.
• Monthly Diagnostic Scans: Use Otis diagnostic software to monitor signal transmission rates, error logs, and subsystem connectivity. Address minor issues (e.g., intermittent signal loss) promptly to prevent major system failures.
• Quarterly Cable Inspections: Inspect power, signal, and communication cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye—poor cable quality is a leading cause of signal errors in Otis systems.
• Semi-Annual Firmware Updates: Update the motherboard’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance I/O processing speed, fix software bugs, and improve compatibility with Otis system upgrades.
• Annual Backplane & Connector Checks: Inspect the control cabinet’s backplane connector for corrosion, wear, or bent pins—clean or replace the connector if necessary to ensure reliable electrical contact with the motherboard.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Communication Failures: Persistent subsystem disconnections, delayed signal transmission, or inability to send/receive commands—despite cable checks and configuration resets, indicating hardware failure or protocol mismatches.
• Error Log Anomalies: Frequent, unresolvable signal error codes (e.g., “I/O Port Fault,” “Data Corruption”) that appear after firmware updates and troubleshooting, specific to Otis’s error coding system.
• Physical Damage: Cracked circuit board, burned components, water intrusion, or irreparable I/O port damage—compromising electrical safety and signal reliability.
• Performance Degradation: Significant increases in signal transmission latency (≥50ms), or intermittent system crashes linked to the motherboard in Otis elevators.
• Compatibility Issues: Inability to integrate with Otis system upgrades (e.g., new safety sensors, enhanced display features) due to outdated hardware or firmware.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from voltage spikes or sags—common causes of circuit board and capacitor damage in Otis elevators.
• Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Avoid exposure to dust, water, or extreme temperatures that can degrade Otis’s precision components.
• Protect Cables & Connectors: Route signal cables away from high-voltage power lines (minimum distance of 30cm) to avoid electromagnetic interference. Use cable management tools to prevent bending or stretching of cables connected to I/O ports.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis components from Nanjing Zhuye. Counterfeit boards lack Otis’s quality control, firmware compatibility, and signal processing validation—compromising system performance and safety in Otis elevators.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Otis Compatibility: All JCA26807BZL14/15 units are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevator systems and compliance with global safety/electronic standards.
• Strict Otis-Specific Quality Assurance: Each unit undergoes rigorous testing—including signal transmission accuracy, I/O port reliability, communication protocol validation, and thermal resistance—to guarantee reliable operation in critical control scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Otis elevator systems, providing 24/7 assistance for installation, configuration, and troubleshooting board-specific issues (e.g., signal errors, firmware updates) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers motherboards promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Otis’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Otis elevator components.

Conclusion
