Description

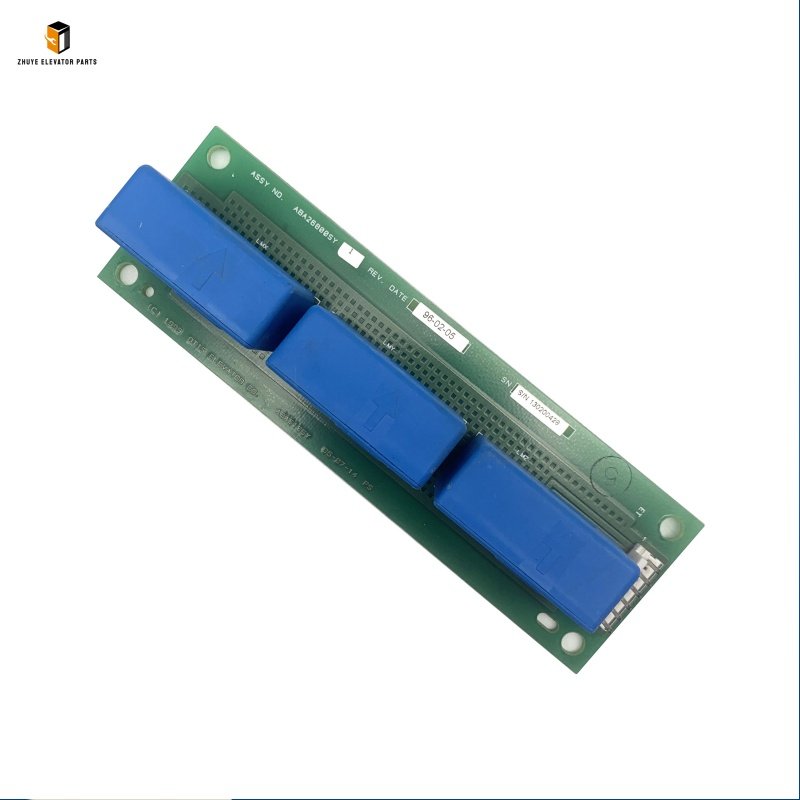

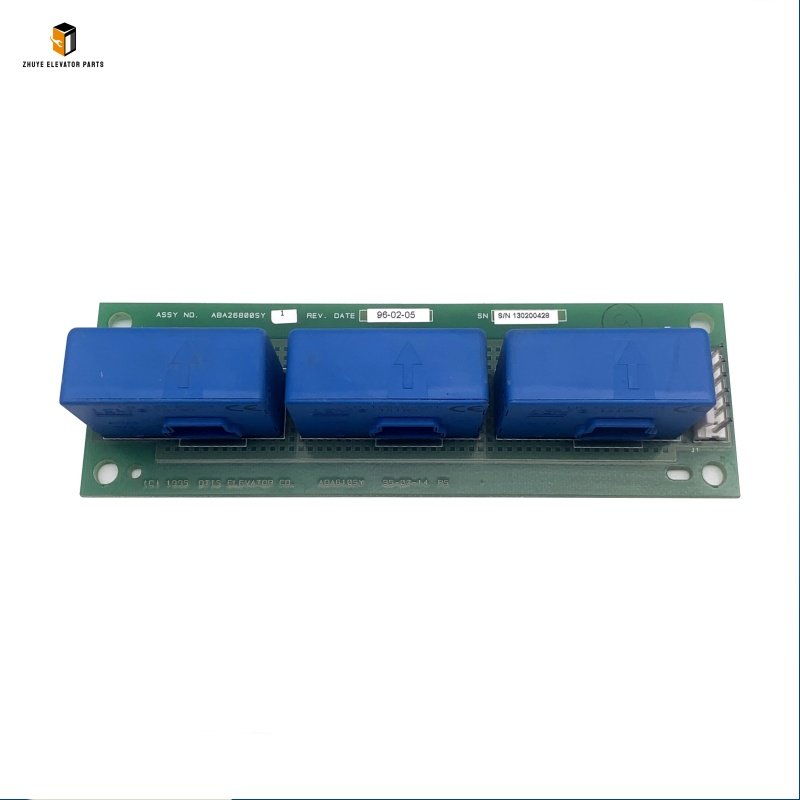

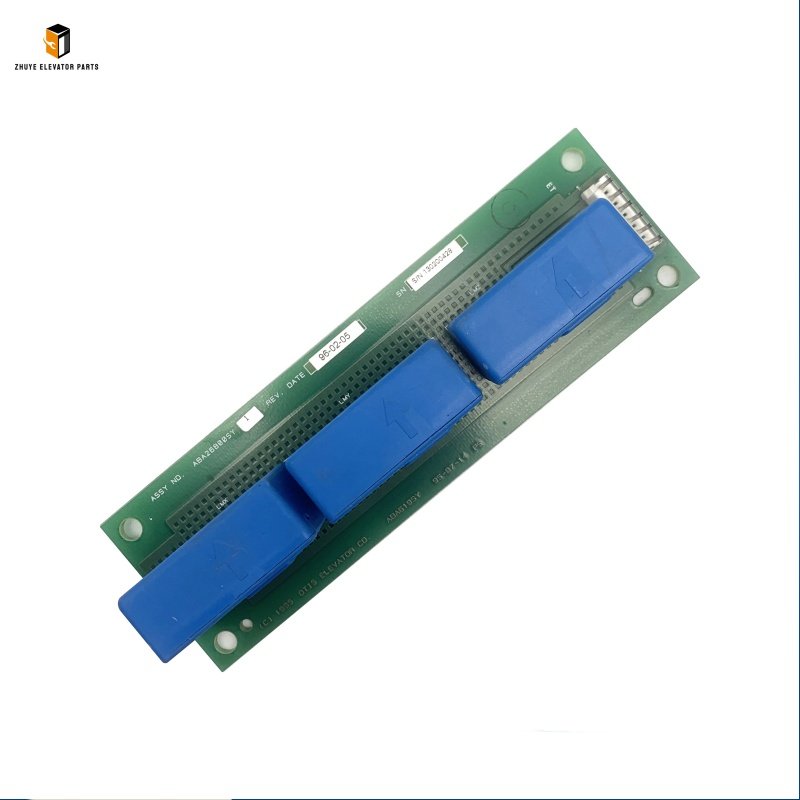

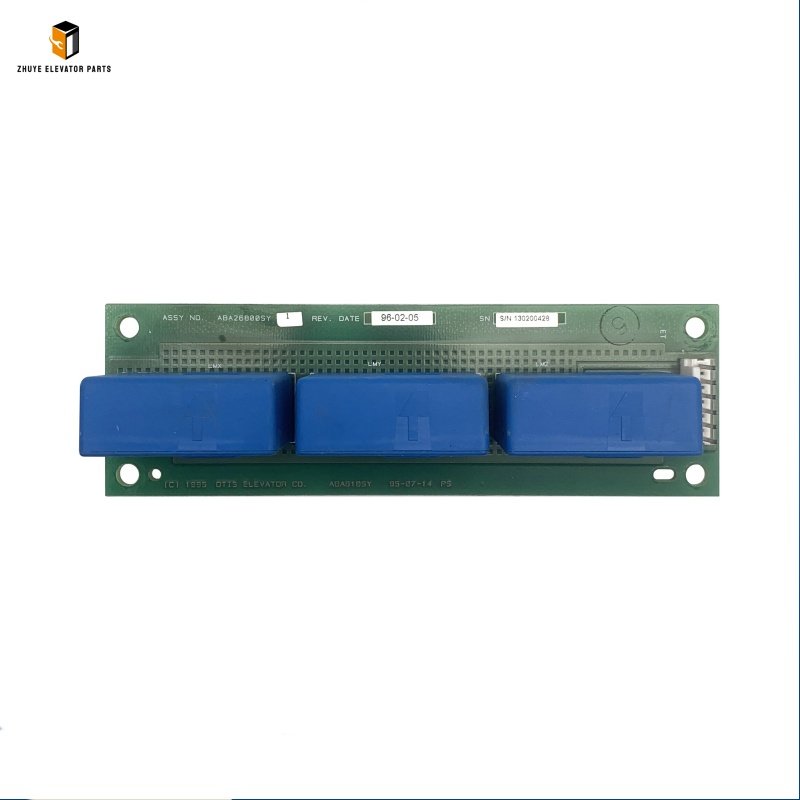

Otis elevator inverter transformer board ABA26800SY1 Brief Introduction
|
Product Name |
Otis elevator inverter transformer board |
| Model Number | ABA26800SY1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator Inverter Transformer Board ABA26800SY1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Otis Elevator Inverter Transformer Board ABA26800SY1 is a critical power conversion component exclusively engineered for Otis’ inverter-driven elevator systems—including Gen2 Infinity, SkyRise, and Compass 360 series—essential for commercial high-rises, luxury residential complexes, transit hubs, and heavy-traffic public facilities worldwide. As the “power conversion backbone” of the elevator’s inverter system, this board integrates a high-efficiency transformer, precision rectifiers, and voltage regulators to convert three-phase AC input into stable DC power for the inverter module, while supplying regulated low-voltage power to control circuits and safety subsystems. It upholds Otis’ rigorous standards for power stability (voltage ripple ≤±2%), energy efficiency (≥95% conversion rate), and operational safety, ensuring seamless coordination with the elevator’s traction control system.
Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61558, UL 1097, ISO 9001), the ABA26800SY1 features an industrial-grade rugged design: a flame-retardant epoxy housing (UL94 V0 rating), multi-layer PCB with conformal coating (resisting dust, moisture, and electromagnetic interference), high-temperature-resistant transformer windings (Class F insulation), and built-in protection against overvoltage, overcurrent, short circuits, and thermal overload. This robust construction enables reliable 24/7 operation in machine room environments, enduring temperature fluctuations (-10°C to +60°C), mechanical vibration, and electrical grid instability—critical for preventing inverter failures, power supply interruptions, or unexpected elevator shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the ABA26800SY1 that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility, stable power conversion, and long-term reliability.
Proper Usage Methods of Otis ABA26800SY1 Inverter Transformer Board
1. Pre-Installation Preparation
Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, discharging the DC bus capacitors (wait a minimum of 30 minutes after power-off to avoid electric shock), and securing the work area (machine room control cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new ABA26800SY1 for physical damage—cracked PCB traces, bent power terminals, swollen capacitors, burned transformer windings, or loose solder joints—defects that can cause electrical faults, power surges, or fire hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact transformer coils, functional rectifiers, secure wiring connections, and factory-tested voltage regulation performance.
Verify compatibility with your Otis elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s power rating (15kW) matches the inverter system’s power requirements, (2) the mounting dimensions (220x180x80mm) fit the control cabinet’s dedicated slot, and (3) the input/output voltage specifications (380V AC three-phase input, 540V DC output for inverter, 24V DC/110V DC for control circuits) are compatible with the elevator’s subsystems. Using an incompatible transformer board can result in insufficient power supply, inverter malfunctions, or damage to sensitive control components. Additionally, prepare the installation area: Clean the control cabinet to remove dust and debris, ensure a minimum 15cm clearance around the board for heat dissipation, and document the wiring layout of the old board (or reference Otis’ wiring schematic) to avoid connection errors.
2. Installation & Configuration Steps
- Board Installation: Align the ABA26800SY1 with the mounting brackets in the control cabinet, ensuring the terminal block faces outward for easy wiring access. Secure the board with corrosion-resistant screws (torque to 1.2–1.5 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or transformer windings. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to reduce electromagnetic interference and ensure electrical safety.
- Wiring & Connection: Follow Otis’ wiring schematic to connect power and control cables. Connect three-phase AC input cables (L1/L2/L3) to the board’s main power terminals, ensuring correct phase sequence. Connect the DC output cable (positive/negative) to the inverter module, and low-voltage DC cables (24V/110V) to the corresponding control circuits and safety subsystems. Tighten power terminals to 3.0–3.5 Nm using a torque wrench (prevents arcing or voltage drop in high-current scenarios) and control terminals to 1.0–1.2 Nm. Use crimped cable lugs for stranded wires to enhance contact reliability.
- Function Testing: Restore power to the elevator (performed exclusively by certified Otis technicians) and conduct comprehensive functional tests:
- Voltage Output Test: Use a multimeter to verify DC output voltages (540V ±5V for inverter, 24V ±0.5V/110V ±2V for control circuits) are within Otis’ specified ranges—unstable voltage indicates a faulty regulator.
- Load Test: Operate the elevator with 50%, 100%, and 110% of rated load to confirm consistent power supply to the inverter and control systems—no voltage drops or overload protection triggers.
- Protection Function Test: Simulate overvoltage/overcurrent conditions (via diagnostic software) to ensure the board activates protective shutdowns without damaging connected components—confirming compliance with EN 81-50 safety standards.
Document installation details, voltage test results, and wiring checks in maintenance records to demonstrate compliance.
3. Routine Usage Maintenance
To preserve the ABA26800SY1’s performance and extend its lifespan, implement proactive maintenance practices tailored to power conversion components:
- Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discolored housing, burning odors, or melted insulation). Verify the status LED (green = normal, red = fault) shows no active errors.
- Weekly Temperature Monitoring: Use an infrared thermometer to measure the transformer’s surface temperature during peak operation—ensure it remains below 90°C (critical for winding insulation longevity).
- Monthly Cleaning: Remove dust from the board and control cabinet using low-pressure compressed air—dust buildup blocks heat dissipation and accelerates component aging. Avoid liquid cleaners or abrasive tools.
- Quarterly Wiring Inspection: Inspect power and control cables for fraying, insulation damage, or corrosion—tighten terminals or replace cables with genuine Otis-compatible wires from Nanjing Zhuye if needed.
- Semi-Annual Component Check: Visually inspect capacitors and transformer windings for swelling, leakage, or discoloration—these are early indicators of component failure. Verify voltage regulation accuracy using diagnostic software.
Recommended Replacement Cycle
The service life of the Otis ABA26800SY1 Inverter Transformer Board depends on power load intensity, environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours daily use, regular cleaning, ambient temperature -10°C to +60°C), the ABA26800SY1 should be replaced every 8–10 years. This timeframe aligns with the typical lifespan of transformer windings (10–12 years) and electrolytic capacitors, ensuring proactive replacement before power conversion efficiency degrades or component failure occurs.
2. Signs That Require Immediate Replacement
Replace the transformer board immediately if:
- Power Instability: DC output voltages fluctuate beyond specified ranges, causing inverter malfunctions, control circuit errors, or elevator jitter.
- Thermal Overload: Transformer surface temperature exceeds 110°C, or the board repeatedly triggers thermal protection—risks winding insulation breakdown or fire.
- Physical Damage: Cracked PCB, leaking capacitors, burned transformer windings, or water intrusion—poses safety hazards and renders the board inoperable.
- Persistent Fault Codes: The main control system displays “Transformer Board Fault,” “Voltage Instability,” or “Power Conversion Error” codes that cannot be resolved by wiring adjustments or maintenance.
- Safety Compromise: Fails to supply power to safety circuits (e.g., emergency stop, door interlocks)—violates EN 81-20/50 and local safety regulations.
3. Maintenance to Extend Service Life
- Environmental Control: Keep the machine room clean, dry, and well-ventilated. Maintain temperature between 15°C–45°C and humidity <75%—extreme heat or moisture accelerates transformer aging and capacitor degradation.
- Power Stabilization: Install external surge protectors and voltage regulators to shield the board from grid fluctuations and transients—reduces stress on internal components.
- Heat Dissipation Optimization: Ensure control cabinet fans are functional and air vents unobstructed. Upgrade to forced-air cooling if transformer temperature consistently exceeds 80°C.
- Genuine Parts Only: Use exclusively authentic Otis ABA26800SY1 boards from Nanjing Zhuye. Counterfeit units use low-quality transformers, lack proper protection circuits, and risk catastrophic elevator failures.
Why Choose Nanjing Zhuye Elevator Parts for Otis ABA26800SY1?
When sourcing a critical power conversion component like the Otis ABA26800SY1, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:
- Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with Gen2/SkyRise/Compass 360 systems—eliminating power mismatches or inverter conflicts.
- Strict Quality Assurance: Each board undergoes rigorous testing (voltage stability, power conversion efficiency, thermal resistance, protection function reliability) to meet Otis’ original manufacturing and safety standards.
- Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring configuration, troubleshooting, and compatibility verification—even for legacy Otis models.
- Global Efficient Delivery: Fast shipping minimizes downtime, critical for high-traffic facilities where transformer board failures disrupt elevator operation and passenger safety.
- Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.
Conclusion
The Otis Elevator Inverter Transformer Board ABA26800SY1 is a foundational power conversion component that ensures stable, efficient power supply to Otis’ inverter-driven elevators—safeguarding operational reliability, energy efficiency, and passenger safety. By following proper installation, testing, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can extend the board’s lifespan, reduce downtime, and maintain regulatory compliance. Whether you need a single replacement board, bulk orders for a building fleet, or technical support for complex inverter systems, Nanjing Zhuye delivers premium Otis parts and tailored professional services. Invest in elevator power conversion reliability and safety—choose Nanjing Zhuye for your ABA26800SY1 inverter transformer board needs.
