Description

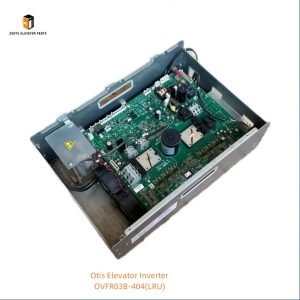

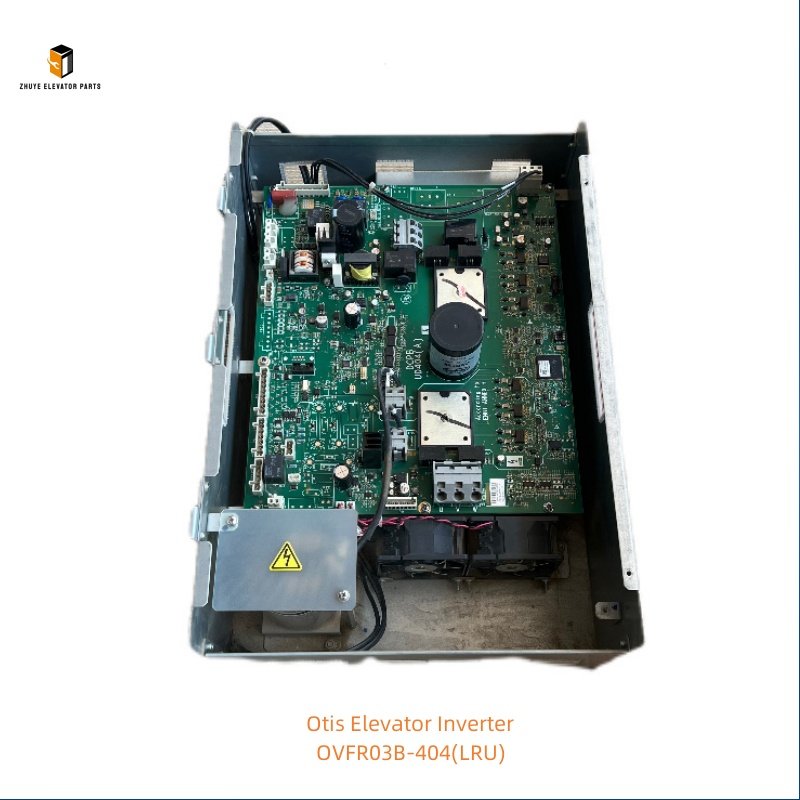

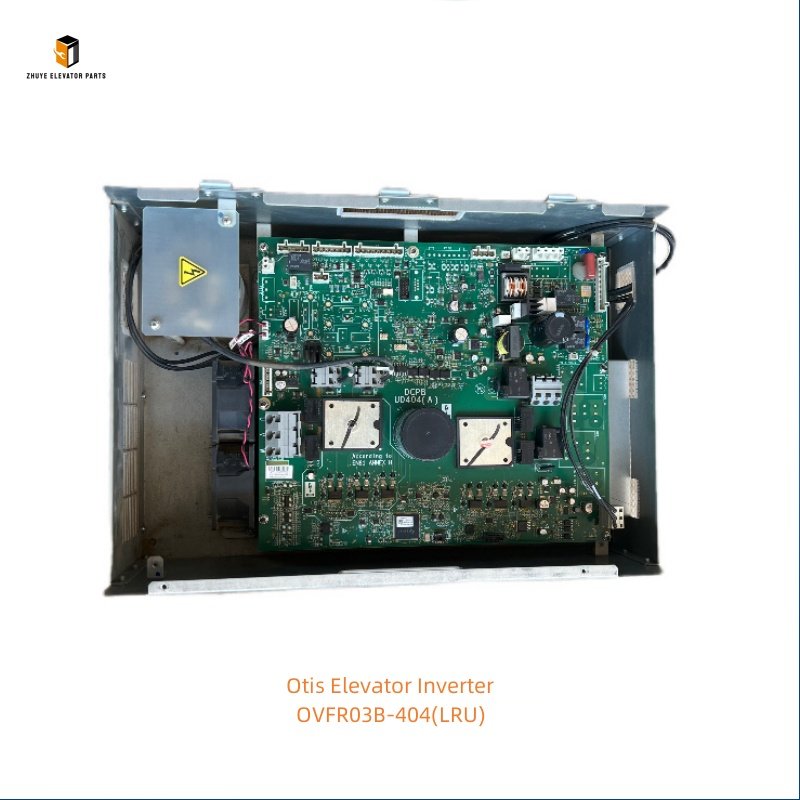

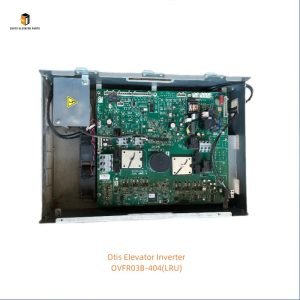

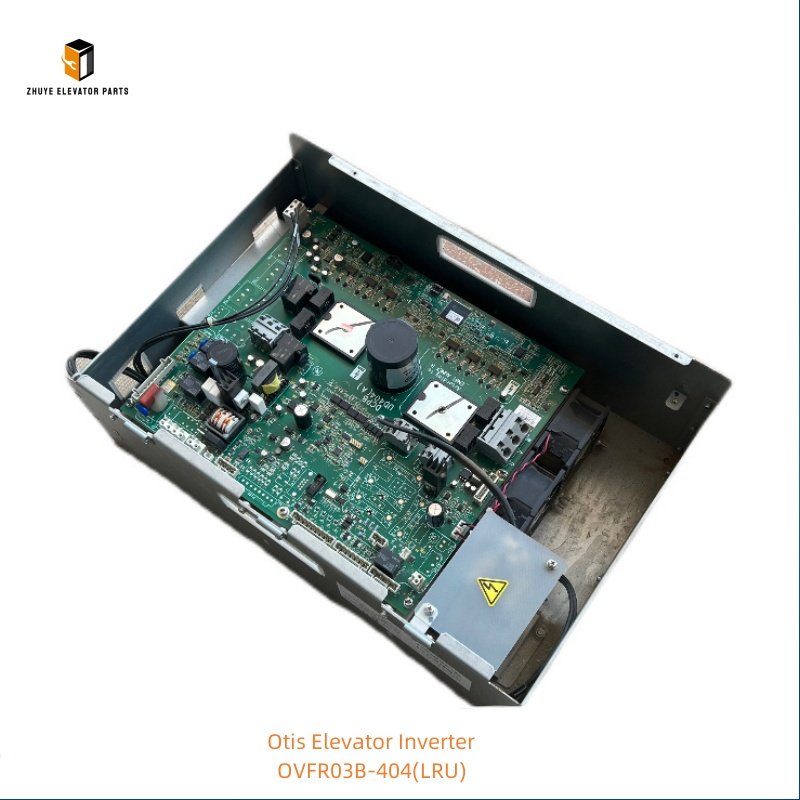

Otis Elevator Inverter OVFR03B-404(LRU) Brief Introduction

Product Name	Otis Elevator Inverter

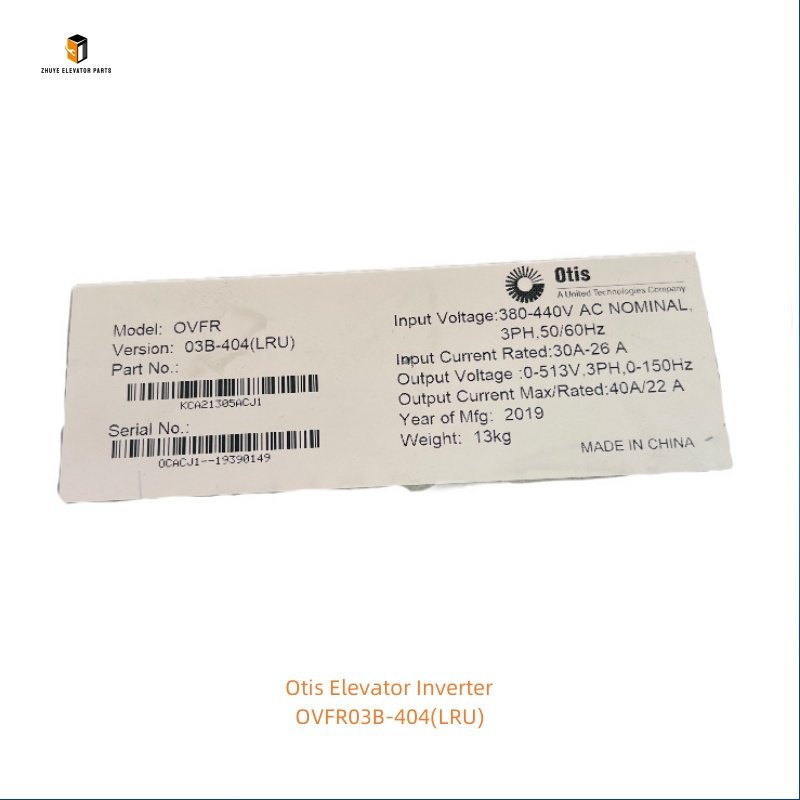

Model Number	OVFR03B-404(LRU) KCA21305ACJ1
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator Inverter OVFR03B-404(LRU): Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Inverter OVFR03B-404(LRU) is a premium drive component designed as a Line Replaceable Unit (LRU) for Otis elevator traction systems—widely deployed in commercial high-rises, residential towers, and public transit facilities. As the “power brain” of the elevator, this variable frequency drive (VFD) converts fixed-frequency AC power to variable-frequency AC, enabling precise control of traction motor speed, torque, and regenerative braking. Compliant with global safety and electronic standards (EN 81, ASME A17.1, IEC 61800, ISO 9001), it features a compact, modular design: advanced IGBT power modules, built-in PLC functionality, anti-interference circuitry, and intelligent thermal management to withstand 24/7 operation and harsh machine room environments. The LRU design allows for quick, tool-free replacement—minimizing downtime during maintenance. For maintenance teams, facility managers, and property operators, mastering the correct installation, configuration, and replacement timelines of the OVFR03B-404(LRU) is vital to ensure smooth elevator operation, energy efficiency, and safety compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the OVFR03B-404(LRU) that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility, reliable performance, and long-term durability.

Proper Usage Methods of Otis Elevator Inverter OVFR03B-404(LRU)

1. Pre-Installation Preparation

Before installing the OVFR03B-404(LRU), prioritize safety by shutting off the elevator’s main power supply and securing the inverter cabinet with a lockout tag. Inspect the LRU inverter for physical damage—such as cracked housing, loose connectors, damaged cooling fans, or burn marks on power modules—defects that can cause short circuits, drive failures, or motor malfunctions. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each unit arrives in optimal condition: intact IGBT modules, functional cooling systems, pre-loaded Otis firmware, and pre-tested electrical continuity. Additionally, verify compatibility with your Otis elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the inverter’s voltage rating (typically 380V AC three-phase), current capacity, and communication protocol (e.g., CAN bus) match your traction motor and controller requirements.

2. Installation & Configuration Steps

LRU Replacement Installation:
- Access the inverter cabinet (located in the machine room) and locate the old inverter unit. Disconnect the power cables (L1, L2, L3 input; U, V, W output) and communication cables—label cables to ensure correct reconnection. Release the LRU locking mechanism (typically quick-release latches) and remove the old unit.
- Align the OVFR03B-404(LRU) with the cabinet’s guide rails and slide it into place until it locks securely. Reconnect the power and communication cables to the corresponding terminals, matching the labeled connections to avoid phase or polarity errors. Ensure cables are routed neatly to prevent interference with cooling fans.
Configuration Setup:
- Power on the inverter cabinet and confirm the OVFR03B-404(LRU) initializes correctly (LED status indicator illuminates green). Access the configuration menu via Otis-approved diagnostic software (by certified technicians):
  - Parameter Restoration: If replacing an existing unit, restore parameters from a backup (saved from the old inverter) to ensure consistency with elevator system settings. Alternatively, load default parameters for your Otis model (provided by Nanjing Zhuye or Otis).
  - Critical Parameter Setup: Verify key parameters: rated motor speed, acceleration/deceleration time (typically 1–2 seconds), current limit thresholds, and regenerative braking intensity. Adjust as needed to match the elevator’s performance requirements.
  - Communication Sync: Ensure the inverter communicates seamlessly with the elevator main controller—verify data exchange for speed commands, motor status, and fault notifications.
Functional Testing:
- Conduct comprehensive tests (by certified technicians only):
  - Basic Operation: Operate the elevator through ascending/descending cycles at varying speeds to confirm smooth speed regulation, minimal motor noise, and no jitter.
  - Load Capacity Test: Run the elevator with a simulated full load (100% of rated capacity) to ensure the inverter maintains stable current output and torque control.
  - Regenerative Braking Test: Verify energy recovery during deceleration—confirm the inverter feeds excess energy back to the power grid (if enabled) to reduce energy consumption.
  - Protective Function Test: Simulate fault conditions (e.g., overcurrent, overvoltage, overheating) to confirm the inverter triggers a safe shutdown and logs fault codes for troubleshooting.
- Document test results in maintenance records to demonstrate compliance with safety and performance standards.

3. Routine Usage Maintenance

To preserve the OVFR03B-404(LRU)’s performance and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for loose cables, damaged cooling fans, or debris accumulation around the inverter. Remove dust from the housing and cooling vents with compressed air—clogged vents cause overheating.
Monthly Functional Checks: Use diagnostic software to monitor inverter parameters (current, voltage, temperature) and verify stability. Document any anomalies (e.g., fluctuating current, overheating alerts) for troubleshooting.
Quarterly Cable Inspections: Inspect power and communication cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
Semi-Annual Cooling System Maintenance: Clean or replace cooling fans (if necessary) to ensure efficient heat dissipation. Check fan operation by listening for abnormal noises during inverter operation.
Annual Firmware Updates: Update the inverter’s firmware (as recommended by Otis or Nanjing Zhuye) to address software bugs, enhance compatibility with system upgrades, and improve energy efficiency algorithms.

Recommended Replacement Cycle

The service life of the Otis Elevator Inverter OVFR03B-404(LRU) depends on operating conditions (power stability, load intensity, machine room environment), usage intensity, and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (stable input voltage, regular maintenance, dry machine room), the OVFR03B-404(LRU) should be replaced every 7–9 years. This timeframe accounts for gradual degradation of IGBT modules, capacitor aging, and firmware obsolescence—ensuring the inverter maintains energy efficiency, precise speed control, and compatibility with elevator system upgrades. The LRU design allows for proactive replacement without extensive downtime.

2. Signs That Require Immediate Replacement

Replace the inverter immediately if you encounter any of the following issues:

Drive System Malfunctions: Erratic elevator movement, uneven speed regulation, delayed acceleration/deceleration, or failure to reach rated speed—despite parameter resets and cable checks.
Persistent Fault Codes: Unresolvable overcurrent, overvoltage, overheating, or communication errors—confirmed via diagnostic software—even after firmware updates and cooling system maintenance.
Physical Damage: Cracked housing, water intrusion, burned IGBT modules, or non-functional cooling fans that cannot be repaired.
Thermal Issues: The inverter triggers frequent overheating alerts, or the housing becomes excessively hot (≥90°C) during normal use—indicating cooling system failure or internal component degradation.
Energy Efficiency Drop: A significant increase in energy consumption (≥20% compared to baseline) due to reduced inverter efficiency.

3. Maintenance to Extend Service Life

To maximize the OVFR03B-404(LRU)’s lifespan and minimize replacement costs:

Stabilize Input Voltage: Install industrial-grade surge protectors and voltage regulators in the main power line to shield the inverter from voltage spikes or sags—common causes of IGBT damage.
Ensure Proper Ventilation: Maintain the machine room temperature between 15–30°C and humidity between 30–60%. Ensure the inverter cabinet’s cooling system (fans, vents) is unobstructed.
Maintain Motor Health: Properly lubricate and align the traction motor to reduce load on the inverter. Faulty mechanical components increase stress on IGBT modules and capacitors.
Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis components from Nanjing Zhuye. Counterfeit inverters lack Otis’s quality control, firmware compatibility, and safety features—compromising performance and safety.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Otis Elevator Inverter OVFR03B-404(LRU), Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:

Authenticity & LRU Compatibility: All OVFR03B-404(LRU) units are manufactured to Otis’s original specifications, ensuring seamless integration with Otis traction systems and compliance with global safety/electronic standards. The LRU design guarantees quick, tool-free replacement.
Strict Quality Assurance: Each unit undergoes rigorous testing—including power conversion accuracy, load capacity verification, thermal performance, and protective function validation—to guarantee reliable operation in critical elevator systems.
Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from LRU installation and parameter configuration to troubleshooting inverter-specific issues (e.g., fault codes, overheating) in Otis elevators.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers LRU components promptly worldwide—minimizing elevator downtime during replacement (critical for high-traffic buildings).
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—ideal for bulk orders or fleet maintenance requiring LRU convenience.

Conclusion

The Otis Elevator Inverter OVFR03B-404(LRU) represents the gold standard in elevator drive technology, combining precise control, energy efficiency, and LRU convenience to minimize maintenance downtime. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you ensure your Otis elevators remain compliant, efficient, and reliable. Whether you need a single LRU replacement or bulk orders for a building fleet, Nanjing Zhuye delivers premium Otis inverters and tailored support. Invest in drive system excellence—choose Nanjing Zhuye Elevator Parts for your Otis OVFR03B-404(LRU) inverter requirements.
