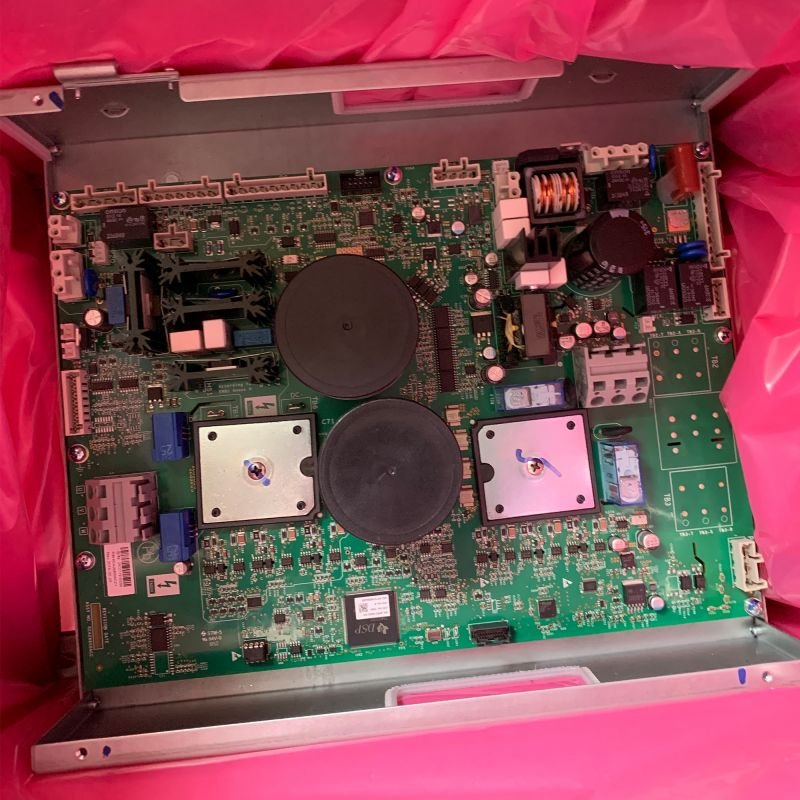

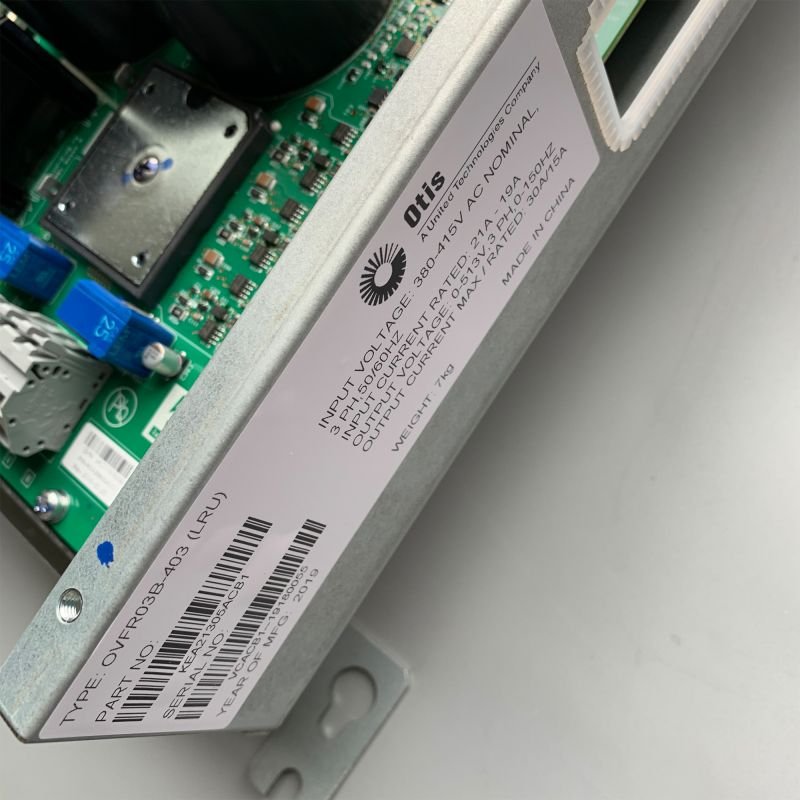

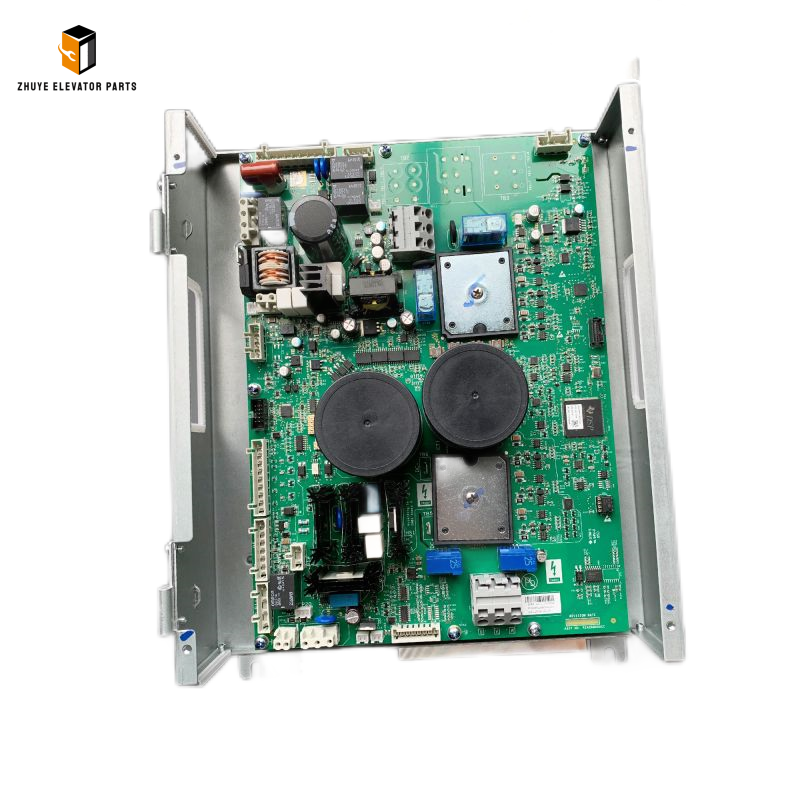

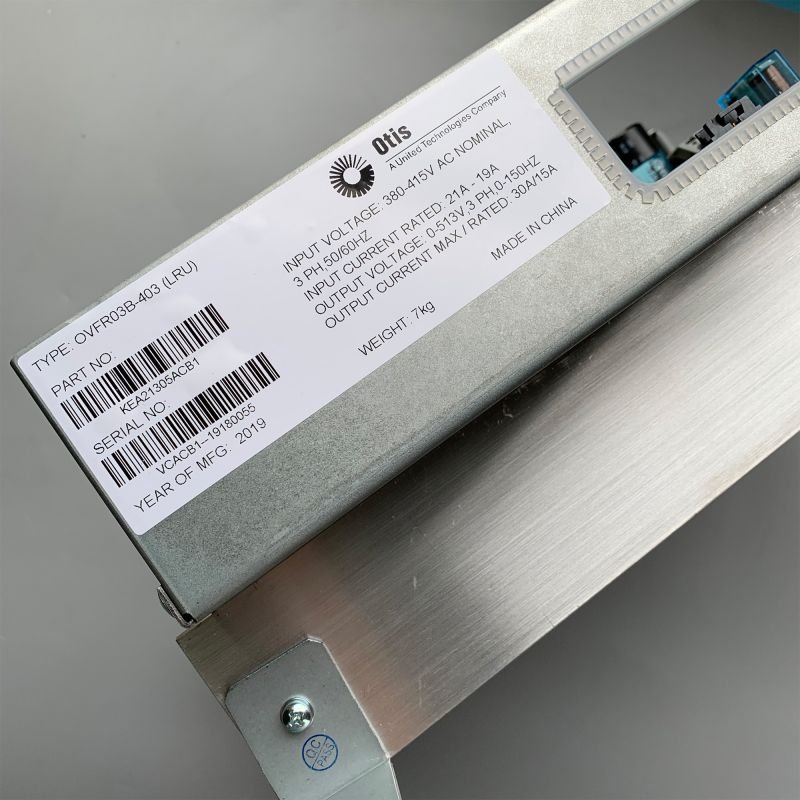

Otis elevator inverter OVFR03B-403(LRU) KEA21305ACB5 Brief Introduction

Product Name	Otis elevator inverter OVFR03B-403(LRU)
Model Number	KEA21305ACB1 KEA21305ACB2 KEA21305ACB3 KEA21305ACB4 KEA21305ACB5 KEA21305ACB6 KEA21305ACB7 KEA21305ACB8 KEA21305ACB9
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator Inverter OVFR03B-403(LRU) KEA21305ACB5: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Inverter OVFR03B-403(LRU) KEA21305ACB5 is a mission-critical power conversion system exclusively engineered for Otis LRU (Life-cycle Replacement Unit) elevator platforms—including GEN2, Sigma, and Series 400 models. Essential for high-traffic commercial high-rises, transit hubs, and luxury residential buildings worldwide, this inverter converts fixed AC mains voltage into variable-frequency AC power to control traction motor speed, enabling smooth acceleration/deceleration, precise floor leveling (deviation ≤±2mm), and up to 35% energy savings compared to conventional non-inverter drives. It integrates Otis’ proprietary OVFR03B control algorithm, high-efficiency IGBT (Insulated Gate Bipolar Transistor) modules, and real-time motor feedback calibration—upholding the brand’s strict standards for reliability, energy efficiency, and operational safety.

Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61800-5-1, UL 1012, ISO 9001), the KEA21305ACB5 features a rugged, modular design: powder-coated steel enclosure for mechanical protection, integrated heat sink with forced-air cooling (ensures stable operation at high loads), conformal-coated internal PCBs (resists dust and moisture), and multi-layer protection mechanisms (overvoltage, overcurrent, short-circuit, overtemperature, ground fault, and under-voltage lockout). This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +60°C), mechanical vibration, and electrical grid instability—critical for preventing motor damage, elevator jitter, or unexpected shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the KEA21305ACB5 that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility with LRU elevator systems, stable motor control, and long-term performance.

Proper Usage Methods of Otis KEA21305ACB5 Inverter

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging the inverter’s internal DC bus capacitors (wait a minimum of 20 minutes after power-off to avoid electric shock), and securing the work area (machine room inverter cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new KEA21305ACB5 for physical damage—dented enclosure, damaged cooling fans, loose terminal blocks, swollen capacitors, or corrosion on power connections—defects that can cause short circuits, IGBT burnout, or inverter failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact modular components, functional cooling systems, secure internal wiring, and pre-loaded Otis-compatible firmware.

Verify compatibility with your Otis LRU elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the inverter’s power rating (typically 15kW–30kW for OVFR03B-403) matches the traction motor’s specifications, (2) the communication protocol (Modbus RTU/CANopen) is compatible with the elevator’s main control board, and (3) the mounting dimensions (600x400x250mm standard) fit the machine room’s inverter cabinet. Using an incompatible inverter can damage the motor, trigger persistent system faults, or cause erratic elevator movement. Additionally, prepare the installation area: Clean the inverter cabinet to remove dust and debris, ensure a minimum 15cm clearance around the unit for airflow (critical for cooling), and verify the mains input cable and motor output cables are intact (no fraying, insulation damage, or corrosion).

2. Installation & Configuration Steps

Inverter Installation: Position the KEA21305ACB5 in the designated cabinet, ensuring alignment with mounting brackets. Secure the unit with stainless steel bolts (torque to 4.5–5.5 Nm) to prevent vibration-induced movement—loose mounting can damage internal components or disrupt cooling. Connect the cabinet’s grounding cable to the inverter’s earth terminal (green/yellow) to ensure electrical safety.
Wiring & Connection: Connect the three-phase mains input cables (L1/L2/L3) to the inverter’s power input terminals, ensuring tight connections (torque to 3.0–3.5 Nm) to prevent arcing or overheating. Connect the motor output cables (U/V/W) to the corresponding terminals—note that cable order directly impacts motor direction (adjust only if testing confirms reverse movement). Connect the control signal cable to the elevator’s main control board, matching pin assignments exactly per Otis’ wiring schematic (incorrect pin connections are the leading cause of post-installation faults).
Post-Installation Configuration & Testing: Restore power to the inverter (performed exclusively by certified Otis technicians) and configure parameters via the inverter’s built-in keypad or Otis’ diagnostic software (e.g., OTIS Service Tool). Input critical settings: motor rated voltage/current/frequency, acceleration/deceleration time (per elevator load capacity), PWM (Pulse Width Modulation) frequency (typically 8kHz), and protection thresholds—use values from the elevator’s technical manual or backup parameter files. Conduct three mandatory tests:
1. No-Load Test: Run the elevator without passengers to verify smooth motor operation, no abnormal noise (e.g., humming, grinding), and no inverter fault codes.
2. Load Test: Operate the elevator with rated load (up to 100% capacity) to confirm stable speed regulation, precise floor leveling, and inverter temperature ≤75°C.
3. Protection Function Test: Simulate an overcurrent (temporary motor short-circuit) or overvoltage (grid spike) to confirm the inverter triggers immediate protection and shuts down output—preventing motor or inverter damage.

  Document all installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Otis’ service requirements and safety regulations.

3. Routine Usage Maintenance

To preserve the KEA21305ACB5’s performance and extend its lifespan, implement proactive maintenance practices tailored to variable-frequency drives:

Daily Visual Inspections: Check the inverter for loose wiring, physical damage, or signs of overheating (discoloration of enclosure, burning odors, or abnormal fan noise). Verify the status display shows no active fault codes (e.g., “OH” for overheat, “OC” for overcurrent).
Weekly Cooling System Check: Clean dust from the inverter’s air intake grilles and cooling fan using a soft brush or low-pressure compressed air—dust buildup blocks airflow and causes overheating. Ensure the cooling fan operates smoothly without jamming.
Monthly Parameter Verification: Use diagnostic software to review inverter parameters—confirm no unintended changes (e.g., due to electrical interference) and back up settings to a secure location.
Quarterly Connection Inspections: Tighten mains input and motor output terminal screws (vibration can loosen connections over time). Inspect control signal cables for fraying or insulation damage; replace with genuine Otis cables from Nanjing Zhuye if needed.
Semi-Annual IGBT & Capacitor Health Check: Use a multimeter to test IGBT module continuity and DC bus capacitor voltage retention—replace the inverter if components show signs of degradation (e.g., inconsistent resistance, rapid voltage discharge).

Recommended Replacement Cycle

The service life of the Otis OVFR03B-403(LRU) Inverter KEA21305ACB5 depends on usage intensity (daily operating hours, load frequency), environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -10°C to +60°C), the KEA21305ACB5 should be replaced every 8–10 years. This timeframe aligns with the typical lifespan of IGBT modules and DC bus capacitors in high-power inverter applications, ensuring proactive replacement before component degradation leads to unexpected failures.

2. Signs That Require Immediate Replacement

Replace the inverter immediately if:

Inverter Failures: The unit displays persistent fault codes (e.g., “IGBT Fault,” “Overheat,” “Communication Loss”) that cannot be resolved by parameter adjustment, cooling system cleaning, or wiring checks.
Motor Malfunctions: The traction motor runs erratically, jitters, or fails to start—indicating unstable power output from the inverter.
Electrical Damage: Burned terminals, melted wires, or visible internal component damage (via inspection window)—signaling short circuits or overload.
Performance Degradation: Elevator acceleration/deceleration becomes rough, leveling accuracy decreases (>±5mm), or energy consumption spikes (indicating reduced efficiency).
Safety Compromise: The inverter fails to trigger protection functions, risking motor burnout or elevator instability—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Maintain the machine room at 10°C–45°C with humidity <80%—extreme temperatures or moisture accelerate component aging. Install additional ventilation if the inverter cabinet is enclosed.
Power Stabilization: Install external surge protectors and voltage regulators in the main power circuit to shield the inverter from grid spikes and fluctuations.
Cooling System Care: Replace the cooling fan every 3–4 years (regardless of operation status) to ensure reliable heat dissipation. Use only Otis-approved fans from Nanjing Zhuye.
Genuine Parts Only: Use exclusively authentic Otis KEA21305ACB5 inverters from Nanjing Zhuye. Counterfeit units use inferior components, lack Otis’ safety algorithms, and risk catastrophic elevator failure.

Why Choose Nanjing Zhuye Elevator Parts for Otis KEA21305ACB5?

When sourcing a critical power conversion component like the Otis OVFR03B-403(LRU) inverter, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with LRU elevator systems and main control boards—eliminating compatibility risks.
Strict Quality Assurance: Each inverter undergoes rigorous testing (power conversion efficiency, IGBT performance, protection function reliability) to meet Otis’ original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, troubleshooting, and maintenance—even for complex inverter systems.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where inverter failures disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Otis Elevator Inverter OVFR03B-403(LRU) KEA21305ACB5 is a foundational power conversion system that defines elevator performance, energy efficiency, and safety. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Otis LRU elevators downtime-free, compliant with global safety standards, and optimized for cost savings. Whether you need a single replacement inverter, technical support for system upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium Otis components and tailored professional services. Invest in the reliability and efficiency of your Otis elevators—choose Nanjing Zhuye Elevator Parts for your KEA21305ACB5 inverter requirements.
